MBR130, NRVB130
Schottky Power Rectifier,
Surface Mount
1.0 A, 30 V, SOD-123 Package
This device uses the Schottky Barrier principle with a large area
metal−to−silicon power diode. Ideally suited for low voltage, high
frequency rectification or as free wheeling and polarity protection
diodes in surface mount applications where compact size and weight
are critical to the system. This package also provides an easy to work
with alternative to leadless 34 package style.
Features
•
•
•
•
•
•
•
•
http://onsemi.com
SCHOTTKY BARRIER
RECTIFIER
1.0 AMPERES
30 VOLTS
Guardring for Stress Protection
Low Forward Voltage
125°C Operating Junction Temperature
Epoxy Meets UL 94 V−0 @ 0.125 in
Package Designed for Optimal Automated Board Assembly
ESD Rating:
♦ Human Body Model = 3
♦ Machine Model = C
NRVB Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC-Q101
Qualified and PPAP Capable
These are Pb−Free Packages*
SOD−123
CASE 425
STYLE 1
MARKING DIAGRAM
1
Mechanical Characteristics
•
•
•
•
•
•

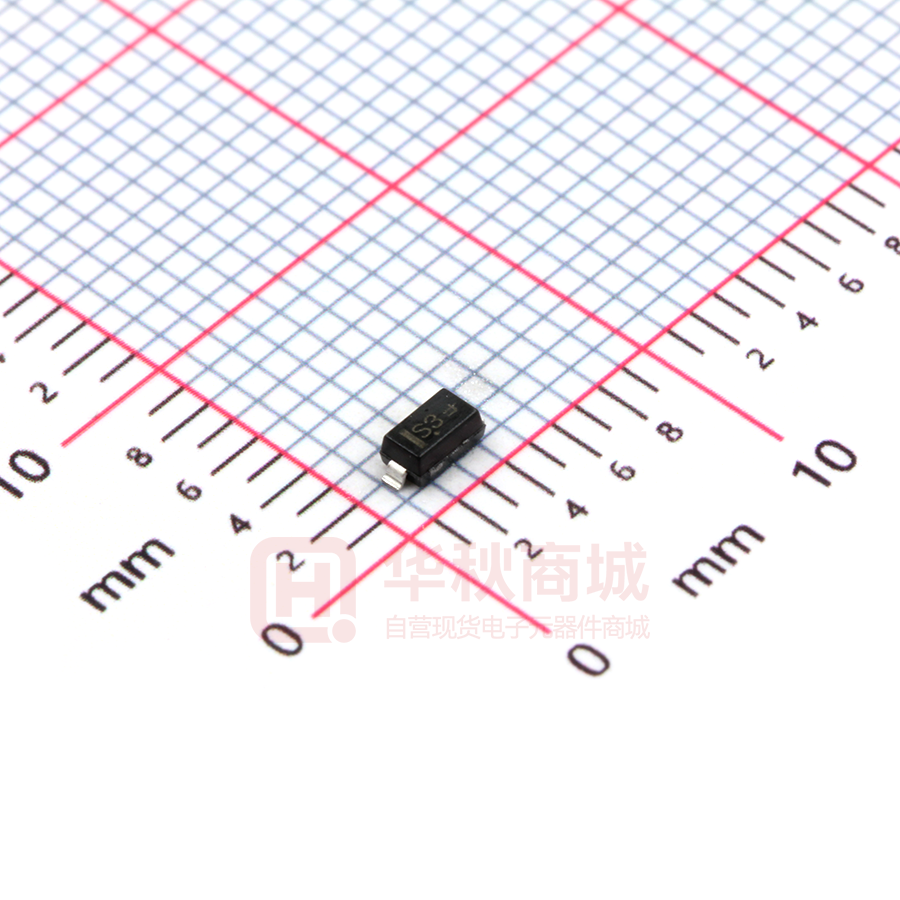

Device Marking: S3
Polarity Designator: Cathode Band
Weight: 11.7 mg (approximately)
Case: Epoxy, Molded
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
S3
M
G
S3 MG
G
= Specific Device Code
= Date Code
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Package
Shipping†
MBR130T1G,
NRVB130T1G
SOD−123
(Pb−Free)
3,000 /
Tape & Reel **
MBR130T3G,
NRVB130T3G
SOD−123
(Pb−Free)
10,000 /
Tape & Reel ***
Device
** 8 mm Tape, 7” Reel
*** 8 mm Tape, 13” Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
© Semiconductor Components Industries, LLC, 2014
April, 2013 − Rev. 5
1
Publication Order Number:
MBR130T1/D
MBR130, NRVB130
MAXIMUM RATINGS
Symbol
Value
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Rating
VRRM
VRWM
VR
30
V
Average Rectified Forward Current
(Rated VR) TL = 65°C
IF(AV)
Non−Repetitive Peak Surge Current
(Surge Applied at Rated Load Conditions, Halfwave, Single Phase, 60 Hz)
IFSM
Storage Temperature Range
Tstg
−65 to +125
°C
Operating Junction Temperature
TJ
−65 to +125
°C
dv/dt
1000
V/ms
A
1.0
A
5.5
Voltage Rate of Change (Rated VR)
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
THERMAL CHARACTERISTICS
Characteristic
Symbol
Value
Unit
Thermal Resistance, Junction to Ambient (Note 1)
RθJA
230
°C/W
Thermal Resistance, Junction to Lead (Note 1)
RθJL
108
°C/W
Typ
Max
Unit
−
−
0.47
0.35
0.45
−
1. FR−4 or FR−5 = 3.5 × 1.5 inches using a 1 inch Cu pad.
ELECTRICAL CHARACTERISTICS
Characteristic
Symbol
Instantaneous Forward Voltage (Note 2)
(IF = 0.1 A, TJ = 25°C)
(IF = 0.7 A, TJ = 25°C)
(IF = 1.0 A, TJ = 25°C)
VF
Maximum Instantaneous Reverse Current (Note 2)
(Rated DC Voltage, TC = 25°C)
(VR = 5 V, TC = 25°C)
IR
V
mA
60
10
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
2. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2%.
http://onsemi.com
2
MBR130, NRVB130
10
IF, INSTANTANEOUS FORWARD
CURRENT (AMPS)
IF, INSTANTANEOUS FORWARD
CURRENT (AMPS)
10
1
TJ = 125°C
75°C
0.1
0.2 0.25
0.3
0.35
25°C
0.4
0.45 0.5
0.55
0.6
1
TJ = 125°C
75°C
0.1
0.65
0.2 0.25
VF, INSTANTANEOUS FORWARD VOLTAGE (VOLTS)
0.4
0.45 0.5
0.55
0.6 0.65
Figure 2. Typical Forward Voltage
0.01
200
TJ = 125°C
180
0.001
C, CAPACITANCE (pF)
IR, REVERSE CURRENT (AMPS)
0.35
VF, INSTANTANEOUS FORWARD VOLTAGE (VOLTS)
Figure 1. Maximum Forward Voltage
75°C
0.0001
0.00001
25°C
0.000001
160
140
120
100
80
60
40
20
0.0000001
0
5
10
15
20
25
VR, REVERSE VOLTAGE (VOLTS)
30
0
0
Figure 3. Typical Reverse Current
1.8
1.6
dc
1.4
RATED
VOLTAGE
APPLIED
1.2
SQUARE
WAVE
1
0.8
0.6
0.4
0.2
0
0
20
40
60
80
100
TL, LEAD TEMPERATURE (°C)
5
10
15
20
25
30
VR, REVERSE VOLTAGE (VOLTS)
35
Figure 4. Typical Capacitance
PF(AV), AVERAGE FORWARD POWER
DISSIPATION (WATTS)
IF(AV), AVERAGE FORWARD CURRENT (AMPS)
0.3
25°C
120
0.9
0.8
0.7
SQUARE
WAVE
0.6
dc
0.5
0.4
0.3
0.2
0.1
0
0
0.2
0.4
0.6 0.8
1
1.2 1.4 1.6 1.8
IF(AV), AVERAGE FORWARD CURRENT (AMPS)
Figure 6. Forward Power Dissipation
Figure 5. Current Derating, Lead, RqJL = 1085C/W
http://onsemi.com
3
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
SOD−123
CASE 425−04
ISSUE G
DATE 07 OCT 2009
SCALE 5:1
D
A
ÂÂÂÂ
ÂÂÂÂ
ÂÂÂÂ
A1
1
HE
DIM
A
A1
b
c
D
E
HE
L
q
E
2
q
L
b
C
ÉÉÉ
ÉÉÉ
ÉÉÉ
2.36
0.093
4.19
0.165
ÉÉÉ
ÉÉÉ
ÉÉÉ
MILLIMETERS
MIN
NOM
MAX
0.94
1.17
1.35
0.00
0.05
0.10
0.51
0.61
0.71
----0.15
1.40
1.60
1.80
2.54
2.69
2.84
3.56
3.68
3.86
----0.25
--10 °
0°
MIN
0.037
0.000
0.020
--0.055
0.100
0.140
0.010
0°
INCHES
NOM
0.046
0.002
0.024
--0.063
0.106
0.145
-----
MAX
0.053
0.004
0.028
0.006
0.071
0.112
0.152
--10 °
GENERIC
MARKING DIAGRAM*
1
SOLDERING FOOTPRINT*
0.91
0.036
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
XXXMG
G
XXX = Specific Device Code
M
= Date Code
G
= Pb−Free Package
(Note: Microdot may be in either location)
1.22
0.048
*This information is generic. Please refer to device data
sheet for actual part marking. Pb−Free indicator, “G” or
microdot “ G”, may or may not be present.
STYLE 1:
PIN 1. CATHODE
2. ANODE
SCALE 10:1
mm Ǔ
ǒinches
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
DOCUMENT NUMBER:
DESCRIPTION:
98ASB42927B
SOD−123
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 1
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the
rights of others.
© Semiconductor Components Industries, LLC, 2019
www.onsemi.com
