MBR1635, MBR1645,
MBRB1645, NRVBB1645
Switch-mode
Power Rectifiers
16 A, 35 and 45 V
These state−of−the−art devices use the Schottky Barrier principle
with a platinum barrier metal.
http://onsemi.com
Features
•
•
•
•
•
Guard−ring for Stress Protection
Low Forward Voltage
175°C Operating Junction Temperature
NRVB Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
These Devices are Pb−Free and are RoHS Compliant

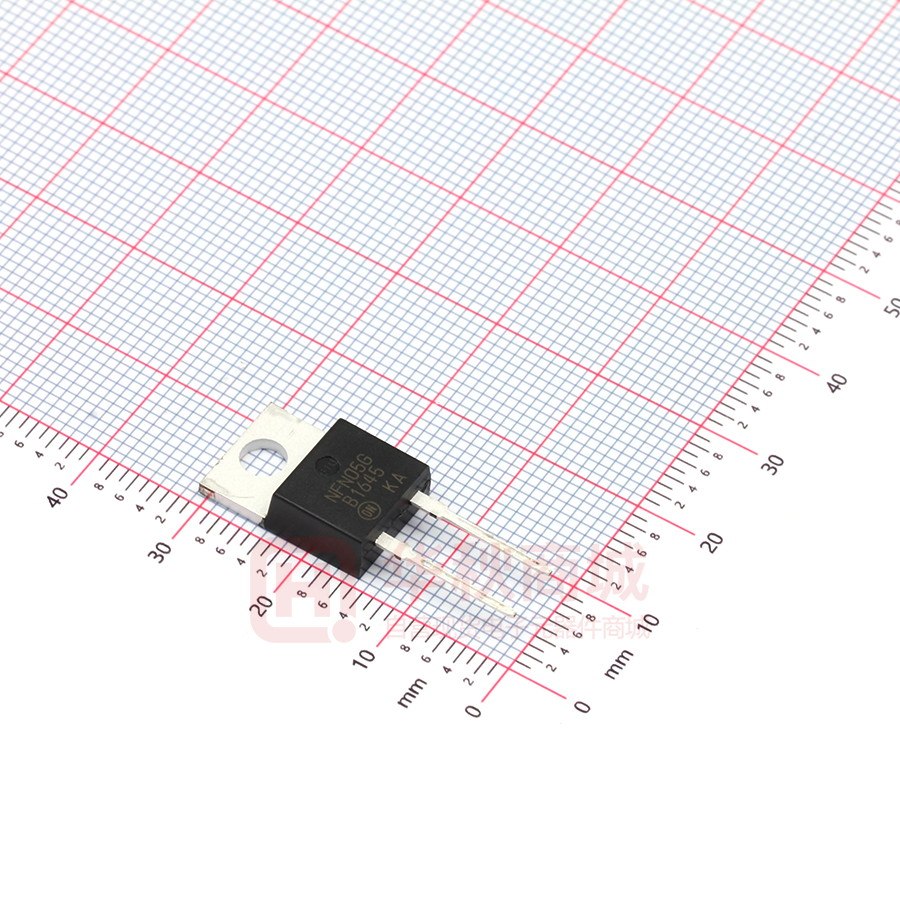

TO−220AC
CASE 221B
PLASTIC
1
Mechanical Characteristics:
• Case: Epoxy, Molded
• Weight: 1.9 Grams for TO−220
•
•
MARKING
DIAGRAMS
4
3
AYWWG
B16x5
KA
1, 4
3
A
Y
WW
B16x5
x
KA
G
1.7 Grams for D2PAK
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
= Assembly Location
= Year
= Work Week
= Device Code
= 3 or 4
= Diode Polarity
= Pb−Free Package
MAXIMUM RATINGS
Rating
Symbol
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
MBR1635
MBR1645
MBRB1645
VRRM
VRWM
VR
Average Rectified Forward Current Delay
(Rated VR, TC = 163°C) Total Device
IF(AV)
Peak Repetitive Forward Current, Per
Leg
(Rated VR, Square Wave,
20 kHz, TC = 157°C) Total Device
IFRM
32
A
Non−Repetitive Peak Surge Current
(Surge Applied at Rated Load Conditions
Halfwave, Single Phase, 60 Hz)
IFSM
150
A
Peak Repetitive Reverse Surge Current
(2.0 ms, 1.0 kHz)
IRRM
1.0
A
Storage Temperature Range
Tstg
−65 to +175
°C
TJ
−65 to +175
°C
dv/dt
10,000
V/ms
Operating Junction Temperature (Note 1)
Voltage Rate of Change (Rated VR)
Value
Unit
V
April, 2014 − Rev. 12
D2PAK
CASE 418B
STYLE 3
B1645G
AYWW
1
35
45
45
1
3
4
3
A
16
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. The heat generated must be less than the thermal conductivity from
Junction−to−Ambient: dPD/dTJ < 1/RqJA.
© Semiconductor Components Industries, LLC, 2014
4
1
B1645
A
Y
WW
G
= Device Code
= Assembly Location
= Year
= Work Week
= Pb−Free Package
ORDERING INFORMATION
Device
Package
Shipping
MBR1635G
TO−220
(Pb−Free)
50 Units / Rail
MBR1645G
TO−220
(Pb−Free)
50 Units / Rail
MBRB1645T4G
D2PAK
(Pb−Free)
800 Units / Rail
NRVBB1645T4G
D2PAK
(Pb−Free)
800 Units / Rail
Publication Order Number:
MBR1635/D
MBR1635, MBR1645, MBRB1645, NRVBB1645
THERMAL CHARACTERISTICS
Characteristic
Maximum Thermal Resistance,
Junction−to−Case
Symbol
Value
Unit
RqJC
1.5
°C/W
Symbol
Value
Unit
ELECTRICAL CHARACTERISTICS
Characteristic
Maximum Instantaneous Forward Voltage (Note 2)
(iF = 16 Amps, TC = 125°C)
(iF = 16 Amps, TC = 25°C)
vF
Maximum Instantaneous Reverse Current (Note 2)
(Rated dc Voltage, TC = 125°C)
(Rated dc Voltage, TC = 25°C)
iR
V
0.57
0.63
mA
40
0.2
2. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%.
http://onsemi.com
2
100
70
1.0E−01
50
1.0E−02
IR, REVERSE CURRENT (A)
TJ = 150°C
TJ = 125°C
30
20
125°C
1.0E−03
100°C
25°C
10
7.0
5.0
1.0E−04
1.0E−05
3.0
2.0
25°C
1.0E−06
1.0E−07
1.0
0.2
0.6
0.4
0.8
0
1.0
10
20
30
40
vF, INSTANTANEOUS FORWARD VOLTAGE (V)
VR, REVERSE VOLTAGE (V)
Figure 1. Typical Forward Voltage
Figure 2. Typical Reverse Current
28
dc
26
24
22
20 SQUARE
18
16
14
12
10
8
6
4
2
0
145
150
50
20
18
IF(AV), AVERAGE FORWARD
CURRENT (A)
0
RqJA = 16°C/W
RqJA = 60°C/W
(No Heat Sink)
dc
16
14
12
10
8
dc
6
4
SQUARE
WAVE
2
0
155
160
165
170
0
175
25
TC, CASE TEMPERATURE (°C)
50
75
SQUARE WAVE
I
(RESISTIVE LOAD) PK + p
I
AV
12
I
PK + 5.0
10 (CAPACITATIVELOAD) I
dc
AV
8.0
10
6.0
20
4.0
TJ = 125°C
2.0
0
0
2.0
4.0
125
150
Figure 4. Current Derating, Ambient
16
14
100
TA, AMBIENT TEMPERATURE (°C)
Figure 3. Current Derating, Case, Per Leg
PF(AVE)
, AVERAGE POWER DISSIPATION (W)
IF(AV), AVERAGE FORWARD
CURRENT (A)
iF, INSTANTANEOUS FORWARD CURRENT (A)
MBR1635, MBR1645, MBRB1645, NRVBB1645
6.0
8.0
10
12
14
16
18
IF(AV), AVERAGE FORWARD CURRENT (A)
Figure 5. Forward Power Dissipation
http://onsemi.com
3
20
175
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
TO−220, 2−LEAD
CASE 221B−04
ISSUE F
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
C
B
Q
SCALE 1:1
F
S
T
DIM
A
B
C
D
F
G
H
J
K
L
Q
R
S
T
U
4
A
1
U
3
H
K
L
R
D
J
G
STYLE 1:
PIN 1.
2.
3.
4.
DOCUMENT NUMBER:
DESCRIPTION:
98ASB42149B
TO−220, 2−LEAD
CATHODE
N/A
ANODE
CATHODE
DATE 12 APR 2013
STYLE 2:
PIN 1.
2.
3.
4.
INCHES
MIN
MAX
0.595
0.620
0.380
0.405
0.160
0.190
0.025
0.039
0.142
0.161
0.190
0.210
0.110
0.130
0.014
0.025
0.500
0.562
0.045
0.060
0.100
0.120
0.080
0.110
0.045
0.055
0.235
0.255
0.000
0.050
MILLIMETERS
MIN
MAX
15.11
15.75
9.65
10.29
4.06
4.82
0.64
1.00
3.61
4.09
4.83
5.33
2.79
3.30
0.36
0.64
12.70
14.27
1.14
1.52
2.54
3.04
2.04
2.79
1.14
1.39
5.97
6.48
0.000
1.27
ANODE
N/A
CATHODE
ANODE
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 1
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the
rights of others.
© Semiconductor Components Industries, LLC, 2019
www.onsemi.com
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
D2PAK 3
CASE 418B−04
ISSUE L
DATE 17 FEB 2015
SCALE 1:1
NOTES:
1. DIMENSIONING AND TOLERANCING
PER ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. 418B−01 THRU 418B−03 OBSOLETE,
NEW STANDARD 418B−04.
C
E
−B−
V
W
4
1
2
A
S
3
−T−
SEATING
PLANE
K
W
J
G
D
DIM
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
V
H
3 PL
0.13 (0.005)
M
T B
M
VARIABLE
CONFIGURATION
ZONE
N
R
P
L
M
STYLE 1:
PIN 1. BASE
2. COLLECTOR
3. EMITTER
4. COLLECTOR
L
M
F
F
F
VIEW W−W
1
VIEW W−W
2
VIEW W−W
3
STYLE 2:
PIN 1. GATE
2. DRAIN
3. SOURCE
4. DRAIN
MILLIMETERS
MIN
MAX
8.64
9.65
9.65 10.29
4.06
4.83
0.51
0.89
1.14
1.40
7.87
8.89
2.54 BSC
2.03
2.79
0.46
0.64
2.29
2.79
1.32
1.83
7.11
8.13
5.00 REF
2.00 REF
0.99 REF
14.60 15.88
1.14
1.40
U
L
M
INCHES
MIN
MAX
0.340 0.380
0.380 0.405
0.160 0.190
0.020 0.035
0.045 0.055
0.310 0.350
0.100 BSC
0.080
0.110
0.018 0.025
0.090
0.110
0.052 0.072
0.280 0.320
0.197 REF
0.079 REF
0.039 REF
0.575 0.625
0.045 0.055
STYLE 3:
PIN 1. ANODE
2. CATHODE
3. ANODE
4. CATHODE
STYLE 4:
PIN 1. GATE
2. COLLECTOR
3. EMITTER
4. COLLECTOR
STYLE 5:
STYLE 6:
PIN 1. CATHODE
PIN 1. NO CONNECT
2. ANODE
2. CATHODE
3. CATHODE
3. ANODE
4. ANODE
4. CATHODE
MARKING INFORMATION AND FOOTPRINT ON PAGE 2
DOCUMENT NUMBER:
DESCRIPTION:
98ASB42761B
D2PAK 3
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 2
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the
rights of others.
© Semiconductor Components Industries, LLC, 2019
www.onsemi.com
D2PAK 3
CASE 418B−04
ISSUE L
DATE 17 FEB 2015
GENERIC
MARKING DIAGRAM*
xx
xxxxxxxxx
AWLYWWG
xxxxxxxxG
AYWW
AYWW
xxxxxxxxG
AKA
IC
Standard
Rectifier
xx
A
WL
Y
WW
G
AKA
= Specific Device Code
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
= Polarity Indicator
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “ G”,
may or may not be present.
SOLDERING FOOTPRINT*
10.49
8.38
16.155
2X
3.504
2X
1.016
5.080
PITCH
DIMENSIONS: MILLIMETERS
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
DOCUMENT NUMBER:
DESCRIPTION:
98ASB42761B
D2PAK 3
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 2 OF 2
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the
rights of others.
© Semiconductor Components Industries, LLC, 2019
www.onsemi.com
onsemi,
, and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates
and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property.
A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any
products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the
information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use
of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products
and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information
provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may
vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license
under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems
or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should
Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Email Requests to: orderlit@onsemi.com
onsemi Website: www.onsemi.com
◊
TECHNICAL SUPPORT
North American Technical Support:
Voice Mail: 1 800−282−9855 Toll Free USA/Canada
Phone: 011 421 33 790 2910
Europe, Middle East and Africa Technical Support:
Phone: 00421 33 790 2910
For additional information, please contact your local Sales Representative
