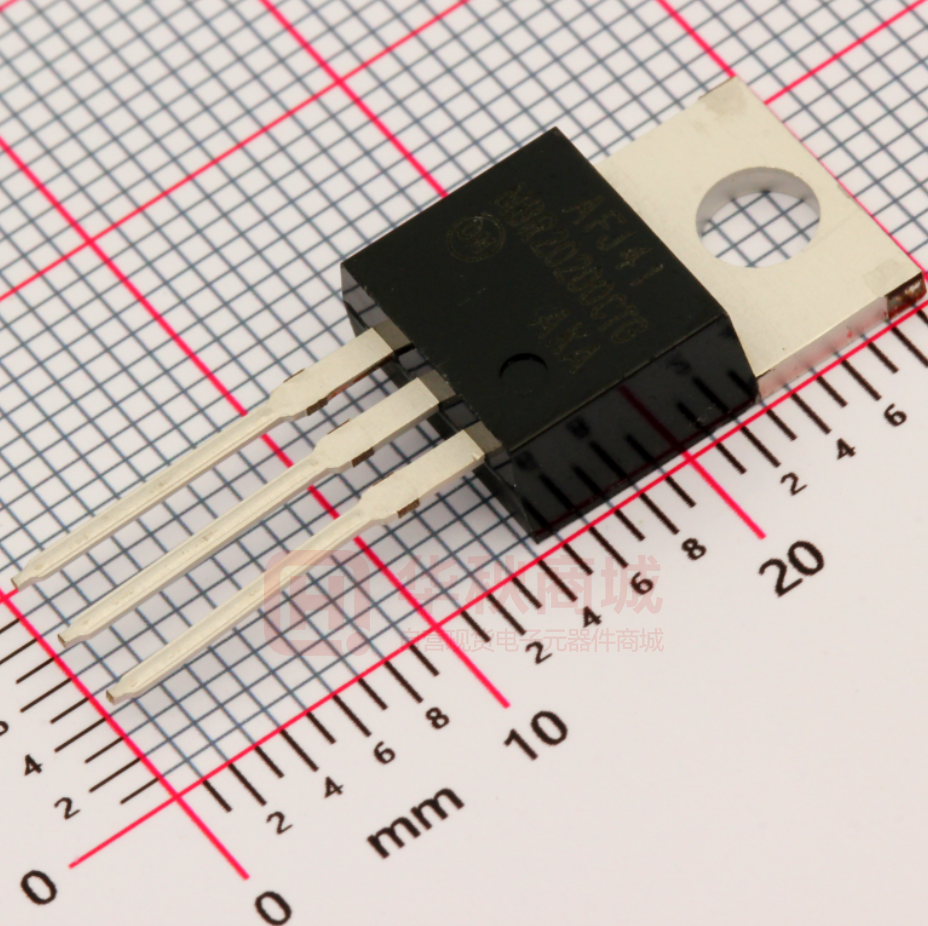

MBR20200CTG

MBR20200CT Switch‐mode Power Rectifier Dual Schottky Rectifier http://onsemi.com Features and Benefits • • • • • • Low Forward Voltage Low Power Loss/High Efficiency High Surge Capacity 175°C Operating Junction Temperature 20 A Total (10 A Per Diode Leg) This is a Pb-Free Device* SCHOTTKY BARRIER RECTIFIER 20 AMPERES, 200 VOLTS 1 2, 4 3 Applications • Power Supply − Output Rectification • Power Management • Instrumentation 4 Mechanical Characteristics • • • • • • Case: Epoxy, Molded Epoxy Meets UL 94, V−0 @ 0.125 in Weight: 1.9 Grams (Approximately) Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable Lead Temperatures for Soldering Purposes: 260°C Max. for 10 Seconds ESD Rating: Human Body Model 3B Machine Model C TO−220 CASE 221A PLASTIC STYLE 6 1 2 3 MARKING DIAGRAM AYWW MBR20200CTG AKA A Y WW G AKA = Assembly Location = Year = Work Week = Pb−Free Package = Diode Polarity ORDERING INFORMATION *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor Components Industries, LLC, 2014 September, 2014 − Rev. 10 1 Device Package MBR20200CTG TO−220 (Pb−Free) Shipping 50 Units / Rail Publication Order Number: MBR20200CT/D MBR20200CT MAXIMUM RATINGS (Per Leg) Rating Symbol Value Unit VRRM VRWM VR 200 V IF(AV) 10 20 A Peak Repetitive Forward Current per Leg (Square Wave, 20 kHz, TC = 158°C) IFRM 20 A Non-Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) IFSM 150 A Peak Repetitive Reverse Surge Current (2.0 ms, 1.0 kHz) IRRM 1.0 A Storage Temperature Range Tstg −65 to +175 °C Operating Junction Temperature TJ −65 to +175 °C dv/dt 10,000 V/ms Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current (TC = 161°C) Per Leg Per Package Voltage Rate of Change (Rated VR) Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. THERMAL CHARACTERISTICS Characteristic Condition Symbol Value Unit Maximum Thermal Resistance, Junction-to-Case Minimum Pad RqJC 2.0 °C/W Maximum Thermal Resistance, Junction-to-Ambient Minimum Pad RqJA 60.0 °C/W ELECTRICAL CHARACTERISTICS (Per Leg) Characteristic Symbol Maximum Instantaneous Forward Voltage (Note 1) (IF = 10 A, TJ = 25°C) (IF = 10 A, TJ = 125°C) (IF = 20 A, TJ = 25°C) (IF = 20 A, TJ = 125°C) VF Maximum Instantaneous Reverse Current (Note 1) (Rated dc Voltage, TJ = 25°C) (Rated dc Voltage, TJ = 125°C) IR Min Typical Max − − − − 0.80 0.66 0.89 0.76 0.90 0.80 1.00 0.90 − − 0.0002 0.4 1.0 50 Unit V mA Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. DYNAMIC CHARACTERISTICS (Per Leg) Characteristic Capacitance (VR = −5.0 V, TC = 25°C, Frequency = 1.0 MHz) 1. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%. http://onsemi.com 2 Symbol Value Unit CT 500 pF MBR20200CT 100 IF, INSTANTANEOUS FORWARD CURRENT (A) 175°C 150°C 125°C 25°C 10 100°C 1 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 IR , REVERSE CURRENT ( μ A) 100°C 25°C 0.5 0.6 0.7 0.8 0.9 1.0 1.1 Figure 1. Typical Forward Voltage Figure 2. Maximum Forward Voltage TJ = 150°C TJ = 125°C 100 TJ = 100°C 10 1 0.1 TJ = 25°C 20 125°C VF, INSTANTANEOUS VOLTAGE (V) 1,000 0 10 VF, INSTANTANEOUS VOLTAGE (V) 10,000 0.01 175°C 150°C 1 0.4 1.1 40 60 80 100 120 140 160 180 200 IF(AV), AVERAGE FORWARD CURRENT (A) IF, INSTANTANEOUS FORWARD CURRENT (A) 100 20 18 dc 16 14 12 SQUARE 10 8 6 4 2 0 140 145 150 155 160 165 170 175 VR, REVERSE CURRENT (V) TC, CASE TEMPERATURE (°C) Figure 3. Typical Reverse Current (Per Leg) Figure 4. Current Derating, Case, Per Leg http://onsemi.com 3 1.2 180 20 PF(AV), AVERAGE POWER DISSIPATION (w) IF(AV), AVERAGE FORWARD CURRENT (A) MBR20200CT RJA = 16°C/W RJA = 60°C/W No Heatsink 18 16 14 12 dc 10 SQUARE WAVE 8 6 4 2 0 0 25 50 75 100 125 150 TA, AMBIENT TEMPERATURE (°C) 26 24 22 20 18 16 14 12 10 8 6 4 2 0 TJ = 175°C SQUARE WAVE dc 0 175 2 Figure 5. Current Derating, Ambient, Per Leg 4 6 8 10 12 14 16 18 20 22 24 26 IF(AV), AVERAGE FORWARD CURRENT (A) Figure 6. Forward Power Dissipation 500 TJ = 25°C C, CAPACITANCE (pF) 400 300 200 100 0 1 2 5 10 20 50 70 100 VR, REVERSE VOLTAGE (V) R(t), TRANSIENT THERMAL RESISTANCE Figure 7. Typical Capacitance (Per Leg) 10 1 0.1 D = 0.5 0.2 0.1 0.05 0.01 P(pk) SINGLE PULSE t1 0.01 t2 DUTY CYCLE, D = t1/t2 0.001 0.000001 0.00001 0.0001 0.001 0.01 0.1 1 t1, TIME (sec) Figure 8. Thermal Response Junction-to-Case http://onsemi.com 4 10 100 1000 MBR20200CT PACKAGE DIMENSIONS TO−220 CASE 221A−09 ISSUE AH −T− B SEATING PLANE C F T S 4 DIM A B C D F G H J K L N Q R S T U V Z A Q 1 2 3 U H K Z L R V NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. DIMENSION Z DEFINES A ZONE WHERE ALL BODY AND LEAD IRREGULARITIES ARE ALLOWED. J G D INCHES MIN MAX 0.570 0.620 0.380 0.415 0.160 0.190 0.025 0.038 0.142 0.161 0.095 0.105 0.110 0.161 0.014 0.024 0.500 0.562 0.045 0.060 0.190 0.210 0.100 0.120 0.080 0.110 0.045 0.055 0.235 0.255 0.000 0.050 0.045 ----0.080 MILLIMETERS MIN MAX 14.48 15.75 9.66 10.53 4.07 4.83 0.64 0.96 3.61 4.09 2.42 2.66 2.80 4.10 0.36 0.61 12.70 14.27 1.15 1.52 4.83 5.33 2.54 3.04 2.04 2.79 1.15 1.39 5.97 6.47 0.00 1.27 1.15 ----2.04 N STYLE 6: PIN 1. 2. 3. 4. ANODE CATHODE ANODE CATHODE ON Semiconductor and the are registered trademarks of Semiconductor Components Industries, LLC (SCILLC) or its subsidiaries in the United States and/or other countries. SCILLC owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 http://onsemi.com 5 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative MBR20200CT/D
