Surface Mount
Schottky Power Rectifier
SMA Power Surface Mount Package
MBRA160, NRVBA160,
NRVBA160N
This device employs the Schottky Barrier principle in a large area
metal−to−silicon power diode. State of the art geometry features
epitaxial construction with oxide passivation and metal overlay
contact. Ideally suited for low voltage, high frequency rectification, or
as free wheeling and polarity diodes in surface mount applications
where compact size and weight are critical to the system.
Features
•
•
•
•
•
•
•
Small Compact Surface Mountable Package with J−Bent Leads
Rectangular Package for Automated Handling
Highly Stable Oxide Passivated Junction
Very Low Forward Voltage Drop
Guard−ring for Stress Protection
NRVBA Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable*
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
www.onsemi.com
SCHOTTKY BARRIER
RECTIFIER
1.0 AMPERES
60 VOLTS

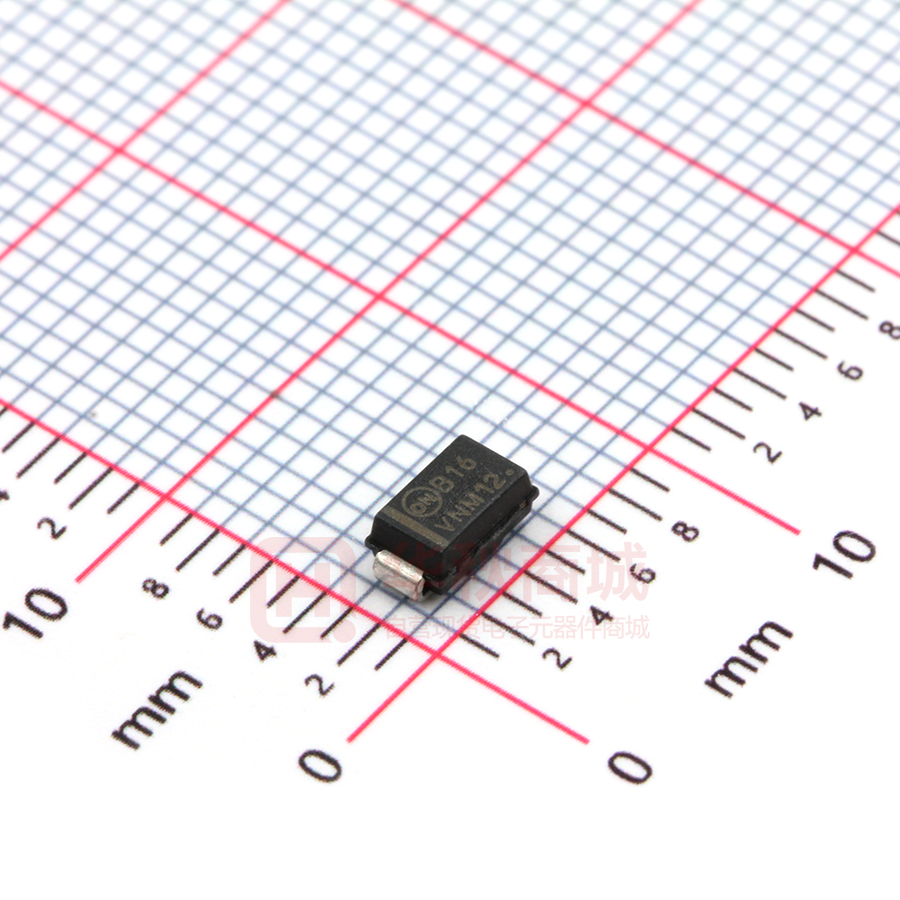

SMA
CASE 403D
MARKING DIAGRAM
B16
AYWW
G
Mechanical Characteristics:
• Case: Epoxy, Molded
• Weight: 70 mg (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
•
•
•
•
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
Shipped in 12 mm tape, 5000 units per 13 inch reel
Polarity: Cathode Lead Indicated by Polarity Band
ESD Ratings:
♦ Machine Model = C
♦ Human Body Model = 3B
B16 = Specific Device Code
A
= Assembly Location**
Y
= Year
WW = Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
**The Assembly Location code (A) is front side
optional. In cases where the Assembly Location is
stamped in the package bottom (molding ejecter pin),
the front side assembly code may be blank.
ORDERING INFORMATION
Device
Package
Shipping†
MBRA160T3G
SMA
(Pb−Free)
5,000 /
Tape & Reel
NRVBA160T3G*
SMA
(Pb−Free)
5,000 /
Tape & Reel
NRVBA160T3G−VF01
SMA
(Pb−Free)
5,000 /
Tape & Reel
NRVBA160NT3G*
SMA
(Pb−Free)
5,000 /
Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
© Semiconductor Components Industries, LLC, 2013
December, 2019 − Rev. 14
1
Publication Order Number:
MBRA160T3/D
MBRA160, NRVBA160, NRVBA160N
MAXIMUM RATINGS
Rating
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Symbol
Value
Unit
VRRM
VRWM
VR
60
V
Average Rectified Forward Current
(At Rated VR, TC = 105°C)
IO
Average Rectified Forward Current
(At Rated VR, TC = 70°C)
IO
Non−Repetitive Peak Surge Current
(Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz)
1.0
2.1
IFSM
Storage/Operating Case Temperature
Operating Junction Temperature (Note 1)
Voltage Rate of Change
(Rated VR, TJ = 25°C)
60
A
A
A
Tstg, TC
−55 to +150
°C
TJ
−55 to +150
°C
dv/dt
10,000
V/ms
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
1. The heat generated must be less than the thermal conductivity from Junction−to−Ambient: dPD/dTJ < 1/RqJA.
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction−to−Lead (Note 2)
Thermal Resistance, Junction−to−Ambient (Note 2)
Symbol
Value
Unit
RqJL
RqJA
35
86
°C/W
2. Mounted on 2″ Square PC Board with 1″ Square Total Pad Size, PC Board FR4.
ELECTRICAL CHARACTERISTICS
Symbol
Characteristic
VF
Maximum Instantaneous Forward Voltage (Note 3)
(IF = 1.0 A)
IR
Maximum Instantaneous Reverse Current
(VR = 60 V)
Value
Unit
TJ = 25°C
TJ = 125°C
0.510
0.475
TJ = 25°C
TJ = 125°C
0.2
20
V
mA
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
3. Pulse Test: Pulse Width ≤ 250 ms, Duty Cycle ≤ 2.0%.
www.onsemi.com
2
MBRA160, NRVBA160, NRVBA160N
1
75°C
125°C
0.1
0.1
25°C
0.2
0.3
0.4
0.5
0.7
0.6
1
75°C
125°C
0.1
0.8
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
VF, INSTANTANEOUS FORWARD VOLTAGE (VOLTS)
Figure 1. Typical Forward Voltage
Figure 2. Maximum Forward Voltage
1E−02
80
125°C
70
1E−03
75°C
1E−04
1E−05
0
10
50
40
30
25°C
1E−06
25°C
60
20
30
50
40
20
60
0
10
VR, REVERSE VOLTAGE (VOLTS)
1.6
1.4
SQUARE WAVE
1.2
1.0
0.8
0.6
0.4
0.2
0
110
115
120
125
130
135
140
145
150
155
PFO, AVERAGE POWER DISSIPATION (W)
TJ = 150°C
dc
30
50
40
60
70
Figure 4. Typical Capacitance
2.0
1.8
20
VR, REVERSE VOLTAGE (VOLTS)
Figure 3. Typical Reverse Current
IF, AVERAGE FORWARD CURRENT (A)
25°C
VF, INSTANTANEOUS FORWARD VOLTAGE (VOLTS)
C, CAPACITANCE (pF)
IR, INSTANTANEOUS REVERSE CURRENT (A)
10
IF, INSTANTANEOUS FORWARD
CURRENT (AMPS)
IF, INSTANTANEOUS FORWARD
CURRENT (AMPS)
10
1.0
SQUARE WAVE
TJ = 150°C
0.8
dc
0.6
0.4
0.2
0
0
0.2
0.4
0.6
0.8
1
1.2
1.4
TL, LEAD TEMPERATURE (°C)
IO, AVERAGE FORWARD CURRENT (AMPS)
Figure 5. Current Derating − Junction−to−Lead
Figure 6. Forward Power Dissipation
www.onsemi.com
3
1.6
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
STYLE 1
SMA
CASE 403D
ISSUE J
STYLE 2
SCALE 1:1
STYLE 1:
PIN 1. CATHODE (POLARITY BAND)
2. ANODE
DATE 22 OCT 2021
STYLE 2:
NO POLARITY
GENERIC
MARKING DIAGRAM*
xxxx
AYWWG
STYLE 1
xxxx
A
Y
WW
G
xxxx
AYWWG
STYLE 2
= Specific Device Code
= Assembly Location
= Year
= Work Week
= Pb−Free Package
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “G”, may
or may not be present. Some products may
not follow the Generic Marking.
DOCUMENT NUMBER:
DESCRIPTION:
98AON04079D
SMA
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 1
