MBRS1100T3G,
SBRS81100T3G,
MBRS190T3G,
SBRS8190T3G
Schottky Power Rectifier
www.onsemi.com
Surface Mount Power Package
Schottky Power Rectifiers employ the use of the Schottky Barrier
principle in a large area metal-to-silicon power diode. State-of-the-art
geometry features epitaxial construction with oxide passivation and
metal overlay contact. Ideally suited for low voltage, high frequency
rectification, or as free wheeling and polarity protection diodes, in
surface mount applications where compact size and weight are critical
to the system. These state-of-the-art devices have the following
features:
SCHOTTKY BARRIER
RECTIFIER
1.0 AMPERE
90, 100 VOLTS

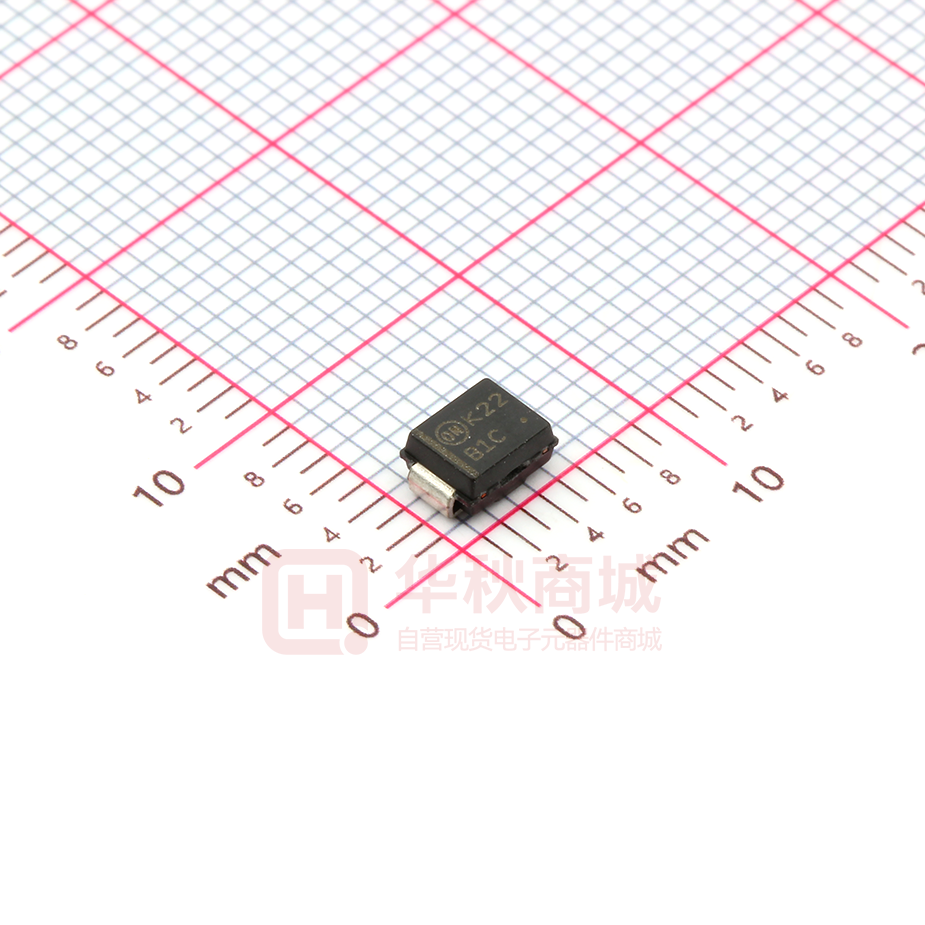

SMB
CASE 403A
Features
•
•
•
•
•
•
•
•
Small Compact Surface Mountable Package with J-Bend Leads
Rectangular Package for Automated Handling
Highly Stable Oxide Passivated Junction
High Blocking Voltage − 100 Volts
175°C Operating Junction Temperature
Guardring for Stress Protection
AEC−Q101 Qualified and PPAP Capable
These are Pb−Free Devices
Mechanical Characteristics
• Case: Epoxy, Molded
• Weight: 95 mg (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
•
•
260°C Max. for 10 Seconds
Shipped in 12 mm Tape and Reel, 2,500 units per reel
Cathode Polarity Band
MARKING DIAGRAM
AYWW
B1xG
G
B1
x
= Device Code
= C for MBRS1100T3
9 for MBRS190T3
A
= Assembly Location**
Y
= Year
WW = Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
**The Assembly Location code (A) is front side
optional. In cases where the Assembly Location is
stamped in the package, the front side assembly code
may be blank.
ORDERING INFORMATION
See detailed ordering and shipping information on page 2 of
this data sheet.
© Semiconductor Components Industries, LLC, 2015
January, 2018 − Rev. 13
1
Publication Order Number:
MBRS1100T3/D
MBRS1100T3G, SBRS81100T3G, MBRS190T3G, SBRS8190T3G
MAXIMUM RATINGS
Rating
Symbol
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
MBRS190T3
MBRS1100T3
VRRM
VRWM
VR
Average Rectified Forward Current
TL = 163°C
TL = 148°C
IF(AV)
Non−Repetitive Peak Surge Current
(Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz)
IFSM
Value
Unit
V
90
100
A
1.0
2.0
A
50
Operating Junction Temperature (Note 1)
Voltage Rate of Change
TJ
−65 to +175
°C
dv/dt
10
V/ns
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
1. The heat generated must be less than the thermal conductivity from Junction−to−Ambient: dPD/dTJ < 1/RqJA.
THERMAL CHARACTERISTICS
Characteristic
Symbol
Value
Unit
RqJL
22
°C/W
Symbol
Value
Unit
Maximum Instantaneous Forward Voltage (Note 2) (iF = 1.0 A, TJ = 25°C)
VF
0.75
V
Maximum Instantaneous Reverse Current (Note 2)
(Rated dc Voltage, TJ = 25°C)
(Rated dc Voltage, TJ = 100°C)
IR
Thermal Resistance − Junction−to−Lead (TL = 25°C)
ELECTRICAL CHARACTERISTICS
Characteristic
mA
0.5
5.0
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
2. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%.
ORDERING INFORMATION
Marking
Package
Shipping†
MBRS1100T3G
B1C
SMB
(Pb−Free)
2500 / Tape & Reel
SBRS81100T3G*
B1C
SMB
(Pb−Free)
2500 / Tape & Reel
SBRS81100T3G−VF01*
B1C
SMB
(Pb−Free)
2500 / Tape & Reel
MBRS190T3G
B19
SMB
(Pb−Free)
2500 / Tape & Reel
SBRS8190T3G*
B19
SMB
(Pb−Free)
2500 / Tape & Reel
SBRS1100T3G
B19
SMB
(Pb−Free)
2500 / Tape & Reel
Device
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
*SBRS8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
www.onsemi.com
2
MBRS1100T3G, SBRS81100T3G, MBRS190T3G, SBRS8190T3G
1k
400
200
100
40
20
10
4
2
1
0.4
0.2
0.1
0.04
0.02
0.01
20
10
TJ = 150°C
5
2
100°C
1
0.5
25°C
0.2
0.1
0.05
0.02
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
TJ = 150°C
I R , REVERSE CURRENT ( μA)
i F, INSTANTANEOUS FORWARD CURRENT (AMPS)
TYPICAL ELECTRICAL CHARACTERISTICS
1
1.1 1.2 1.3
125°C
100°C
25°C
0
10
20
30
40
50
60
70
80
vF, INSTANTANEOUS VOLTAGE (VOLTS)
VR, REVERSE VOLTAGE (VOLTS)
Figure 1. Typical Forward Voltage
Figure 2. Typical Reverse Current*
90
100
I F(AV) , AVERAGE FORWARD CURRENT (AMPS)
3.2
2.8
TJ = 100°C
2.4
2.0
SQUARE
WAVE
1.6
DC
1.2
0.8
0.4
0
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
2.0
DC
1.5
1.0
SQUARE
WAVE
0.5
0
145
150
155
160
165
170
IF(AV), AVERAGE FORWARD CURRENT (AMPS)
TL, LEAD TEMPERATURE (°C)
Figure 3. Power Dissipation
Figure 4. Current Derating, Lead
C, CAPACITANCE (pF)
PF(AV), AVERAGE POWER DISSIPATION (WATTS)
*The curves shown are typical for the highest voltage device in the voltage
grouping. Typical reverse current for lower voltage selections can be estimated
from these curves if VR is sufficient below rated VR.
280
260
240
220
200
180
160
140
120
100
80
60
40
20
0
NOTE: TYPICAL CAPACITANCE
NOTE: AT 0 V = 270 pF
0.1
0.2
0.5
1
2
5
10
20
VR, REVERSE VOLTAGE (VOLTS)
Figure 5. Typical Capacitance
www.onsemi.com
3
50
100
175
180
MBRS1100T3G, SBRS81100T3G, MBRS190T3G, SBRS8190T3G
PACKAGE DIMENSIONS
SMB
CASE 403A−03
ISSUE J
HE
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION b SHALL BE MEASURED WITHIN DIMENSION L1.
E
b
DIM
A
A1
b
c
D
E
HE
L
L1
D
POLARITY INDICATOR
OPTIONAL AS NEEDED
MIN
1.95
0.05
1.96
0.15
3.30
4.06
5.21
0.76
MILLIMETERS
NOM
MAX
2.30
2.47
0.10
0.20
2.03
2.20
0.23
0.31
3.56
3.95
4.32
4.60
5.44
5.60
1.02
1.60
0.51 REF
MIN
0.077
0.002
0.077
0.006
0.130
0.160
0.205
0.030
INCHES
NOM
0.091
0.004
0.080
0.009
0.140
0.170
0.214
0.040
0.020 REF
MAX
0.097
0.008
0.087
0.012
0.156
0.181
0.220
0.063
A
L
L1
A1
c
SOLDERING FOOTPRINT*
2.261
0.089
2.743
0.108
2.159
0.085
SCALE 8:1
mm Ǔ
ǒinches
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage
may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein.
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer
is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of
any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and
do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s
technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized
for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices
intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and
hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was
negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright
laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
◊
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
www.onsemi.com
4
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
MBRS1100T3/D
