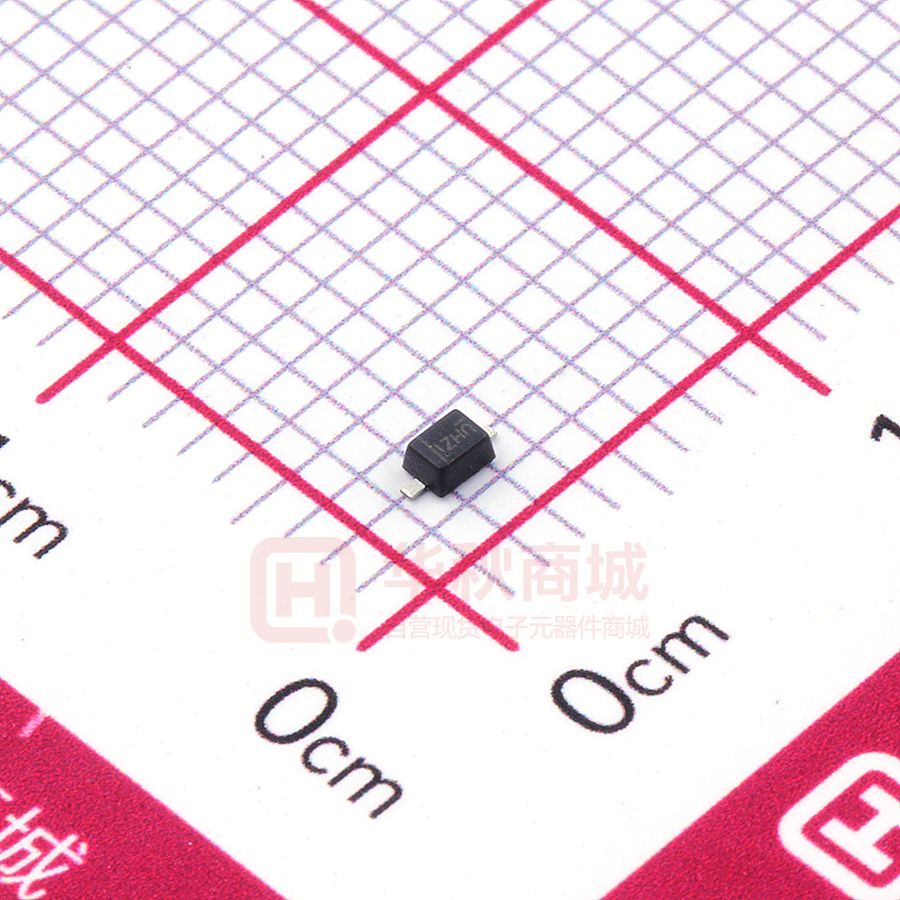

MM3Z12VC

Zener Diodes MM3Z2V4C - MM3Z75VC Features • • • • • Wide Zener Voltage Range Selection, 2.4 V to 75 V VZ Tolerance Selection of ±5% (C Series) Very Small and Thin SMD Package Matte Tin(Sn) Finish These Devices are Pb−Free and are RoHS Compliant www.onsemi.com CONNECTION DIAGRAM ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Symbol PD TSTG Parameter Power Dissipation Storage Temperature Range TJ Maximum Junction Temperature IZM Maximum Regulator Current Value Units 200 mW −65 to +150 °C 150 °C PD/VZ mA Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. THERMAL CHARACTERISTICS Symbol RqJA Parameter Thermal Resistance, Junction to Ambient Value Units 595 °C/W 2 CATHODE 1 ANODE 1 MARKING DIAGRAM 2 SOD−323FL CASE 477AB X M XM = (Band Denotes Cathode) = Specific Device Code = Date Code NOTE: Device mounted on PCB with minimum land pad. ORDERING INFORMATION ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Symbol VF Parameter Forward Voltage / IF = 10 mA Device Min Typ Max Units − − 1.0 V Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. © Semiconductor Components Industries, LLC, 2020 August, 2020 − Rev. 1 1 Refer to Product Table List Package Shipping† SOD−323FL (Pb−Free) 3,000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Publication Order Number: MM3Z9V1C/D MM3Z2V4C − MM3Z75VC ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) VZ (V) @ IZT ZZT(W) @ IZT IZT (mA) Max. Max. − Max. − Max. − 2.52 94 5 564 1 45 1 2.7 2.84 94 5 564 1 18 1 2.85 3 3.15 89 5 564 1 9 1 3.14 3.3 3.47 89 5 564 1 4.5 1 Z4 3.42 3.6 3.78 84 5 564 1 4.5 1 Z5 3.71 3.9 4.1 84 5 564 1 2.7 1 MM3Z4V3C Z6 4.09 4.3 4.52 84 5 564 1 2.7 1 MM3Z4V7C Z7 4.47 4.7 4.94 75 5 470 1 2.7 2 MM3Z5V1C Z8 4.85 5.1 5.36 56 5 451 1 1.8 2 MM3Z5V6C Z9 5.32 5.6 5.88 37 5 376 1 0.9 2 MM3Z6V2C ZA 5.89 6.2 6.51 9 5 141 1 2.7 4 MM3Z6V8C ZB 6.46 6.8 7.14 14 5 75 1 1.8 4 MM3Z7V5C ZC 7.11 7.5 7.86 14 5 75 1 0.9 5 MM3Z8V2C ZD 7.79 8.2 8.61 14 5 75 1 0.63 5 MM3Z9V1C ZE 8.65 9.1 9.56 14 5 94 1 0.45 6 MM3Z10VC ZF 9.5 10 10.5 18 5 141 1 0.18 7 MM3Z11VC ZG 10.45 11 11.55 18 5 141 1 0.09 8 MM3Z12VC ZH 11.4 12 12.6 23 5 141 1 0.09 8 MM3Z13VC ZJ 12.35 13 13.65 28 5 160 1 0.09 8 MM3Z15VC ZK 14.25 15 15.75 28 5 188 1 0.045 10.5 MM3Z16VC ZL 15.2 16 16.8 37 5 188 1 0.045 11.2 MM3Z18VC ZM 17.1 18 18.9 42 5 212 1 0.045 12.6 MM3Z20VC ZN 19 20 21 51 5 212 1 0.045 14 MM3Z22VC ZP 20.9 22 23.1 51 5 235 1 0.045 15.4 MM3Z24VC ZR 22.8 24 25.2 65 5 235 1 0.045 16.8 MM3Z27VC ZS 25.65 27 28.35 75 2 282 0.5 0.045 18.9 MM3Z30VC ZT 28.5 30 31.5 75 2 282 0.5 0.045 21 MM3Z33VC ZU 31.35 33 34.65 75 2 306 0.5 0.045 23 MM3Z36VC ZV 34.2 36 37.8 84 2 329 0.5 0.045 25.2 MM3Z39VC ZW 37.05 39 40.95 122 2 329 0.5 0.045 27.3 MM3Z43VC ZX 40.85 43 45.15 141 2 353 0.5 0.045 30.1 MM3Z47VC ZY 44.65 47 49.35 160 2 353 0.5 0.045 33 MM3Z51VC Z− 48.45 51 53.55 169 2 376 0.5 0.045 35.7 MM3Z56VC Z= 53.2 56 58.8 188 2 400 0.5 0.045 39.2 MM3Z62VC Z≡ 58.9 62 65.1 202 2 423 0.5 0.045 43.4 MM3Z68VC Z> 64.6 68 71.4 226 2 447 0.5 0.045 47.6 MM3Z75VC Z< 71.25 75 78.75 240 2 470 0.5 0.045 52.5 Device Type Device Marking Min. Typ. MM3Z2V4C Z0 2.28 2.4 MM3Z2V7C Z1 2.57 MM3Z3V0C Z2 MM3Z3V3C Z3 MM3Z3V6C MM3Z3V9C ZZK(W) @ IZK IZK (mA) IR(mA) @ VR VR(V) Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 1. The Zener Voltage (VZ) is tested under pulse condition of 10 ms. 2. The device numbers listed have a standard tolerance on the nominal zener voltage of ±5%. 3. The zener impedance is derived from the 60−cycle ac voltage, which results when an ac current having an rms value equal to 10% of the dc zener current (IZT or IZK) is superimposed to IZT or IZK. www.onsemi.com 2 MM3Z2V4C − MM3Z75VC TYPICAL PERFORMANCE CHARACTERISTICS 50 10000 O O TA = 25 C TA = 25 C MM3Z36VB 1000 ZZ − Impedance [ohms] VZ − Zener Voltage [V] MM3Z3V6B MM3Z36VB 40 MM3Z24VB 30 20 MM3Z6V8C MM3Z3V6B MM3Z11VB 10 MM3Z24VB 100 10 1 MM3Z6V8C MM3Z11VB 0 1 2 3 4 5 6 7 8 910 20 30 0.1 1 10 IZ − Zener Current, [mA] IZ − Zener Current, [mA] Figure 1. Zener Current vs. Zener Voltage Figure 2. Zener Current vs. Zener Impedance 7.4 4.5 O −25 C O 125 C O −0 C 7.2 O 85 C VZ − Zener Voltage [V] 25 C 4.0 VZ − Zener Voltage [V] O 3.5 O 85 C O 100 C O 3.0 125 C 100 C O 7.0 6.8 6.6 O 25 C O O −0 C −25 C 6.4 2.5 1 2 3 4 5 6 7 8 9 20 1 30 2 3 4 5 6 7 8 9 20 IZ − Zener Current, [mA] IZ − Zener Current, [mA] Figure 3. MM3Z3V6B Zener Current vs. Zener Voltage Figure 4. MM3Z6V8B Zener Current vs. Zener Voltage 12.5 30 28 O O 27 11.5 11.0 O 10.5 O −0 C O −25 C 125 C O 100 C O 85 C VZ − Zener Voltage [V] VZ − Zener Voltage [V] 125 C O 100 C O 85 C 12.0 25 C 26 25 24 23 O 25 C O −0 C 22 O −25 C 10.0 21 1 2 3 4 5 6 7 8 9 20 30 1 IZ − Zener Current, [mA] 2 3 4 5 6 7 8 9 IZ − Zener Current, [mA] Figure 5. MM3Z11VB Zener Current vs. Zener Voltage Figure 6. MM3Z24VB Zener Current vs. Zener Voltage www.onsemi.com 3 20 30 MM3Z2V4C − MM3Z75VC TYPICAL PERFORMANCE CHARACTERISTICS 42 O 125 C O 100 C O 85 C VZ − Zener Voltage [V] 40 38 36 O 25 C 34 O −0 C O −25 C 32 1 2 3 4 5 6 7 8 9 20 30 IZ − Zener Current, [mA] Figure 7. MM3Z36VB Zener Current vs. Zener Voltage www.onsemi.com 4 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SOD−323FL CASE 477AB ISSUE O DATE 30 APR 2012 Ａ DOCUMENT NUMBER: DESCRIPTION: 98AON79864E SOD−323FL Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com ON Semiconductor Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 www.onsemi.com 1 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
