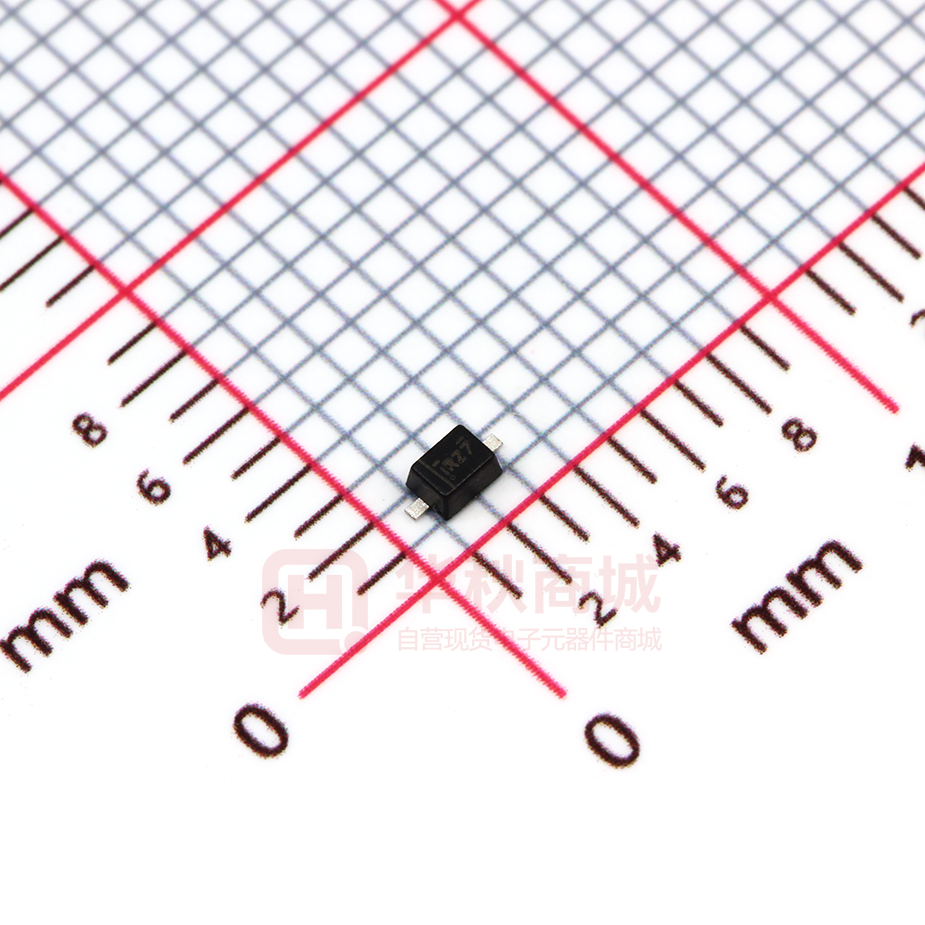

MM3Z24VB

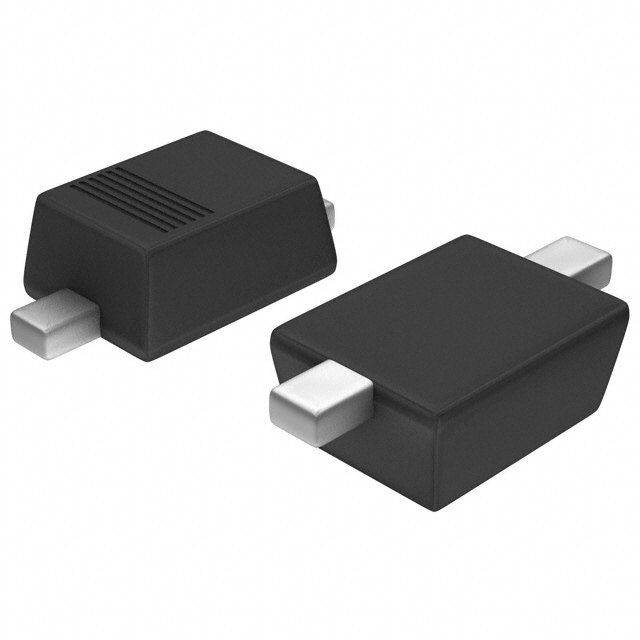

Zener Diodes MM3Z2V4B-MM3Z75VB Features • • • • Wide Zener Voltage Range Selection, 2.4 V to 75 V VZ Tolerance Selection of ±2% (B Series) Very Small and Thin SMD Package Matte Tin(Sn) Finish, Pb−Free www.onsemi.com ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Symbol PD TSTG Parameter Value Unit 200 mW −65 to +150 _C 150 _C PD/VZ mA Power Dissipation Storage Temperature Range TJ Maximum Junction Temperature IZM Maximum Regulator Current Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1 2 SOD−323FL CASE 477AB CONNECTION DIAGRAM 2 THERMAL CHARACTERISTICS Symbol RqJA Parameter Thermal Resistance, Junction to Ambient Value Unit 595 _C/W 1 MARKING DIAGRAM ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Symbol VF Parameter/Test Condition Forward Voltage / IF = 10 mA Min Typ Max Unit − − 1.0 V Band Denotes Cathode xZ Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. xZ = Specific Device Code x = 0−9, A−Z, −, =, 5, ORDERING INFORMATION See detailed ordering and shipping information on page 5 of this data sheet. © Semiconductor Components Industries, LLC, 2010 June, 2021 − Rev. 1 1 Publication Order Number: MM3Z9V1B/D MM3Z2V4B−MM3Z75VB PRODUCT TABLE (TA = 25°C unless otherwise noted) VZ (V) @ IZT ZZT(∧) @ IZT IZT (mA) ZZK(∧) @ IZK IZK (mA) IR (mA) @ VR VR (V) Device Type Device Marking Min Typ Max Max − Max − Max − MM3Z2V4B 0Z 2.35 2.4 2.45 94 5 564 1 45 1 MM3Z2V7B 1Z 2.65 2.7 2.75 94 5 564 1 18 1 MM3Z3V0B 2Z 2.94 3.0 3.06 89 5 564 1 9 1 MM3Z3V3B 3Z 3.23 3.3 3.37 89 5 564 1 4.5 1 MM3Z3V6B 4Z 3.53 3.6 3.67 84 5 564 1 4.5 1 MM3Z3V9B 5Z 3.82 3.9 3.98 84 5 564 1 2.7 1 MM3Z4V3B 6Z 4.21 4.3 4.39 84 5 564 1 2.7 1 MM3Z4V7B 7Z 4.61 4.7 4.79 75 5 470 1 2.7 2 MM3Z5V1B 8Z 5.00 5.1 5.20 56 5 451 1 1.8 2 MM3Z5V6B 9Z 5.49 5.6 5.71 37 5 376 1 0.9 2 MM3Z6V2B AZ 6.08 6.2 6.32 9 5 141 1 2.7 4 MM3Z6V8B BZ 6.66 6.8 6.94 14 5 75 1 1.8 4 MM3Z7V5B CZ 7.35 7.5 7.65 14 5 75 1 0.9 5 MM3Z8V2B DZ 8.04 8.2 8.36 14 5 75 1 0.63 5 MM3Z9V1B EZ 8.92 9.1 9.28 14 5 94 1 0.45 6 MM3Z10VB FZ 9.80 10 10.20 18 5 141 1 0.18 7 MM3Z11VB GZ 10.78 11 11.22 18 5 141 1 0.09 8 MM3Z12VB HZ 11.76 12 12.24 23 5 141 1 0.09 8 MM3Z13VB JZ 12.74 13 13.26 28 5 160 1 0.09 8 MM3Z15VB KZ 14.70 15 15.30 28 5 188 1 0.045 10.5 MM3Z16VB LZ 15.68 16 16.32 37 5 188 1 0.045 11.2 MM3Z18VB MZ 17.64 18 18.36 42 5 212 1 0.045 12.6 MM3Z20VB NZ 19.60 20 20.40 51 5 212 1 0.045 14.0 MM3Z22VB PZ 21.56 22 22.44 51 5 235 1 0.045 15.4 MM3Z24VB RZ 23.52 24 24.48 65 5 235 1 0.045 16.8 MM3Z27VB SZ 26.46 27 27.54 75 2 282 0.5 0.045 18.9 MM3Z30VB TZ 29.40 30 30.60 75 2 282 0.5 0.045 21.0 MM3Z33VB UZ 32.34 33 33.66 75 2 306 0.5 0.045 23.0 MM3Z36VB VZ 35.28 36 36.72 84 2 329 0.5 0.045 25.2 MM3Z39VB WZ 38.22 39 39.78 122 2 329 0.5 0.045 27.3 MM3Z43VB XZ 42.14 43 43.86 141 2 353 0.5 0.045 30.1 MM3Z47VB YZ 46.06 47 47.94 160 2 353 0.5 0.045 33.0 MM3Z51VB _Z 49.98 51 52.02 169 2 376 0.5 0.045 35.7 MM3Z56VB =Z 54.88 56 57.12 188 2 400 0.5 0.045 39.2 MM3Z62VB 5Z 60.76 62 63.24 202 2 423 0.5 0.045 43.4 MM3Z68VB >Z 66.64 68 69.36 226 2 447 0.5 0.045 47.6 MM3Z75VB
