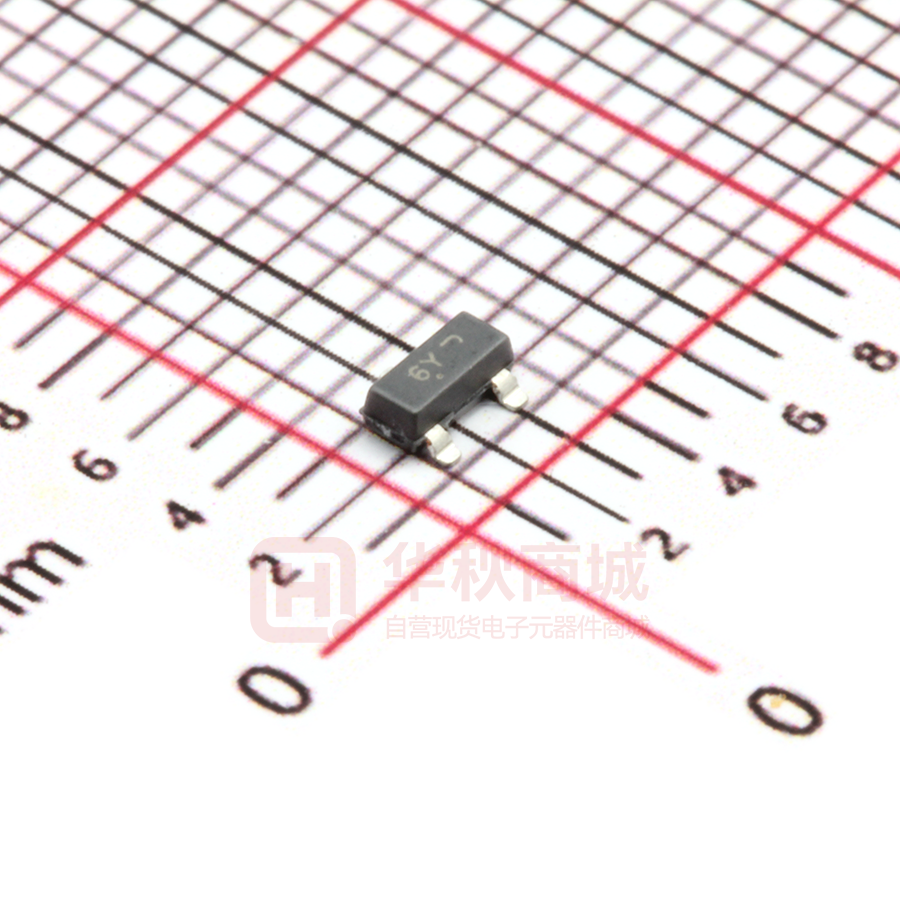

MMBFJ177LT1G

MMBFJ177LT1G JFET Chopper P−Channel − Depletion Features • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant http://onsemi.com 2 SOURCE MAXIMUM RATINGS Rating Drain−Gate Voltage Reverse Gate−Source Voltage Symbol VDG VGS(r) Value 25 −25 Unit Vdc Vdc 3 GATE 1 DRAIN Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 3 1 2 THERMAL CHARACTERISTICS Total Device Dissipation FR− 5 Board (Note 1) TA = 25°C Derate above 25°C Thermal Resistance, Junction−to−Ambient Junction and Storage Temperature 1. FR− 5 = 1.0  0.75  0.062 in. PD 225 1.8 RqJA TJ, Tstg 556 − 55 to +150 mW mW/°C °C/W °C SOT−23 (TO−236AB) CASE 318−08 STYLE 10 MARKING DIAGRAM 6Y MG G 1 6Y = Specific Device Code M = Date Code* G = Pb−Free Package (Note: Microdot may be in either location) *Date Code orientation and/or overbar may vary depending upon manufacturing location. ORDERING INFORMATION Device MMBFJ177LT1G Package SOT−23 (Pb−Free) Shipping† 3000 Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2009 August, 2009 − Rev. 4 1 Publication Order Number: MMBFJ177LT1/D MMBFJ177LT1G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic Symbol Min Max Unit OFF CHARACTERISTICS Gate−Source Breakdown Voltage (VDS = 0, ID = 1.0 mAdc) Gate Reverse Current (VDS = 0 Vdc, VGS = 20 Vdc) Gate Source Cutoff Voltage (VDS = 15 Vdc, ID = 10 nAdc) V(BR)GSS IGSS VGS(off) 30 − 0.8 − 1.0 2.5 Vdc nAdc Vdc ON CHARACTERISTICS Zero−Gate−Voltage Drain Current (VGS = 0, VDS = 15 Vdc) (Note 2) Drain Cutoff Current (VDS = 15 Vdc, VGS = 10 Vdc) Drain Source On Resistance (ID = 500 mAdc) Input Capacitance Reverse Transfer Capacitance VDS = 0, VGS = 10 Vdc f = 1.0 MHz IDSS ID(off) rDS(on) Ciss Crss 1.5 − − − − 20 1.0 300 11 5.5 mAdc nAdc W pF 2. Pulse Test: Pulse Width < 300 ms, Duty Cycle ≤ 2%. http://onsemi.com 2 MMBFJ177LT1G PACKAGE DIMENSIONS SOT−23 (TO−236AB) CASE 318−08 ISSUE AN NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH THICKNESS. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. 318−01 THRU −07 AND −09 OBSOLETE, NEW STANDARD 318−08. D SEE VIEW C 3 E 1 2 HE c e b q 0.25 A A1 L L1 VIEW C DIM A A1 b c D E e L L1 HE MIN 0.89 0.01 0.37 0.09 2.80 1.20 1.78 0.10 0.35 2.10 MILLIMETERS NOM MAX 1.00 1.11 0.06 0.10 0.44 0.50 0.13 0.18 2.90 3.04 1.30 1.40 1.90 2.04 0.20 0.30 0.54 0.69 2.40 2.64 MIN 0.035 0.001 0.015 0.003 0.110 0.047 0.070 0.004 0.014 0.083 INCHES NOM 0.040 0.002 0.018 0.005 0.114 0.051 0.075 0.008 0.021 0.094 MAX 0.044 0.004 0.020 0.007 0.120 0.055 0.081 0.012 0.029 0.104 STYLE 10: PIN 1. DRAIN 2. SOURCE 3. GATE SOLDERING FOOTPRINT* 0.95 0.037 0.95 0.037 2.0 0.079 0.9 0.035 0.8 0.031 SCALE 10:1 mm inches *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone : 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5773−3850 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative http://onsemi.com 3 MMBFJ177LT1/D
