MMBT2222ATT1G

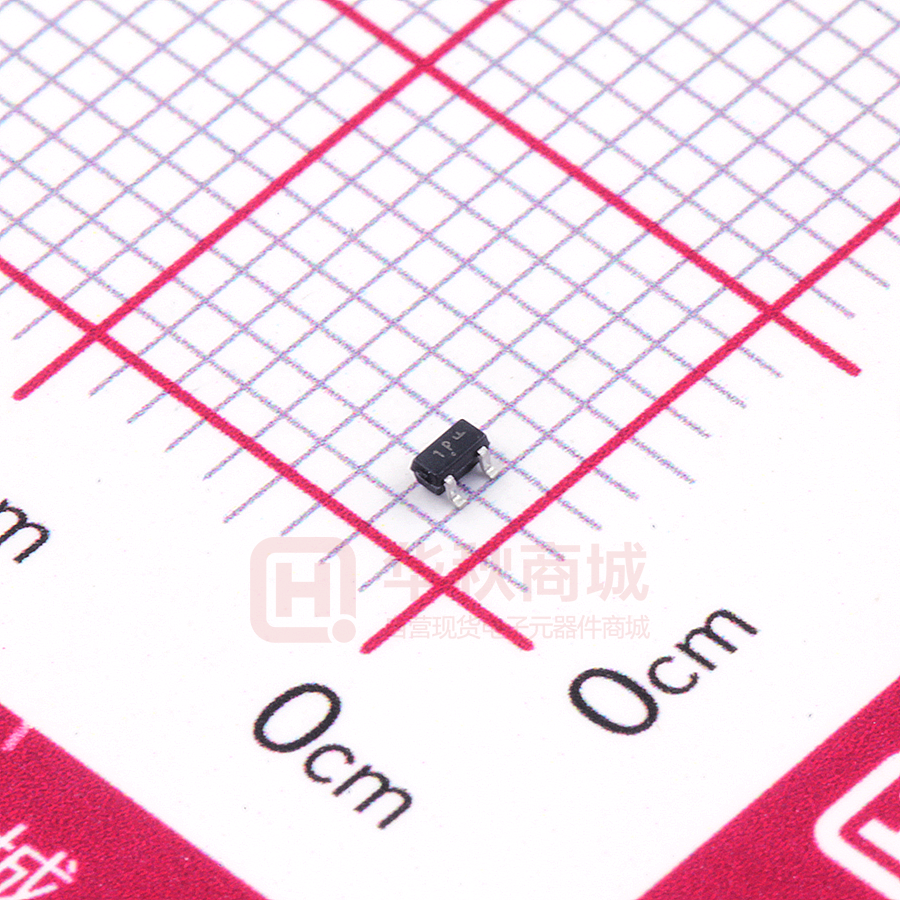

MMBT2222ATT1G, NSVMMBT2222ATT1G General Purpose Transistor NPN Silicon These transistors are designed for general purpose amplifier applications. They are housed in the SOT−416/SC−75 package which is designed for low power surface mount applications. www.onsemi.com COLLECTOR 3 Features • NSV Prefix for Automotive and Other Applications Requiring • 1 BASE Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant 2 EMITTER 3 MAXIMUM RATINGS (TA = 25°C) 2 Symbol Max Unit Collector−Emitter Voltage VCEO 40 Vdc Collector−Base Voltage VCBO 75 Vdc Emitter−Base Voltage VEBO 6.0 Vdc IC 600 mAdc Symbol Max Unit PD 150 mW RqJA 833 °C/W TJ, Tstg −55 to +150 °C Rating Collector Current − Continuous CASE 463 SOT−416/SC−75 STYLE 1 1 MARKING DIAGRAM 1P M G G THERMAL CHARACTERISTICS Characteristic Total Device Dissipation (Note 1) TA = 25°C Thermal Resistance, Junction−to−Ambient Operating and Storage Junction Temperature Range 1 1P = Specific Device Code M = Date Code G = Pb−Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. Device mounted on FR4 glass epoxy printed circuit board using the minimum recommended footprint. Package Shipping† SOT−416 (Pb−Free) 3000 / Tape & Reel NSVMMBT2222ATT1G SOT−416 (Pb−Free) 3000 / Tape & Reel Device MMBT2222ATT1G †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2013 July, 2018 − Rev. 6 1 Publication Order Number: MMBT2222ATT1/D MMBT2222ATT1G, NSVMMBT2222ATT1G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Min Max Unit Collector −Emitter Breakdown Voltage (Note 1) (IC = 10 mAdc, IB = 0) V(BR)CEO 40 − Vdc Collector −Base Breakdown Voltage (IC = 10 mAdc, IE = 0) V(BR)CBO 75 − Vdc Emitter −Base Breakdown Voltage (IE = 10 mAdc, IC = 0) V(BR)EBO 6.0 − Vdc Base Cutoff Current (VCE = 60 Vdc, VEB = 3.0 Vdc) IBL − 20 nAdc Collector Cutoff Current (VCE = 60 Vdc, VEB = 3.0 Vdc) ICEX − 10 nAdc 35 50 75 100 40 − − − − − − − 0.3 1.0 0.6 − 1.2 2.0 fT 300 − MHz Output Capacitance (VCB = 10 Vdc, IE = 0, f = 1.0 MHz) Cobo − 8.0 pF Input Capacitance (VEB = 0.5 Vdc, IC = 0, f = 1.0 MHz) Cibo − 30 pF Input Impedance (VCE = 10 Vdc, IC = 10 mAdc, f = 1.0 kHz) hie 0.25 1.25 kW Voltage Feedback Ratio (VCE = 10 Vdc, IC = 10 mAdc, f = 1.0 kHz) hre − 4.0 X 10− 4 Small −Signal Current Gain (VCE = 10 Vdc, IC = 10 mAdc, f = 1.0 kHz) hfe 75 375 − Output Admittance (VCE = 10 Vdc, IC = 10 mAdc, f = 1.0 kHz) hoe 25 200 mmhos Noise Figure (VCE = 10 Vdc, IC = 100 mAdc, RS = 1.0 k ohms, f = 1.0 kHz) NF − 4.0 dB (VCC = 3.0 Vdc, VBE = − 0.5 Vdc, IC = 150 mAdc, IB1 = 15 mAdc) td − 10 tr − 25 (VCC = 30 Vdc, IC = 150 mAdc, IB1 = IB2 = 15 mAdc) ts − 225 tf − 60 Characteristic OFF CHARACTERISTICS ON CHARACTERISTICS (Note 2) HFE DC Current Gain (IC = 0.1 mAdc, VCE = 10 Vdc) (IC = 1.0 mAdc, VCE = 10 Vdc) (IC = 10 mAdc, VCE = 10 Vdc) (IC = 150 mAdc, VCE = 10 Vdc) (IC = 500 mAdc, VCE = 10 Vdc) Collector −Emitter Saturation Voltage (IC = 150 mAdc, IB = 15 mAdc) (IC = 500 mAdc, IB = 50 mAdc) VCE(sat) Base −Emitter Saturation Voltage (IC = 150 mAdc, IB = 15 mAdc) (IC = 500 mAdc, IB = 50 mAdc) VBE(sat) − Vdc Vdc SMALL− SIGNAL CHARACTERISTICS Current −Gain − Bandwidth Product (IC = 20 mAdc, VCE = 20 Vdc, f = 100 MHz) SWITCHING CHARACTERISTICS Delay Time Rise Time Storage Time Fall Time 1. Device mounted on FR4 glass epoxy printed circuit board using the minimum recommended footprint. 2. Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2.0%. www.onsemi.com 2 ns ns MMBT2222ATT1G, NSVMMBT2222ATT1G SWITCHING TIME EQUIVALENT TEST CIRCUITS +30 V +30 V 1.0 to 100 ms, DUTY CYCLE ≈ 2.0% +16 V 200 1.0 to 100 ms, DUTY CYCLE ≈ 2.0% +16 V 200 0 0 -2 V 1 kW < 2 ns 1k -14 V CS* < 10 pF < 20 ns CS* < 10 pF 1N914 -4 V Scope rise time < 4 ns *Total shunt capacitance of test jig, connectors, and oscilloscope. Figure 1. Turn−On Time Figure 2. Turn−Off Time hFE , DC CURRENT GAIN 1000 700 500 TJ = 125°C 300 200 25°C 100 70 50 -55°C 30 VCE = 1.0 V VCE = 10 V 20 10 0.1 0.2 0.3 0.5 0.7 1.0 2.0 3.0 5.0 7.0 10 20 IC, COLLECTOR CURRENT (mA) 30 50 70 100 200 300 500 700 1.0 k VCE , COLLECTOR-EMITTER VOLTAGE (VOLTS) Figure 3. DC Current Gain 1.0 TJ = 25°C 0.8 0.6 IC = 1.0 mA 10 mA 150 mA 500 mA 0.4 0.2 0 0.005 0.01 0.02 0.03 0.05 0.1 0.2 0.3 0.5 1.0 IB, BASE CURRENT (mA) 2.0 Figure 4. Collector Saturation Region www.onsemi.com 3 3.0 5.0 10 20 30 50 MMBT2222ATT1G, NSVMMBT2222ATT1G 200 500 IC/IB = 10 TJ = 25°C tr @ VCC = 30 V td @ VEB(off) = 2.0 V td @ VEB(off) = 0 30 20 10 7.0 5.0 200 t′s = ts - 1/8 tf 100 70 50 tf 30 20 10 7.0 5.0 3.0 2.0 5.0 7.0 10 200 300 20 30 50 70 100 IC, COLLECTOR CURRENT (mA) 5.0 7.0 10 500 20 30 50 70 100 IC, COLLECTOR CURRENT (mA) Figure 5. Turn −On Time RS = OPTIMUM RS = SOURCE RS = RESISTANCE IC = 1.0 mA, RS = 150 W 500 mA, RS = 200 W 100 mA, RS = 2.0 kW 50 mA, RS = 4.0 kW 500 6.0 f = 1.0 kHz 8.0 NF, NOISE FIGURE (dB) NF, NOISE FIGURE (dB) 300 10 8.0 4.0 IC = 50 mA 100 mA 500 mA 1.0 mA 6.0 4.0 2.0 2.0 0 0.01 0.02 0.05 0.1 0.2 0.5 1.0 2.0 5.0 10 0 50 50 100 20 500 1.0 k 2.0 k 5.0 k 10 k 20 k 50 k 100 k Figure 7. Frequency Effects Figure 8. Source Resistance Effects f T, CURRENT-GAIN BANDWIDTH PRODUCT (MHz) RS, SOURCE RESISTANCE (OHMS) 20 Ceb 10 7.0 5.0 Ccb 3.0 0.2 0.3 100 200 f, FREQUENCY (kHz) 30 CAPACITANCE (pF) 200 Figure 6. Turn −Off Time 10 2.0 0.1 VCC = 30 V IC/IB = 10 IB1 = IB2 TJ = 25°C 300 t, TIME (ns) t, TIME (ns) 100 70 50 0.5 0.7 1.0 2.0 3.0 5.0 7.0 10 REVERSE VOLTAGE (VOLTS) 20 30 50 500 VCE = 20 V TJ = 25°C 300 200 100 70 50 1.0 Figure 9. Capacitances 2.0 3.0 5.0 7.0 10 20 30 IC, COLLECTOR CURRENT (mA) 50 70 100 Figure 10. Current−Gain Bandwidth Product www.onsemi.com 4 MMBT2222ATT1G, NSVMMBT2222ATT1G 1.3 150°C 0.1 −55°C 25°C 0.001 1.0 0.9 −55°C 0.8 25°C 0.7 0.6 150°C 0.5 0.4 0.01 0.1 0.001 1 0.01 1 0.1 IC, COLLECTOR CURRENT (A) IC, COLLECTOR CURRENT (A) Figure 11. Collector Emitter Saturation Voltage vs. Collector Current Figure 12. Base Emitter Saturation Voltage vs. Collector Current 1.2 +0.5 VCE = 1 V 0 0.9 COEFFICIENT (mV/ °C) 1.0 −55°C 0.8 25°C 0.7 0.6 0.5 150°C 0.4 RqVC for VCE(sat) -0.5 -1.0 -1.5 RqVB for VBE -2.0 0.3 0.2 -2.5 0.001 0.01 0.1 1 0.1 0.2 0.5 IC, COLLECTOR CURRENT (A) 1.0 2.0 5.0 10 20 50 100 200 IC, COLLECTOR CURRENT (mA) Figure 14. Temperature Coefficients Figure 13. Base Emitter Voltage vs. Collector Current 10 10 ms 100 ms 1 1 ms 1s Thermal Limit IC (A) VBE(on), BASE−EMITTER VOLTAGE (V) 1.1 0.3 0.2 0.01 1.1 IC/IB = 10 1.2 IC/IB = 10 VBE(sat), BASE−EMITTER SATURATION VOLTAGE (V) VCE(sat), COLLECTOR−EMITTER SATURATION VOLTAGE (V) 1 0.1 0.01 0.001 Single Pulse Test @ TA = 25°C 0.01 0.1 1 10 VCE (Vdc) Figure 15. Safe Operating Area www.onsemi.com 5 100 500 MMBT2222ATT1G, NSVMMBT2222ATT1G PACKAGE DIMENSIONS SC−75/SOT−416 CASE 463 ISSUE G NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETER. −E− 2 3 b 3 PL 0.20 (0.008) e DIM A A1 b C D E e L HE −D− 1 M D 0.20 (0.008) E HE C INCHES NOM MAX 0.031 0.035 0.002 0.004 0.008 0.012 0.006 0.010 0.063 0.065 0.031 0.035 0.04 BSC 0.004 0.006 0.008 0.060 0.063 0.067 MIN 0.027 0.000 0.006 0.004 0.061 0.027 STYLE 1: PIN 1. BASE 2. EMITTER 3. COLLECTOR A L MILLIMETERS MIN NOM MAX 0.70 0.80 0.90 0.00 0.05 0.10 0.15 0.20 0.30 0.10 0.15 0.25 1.55 1.60 1.65 0.70 0.80 0.90 1.00 BSC 0.10 0.15 0.20 1.50 1.60 1.70 A1 SOLDERING FOOTPRINT* 0.356 0.014 1.803 0.071 0.787 0.031 0.508 0.020 1.000 0.039 SCALE 10:1 mm Ǔ ǒinches *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ◊ N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 www.onsemi.com 6 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative MMBT2222ATT1/D
