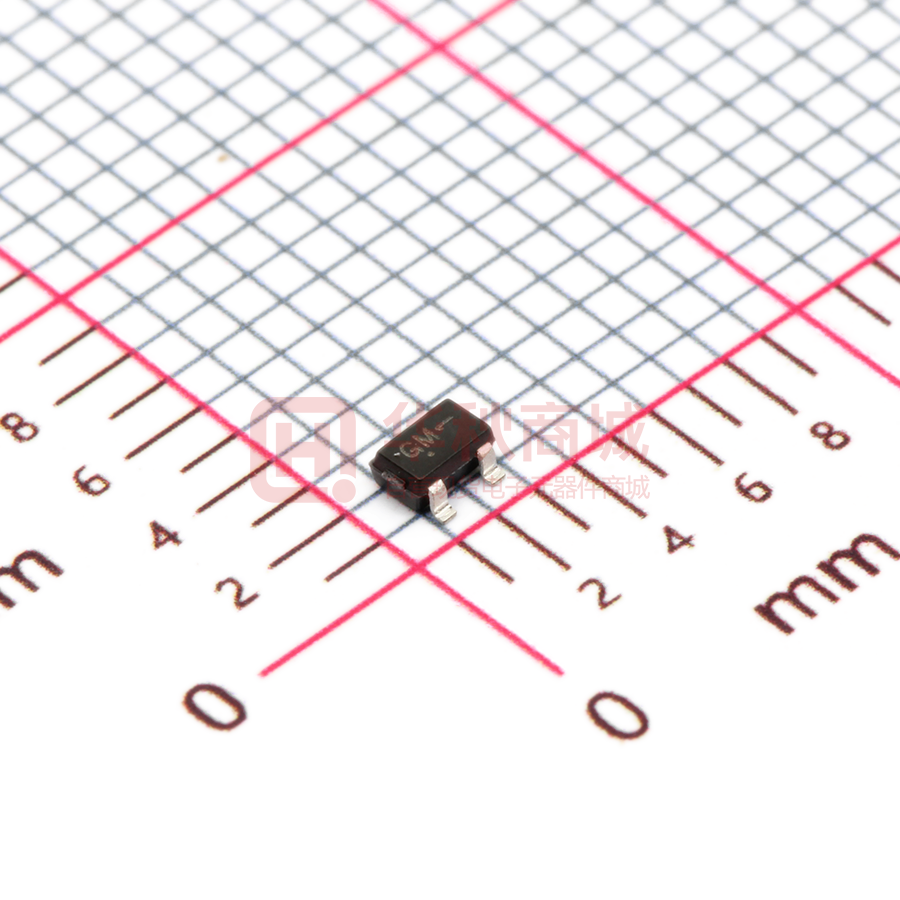

MMBTA06WT1 Driver Transistor
NPN Silicon
Moisture Sensitivity Level: 1 ESD Rating: Human Body Model − 4 kV ESD Rating: Machine Model − 400 V
Features
http://onsemi.com
COLLECTOR 3
• Pb−Free Package May be Available. The G−Suffix Denotes a
Pb−Free Lead Finish
1 BASE
MAXIMUM RATINGS
Rating Collector−Emitter Voltage Collector−Base Voltage Emitter−Base Voltage Collector Current − Continuous Symbol VCEO VCBO VEBO IC Value 80 80 4.0 500 Unit Vdc Vdc Vdc mAdc 1
2 EMITTER
3
THERMAL CHARACTERISTICS
Characteristic Total Device Dissipation FR−5 Board TA = 25°C Thermal Resistance, Junction to Ambient Junction and Storage Temperature Symbol PD RqJA TJ, Tstg Max 150 833 −55 to +150 Unit mW °C/W °C
2 SC−70 CASE 419 STYLE 3
MARKING DIAGRAM
GM D
GM = Specific Device Code D = Date Code
ORDERING INFORMATION
Device MMBTA06WT1 MMBTA06WT1G Package SC−70 SC−70 (Pb−Free) Shipping† 3000/T ape & Reel 3000/T ape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
© Semiconductor Components Industries, LLC, 2003
1
December, 2003 − Rev. 1
Publication Order Number: MMBTA06WT1/D
MMBTA06WT1
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted)
Characteristic Symbol Min Max Unit
OFF CHARACTERISTICS
Collector−Emitter Breakdown Voltage (Note 1) (IC = 1.0 mAdc, IB = 0) Emitter−Base Breakdown Voltage (IE = 100 mAdc, IC = 0) Collector Cutoff Current (VCE = 60 Vdc, IB = 0) Collector Cutoff Current (VCB = 80 Vdc, IE = 0) V(BR)CEO V(BR)EBO ICES ICBO − 0.1 80 4.0 − − − 0.1 Vdc Vdc mAdc mAdc
ON CHARACTERISTICS
DC Current Gain (IC = 10 mAdc, VCE = 1.0 Vdc) (IC = 100 mAdc, VCE = 1.0 Vdc) Collector−Emitter Saturation Voltage (IC = 100 mAdc, IB = 10 mAdc) Base−Emitter On Voltage (IC = 100 mAdc, VCE = 1.0 Vdc) hFE 100 100 VCE(sat) VBE(on) − − − − 0.25 1.2 Vdc Vdc −
SMALL−SIGNAL CHARACTERISTICS
Current−Gain − Bandwidth Product (Note 2) (IC = 10 mA, VCE = 2.0 V, f = 100 MHz) 1. Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2.0%. 2. fT is defined as the frequency at which |hfe| extrapolates to unity. fT 100 − MHz
TURN−ON TIME −1.0 V VCC +40 V
TURN−OFF TIME +VBB VCC +40 V RL OUTPUT Vin * CS t 6.0 pF 5.0 mF 100 5.0 ms tr = 3.0 ns RB * CS t 6.0 pF
5.0 ms +10 V Vin 0 tr = 3.0 ns 5.0 mF
100 RB
RL OUTPUT
100
100
*Total Shunt Capacitance of Test Jig and Connectors For PNP Test Circuits, Reverse All Voltage Polarities
Figure 1. Switching Time Test Circuits
http://onsemi.com
2
MMBTA06WT1
f T , CURRENT−GAIN − BANDWIDTH PRODUCT (MHz) 300 200 VCE = 2.0 V TJ = 25°C C, CAPACITANCE (pF) 80 60 40 Cibo 20 TJ = 25°C
100 70 50
10 8.0 6.0 Cobo 0.2 0.5 1.0 2.0 5.0 10 20 50 100
30 2.0
3.0
5.0 7.0 10
20
30
50
70 100
200
4.0 0.1
IC, COLLECTOR CURRENT (mA)
VR, REVERSE VOLTAGE (VOLTS)
Figure 2. Current−Gain — Bandwidth Product
Figure 3. Capacitance
300 t, TIME (ns) 200 100 70 50 30 20 10 VCC = 40 V IC/IB = 10 IB1 = IB2 TJ = 25°C 5.0 7.0 10
ts
I C , COLLECTOR CURRENT (mA)
1.0 k 700 500
1.0 k 700 500 300 200 100 70 50 30 20 10 1.0 TA = 25°C TC = 25°C
100 ms 1.0 ms 1.0 s
tf tr td @ VBE(off) = 0.5 V 20 30 50 70 100 200 300 500
CURRENT LIMIT THERMAL LIMIT SECOND BREAKDOWN LIMIT
2.0
3.0
5.0 7.0 10
20
30
50
70 100
IC, COLLECTOR CURRENT (mA)
VCE, COLLECTOR−EMITTER VOLTAGE (VOLTS)
Figure 4. Switching Time
Figure 5. Active−Region Safe Operating Area
400 TJ = 125°C VCE = 1.0 V h FE , DC CURRENT GAIN 25°C −55°C 100 80 60 40 0.5 V, VOLTAGE (VOLTS) 200
1.0
TJ = 25°C VBE(sat) @ IC/IB = 10
0.8
0.6
VBE(on) @ VCE = 1.0 V
0.4
0.2 VCE(sat) @ IC/IB = 10 1.0 2.0 3.0 5.0 10 20 30 50 100 200 300 500 0 0.5 1.0 2.0 5.0 10 20 50 100 200 500
IC, COLLECTOR CURRENT (mA)
IC, COLLECTOR CURRENT (mA)
Figure 6. DC Current Gain
Figure 7. “ON” Voltages
http://onsemi.com
3
MMBTA06WT1
VCE , COLLECTOR−EMITTER VOLTAGE (VOLTS) TJ = 25°C IC = 50 mA 0.6 IC = 100 mA IC = 250 mA IC = 500 mA R qVB , TEMPERATURE COEFFICIENT (mV/° C) 1.0 −0.8
0.8
−1.2
−1.6 −2.0 RqVB for VBE
0.4 0.2 0 IC = 10 mA
−2.4 −2.8 0.5
0.05
0.1
0.2
0.5
1.0
2.0
5.0
10
20
50
1.0
2.0
5.0
10
20
50
100
200
500
IB, BASE CURRENT (mA)
IC, COLLECTOR CURRENT (mA)
Figure 8. Collector Saturation Region
Figure 9. Base−Emitter Temperature Coefficient
http://onsemi.com
4
MMBTA06WT1
PACKAGE DIMENSIONS
SC−70/SOT−323 CASE 419−04 ISSUE L
A L
3 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. DIM A B C D G H J K L N S INCHES MIN MAX 0.071 0.087 0.045 0.053 0.032 0.040 0.012 0.016 0.047 0.055 0.000 0.004 0.004 0.010 0.017 REF 0.026 BSC 0.028 REF 0.079 0.095 MILLIMETERS MIN MAX 1.80 2.20 1.15 1.35 0.80 1.00 0.30 0.40 1.20 1.40 0.00 0.10 0.10 0.25 0.425 REF 0.650 BSC 0.700 REF 2.00 2.40
S
1 2
B
D G
C 0.05 (0.002)
N K
J
H
STYLE 3: PIN 1. BASE 2. EMITTER 3. COLLECTOR
SOLDERING FOOTPRINT*
0.65 0.025
0.65 0.025
1.9 0.075 0.9 0.035 0.7 0.028
SCALE 10:1
mm inches
Figure 10. SC−70/SOT−323
*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.
