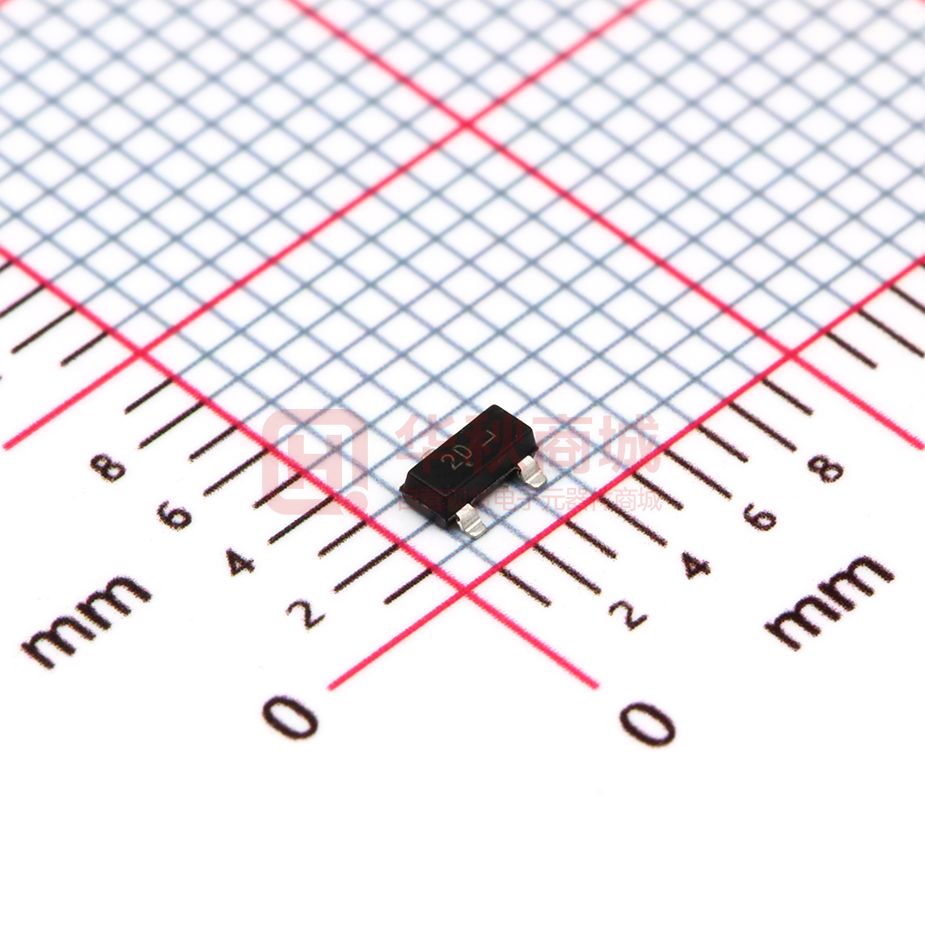

MMBTA92LT1G

MMBTA92L, SMMBTA92L, MMBTA93L High Voltage Transistors PNP Silicon www.onsemi.com Features • S Prefix for Automotive and Other Applications Requiring Unique • COLLECTOR 3 Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant 1 BASE MAXIMUM RATINGS Rating Symbol 92 93 Unit Collector −Emitter Voltage VCEO −300 −200 Vdc Collector −Base Voltage VCBO −300 −200 Vdc Emitter −Base Voltage VEBO −5.0 −5.0 Vdc Collector Current — Continuous IC −500 mAdc DEVICE MARKING THERMAL CHARACTERISTICS Total Device Dissipation FR−5 Board (Note 1) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Total Device Dissipation (Note 2) Alumina Substrate,(2) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Junction and Storage Temperature MARKING DIAGRAM 3 1 2 SOT−23 (TO−236AF) CASE 318 STYLE 6 MMBTA92L, SMMBTA92L = 2D; MMBTA93LT1 = 2E Characteristic 2 EMITTER 2x M G 2x MG G = Specific Device Code = Date Code* = Pb−Free Package Symbol Max Unit PD 225 mW 1.8 mW/°C (*Note: Microdot may be in either location) *Date Code orientation and/or overbar may vary depending upon manufacturing location. RqJA 556 °C/W PD 300 mW 2.4 mW/°C RqJA 417 °C/W TJ, Tstg −55 to +150 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. FR−5 = 1.0 x 0.75 x 0.062 in. 2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina. ORDERING INFORMATION Package Shipping† MMBTA92LT1G SOT−23 (Pb−Free) 3000 / Tape & Reel SMMBTA92LT1G SOT−23 (Pb−Free) 3000 / Tape & Reel MMBTA92LT3G SOT−23 10000 / Tape & Reel (Pb−Free) SMMBTA92LT3G SOT−23 10000 / Tape & Reel (Pb−Free) MMBTA93LT1G SOT−23 (Pb−Free) Device 3000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 1994 October, 2016 − Rev. 11 1 Publication Order Number: MMBTA92LT1/D MMBTA92L, SMMBTA92L, MMBTA93L ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Min Max −300 −200 − − −300 −200 − − −5.0 − − − −0.25 −0.25 − −0.1 Both Types Both Types 25 40 − − MMBTA92, SMMBTA92 MMBTA93 25 25 − − − − −0.5 −0.5 VBE(sat) − −0.9 Vdc fT 50 − MHz − − 6.0 8.0 Characteristic Unit OFF CHARACTERISTICS Collector −Emitter Breakdown Voltage (Note 3) (IC = −1.0 mAdc, IB = 0) V(BR)CEO MMBTA92, SMMBTA92 MMBTA93 Collector −Base Breakdown Voltage (IC = −100 mAdc, IE = 0) Vdc V(BR)CBO MMBTA92, SMMBTA92 MMBTA93 Emitter −Base Breakdown Voltage (IE = −100 mAdc, IC = 0) V(BR)EBO Collector Cutoff Current (VCB = −200 Vdc, IE = 0) (VCB = −160 Vdc, IE = 0) Vdc mAdc ICBO MMBTA92, SMMBTA92 MMBTA93 Emitter Cutoff Current (VEB = −3.0 Vdc, IC = 0) IEBO Vdc mAdc ON CHARACTERISTICS (Note 3) DC Current Gain (IC = −1.0 mAdc, VCE = −10 Vdc) (IC = −10 mAdc, VCE = −10 Vdc) hFE (IC = −30 mAdc, VCE = −10 Vdc) Collector −Emitter Saturation Voltage (IC = −20 mAdc, IB = −2.0 mAdc) − VCE(sat) MMBTA92, SMMBTA92 MMBTA93 Base−Emitter Saturation Voltage (IC = −20 mAdc, IB = −2.0 mAdc) Vdc SMALL− SIGNAL CHARACTERISTICS Current −Gain — Bandwidth Product (IC = −10 mAdc, VCE = −20 Vdc, f = 100 MHz) Collector−Base Capacitance (VCB = −20 Vdc, IE = 0, f = 1.0 MHz) Ccb MMBTA92, SMMBTA92 MMBTA93 pF Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 3. Pulse Test: Pulse Width v 300 ms, Duty Cycle v 2.0%. 300 hFE , DC CURRENT GAIN VCE = 10 Vdc TJ = +125°C 250 200 25°C 150 -55°C 100 50 0 0.1 1.0 10 IC, COLLECTOR CURRENT (mA) Figure 1. DC Current Gain www.onsemi.com 2 100 MMBTA92L, SMMBTA92L, MMBTA93L f, T CURRENT-GAIN — BANDWIDTH (MHz) 100 C, CAPACITANCE (pF) Cib @ 1MHz 10 Ccb @ 1MHz 1.0 0.1 0.1 1.0 10 100 VR, REVERSE VOLTAGE (VOLTS) 150 130 110 90 70 50 TJ = 25°C VCE = 20 Vdc F = 20 MHz 30 10 1000 1 Figure 2. Capacitance 3 5 11 13 15 7 9 IC, COLLECTOR CURRENT (mA) 17 19 21 Figure 3. Current−Gain − Bandwidth 1.4 VCE(sat) @ 25°C, IC/IB = 10 VCE(sat) @ 125°C, IC/IB = 10 VCE(sat) @ -55°C, IC/IB = 10 VBE(sat) @ 25°C, IC/IB = 10 1.0 0.8 VBE(sat) @ 125°C, IC/IB = 10 VBE(sat) @ -55°C, IC/IB = 10 VBE(on) @ 25°C, VCE = 10 V VBE(on) @ 125°C, VCE = 10 V VBE(on) @ -55°C, VCE = 10 V 0.6 0.4 0.2 0.0 0.1 1.0 10 IC, COLLECTOR CURRENT (mA) 100 Figure 4. “ON” Voltages 1000 IC, COLLECTOR CURRENT (mA) V, VOLTAGE (VOLTS) 1.2 100 ms 1.0 s 10 ms 100 ms 100 10 ms 1.0 ms 10 Single Pulse Test TA = 25°C 1 1 100 10 VCE, COLLECTOR−EMITTER VOLTAGE (V) Figure 5. Safe Operating Area www.onsemi.com 3 1000 MMBTA92L, SMMBTA92L, MMBTA93L PACKAGE DIMENSIONS SOT−23 (TO−236) CASE 318−08 ISSUE AR D NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF THE BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. 0.25 3 E 1 2 T HE DIM A A1 b c D E e L L1 HE T L 3X b L1 VIEW C e TOP VIEW A A1 SIDE VIEW c SEE VIEW C MIN 0.89 0.01 0.37 0.08 2.80 1.20 1.78 0.30 0.35 2.10 0° MILLIMETERS NOM MAX 1.00 1.11 0.06 0.10 0.44 0.50 0.14 0.20 2.90 3.04 1.30 1.40 1.90 2.04 0.43 0.55 0.54 0.69 2.40 2.64 −−− 10 ° MIN 0.035 0.000 0.015 0.003 0.110 0.047 0.070 0.012 0.014 0.083 0° INCHES NOM 0.039 0.002 0.017 0.006 0.114 0.051 0.075 0.017 0.021 0.094 −−− MAX 0.044 0.004 0.020 0.008 0.120 0.055 0.080 0.022 0.027 0.104 10° STYLE 6: PIN 1. BASE 2. EMITTER 3. COLLECTOR END VIEW RECOMMENDED SOLDERING FOOTPRINT* 3X 2.90 3X 0.90 0.95 PITCH 0.80 DIMENSIONS: MILLIMETERS *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ◊ N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 www.onsemi.com 4 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative MMBTA29LT1/D
