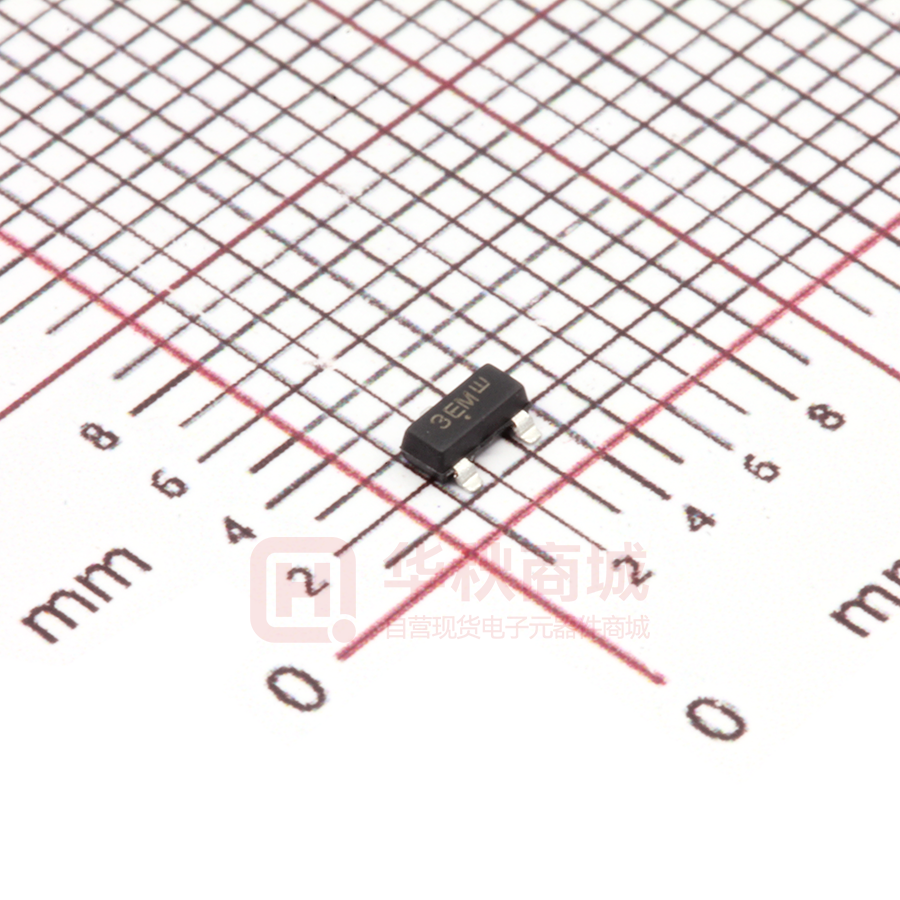

MMBTH10LT1G

MMBTH10LT1G, MMBTH10-4LT1G VHF/UHF Transistor NPN Silicon Features http://onsemi.com COLLECTOR 3 1 BASE Symbol VCEO VCBO VEBO Value 25 30 3.0 Unit Vdc Vdc Vdc 2 EMITTER • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage THERMAL CHARACTERISTICS Characteristic Total Device Dissipation FR−5 Board (Note 1) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient (Note 1) Total Device Dissipation Alumina Substrate (Note 2) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient (Note 2) Junction and Storage Temperature Range Symbol PD 225 1.8 RθJA PD 300 2.4 RθJA TJ, Tstg 417 −55 to +150 mW mW/°C °C/W MMBTH10LT1G °C 556 mW mW/°C °C/W Max Unit 1 2 3 SOT−23 (TO−236AB) CASE 318 STYLE 6 MARKING DIAGRAMS 3EM MG G 3E4 MG G MMBTH10−04LT1G Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. FR−5 = 1.0 x 0.75 x 0.062 in. 2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina 3EM, 3E4 = Specific Device Code M = Date Code* G = Pb−Free Package (Note: Microdot may be in either location) *Date Code orientation and/or overbar may vary depending upon manufacturing location. ORDERING INFORMATION Device MMBTH10LT1G MMBTH10LT3G MMBTH10−4LT1G Package SOT−23 (Pb−Free) SOT−23 (Pb−Free) SOT−23 (Pb−Free) Shipping† 3000/Tape & Reel 10000/Tape & Reel 3000/Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2009 August, 2009 − Rev. 3 1 Publication Order Number: MMBTH10LT1/D MMBTH10LT1G, MMBTH10−4LT1G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic OFF CHARACTERISTICS Collector−Emitter Breakdown Voltage (IC = 1.0 mAdc, IB = 0) Collector−Base Breakdown Voltage (IC = 100 μAdc, IE = 0) Emitter−Base Breakdown Voltage (IE = 10 μAdc, IC = 0) Collector Cutoff Current (VCB = 25 Vdc, IE = 0) Emitter Cutoff Current (VEB = 2.0 Vdc, IC = 0) ON CHARACTERISTICS DC Current Gain (IC = 4.0 mAdc, VCE = 10 Vdc) Collector−Emitter Saturation Voltage (IC = 4.0 mAdc, IB = 0.4 mAdc) Base−Emitter On Voltage (IC = 4.0 mAdc, VCE = 10 Vdc) SMALL−SIGNAL CHARACTERISTICS Current−Gain − Bandwidth Product (IC = 4.0 mAdc, VCE = 10 Vdc, f = 100 MHz) Collector−Base Capacitance (VCB= 10 Vdc, IE = 0, f = 1.0 MHz) Common−Base Feedback Capacitance (VCB= 10 Vdc, IE = 0, f = 1.0 MHz) Collector Base Time Constant (IC= 4.0 mAdc, VCB = 10 Vdc, f = 31.8 MHz) MMBTH10LT1 MMBTH10−4LT1 fT MHz 650 800 − − − − − − − − − − 0.7 0.65 9.0 pF pF ps MMBTH10LT1 MMBTH10−4LT1 hFE − 60 120 − − − − − − − 240 0.5 0.95 Vdc Vdc V(BR)CEO V(BR)CBO V(BR)EBO ICBO IEBO 25 30 3.0 − − − − − − − − − − 100 100 Vdc Vdc Vdc nAdc nAdc Symbol Min Typ Max Unit VCE(sat) VBE Ccb Crb rb′Cc http://onsemi.com 2 MMBTH10LT1G, MMBTH10−4LT1G TYPICAL CHARACTERISTICS COMMON−BASE y PARAMETERS versus FREQUENCY (VCB = 10 Vdc, IC = 4.0 mAdc, TA = 25°C) yib, INPUT ADMITTANCE 80 y ib , INPUT ADMITTANCE (mmhos) 70 60 - bib jb ib (mmhos) 50 40 30 20 10 0 100 200 300 400 500 f, FREQUENCY (MHz) 700 1000 - 50 - 60 - 20 1000 MHz - 30 - 40 700 400 200 100 gib 0 - 10 0 10 20 30 40 50 gib (mmhos) 60 70 80 Figure 1. Rectangular Form Figure 2. Polar Form yfb, FORWARD TRANSFER ADMITTANCE y ib , FORWARD TRANSFER ADMITTANCE (mmhos) 70 60 50 40 30 20 10 0 - 10 - 20 - 30 10 100 200 300 400 500 f, FREQUENCY (MHz) 700 1000 70 60 50 40 10 30 20 gfb (mmhos) 0 - 10 - 20 - 30 20 jb fb (mmhos) - gfb 40 bfb 50 100 60 200 400 600 700 30 1000 MHz Figure 3. Rectangular Form Figure 4. Polar Form http://onsemi.com 3 MMBTH10LT1G, MMBTH10−4LT1G TYPICAL CHARACTERISTICS COMMON−BASE y PARAMETERS versus FREQUENCY (VCB = 10 Vdc, IC = 4.0 mAdc, TA = 25°C) yrb, REVERSE TRANSFER ADMITTANCE y rb , REVERSE TRANSFER ADMITTANCE (mmhos) 5.0 0 100 4.0 MPS H11 - 1.0 jb rb (mmhos) 200 3.0 -brb 2.0 MPS H10 -brb - 2.0 400 - 3.0 700 1.0 - 4.0 -grb 1000 MHz 700 1000 - 5.0 -2.0 -1.8 -1.2 -0.8 -0.4 0.4 0 grb (mmhos) 0.8 1.2 1.6 2.0 0 100 200 300 400 500 f, FREQUENCY (MHz) Figure 5. Rectangular Form yob, OUTPUT ADMITTANCE 10 yob, OUTPUT ADMITTANCE (mmhos) 9.0 8.0 7.0 6.0 5.0 4.0 3.0 2.0 1.0 0 100 200 300 400 500 f, FREQUENCY (MHz) 700 1000 gob 0 0 2.0 2.0 100 bob jb ob(mmhos) 6.0 8.0 700 10 Figure 6. Polar Form 1000 MHz 4.0 400 200 4.0 6.0 gob (mmhos) 8.0 10 Figure 7. Rectangular Form Figure 8. Polar Form http://onsemi.com 4 MMBTH10LT1G, MMBTH10−4LT1G PACKAGE DIMENSIONS SOT−23 (TO−236) CASE 318−08 ISSUE AN D SEE VIEW C 3 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH THICKNESS. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. 318−01 THRU −07 AND −09 OBSOLETE, NEW STANDARD 318−08. E 1 2 HE c e b q 0.25 A A1 L L1 VIEW C DIM A A1 b c D E e L L1 HE MIN 0.89 0.01 0.37 0.09 2.80 1.20 1.78 0.10 0.35 2.10 MILLIMETERS NOM MAX 1.00 1.11 0.06 0.10 0.44 0.50 0.13 0.18 2.90 3.04 1.30 1.40 1.90 2.04 0.20 0.30 0.54 0.69 2.40 2.64 MIN 0.035 0.001 0.015 0.003 0.110 0.047 0.070 0.004 0.014 0.083 INCHES NOM 0.040 0.002 0.018 0.005 0.114 0.051 0.075 0.008 0.021 0.094 MAX 0.044 0.004 0.020 0.007 0.120 0.055 0.081 0.012 0.029 0.104 STYLE 6: PIN 1. BASE 2. EMITTER 3. COLLECTOR SOLDERING FOOTPRINT* 0.95 0.037 0.95 0.037 2.0 0.079 0.9 0.035 SCALE 10:1 0.8 0.031 mm inches *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone : 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5773−3850 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative http://onsemi.com 5 MMBTH10LT1/D
