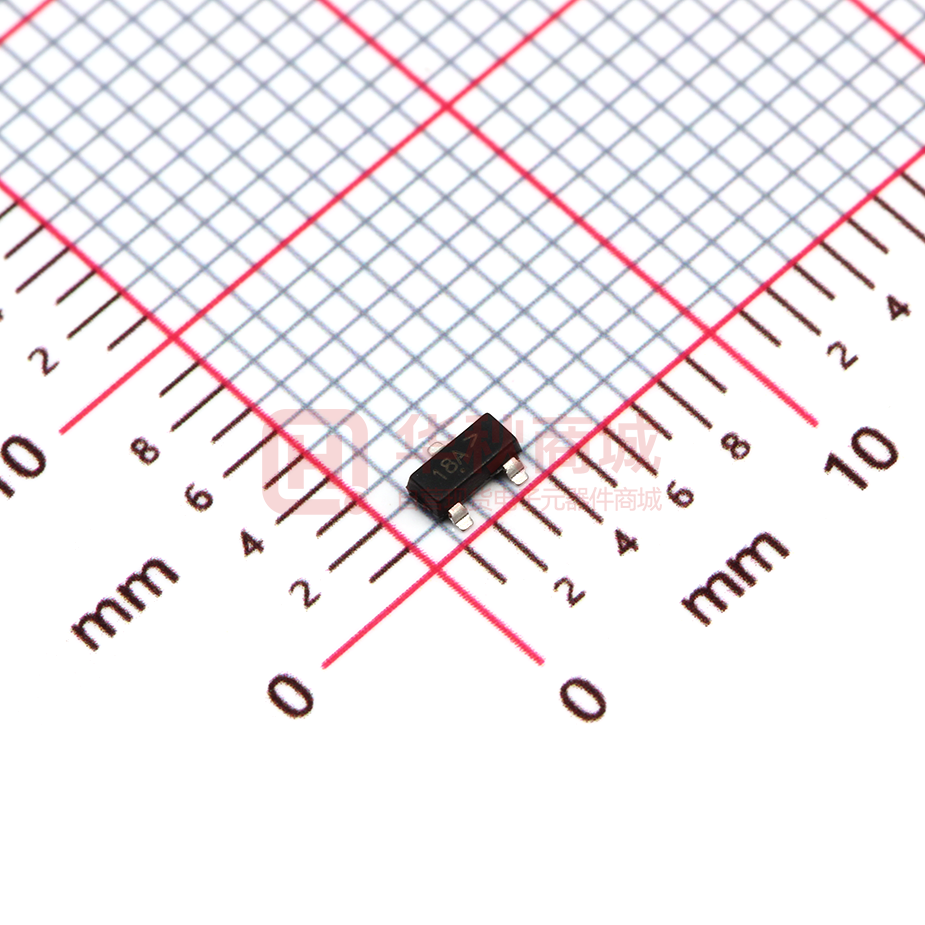

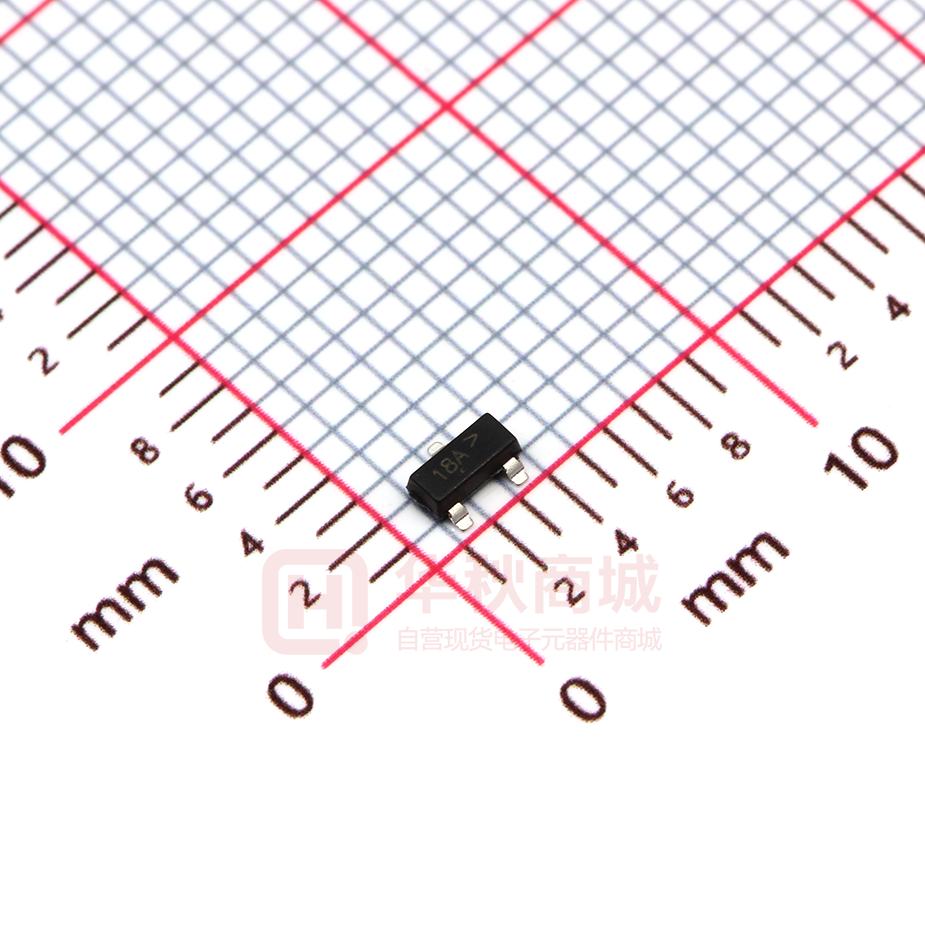

MMBZ5221BLT1G

MMBZ5221BLT1 Series Preferred Device Zener Voltage Regulators 225 mW SOT−23 Surface Mount This series of Zener diodes is offered in the convenient, surface mount plastic SOT−23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards. Features http://onsemi.com • • • • • • 225 mW Rating on FR−4 or FR−5 Board Zener Voltage Range − 2.4 V to 91 V Package Designed for Optimal Automated Board Assembly Small Package Size for High Density Applications ESD Rating of Class 3 (>16 KV) per Human Body Model Pb−Free Packages are Available 3 Cathode 1 Anode MARKING DIAGRAM 3 1 2 Mechanical Characteristics CASE: Void-free, transfer-molded, thermosetting plastic case FINISH: Corrosion resistant finish, easily solderable MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: SOT−23 CASE 318 STYLE 8 xxx G G M 260°C for 10 Seconds POLARITY: Cathode indicated by polarity band FLAMMABILITY RATING: UL 94 V−0 MAXIMUM RATINGS Rating Total Power Dissipation on FR−5 Board, (Note 1) @ TA = 25°C Derated above 25°C Thermal Resistance, Junction−to−Ambient Total Power Dissipation on Alumina Substrate, (Note 2) @ TA = 25°C Derated above 25°C Thermal Resistance, Junction−to−Ambient Junction and Storage Temperature Range Symbol PD 225 1.8 RqJA PD 300 2.4 RqJA TJ, Tstg 417 −65 to +150 mW mW/°C °C/W °C 556 mW mW/°C °C/W Max Unit xxx = Specific Device Code M = Date Code G = Pb−Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Device** MMBZ52xxBLT1 MMBZ52xxBLT1G Package SOT−23 SOT−23 (Pb−Free) SOT−23 Shipping† 3000/Tape & Reel 3000/Tape & Reel MMBZ52xxBLT3 MMBZ52xxBLT3G 10,000/Tape & Reel SOT−23 10,000/Tape & Reel (Pb−Free) **The “T1” suffix refers to an 8 mm, 7 inch reel. The “T3” suffix refers to an 8 mm, 13 inch reel. †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected. 1. FR−5 = 1.0 X 0.75 X 0.62 in. 2. Alumina = 0.4 X 0.3 X 0.024 in, 99.5% alumina. DEVICE MARKING INFORMATION See specific marking information in the device marking column of the Electrical Characteristics table on page 3 of this data sheet. Devices listed in bold, italic are ON Semiconductor Preferred devices. Preferred devices are recommended choices for future use and best overall value. © Semiconductor Components Industries, LLC, 2005 1 July, 2005 − Rev. 9 Publication Order Number: MMBZ5221BLT1/D MMBZ5221BLT1 Series ELECTRICAL CHARACTERISTICS (Pinout: 1-Anode, 2-No Connection, 3-Cathode) (TA = 25°C unless otherwise noted, VF = 0.95 V Max. @ IF = 10 mA) Symbol VZ IZT ZZT IZK ZZK IR VR IF VF Parameter Reverse Zener Voltage @ IZT Reverse Current Maximum Zener Impedance @ IZT Reverse Current Maximum Zener Impedance @ IZK Reverse Leakage Current @ VR Reverse Voltage Forward Current Forward Voltage @ IF VZ VR IR VF IZT V IF I Zener Voltage Regulator http://onsemi.com 2 MMBZ5221BLT1 Series ELECTRICAL CHARACTERISTICS (Pinout: 1-Anode, 2-NC, 3-Cathode) (VF = 0.9 V Max @ IF = 10 mA for all types.) Zener Voltage (Note 3) Device Marking 18A 18B 18C 18D 18E 8A 8B 8C 8D 8E 8F 8G 8H 8J 8K 8L 8M 8N 8P 8Q 8R 8S 8T 8U 8V 8W 8X 8Y 8Z 81A 81B 81C 81D 81E 81F 81G 81H 81J 81K 81L 81M 81N 81P 81Q 81R 81S 81T 81U 81W VZ (Volts) Min 2.28 2.37 2.56 2.66 2.85 3.13 3.42 3.70 4.08 4.46 4.84 5.32 5.70 5.89 6.46 7.12 7.79 8.26 8.64 9.50 10.4 11.40 12.35 13.30 14.25 15.20 16.15 17.10 18.05 19.00 20.90 22.80 23.75 25.65 26.60 28.50 31.35 34.20 37.05 40.85 44.65 48.45 53.20 57.00 58.90 64.60 71.25 77.90 86.45 Nom 2.4 2.5 2.7 2.8 3 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6 6.2 6.8 7.5 8.2 8.7 9.1 10 11 12 13 14 15 16 17 18 19 20 22 24 25 27 28 30 33 36 39 43 47 51 56 60 62 68 75 82 91 Max 2.52 2.63 2.84 2.94 3.15 3.47 3.78 4.10 4.52 4.94 5.36 5.88 6.30 6.51 7.14 7.88 8.61 9.14 9.56 10.50 11.55 12.60 13.65 14.70 15.75 16.80 17.85 18.90 19.95 21.00 23.10 25.20 26.25 28.35 29.40 31.50 34.65 37.80 40.95 45.15 49.35 53.55 58.80 63.00 65.10 71.40 78.75 86.10 95.55 @ IZT mA 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 9.5 9 8.5 7.8 7.4 7 6.6 6.2 5.6 5.2 5 4.6 4.5 4.2 3.8 3.4 3.2 3 2.7 2.5 2.2 2.1 2 1.8 1.7 1.5 1.4 W 30 30 30 30 29 28 24 23 22 19 17 11 7 7 5 6 8 8 10 17 22 30 13 15 16 17 19 21 23 25 29 33 35 41 44 49 58 70 80 93 105 125 150 170 185 230 270 330 400 Zener Impedance ZZT @ IZT ZZK @ IZK W 1200 1250 1300 1400 1600 1600 1700 1900 2000 1900 1600 1600 1600 1000 750 500 500 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 700 700 800 900 1000 1100 1300 1400 1400 1600 1700 2000 2300 mA 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 Leakage Current IR @ VR mA 100 100 75 75 50 25 15 10 5 5 5 5 5 5 3 3 3 3 3 3 2 1 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 Volts 1 1 1 1 1 1 1 1 1 2 2 3 3.5 4 5 6 6.5 6.5 7 8 8.4 9.1 9.9 10 11 12 13 14 14 15 17 18 19 21 21 23 25 27 30 33 36 39 43 46 47 52 56 62 69 Device MMBZ5221BL, G MMBZ5222BL, G MMBZ5223BL, G MMBZ5224BL, G MMBZ5225BL, G MMBZ5226BL, G MMBZ5227BL, G MMBZ5228BL, G MMBZ5229BL, G MMBZ5230BL, G MMBZ5231BL, G MMBZ5232BL, G MMBZ5233BL, G MMBZ5234BL, G MMBZ5235BL, G MMBZ5236BL, G MMBZ5237BL, G MMBZ5238BL, G MMBZ5239BL, G MMBZ5240BL, G MMBZ5241BL, G MMBZ5242BL, G MMBZ5243BL, G MMBZ5244BL, G MMBZ5245BL, G MMBZ5246BL, G MMBZ5247BL, G MMBZ5248BL,G MMBZ5249BL, G MMBZ5250BL,G MMBZ5251BL, G MMBZ5252BL, G MMBZ5253BL, G MMBZ5254BL, G MMBZ5255BL, G MMBZ5256BL, G MMBZ5257BL, G MMBZ5258BL, G MMBZ5259BL, G MMBZ5260BL, G MMBZ5261BL, G MMBZ5262BL, G MMBZ5263BL, G MMBZ5264BL, G MMBZ5265BL, G MMBZ5266BL, G MMBZ5267BL, G MMBZ5268BL, G MMBZ5270BL, G 3. Zener voltage is measured with a pulse test current IZ at an ambient temperature of 25°C NOTE: MMBZ5233BLT1, MMBZ5246BLT1, MMBZ5251BLT1, and MMBZ5252BLT1 Not Available in 10,000/Tape & Reel. †The “G” suffix indicates Pb−Free package available. http://onsemi.com 3 MMBZ5221BLT1 Series TYPICAL CHARACTERISTICS θ VZ, TEMPERATURE COEFFICIENT (mV/°C) 8 7 6 5 4 3 2 1 0 −1 −2 −3 VZ @ IZT TYPICAL TC VALUES FOR MMBZ5221BLT1 SERIES 100 θ VZ, TEMPERATURE COEFFICIENT (mV/°C) TYPICAL TC VALUES FOR MMBZ5221BLT1 SERIES VZ @ IZT 10 2 3 4 5 6 7 8 9 10 VZ, NOMINAL ZENER VOLTAGE (V) 11 12 1 10 VZ, NOMINAL ZENER VOLTAGE (V) 100 Figure 1. Temperature Coefficients (Temperature Range − 55°C to +150°C) Figure 2. Temperature Coefficients (Temperature Range − 55°C to +150°C) 1000 Z ZT, DYNAMIC IMPEDANCE ( Ω ) IZ = 1 mA 5 mA 20 mA 10 TJ = 25°C IZ(AC) = 0.1 IZ(DC) f = 1 kHz 1000 IF, FORWARD CURRENT (mA) 75 V (MMBZ5267BLT1) 91 V (MMBZ5270BLT1) 100 100 10 1 1 10 VZ, NOMINAL ZENER VOLTAGE 100 1 0.4 150°C 0.5 75°C 25°C 0°C 1.1 1.2 0.6 0.7 0.8 0.9 1.0 VF, FORWARD VOLTAGE (V) Figure 3. Effect of Zener Voltage on Zener Impedance Figure 4. Typical Forward Voltage http://onsemi.com 4 MMBZ5221BLT1 Series TYPICAL CHARACTERISTICS 1000 0 V BIAS 1 V BIAS C, CAPACITANCE (pF) 100 BIAS AT 50% OF VZ NOM 10 TA = 25°C 1000 I R , LEAKAGE CURRENT (μA) 100 10 1 0.1 0.01 + 25°C −55°C 0 10 20 30 40 50 60 70 VZ, NOMINAL ZENER VOLTAGE (V) 80 90 +150°C 0.001 0.0001 1 1 10 VZ, NOMINAL ZENER VOLTAGE (V) 100 0.00001 Figure 5. Typical Capacitance Figure 6. Typical Leakage Current 100 TA = 25°C 100 TA = 25°C I Z , ZENER CURRENT (mA) I Z , ZENER CURRENT (mA) 10 10 1 1 0.1 0.1 0.01 0 2 4 6 8 VZ, ZENER VOLTAGE (V) 10 12 0.01 10 30 50 70 VZ, ZENER VOLTAGE (V) 90 Figure 7. Zener Voltage versus Zener Current (VZ Up to 12 V) Figure 8. Zener Voltage versus Zener Current (12 V to 91 V) http://onsemi.com 5 MMBZ5221BLT1 Series PACKAGE DIMENSIONS SOT−23 (TO−236) CASE 318−08 ISSUE AL NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH THICKNESS. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. 318−01 THRU −07 AND −09 OBSOLETE, NEW STANDARD 318−08. DIM A A1 b c D E e L HE MIN 0.89 0.01 0.37 0.09 2.80 1.20 1.78 0.35 2.10 MILLIMETERS NOM MAX 1.00 1.11 0.06 0.10 0.44 0.50 0.13 0.18 2.90 3.04 1.30 1.40 1.90 2.04 0.54 0.69 2.40 2.64 MIN 0.035 0.001 0.015 0.003 0.110 0.047 0.070 0.014 0.083 INCHES NOM 0.040 0.002 0.018 0.005 0.114 0.051 0.075 0.021 0.094 MAX 0.044 0.004 0.020 0.007 0.120 0.055 0.081 0.029 0.104 D 3 1 2 E HE e A b A1 L C SOLDERING FOOTPRINT* 0.95 0.037 0.95 0.037 2.0 0.079 0.9 0.035 0.8 0.031 SCALE 10:1 mm inches *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 61312, Phoenix, Arizona 85082−1312 USA Phone: 480−829−7710 or 800−344−3860 Toll Free USA/Canada Fax: 480−829−7709 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Japan: ON Semiconductor, Japan Customer Focus Center 2−9−1 Kamimeguro, Meguro−ku, Tokyo, Japan 153−0051 Phone: 81−3−5773−3850 ON Semiconductor Website: http://onsemi.com Order Literature: http://www.onsemi.com/litorder For additional information, please contact your local Sales Representative. http://onsemi.com 6 MMBZ5221BLT1/D
