MMDL6050T1 Switching Diode
Features
• Pb−Free Package is Available
MAXIMUM RATINGS
Rating Continuous Reverse Voltage Peak Forward Current Peak Forward Surge Current Symbol VR IF IFM(surge) Value 70 200 500 Unit Vdc mAdc mAdc 2 Symbol PD 200 1.57 RqJA TJ, Tstg 635 −55 to 150 mW mW/°C °C/W °C Max Unit
http://onsemi.com
1 CATHODE
2 ANODE
THERMAL CHARACTERISTICS
Characteristic Total Device Dissipation FR-5 Board (Note 1) @TA = 25°C Derate above 25°C Thermal Resistance, Junction−to−Ambient Junction and Storage Temperature 1

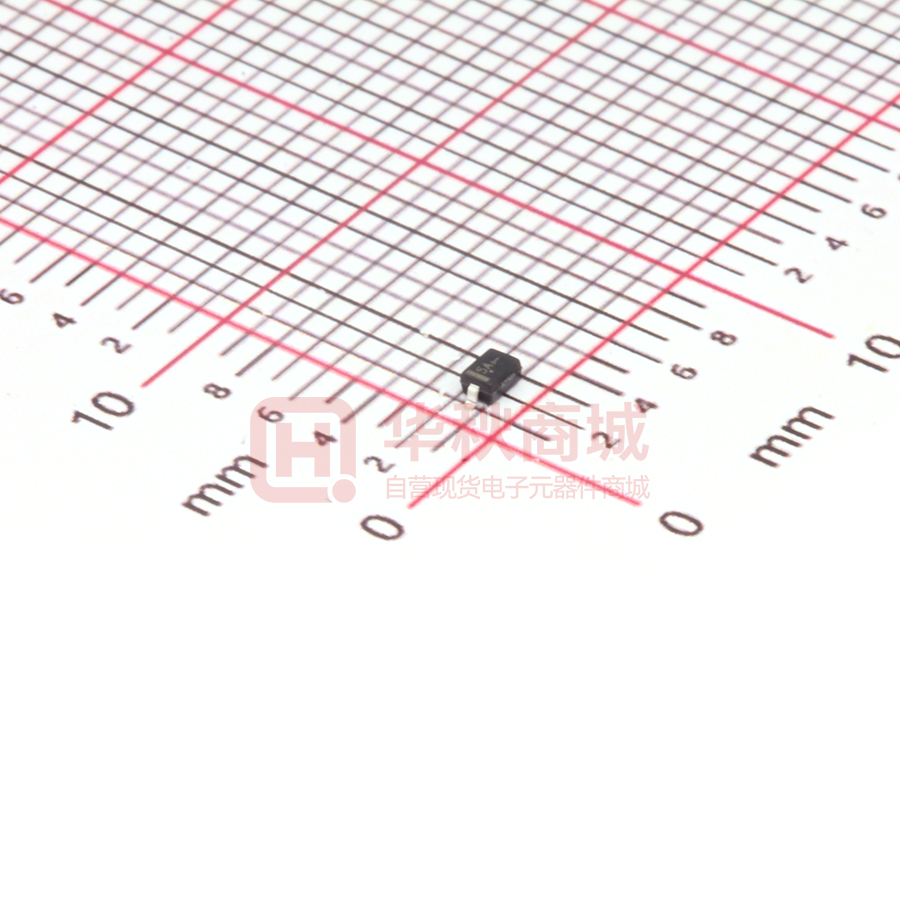

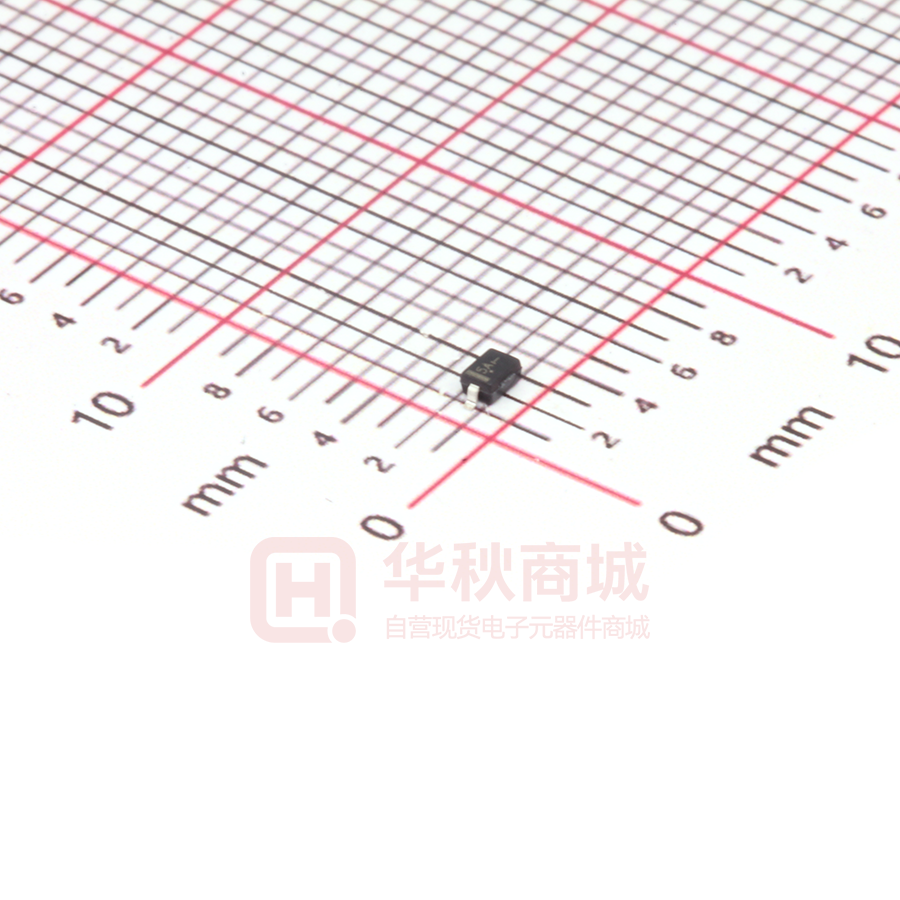

PLASTIC SOD−323 CASE 477 STYLE 1
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected. 1. FR-4 Minimum Pad.
MARKING DIAGRAM
5A M G G
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted)
Characteristic OFF CHARACTERISTICS Reverse Breakdown Voltage (I(BR) = 100 mAdc) Reverse Voltage Leakage Current (VR = 50 Vdc) Forward Voltage (IF = 1.0 mAdc) (IF = 100 mAdc) Reverse Recovery Time (IF = IR = 10 mAdc, IR(REC) = 1.0 mAdc) (Figure 1) Capacitance (VR = 0 V) V(BR) IR VF 0.55 0.85 trr − 0.7 1.1 4.0 ns 70 − − 0.1 Vdc mAdc Vdc Symbol Min Max Unit 5A = Device Code M = Date Code* G = Pb−Free Package (Note: Microdot may be in either location) *Date Code orientation may vary depending upon manufacturing location.
ORDERING INFORMATION
Device MMDL6050T1 Package SOD−323 SOD−323 (Pb−Free) Shipping † 3000/Tape & Reel 3000/Tape & Reel
C
−
2.5
pF
MMDL6050T1G
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
© Semiconductor Components Industries, LLC, 2006
1
February, 2006 − Rev. 3
Publication Order Number: MMDL6050T1/D
MMDL6050T1
820 W +10 V 2.0 k 100 mH 0.1 mF D.U.T. 50 W OUTPUT PULSE GENERATOR 50 W INPUT SAMPLING OSCILLOSCOPE VR 90% IR INPUT SIGNAL iR(REC) = 1.0 mA OUTPUT PULSE (IF = IR = 10 mA; MEASURED at iR(REC) = 1.0 mA) IF 0.1 mF tr 10% tp t IF trr t
Notes: 1. A 2.0 kW variable resistor adjusted for a Forward Current (IF) of 10 mA. Notes: 2. Input pulse is adjusted so IR(peak) is equal to 10 mA. Notes: 3. tp » trr
Figure 1. Recovery Time Equivalent Test Circuit
100 IF, FORWARD CURRENT (mA) TA = 85°C 10 TA = −40°C IR , REVERSE CURRENT (μA)
10
TA = 150°C TA = 125°C
1.0
0.1
TA = 85°C TA = 55°C
1.0
TA = 25°C
0.01 TA = 25°C 0 10 20 30 40 VR, REVERSE VOLTAGE (VOLTS) 50
0.1
0.2
0.4
0.6 0.8 1.0 VF, FORWARD VOLTAGE (VOLTS)
1.2
0.001
Figure 2. Forward Voltage
Figure 3. Leakage Current
0.68 CD, DIODE CAPACITANCE (pF)
0.64
0.60
0.56
0.52
0
2
4
6
8
VR, REVERSE VOLTAGE (VOLTS)
Figure 4. Capacitance
http://onsemi.com
2
MMDL6050T1
PACKAGE DIMENSIONS
SOD−323 CASE 477−02 ISSUE G
HE D
b
1
2
E
NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING. 4. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. 5. DIMENSION L IS MEASURED FROM END OF RADIUS. MILLIMETERS DIM MIN NOM MAX A 0.80 0.90 1.00 A1 0.00 0.05 0.10 A3 0.15 REF b 0.25 0.32 0.4 C 0.089 0.12 0.177 D 1.60 1.70 1.80 E 1.15 1.25 1.35 L 0.08 HE 2.30 2.50 2.70 STYLE 1: PIN 1. CATHODE 2. ANODE INCHES NOM MAX 0.035 0.040 0.002 0.004 0.006 REF 0.010 0.012 0.016 0.003 0.005 0.007 0.062 0.066 0.070 0.045 0.049 0.053 0.003 0.090 0.098 0.105
A3 A L
NOTE 5
MIN 0.031 0.000
C
NOTE 3
A1
SOLDERING FOOTPRINT*
0.63 0.025 0.83 0.033 1.60 0.063 2.85 0.112 *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.
