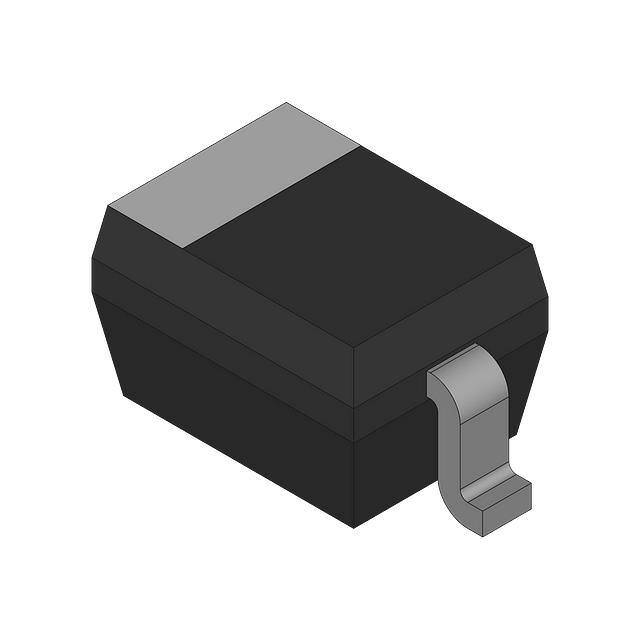

MMDL914T1

MMDL914T1 Preferred Device High−Speed Switching Diode Features • Pb−Free Package is Available http://onsemi.com MAXIMUM RATINGS Rating Reverse Voltage Forward Current Peak Forward Surge Current Symbol VR IF IFM(surge) Value 100 200 500 Unit Vdc mAdc mAdc 1 CATHODE 2 ANODE 2 THERMAL CHARACTERISTICS Characteristic Total Device Dissipation FR-5 Board TA = 25°C (Note 1) Derate above 25°C Thermal Resistance, Junction−to−Ambient Junction and Storage Temperature Symbol PD Max 200 1.57 RqJA TJ, Tstg 635 −55 to 150 Unit mW mW/°C °C/W °C 1 SOD−323 CASE 477 STYLE 1 MARKING DIAGRAM Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. FR-4 Minimum Pad. 5D M G G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic OFF CHARACTERISTICS Reverse Breakdown Voltage (IR = 100 mAdc) Reverse Voltage Leakage Current (VR = 20 Vdc) (VR = 75 Vdc) Diode Capacitance (VR = 0 V, f = 1.0 MHz) Forward Voltage (IF = 10 mAdc) Reverse Recovery Time (IF = IR = 10 mAdc) (Figure 1) V(BR) IR − − CT VF trr − − − 25 5.0 4.0 1.0 4.0 nAdc mAdc pF Vdc ns 100 − Vdc Symbol Min Max Unit 5D M G = Specific Device Code = Date Code = Pb−Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Device MMDL914T1 MMDL914T1G MMDL914T3G Package SOD−323 SOD−323 (Pb−Free) SOD−323 (Pb−Free) Shipping † 3000/Tape & Reel 3000/Tape & Reel 10,000/Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Preferred devices are recommended choices for future use and best overall value. © Semiconductor Components Industries, LLC, 2007 1 January, 2007 − Rev. 4 Publication Order Number: MMDL914T1/D MMDL914T1 820 W +10 V 2.0 k 100 mH 0.1 mF D.U.T. 50 W OUTPUT PULSE GENERATOR 50 W INPUT SAMPLING OSCILLOSCOPE VR 90% IR INPUT SIGNAL iR(REC) = 1.0 mA OUTPUT PULSE (IF = IR = 10 mA; MEASURED at iR(REC) = 1.0 mA) IF 0.1 mF tr 10% tp t IF trr t Notes: 1. A 2.0 kW variable resistor adjusted for a Forward Current (IF) of 10 mA. Notes: 2. Input pulse is adjusted so IR(peak) is equal to 10 mA. Notes: 3. tp » trr Figure 1. Recovery Time Equivalent Test Circuit 100 IF, FORWARD CURRENT (mA) TA = 85°C 10 TA = −40°C IR , REVERSE CURRENT (μA) 10 TA = 150°C TA = 125°C 1.0 0.1 TA = 85°C TA = 55°C 1.0 TA = 25°C 0.01 TA = 25°C 0 10 20 30 40 VR, REVERSE VOLTAGE (VOLTS) 50 0.1 0.2 0.4 0.6 0.8 1.0 VF, FORWARD VOLTAGE (VOLTS) 1.2 0.001 Figure 2. Forward Voltage Figure 3. Leakage Current 0.68 CD, DIODE CAPACITANCE (pF) 0.64 0.60 0.56 0.52 0 2 4 6 8 VR, REVERSE VOLTAGE (VOLTS) Figure 4. Capacitance http://onsemi.com 2 MMDL914T1 PACKAGE DIMENSIONS SOD−323 CASE 477−02 ISSUE G HE D b 1 2 E NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING. 4. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. 5. DIMENSION L IS MEASURED FROM END OF RADIUS. MILLIMETERS DIM MIN NOM MAX A 0.80 0.90 1.00 A1 0.00 0.05 0.10 A3 0.15 REF b 0.25 0.32 0.4 C 0.089 0.12 0.177 D 1.60 1.70 1.80 E 1.15 1.25 1.35 L 0.08 HE 2.30 2.50 2.70 STYLE 1: PIN 1. CATHODE 2. ANODE INCHES NOM MAX 0.035 0.040 0.002 0.004 0.006 REF 0.010 0.012 0.016 0.003 0.005 0.007 0.062 0.066 0.070 0.045 0.049 0.053 0.003 0.090 0.098 0.105 A3 A L NOTE 5 MIN 0.031 0.000 C NOTE 3 A1 SOLDERING FOOTPRINT* 0.63 0.025 0.83 0.033 1.60 0.063 2.85 0.112 *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5773−3850 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative http://onsemi.com 3 MMDL914T1/D
