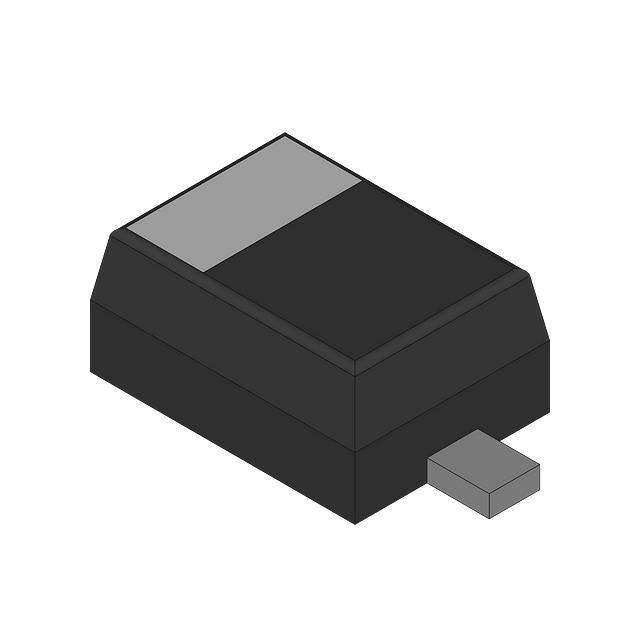

MMSD914T1 Preferred Device Switching Diode Features • • • • SOD−123 Surface Mount Package High Breakdown Voltage Fast Speed Switching Time Pb−Free Packages are Available http://onsemi.com 1 CATHODE MAXIMUM RATINGS Rating 2 ANODE SOD−123 CASE 425 PLASTIC 2 Symbol Value Unit Continuous Reverse Voltage VR 100 Vdc Peak Forward Current IF 200 mAdc IFM(surge) 500 mAdc 1 Peak Forward Surge Current Non−repetitive Peak Forward Surge Current Pulse Width =1 second Pulse Width =1 micro second IFSM MARKING DIAGRAM 1.0 2.0 A A Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. THERMAL CHARACTERISTICS Characteristic Total Device Dissipation FR−5 Board (Note 1) TA = 25°C Derate above 25°C Thermal Resistance, Junction−to−Ambient Junction and Storage Temperature Range Symbol Max Unit PD 425 mW 3.4 mW/°C RqJA 290 °C/W TJ, Tstg −55 to +150 °C 1 5D M G G 2 5D = Specific Device Code M = Date Code G = Pb−Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Package Shipping† MMSD914T1 SOD−123 3000 / Tape & Reel MMSD914T1G SOD−123 (Pb−Free) 3000 / Tape & Reel MMSD914T3 SOD−123 10,000 / Tape & Reel MMSD914T3G SOD−123 (Pb−Free) 10,000 / Tape & Reel Device 1. FR−5 = 1.0oz Cu, 1.0inz pad †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Preferred devices are recommended choices for future use and best overall value. © Semiconductor Components Industries, LLC, 2007 January, 2007 − Rev. 7 1 Publication Order Number: MMSD914T1/D MMSD914T1 ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic Symbol Min Max Unit V(BR) 100 − Vdc IR − − 25 5.0 nAdc mAdc Forward Voltage (IF = 10 mAdc) VF − 1000 mVdc Diode Capacitance (VR = 0 Vdc, f = 1.0 MHz) CD − 4.0 pF Reverse Recovery Time (IF = IR = 10 mAdc) (Figure 1) trr − 4.0 ns trr t OFF CHARACTERISTICS Reverse Breakdown Voltage (IBR = 100 mAdc) Reverse Voltage Leakage Current (VR = 20 Vdc) (VR = 75 Vdc) 820 W +10 V 2k 100 mH 0.1 mF tr IF 0.1 mF tp t IF 10% DUT 50 W OUTPUT PULSE GENERATOR 50 W INPUT SAMPLING OSCILLOSCOPE 90% IR VR INPUT SIGNAL Notes: 1. A 2.0 kW variable resistor adjusted for a Forward Current (IF) of 10 mA. Notes: 2. Input pulse is adjusted so IR(peak) is equal to 10 mA. Notes: 3. tp » trr Figure 1. Recovery Time Equivalent Test Circuit http://onsemi.com 2 iR(REC) = 1 mA OUTPUT PULSE (IF = IR = 10 mA; measured at iR(REC) = 1 mA) MMSD914T1 100 10 I R, REVERSE CURRENT (A) μ 10 TA = 85°C TA = −40°C 1.0 TA = 125°C 1.0 TA = 85°C 0.1 TA = 55°C 0.01 TA = 25°C TA = 25°C 0.1 0.2 0.4 0.6 0.8 1.0 0.001 1.2 0 10 20 30 VF, FORWARD VOLTAGE (VOLTS) VR, REVERSE VOLTAGE (VOLTS) Figure 2. Forward Voltage Figure 3. Leakage Current 0.68 CD , DIODE CAPACITANCE (pF) IF, FORWARD CURRENT (mA) TA = 150°C 0.64 0.60 0.56 0.52 0 2 4 6 VR, REVERSE VOLTAGE (VOLTS) Figure 4. Capacitance http://onsemi.com 3 8 40 50 MMSD914T1 PACKAGE DIMENSIONS SOD−123 CASE 425−04 ISSUE E D ÂÂÂÂ ÂÂÂÂ A NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. A1 1 HE DIM A A1 b c D E HE L E MILLIMETERS MIN NOM MAX 0.94 1.17 1.35 0.00 0.05 0.10 0.51 0.61 0.71 −−− −−− 0.15 1.40 1.60 1.80 2.54 2.69 2.84 3.56 3.68 3.86 −−− −−− 0.25 MIN 0.037 0.000 0.020 −−− 0.055 0.100 0.140 0.010 INCHES NOM 0.046 0.002 0.024 −−− 0.063 0.106 0.145 −−− MAX 0.053 0.004 0.028 0.006 0.071 0.112 0.152 −−− L 2 C b SOLDERING FOOTPRINT* ÉÉ ÉÉ ÉÉ ÉÉ 0.91 0.036 2.36 0.093 4.19 0.165 ÉÉ ÉÉ ÉÉ ÉÉ SCALE 10:1 1.22 0.048 mm Ǔ ǒinches *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5773−3850 http://onsemi.com 4 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative MMSD914T1/D
