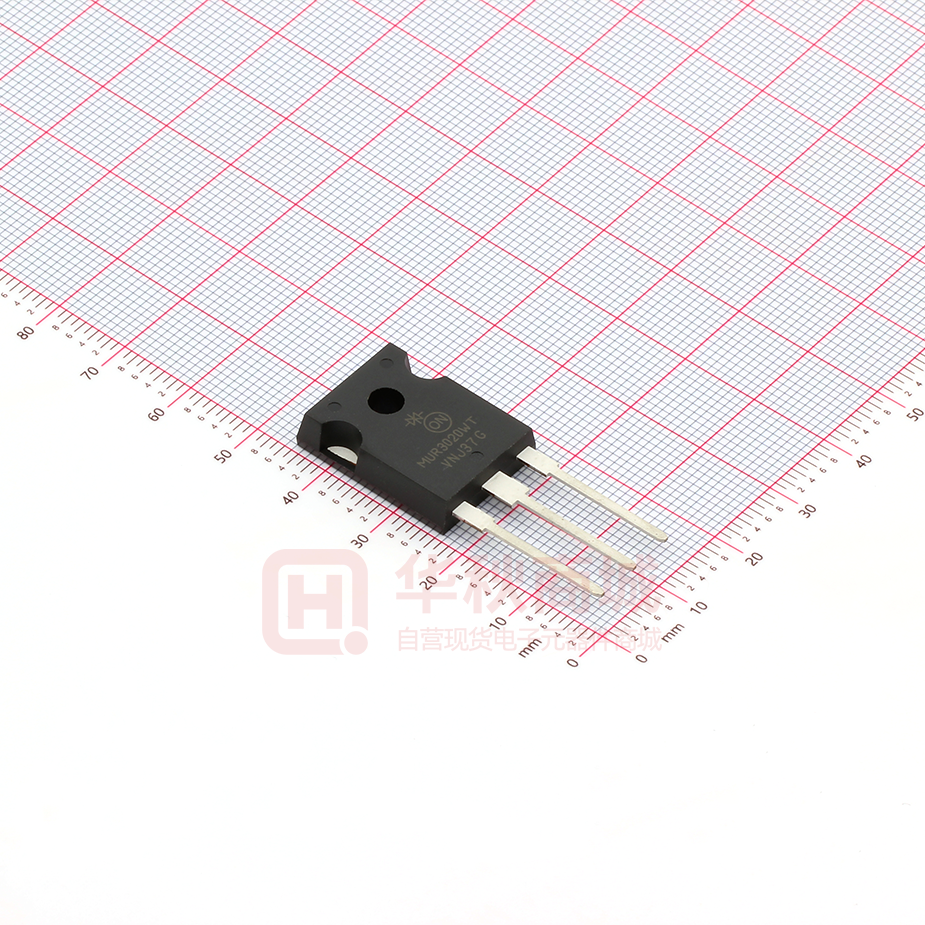

MUR3020WTG

MUR3020WT, MUR3060WT Preferred Devices SWITCHMODEt Power Rectifiers These state−of−the−art devices are designed for use in switching power supplies, inverters and as free wheeling diodes. Features http://onsemi.com • • • • • • • • • • Ultrafast 35 and 60 Nanosecond Recovery Time 175°C Operating Junction Temperature Popular TO−247 Package High Voltage Capability to 600 V Low Forward Drop Low Leakage Specified @ 150°C Case Temperature Current Derating Specified @ Both Case and Ambient Temperatures Epoxy Meets UL 94 V−0 @ 0.125 in High Temperature Glass Passivated Junction Pb−Free Packages are Available* ULTRAFAST RECTIFIERS 30 AMPERES, 200−600 VOLTS 1 2, 4 3 Mechanical Characteristics: • Case: Epoxy, Molded • Weight: 4.3 Grams (Approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable MARKING DIAGRAM • Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds • Shipped 30 Units Per Plastic Tube 1 MUR30x0WT AYWWG 2 3 TO−247 CASE 340L PLASTIC MUR30x0WT = Device Code x = 2 or 6 A = Assembly Location Y = Year WW = Work Week G = Pb−Free Package ORDERING INFORMATION Device MUR3020WT MUR3020WTG MUR3060WT MUR3060WTG Package TO−247 TO−247 (Pb−Free) TO−247 TO−247 (Pb−Free) Shipping 30 Units/Rail 30 Units/Rail 30 Units/Rail 30 Units/Rail *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor Components Industries, LLC, 2006 Preferred devices are recommended choices for future use and best overall value. 1 January, 2006 − Rev. 4 Publication Order Number: MUR3020WT/D MUR3020WT, MUR3060WT MAXIMUM RATINGS (Per Leg) Rating Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current @ 145°C Total Device Peak Repetitive Surge Current (Rated VR, Square Wave, 20 kHz, TC = 145°C) Nonrepetitive Peak Surge Current (Surge applied at rated load conditions, halfwave, single phase, 60 Hz) Operating Junction and Storage Temperature Symbol VRRM VRWM VR IF(AV) MUR3020WT 200 MUR3060WT 600 Unit V 15 30 30 200 − 65 to +175 150 A IFM IFSM TJ, Tstg A A °C THERMAL CHARACTERISTICS (Per Leg) Maximum Thermal Resistance, − Junction−to−Case − Junction−to−Ambient °C/W RqJC RqJA 1.5 40 ELECTRICAL CHARACTERISTICS (Per Leg) Maximum Instantaneous Forward Voltage (Note 1) (IF = 15 Amp, TC = 150°C) (IF = 15 Amp, TC = 25°C) Maximum Instantaneous Reverse Current (Note 1) (Rated DC Voltage, TJ = 150°C) (Rated DC Voltage, TJ = 25°C) Maximum Reverse Recovery Time (iF = 1.0 A, di/dt = 50 Amps/ms) 1. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%. VF 0.85 1.05 iR 500 10 trr 35 1000 10 60 ns 1.4 1.7 mA V http://onsemi.com 2 MUR3020WT, MUR3060WT MUR3020WT 100 TJ = 150°C 100 100°C IR, REVERSE CURRENT ( μ A) 25°C 50 20 10 5 2 1 0.5 0.2 0.1 0.05 0.02 0.01 TJ = 150°C 100°C 50 30 20 i F, INSTANTANEOUS FORWARD CURRENT (AMPS) 25°C 10 5 3 2 60 80 100 120 140 160 180 200 VR, REVERSE VOLTAGE (VOLTS) *The curves shown are typical for the highest voltage device in the voltage grouping. Typical reverse current for lower voltage selections can be estimated from these same curves if VR is sufficiently below rated VR. 0 20 40 Figure 2. Typical Reverse Current (Per Leg)* I F(AV), AVERAGE FORWARD CURRENT (AMPS) 16 14 12 10 8 6 4 RATED VOLTAGE APPLIED 2 0 140 150 160 170 TC, CASE TEMPERATURE (5C) 180 SQUARE WAVE dc 1 0.5 0.3 0.2 0.1 0.2 0.4 0.6 0.8 1 1.2 vF, INSTANTANEOUS VOLTAGE (VOLTS) 1.4 1.6 Figure 1. Typical Forward Voltage (Per Leg) Figure 3. Current Derating, Case (Per Leg) I F(AV), AVERAGE FORWARD CURRENT (AMPS) P F(AV) , AVERAGE POWER DISSIPATION (WATTS) 14 dc 12 10 8 6 4 2 0 0 SQUARE WAVE dc SQUARE WAVE RqJA = 40°C/W AS OBTAINED IN FREE AIR WITH NO HEAT SINK. 20 40 60 80 100 120 140 160 TA, AMBIENT TEMPERATURE (5C) 180 200 RqJA = 15°C/W AS OBTAINED USING A SMALL FINNED HEAT SINK. 16 14 12 10 8 6 SQUARE WAVE 4 2 0 0 2 4 6 8 10 12 14 IF(AV), AVERAGE FORWARD CURRENT (AMPS) 16 TJ = 125°C I (RESISTIVE LOAD) PK = π IAV I (CAPACITIVE LOAD) PK = 5 IAV 10 20 dc Figure 4. Current Derating, Ambient (Per Leg) Figure 5. Power Dissipation (Per Leg) http://onsemi.com 3 MUR3020WT, MUR3060WT MUR3060WT 100 200 100 50 IR, REVERSE CURRENT ( μ A) TJ = 150°C 30 100°C 20 i F, INSTANTANEOUS FORWARD CURRENT (AMPS) 25°C 10 20 10 5 2 1 0.5 0.2 0.1 TJ = 150°C 100°C 50 25°C 0.05 5 3 2 I F(AV), AVERAGE FORWARD CURRENT (AMPS) 16 14 12 SQUARE WAVE 10 8 6 4 RATED VOLTAGE APPLIED 2 0 140 150 160 170 TC, CASE TEMPERATURE (5C) 180 dc 0.02 150 200 250 300 350 400 450 500 550 600 650 VR, REVERSE VOLTAGE (VOLTS) *The curves shown are typical for the highest voltage device in the voltage grouping. Typical reverse current for lower voltage selections can be estimated from these same curves if VR is sufficiently below rated VR. Figure 7. Typical Reverse Current (Per Leg)* 1 0.5 0.3 0.2 0.1 0.2 0.4 0.6 0.8 1 1.2 vF, INSTANTANEOUS VOLTAGE (VOLTS) 1.4 1.6 Figure 6. Typical Forward Voltage (Per Leg) Figure 8. Current Derating, Case (Per Leg) I F(AV), AVERAGE FORWARD CURRENT (AMPS) P F(AV) , AVERAGE POWER DISSIPATION (WATTS) 10 9 8 7 6 5 4 3 SQUARE WAVE RqJA = 60°C/W 1 AS OBTAINED IN FREE AIR WITH NO HEAT SINK. 0 20 40 60 80 100 120 140 0 TA, AMBIENT TEMPERATURE (5C) 2 dc SQUARE WAVE dc RqJA = 16°C/W AS OBTAINED FROM A SMALL TO−220 HEAT SINK. 16 14 12 10 8 6 4 2 0 0 I (CAPACITIVE LOAD) PK = 5 IAV 10 dc 20 SQUARE WAVE (RESISTIVE−INDUCTIVE LOAD) IPK = π IAV TJ = 125°C 160 180 200 2 4 6 8 10 12 14 IF(AV), AVERAGE FORWARD CURRENT (AMPS) 16 Figure 9. Current Derating, Ambient (Per Leg) Figure 10. Power Dissipation (Per Leg) http://onsemi.com 4 MUR3020WT, MUR3060WT r(t), TRANSIENT THERMAL RESISTANCE (NORMALIZED) 1 D = 0.5 0.5 0.2 0.1 0.05 0.1 0.05 0.01 SINGLE PULSE P(pk) t1 t2 DUTY CYCLE, D = t1/t2 ZqJC(t) = r(t) RqJC RqJC = 1.5°C/W MAX D CURVES APPLY FOR POWER PULSE TRAIN SHOWN READ TIME AT T1 TJ(pk) − TC = P(pk) ZqJC(t) 0.02 0.01 0.01 0.02 0.05 0.1 0.2 0.5 1 2 5 t, TIME (ms) 10 20 50 100 200 500 1K Figure 11. Thermal Response 1K 500 C, CAPACITANCE (pF) 200 100 50 20 10 TJ = 25°C 1 2 5 10 20 VR, REVERSE VOLTAGE (VOLTS) 50 100 Figure 12. Typical Capacitance (Per Leg) http://onsemi.com 5 MUR3020WT, MUR3060WT PACKAGE DIMENSIONS TO−247 PSI CASE 340L−02 ISSUE D −T− C −B− U N A 1 2 3 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETER. MILLIMETERS MIN MAX 20.32 21.08 15.75 16.26 4.70 5.30 1.00 1.40 2.20 2.60 1.65 2.13 5.45 BSC 1.50 2.49 0.40 0.80 20.06 20.83 5.40 6.20 4.32 5.49 −−− 4.50 3.55 3.65 6.15 BSC 2.87 3.12 INCHES MIN MAX 0.800 8.30 0.620 0.640 0.185 0.209 0.040 0.055 0.087 0.102 0.065 0.084 0.215 BSC 0.059 0.098 0.016 0.031 0.790 0.820 0.212 0.244 0.170 0.216 −−− 0.177 0.140 0.144 0.242 BSC 0.113 0.123 E L 4 DIM A B C D E F G H J K L N P Q U W −Q− P −Y− 0.63 (0.025) M TB M K W F 2 PL G D 3 PL 0.25 (0.010) M J H YQ S SWITCHMODE is a trademark of Semiconductor Components Industries, LLC. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: N. American Technical Support: 800−282−9855 Toll Free Literature Distribution Center for ON Semiconductor USA/Canada P.O. Box 61312, Phoenix, Arizona 85082−1312 USA Phone: 480−829−7710 or 800−344−3860 Toll Free USA/Canada Japan : ON Semiconductor, Japan Customer Focus Center 2−9−1 Kamimeguro, Meguro−ku, Tokyo, Japan 153−0051 Fax: 480−829−7709 or 800−344−3867 Toll Free USA/Canada Phone: 81−3−5773−3850 Email: orderlit@onsemi.com ON Semiconductor Website: http://onsemi.com Order Literature: http://www.onsemi.com/litorder For additional information, please contact your local Sales Representative. http://onsemi.com 6 MUR3020WT/D
