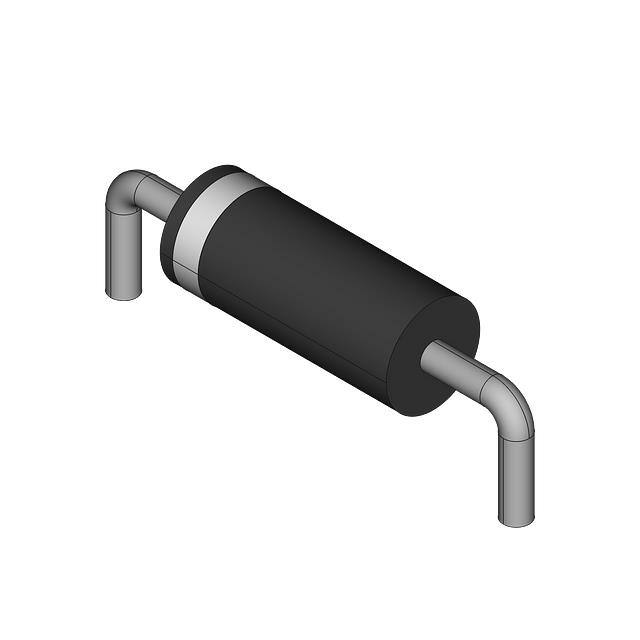

MURA215T3

MURA215T3, MURA220T3 Preferred Devices Surface Mount Ultrafast Power Rectifiers Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system. http://onsemi.com Features • • • • • Small Compact Surface Mountable Package with J−Bend Leads Rectangular Package for Automated Handling High Temperature Glass Passivated Junction Low Forward Voltage Drop (0.77 V Max @ 2.0 A, TJ = 150°C) Pb−Free Packages are Available ULTRAFAST RECTIFIERS 2 AMPERES, 150−200 VOLTS Mechanical Characteristics: • Case: Epoxy, Molded • Weight: 70 mg (Approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal • • • SMA CASE 403D PLASTIC Leads are Readily Solderable Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds Polarity: Polarity Band Indicates Cathode Lead ESD Protection: Human Body Model > 4000 V (Class 3) Machine Model > 400 V (Class C) MARKING DIAGRAM U5x AYWW G MAXIMUM RATINGS Rating Symbol Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage MURA215T3 MURA220T3 VRRM VRWM VR Average Rectified Forward Current @ TL = 155°C @ TL = 135°C IF(AV) Non-Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) IFSM Operating Junction Temperature Range Value Unit V 150 200 A 1.0 2.0 40 A ORDERING INFORMATION TJ −65 to +175 °C THERMAL CHARACTERISTICS Characteristic Symbol Max Unit Thermal Resistance, Junction−to−Lead (TL = 25°C) (Note 1) Thermal Resistance, Junction−to−Ambient (Note 1) PsiJL (Note 2) RqJA 24 °C/W September, 2008 − Rev. 4 Device Package Shipping† MURA215T3 SMA 5000/Tape & Reel SMA (Pb−Free) 5000/Tape & Reel SMA 5000/Tape & Reel SMA (Pb−Free) 5000/Tape & Reel MURA215T3G MURA220T3 216 MURA220T3G Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. Rating applies when surface mounted on the minimum pad size recommended, PC Board FR−4. 2. In compliance with JEDEC 51, these values (historically represented by RqJL) are now referenced as PsiJL. © Semiconductor Components Industries, LLC, 2008 U5x = Device Code x = C for MURA215T3 = D for MURA220T3 A = Assembly Location Y = Year WW = Work Week G = Pb−Free Package 1 †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Preferred devices are recommended choices for future use and best overall value. Publication Order Number: MURA215T3/D MURA215T3, MURA220T3 ELECTRICAL CHARACTERISTICS Characteristic Symbol Maximum Instantaneous Forward Voltage (Note 3) (iF = 2.0 A, TJ = 25°C) (iF = 2.0 A, TJ = 150°C) vF Maximum Instantaneous Reverse Current (Note 3) (Rated DC Voltage, TJ = 25°C) (Rated DC Voltage, TJ = 150°C) iR Maximum Reverse Recovery Time (iF = 1.0 A, di/dt = 50 A/ms) trr Max Unit V 0.95 0.77 mA 2.0 50 35 ns 3. Pulse Test: Pulse Width = 300 ms, Duty Cycle v 2.0%. 1 IR, REVERSE CURRENT (mA) TJ = 175°C 10 TJ = 100°C 0.1 TJ = 25°C 0.01 0.001 IF, INSTANTANEOUS FORWARD CURRENT (A) 100 0 20 40 60 80 TJ = 25°C 1 0 20 40 60 80 100 120 140 160 180 200 Figure 1. Typical Reverse Current Figure 2. Maximum Reverse Current 100°C 25°C 1 0.1 0.4 TJ = 100°C VR, REVERSE VOLTAGE (VOLTS) TC = 175°C 0.3 10 VR, REVERSE VOLTAGE (VOLTS) 10 0.01 TJ = 175°C 0.1 100 120 140 160 180 200 0.5 0.6 0.7 0.8 0.9 1 1.1 IF, INSTANTANEOUS FORWARD CURRENT (A) IR, REVERSE CURRENT (mA) 100 10 100°C TC = 175°C 25°C 1 0.1 0.01 0.3 VF, INSTANTANEOUS VOLTAGE (VOLTS) 0.4 0.5 0.6 0.7 0.8 0.9 1 VF, INSTANTANEOUS VOLTAGE (VOLTS) Figure 4. Maximum Forward Voltage Figure 3. Typical Forward Voltage http://onsemi.com 2 1.1 MURA215T3, MURA220T3 50 50 NOTE: TYPICAL CAPACITANCE AT 0 V = 45 pF 35 30 25 20 15 10 35 30 25 20 15 10 5 5 0 8 12 16 20 24 28 32 36 40 8 12 16 20 24 28 32 Figure 5. Typical Capacitance Figure 6. Maximum Capacitance dc SQUARE WAVE 2 1 80 90 4 VR, REVERSE VOLTAGE (VOLTS) 4 3 0 VR, REVERSE VOLTAGE (VOLTS) 100 110 120 130 140 150 160 170 180 IF(AV), AVERAGE FORWARD CURRENT (A) 4 5 0 40 0 0 NOTE: MAXIMUM CAPACITANCE AT 0 V = 47 pF 45 C, CAPACITANCE (pF) 40 1.25 0.5 0.25 0 0 20 40 60 80 100 120 140 TA, AMBIENT TEMPERATURE (°C) Figure 8. Current Derating, Ambient (FR−4 Board with Minimum Pad) dc 2 SQUARE WAVE 1 0.5 0.5 180 0.75 SQUARE WAVE 2.5 0 160 1 3 0 40 dc Figure 7. Current Derating, Lead 1.5 36 1.5 TL, LEAD TEMPERATURE (°C) PF, AVERAGE POWER DISSIPATION (W) IF(AV), AVERAGE FORWARD CURRENT (A) C, CAPACITANCE (pF) 45 1 1.5 2 2.5 3 IF(AV), AVERAGE FORWARD CURRENT (AMPS) Figure 9. Power Dissipation http://onsemi.com 3 3.5 MURA215T3, MURA220T3 PACKAGE DIMENSIONS SMA CASE 403D−02 ISSUE E HE NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. 403D−01 OBSOLETE, NEW STANDARD IS 403D−02. E b DIM A A1 b c D E HE L D POLARITY INDICATOR OPTIONAL AS NEEDED (SEE STYLES) MIN 1.97 0.05 1.27 0.15 2.29 4.06 4.83 0.76 MILLIMETERS NOM MAX 2.10 2.20 0.10 0.15 1.45 1.63 0.28 0.41 2.60 2.92 4.32 4.57 5.21 5.59 1.14 1.52 MIN 0.076 0.002 0.050 0.006 0.090 0.160 0.190 0.030 INCHES NOM 0.085 0.004 0.057 0.011 0.103 0.170 0.205 0.045 MAX 0.089 0.006 0.064 0.016 0.115 0.180 0.220 0.060 STYLE 1: PIN 1. CATHODE (POLARITY BAND) 2. ANODE A L A1 c SOLDERING FOOTPRINT* 4.0 0.157 2.0 0.0787 2.0 0.0787 SCALE 8:1 mm Ǔ ǒinches *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5773−3850 http://onsemi.com 4 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative MURA215T3/D
