MURA215, SURA8215,
MURA220, NRVUA220V,
SURA8220
Surface Mount
Ultrafast Power Rectifiers
Ideally suited for high voltage, high frequency rectification, or as
free wheeling and protection diodes in surface mount applications
where compact size and weight are critical to the system.
Features
•
•
•
•
•
•
•
• Case: Epoxy, Molded
• Weight: 70 mg (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
•
•
ULTRAFAST RECTIFIERS
2 AMPERES, 150−200 VOLTS
Small Compact Surface Mountable Package with J−Bend Leads
Rectangular Package for Automated Handling
High Temperature Glass Passivated Junction
Low Forward Voltage Drop (0.77 V Max @ 2.0 A, TJ = 150°C)
Low Forward Voltage Drop (0.71 V Max @ 1.0 A, TJ = 150°C)
NRVUA and SURA8 Prefixes for Automotive and Other
Applications Requiring Unique Site and Control Change
Requirements; AEC−Q101 Qualified and PPAP Capable*
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Mechanical Characteristics:
•
www.onsemi.com
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
Polarity: Polarity Band Indicates Cathode Lead
ESD Protection:
♦ Human Body Model > 4000 V (Class 3)
♦ Machine Model > 400 V (Class C)

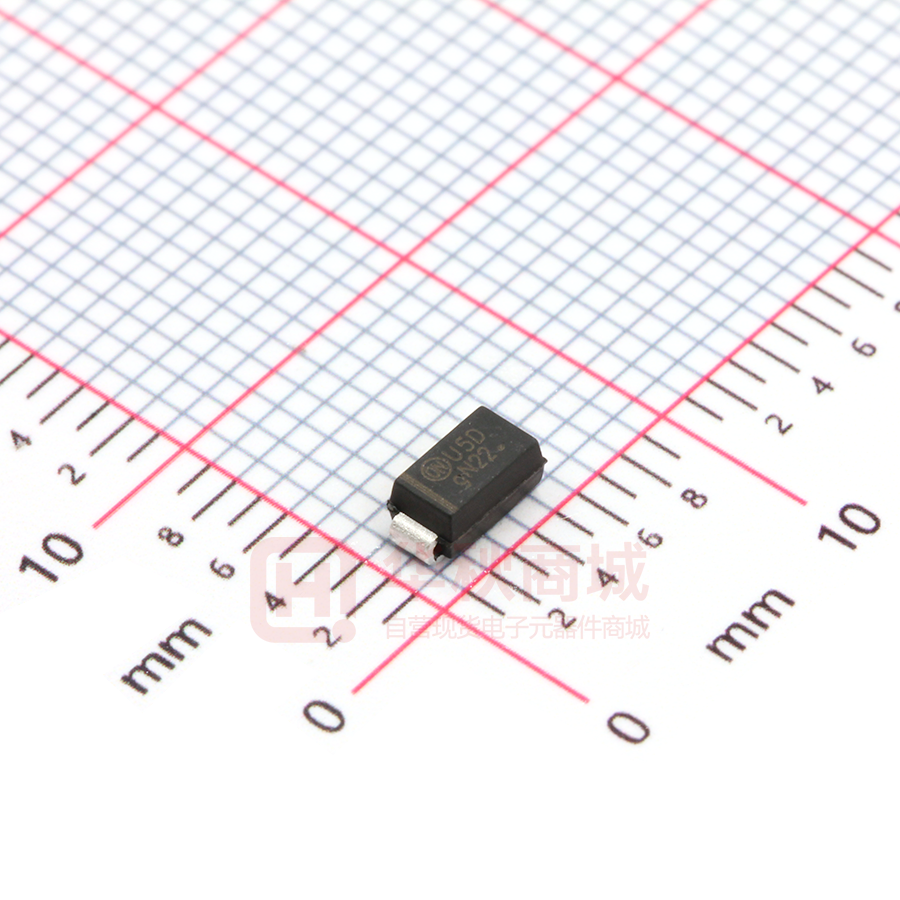

SMA
CASE 403D
MARKING DIAGRAM
U5x
AYWW G
U5x = Device Code
x = C for MURA215
= D for MURA220
A
= Assembly Location**
Y
= Year
WW = Work Week
G
= Pb−Free Package
** The Assembly Location Code (A) is front side
optional. In cases where the Assembly Location is
stamped in the package bottom (molding ejecter
pin), the front side assembly code may be blank.
ORDERING INFORMATION
Package
Shipping†
MURA215T3G
SMA
(Pb−Free)
5,000/Tape & Reel
SURA8215T3G*
SMA
(Pb−Free)
5,000/Tape & Reel
MURA220T3G
SMA
(Pb−Free)
5,000/Tape & Reel
NRVUA220VT3G*
SMA
(Pb−Free)
5,000/Tape & Reel
SURA8220T3G*
SMA
(Pb−Free)
5,000/Tape & Reel
Device
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
© Semiconductor Components Industries, LLC, 2016
May, 2017 − Rev. 7
1
Publication Order Number:
MURA215T3/D
MURA215, SURA8215, MURA220, NRVUA220V, SURA8220
MAXIMUM RATINGS
Rating
Symbol
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
MURA215T3G/SURA8215T3G/SURA8215T3G−VF01
MURA220T3G/SURA8220T3G/NRVUA220VT3G
VRRM
VRWM
VR
Average Rectified Forward Current
@ TL = 155°C
@ TL = 135°C
IF(AV)
Non-Repetitive Peak Surge Current
(Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz)
IFSM
Operating Junction Temperature Range
TJ
Value
Unit
V
150
200
1.0
2.0
40
−65 to +175
A
A
°C
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction−to−Lead (TL = 25°C) (Note 1)
Thermal Resistance, Junction−to−Ambient (Note 1)
Symbol
Max
Unit
PsiJL
(Note 2)
RqJA
24
°C/W
216
1. Rating applies when surface mounted on the minimum pad size recommended, PC Board FR−4.
2. In compliance with JEDEC 51, these values (historically represented by RqJL) are now referenced as PsiJL.
ELECTRICAL CHARACTERISTICS
Characteristic
Symbol
Maximum Instantaneous Forward Voltage (Note 3)
(iF = 2.0 A, TJ = 25°C)
(iF = 2.0 A, TJ = 150°C)
vF
Maximum Instantaneous Reverse Current (Note 3)
(Rated DC Voltage, TJ = 25°C)
(Rated DC Voltage, TJ = 150°C)
iR
Maximum Reverse Recovery Time
(iF = 1.0 A, di/dt = 50 A/ms)
trr
Max
0.95
0.77
2.0
50
35
Unit
V
mA
ns
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
3. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%.
www.onsemi.com
2
MURA215, SURA8215, MURA220, NRVUA220V, SURA8220
TYPICAL CHARACTERISTICS
1
IR, REVERSE CURRENT (mA)
TJ = 175°C
10
TJ = 100°C
0.1
TJ = 25°C
0.01
0.001
IF, INSTANTANEOUS FORWARD CURRENT (A)
100
0
20
40
60
80
TJ = 25°C
1
0
20
40
60
80
100 120 140 160 180 200
Figure 1. Typical Reverse Current
Figure 2. Maximum Reverse Current
100°C
25°C
1
0.1
0.4
TJ = 100°C
VR, REVERSE VOLTAGE (VOLTS)
TC = 175°C
0.3
10
VR, REVERSE VOLTAGE (VOLTS)
10
0.01
TJ = 175°C
0.1
100 120 140 160 180 200
0.5
0.6
0.7
0.8
0.9
1
1.1
IF, INSTANTANEOUS FORWARD CURRENT (A)
IR, REVERSE CURRENT (mA)
100
10
100°C
TC = 175°C
25°C
1
0.1
0.01
0.3
VF, INSTANTANEOUS VOLTAGE (VOLTS)
0.4
0.5
0.6
0.7
0.8
0.9
1
VF, INSTANTANEOUS VOLTAGE (VOLTS)
Figure 4. Maximum Forward Voltage
Figure 3. Typical Forward Voltage
www.onsemi.com
3
1.1
MURA215, SURA8215, MURA220, NRVUA220V, SURA8220
50
50
NOTE: TYPICAL
CAPACITANCE AT
0 V = 45 pF
35
30
25
20
15
10
35
30
25
20
15
10
5
0
0
8
12
16
20
24
28
32
36
40
8
12
16
20
24
28
32
Figure 5. Typical Capacitance
Figure 6. Maximum Capacitance
dc
SQUARE WAVE
2
1
80 90
4
VR, REVERSE VOLTAGE (VOLTS)
4
3
0
VR, REVERSE VOLTAGE (VOLTS)
100 110 120 130 140 150 160 170 180
IF(AV), AVERAGE FORWARD CURRENT (A)
4
5
0
40
5
0
NOTE: MAXIMUM
CAPACITANCE AT
0 V = 47 pF
45
C, CAPACITANCE (pF)
40
1.25
0.5
0.25
0
20
0
40
60
80
100
120
140
TA, AMBIENT TEMPERATURE (°C)
Figure 8. Current Derating, Ambient
(FR−4 Board with Minimum Pad)
dc
2
SQUARE WAVE
1
0.5
0.5
180
0.75 SQUARE WAVE
2.5
0
160
1
3
0
40
dc
Figure 7. Current Derating, Lead
1.5
36
1.5
TL, LEAD TEMPERATURE (°C)
PF, AVERAGE POWER DISSIPATION (W)
IF(AV), AVERAGE FORWARD CURRENT (A)
C, CAPACITANCE (pF)
45
1
1.5
2
2.5
3
IF(AV), AVERAGE FORWARD CURRENT (AMPS)
Figure 9. Power Dissipation
www.onsemi.com
4
3.5
MURA215, SURA8215, MURA220, NRVUA220V, SURA8220
PACKAGE DIMENSIONS
SMA
CASE 403D
ISSUE H
HE
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION b SHALL BE MEASURED WITHIN DIMENSION L.
E
b
DIM
A
A1
b
c
D
E
HE
L
D
POLARITY INDICATOR
OPTIONAL AS NEEDED
(SEE STYLES)
MIN
1.97
0.05
1.27
0.15
2.29
4.06
4.83
0.76
MILLIMETERS
NOM
MAX
2.10
2.20
0.10
0.20
1.45
1.63
0.28
0.41
2.60
2.92
4.32
4.57
5.21
5.59
1.14
1.52
MIN
0.078
0.002
0.050
0.006
0.090
0.160
0.190
0.030
INCHES
NOM
0.083
0.004
0.057
0.011
0.103
0.170
0.205
0.045
MAX
0.087
0.008
0.064
0.016
0.115
0.180
0.220
0.060
STYLE 1:
PIN 1. CATHODE (POLARITY BAND)
2. ANODE
A
L
A1
c
SOLDERING FOOTPRINT*
4.000
0.157
2.000
0.079
2.000
0.079
SCALE 8:1
mm Ǔ
ǒinches
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
