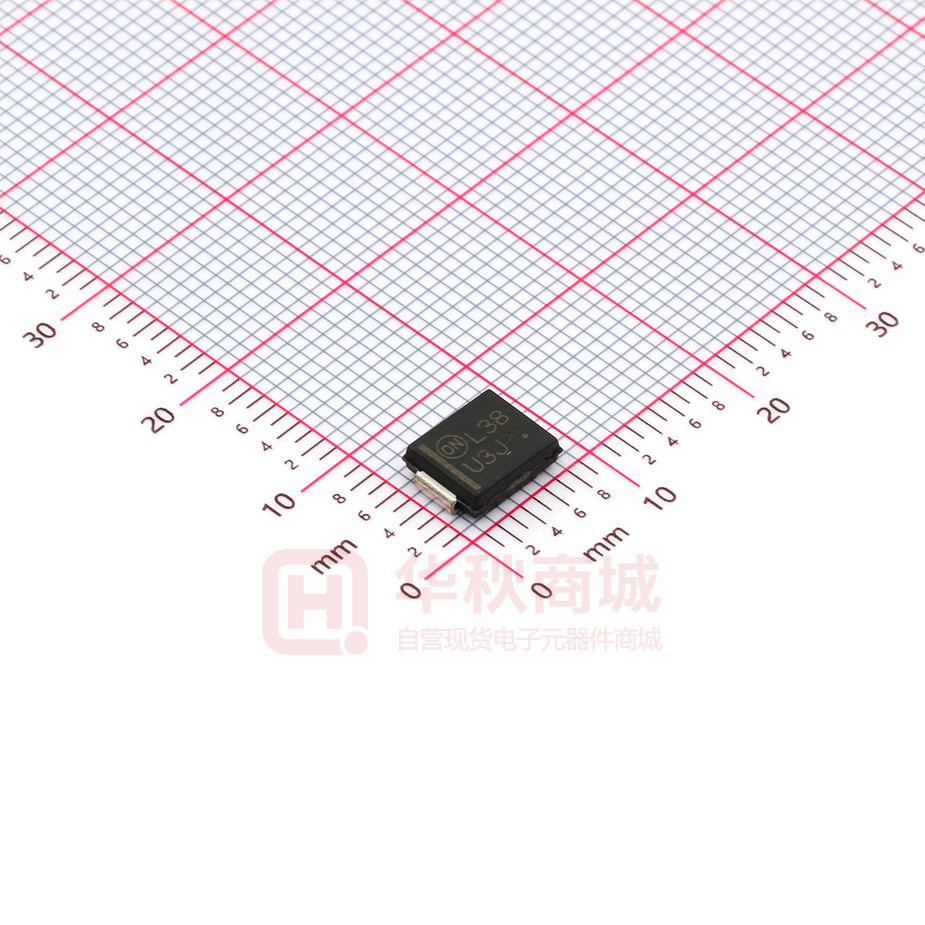

MURS360T3G

MURS320T3G, SURS8320T3G, MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G Surface Mount Ultrafast Power Rectifiers www.onsemi.com This series employs the state−of−the−art epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes, in surface mount applications where compact size and weight are critical to the system. ULTRAFAST RECTIFIERS 3.0 AMPERES 200−600 VOLTS Features • • • • • • Small Compact Surface Mountable Package with J−Bend Leads Rectangular Package for Automated Handling High Temperature Glass Passivated Junction Low Forward Voltage Drop (0.71 to 1.05 Volts Max @ 3.0 A, TJ = 150°C) SURS8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable* These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant Mechanical Characteristics • • • • • • • • • Case: Epoxy, Molded Epoxy Meets UL 94 V−0 @ 0.125 in Weight: 217 mg (approximately) Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds Shipped in 16 mm Tape and Reel, 2500 units per reel Polarity: Polarity Band on Plastic Body Indicates Cathode Lead Device Meets MSL1 Requirements ESD Ratings: ♦ Machine Model, C (> 400 V) ♦ Human Body Model, 3B (> 8 kV) SMC 2−LEAD CASE 403AC MARKING DIAGRAM AYWW U3xG G U3 = Specific Device Code x = D (320T3) = G (340T3) = J (360T3) A = Assembly Location** Y = Year WW= Work Week **The Assembly Location code (A) is front side optional. In cases where the Assembly Location is stamped in the package, the front side assembly code may be blank. ORDERING INFORMATION Package Shipping† MURS320T3G SMC (Pb−Free) 2,500 / Tape & Reel MURS340T3G SMC (Pb−Free) 2,500 / Tape & Reel MURS360T3G SMC (Pb−Free) 2,500 / Tape & Reel SURS8340T3G* SMC (Pb−Free) 2,500 / Tape & Reel SURS8320T3G* SMC (Pb−Free) 2,500 / Tape & Reel SURS8360T3G* SMC (Pb−Free) 2,500 / Tape & Reel Device †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2016 June, 2017 − Rev. 16 1 Publication Order Number: MURS320T3/D MURS320T3G, SURS8320T3G, MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G MAXIMUM RATINGS Rating Symbol MURS320T3G/ SURS8320T3G MURS340T3G/ SURS8340T3G MURS360T3G/ SURS8360T3G Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM VR 200 400 600 V Average Rectified Forward Current IF(AV) 3.0 @ TL = 140°C 4.0 @ TL = 130°C 3.0 @ TL = 130°C 4.0 @ TL = 115°C 3.0 @ TL = 130°C 4.0 @ TL = 115°C A Non−Repetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz) IFSM Operating Junction Temperature A 100 TJ *65 to +175 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. THERMAL CHARACTERISTICS Thermal Resistance, Junction−to−Lead 11 RqJL °C/W ELECTRICAL CHARACTERISTICS Maximum Instantaneous Forward Voltage (Note 1) (iF = 3.0 A, TJ = 25°C) (iF = 4.0 A, TJ = 25°C) (iF = 3.0 A, TJ = 150°C) vF Maximum Instantaneous Reverse Current (Note 1) (Rated dc Voltage, TJ = 25°C) (Rated dc Voltage, TJ = 150°C) iR Maximum Reverse Recovery Time (iF = 1.0 A, di/dt = 50 A/ms) (iF = 0.5 A, iR = 1.0 A, IREC to 0.25 A) trr Maximum Forward Recovery Time (iF = 1.0 A, di/dt = 100 A/ms, Recovery to 1.0 V) tfr Typical Peak Reverse Recovery Current (IF = 1.0 A, di/dt = 50 A/ms) V 0.875 0.89 0.71 1.25 1.28 1.05 1.25 1.28 1.05 5.0 150 10 250 10 250 35 25 75 50 75 50 25 50 50 mA ns ns IRM 0.8 A Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 1. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%. www.onsemi.com 2 MURS320T3G, SURS8320T3G, MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G MURS320T3G/SURS8320T3G IR, REVERSE CURRENT (m A) 5.0 3.0 TJ = 175°C 2.0 25°C TJ = 175°C TJ = 100°C 0.08 0.04 0.02 0.008 0.004 0.002 TJ = 25°C 0 20 40 60 1.0 80 100 120 160 140 180 200 VR, REVERSE VOLTAGE (VOLTS) Figure 2. Typical Reverse Current* 0.7 * The curves shown are typical for the highest voltage device in the voltage grouping. Typical reverse current for lower voltage selections can be estimated from these same curves if VR is sufficiently below rated VR. 0.5 10 PF(AV) , AVERAGE POWER DISSIPATION (W)) i F , INSTANTANEOUS FORWARD CURRENT (A) 100°C 80 40 20 8.0 4.0 2.0 0.8 0.4 0.2 0.3 0.2 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 9.0 8.0 I (CAPACITIVELOAD) PK + 20 I 7.0 5.0 AV 10 6.0 5.0 4.0 dc 3.0 SQUARE WAVE 2.0 1.0 0 0 vF, INSTANTANEOUS VOLTAGE (VOLTS) 0.5 Figure 1. Typical Forward Voltage 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 90 100 IF(AV), AVERAGE FORWARD CURRENT (AMPS) Figure 3. Power Dissipation 200 RATED VOLTAGE APPLIED RqJL = 11°C/W TJ = 175°C 8.0 TYPICAL CAPACITANCE AT 0 V = 135 pF 7.0 C, CAPACITANCE (pF) IF(AV) , AVERAGE FORWARD CURRENT (A) 10 9.0 6.0 5.0 4.0 3.0 dc 2.0 100 80 60 40 30 20 SQUARE WAVE 1.0 10 0 90 100 110 120 130 140 150 160 170 180 190 0 10 20 30 40 50 60 70 80 TC, CASE TEMPERATURE (°C) VR, REVERSE VOLTAGE (VOLTS) Figure 4. Current Derating, Case Figure 5. Typical Capacitance www.onsemi.com 3 MURS320T3G, SURS8320T3G, MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G TYPICAL CHARACTERISTICS 400 200 5.0 IR, REVERSE CURRENT (m A) 3.0 100°C TJ = 175°C 25°C 1.0 TJ = 100°C 0.08 0.04 0.02 TJ = 25°C 0.008 0.004 0.7 0 200 100 0.5 300 400 600 500 700 VR, REVERSE VOLTAGE (V) Figure 7. Typical Reverse Current* * The curves shown are typical for the highest voltage device in the voltage grouping. Typical reverse current for lower voltage selections can be estimated from these same curves if VR is sufficiently below rated VR. 0.3 0.2 PF(AV) , AVERAGE POWER DISSIPATION (WATTS) i F , INSTANTANEOUS FORWARD CURRENT (A) 2.0 TJ = 175°C 80 40 20 8.0 4.0 2.0 0.8 0.4 0.2 0.1 0.07 0.05 0.03 0.02 0.3 0.5 0.7 0.9 1.1 1.3 1.5 1.7 1.9 2.1 2.3 10 9.0 8.0 7.0 SQUARE WAVE 6.0 dc (CAPACITIVE LOADS) 5.0 I 4.0 I 3.0 PK + 20 10 5.0 AV 2.0 1.0 0 0 vF, INSTANTANEOUS VOLTAGE (VOLTS) 0.5 Figure 6. Typical Forward Voltage 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 90 100 IF(AV), AVERAGE FORWARD CURRENT (A) 10 100 9.0 90 8.0 80 C, CAPACITANCE (pF) IF(AV) , AVERAGE FORWARD CURRENT (A) Figure 8. Power Dissipation 7.0 6.0 5.0 4.0 dc 3.0 SQUARE WAVE 2.0 TYPICAL CAPACITANCE AT 0 V = 75 pF 70 60 50 40 30 20 1.0 10 0 0 70 80 90 100 110 120 130 140 150 160 170 0 10 20 30 40 50 60 70 80 TC, CASE TEMPERATURE (°C) VR, REVERSE VOLTAGE (V) Figure 9. Current Derating, Case Figure 10. Typical Capacitance www.onsemi.com 4 MURS320T3G, SURS8320T3G, MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G IFSM, NON−REPETITIVE SURGE CURRENT (A) 10000 1000 100 10 10 100 1,000 tp, SQUARE WAVE PULSE DURATION (ms) 10,000 Figure 11. Typical Non−Repetitive Surge Current *Typical performance based on a limited sample size. ON Semiconductor does not guarantee ratings not listed in the Maximum Ratings table. www.onsemi.com 5 MURS320T3G, SURS8320T3G, MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G PACKAGE DIMENSIONS SMC 2−LEAD CASE 403AC ISSUE A NOTES: 1. DIMENSIONING AND TOLERANCING PER ANME Y14.5M, 1994. 2. CONTROLLING DIMENSION: INCHES. 3. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH. MOLD FLASH SHALL NOT EXCEED 0.254mm PER SIDE. 4. DIMENSIONS D AND E TO BE DETERMINED AT DATUM H. 5. DIMENSION b SHALL BE MEASURED WITHIN THE AREA DETERMINED BY DIMENSION L. HE E D A1 c DETAIL A TOP VIEW DETAIL A A2 L MILLIMETERS MIN MAX 1.95 2.61 0.05 0.20 1.90 2.41 2.90 3.20 0.15 0.41 5.55 6.25 6.60 7.15 7.75 8.15 0.75 1.60 DIM A A1 A2 b c D E HE L A INCHES MIN MAX 0.077 0.103 0.002 0.008 0.075 0.095 0.114 0.126 0.060 0.016 0.219 0.246 0.260 0.281 0.305 0.321 0.030 0.063 b END VIEW SIDE VIEW RECOMMENDED SOLDERING FOOTPRINT* 8.750 0.344 2X 3.790 0.149 2X 2.250 0.089 mm Ǔ ǒinches SCALE 4:1 *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ◊ N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 www.onsemi.com 6 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative MURS320T3/D
