NC7SZ157
TinyLogic® UHS 2-Input Non-Inverting Multiplexer
Features
Description
Broad VCC Operating Range: 1.65V to 5.5V
Proprietary Noise/EMI Reduction Circuitry
The NC7SZ157 is a single, high performance, 2-to-1
CMOS non-inverting multiplexer from Fairchild’s Ultra®
High Speed series of TinyLogic . The device is
fabricated with advanced CMOS technology to achieve
ultra high speed with high output drive while maintaining
low static power dissipation over a broad VCC operating
range. The device is specified to operate over the 1.65V
to 5.5V VCC operating range. The inputs and outputs are
high impedance when VCC is 0V. Inputs tolerate
voltages up to 5.5V independent of VCC operating range.
Ultra High-Speed
Power Down High-Impedance Inputs/Outputs
Over-Voltage Tolerance Inputs Facilitate 5V to 3V
Translation
Ultra-Small MicroPak™ Packages
Space-Saving SC70 Package
Ordering Information
Top Mark
Eco
Status

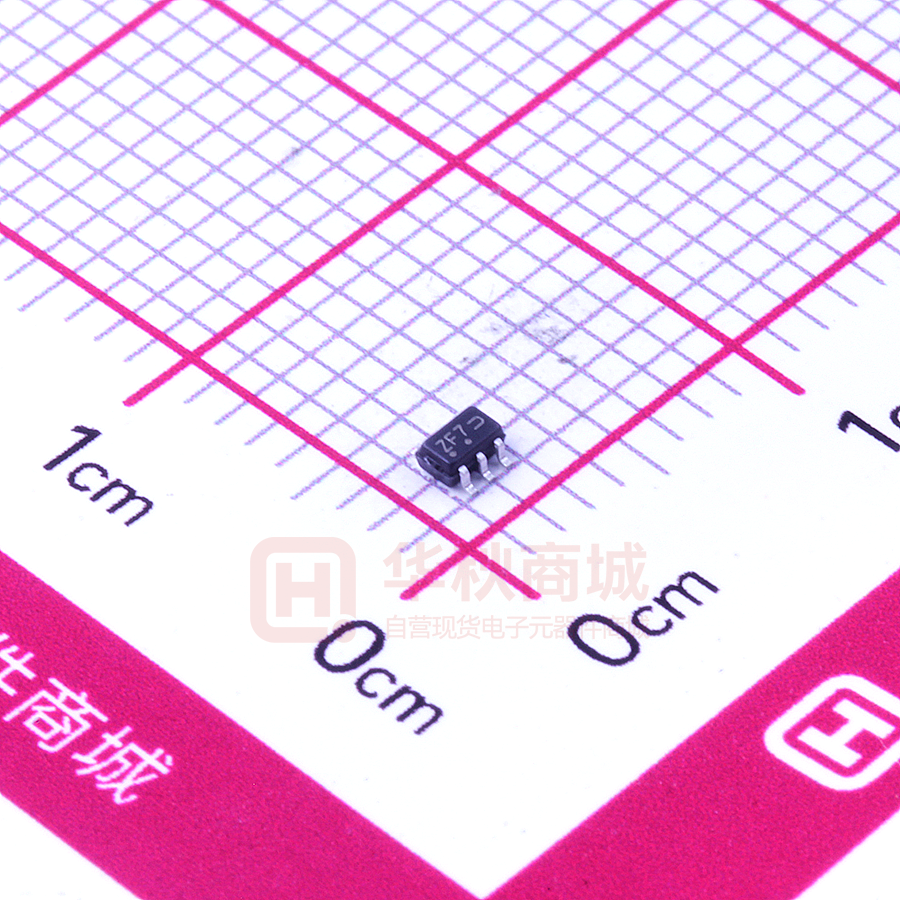

NC7SZ157P6X
ZF7
RoHS
6-Lead SC70, EIAJ SC-88, 1.25mm Wide
3000 Units on
Tape & Reel
NC7SZ157L6X
B9
RoHS
6-Lead MicroPak™, 1.00mm Wide
5000 Units on
Tape & Reel
NC7SZ157FHX
B9
Green
6-Lead, MicroPak2, 1x1mm Body, .35mm Pitch
5000 Units on
Tape & Reel
Part Number
Package
Packing Method
For Fairchild’s definition of Eco Status, please visit: http://www.fairchildsemi.com/company/green/rohs_green.html.
© 2000 Fairchild Semiconductor Corporation
NC7SZ157 • Rev. 1.0.2
www.fairchildsemi.com
NC7SZ157 — TinyLogic® UHS 2-Input Non-Inverting Multiplexer
September 2009
IEEE/IEC
Figure 1. Logic Symbol
Pin Configurations
Figure 2. SC70 (Top View)
Figure 3. MicroPak™ (Top Through View)
Figure 4. Pin 1 Orientation
Notes:
1. AAA represents product code top mark (see Ordering Information).
2. Orientation of top mark determines pin one location.
3. Reading the top mark left to right, pin one is the lower left pin.
NC7SZ157 — TinyLogic® UHS 2-Input Non-Inverting Multiplexer
Connection Diagrams
Pin Definitions
Pin # SC70
Pin # MicroPak
Name
1
1
I1
Description
2
2
GND
3
3
I0
Data Input
4
4
Z
Output
5
5
VCC
6
6
S
Data Input
Ground
Supply Voltage
Control Input
Function Table
Inputs
Output
S
I1
I0
Z = (I0) • (S) + (I1) • (S)
L
X
L
L
L
X
H
H
H
L
X
L
H
H
X
H
H = HIGH Logic Level
L = LOW Logic Level
X = Don’t’ Care
© 2000 Fairchild Semiconductor Corporation
NC7SZ157 • Rev. 1.0.3
www.fairchildsemi.com
2
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device
reliability. The absolute maximum ratings are stress ratings only.
Symbol
VCC
VIN
VOUT
Parameter
Min.
Max.
Unit
Supply Voltage
-0.5
7.0
V
DC Input Voltage
-0.5
7.0
V
DC Output Voltage
-0.5
7.0
V
-50
mA
DC Input Diode Current
VIN ≤ 0.5V
IOK
DC Output Diode Current
VOUT ≤ -0.5V
-50
mA
IOUT
DC Output Current
±50
mA
DC VCC or Ground Current
±50
mA
+150
°C
IIK
ICC or IGND
TSTG
Storage Temperature Range
-65
TJ
Junction Temperature Under Bias
+150
°C
TL
Junction Lead Temperature (Soldering, 10 Seconds)
+260
°C
PD
ESD
Power Dissipation at +85°C
SC70-6
180
MicroPak-6
130
MicroPak2-6
120
Human Body Model, JEDEC:JESD22-A114
4000
Charge Device Model, JEDEC:JESD22-C101
2000
mW
V
Recommended Operating Conditions
NC7SZ157 — TinyLogic® UHS 2-Input Non-Inverting Multiplexer
Absolute Maximum Ratings
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended
operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not
recommend exceeding them or designing to Absolute Maximum Ratings.
Symbol
Parameter
Conditions
Min.
Max.
Unit
Supply Voltage Operating
1.65
5.50
VCC
Supply Voltage Data
Retention
1.50
5.50
VIN
Input Voltage
0
5.5
V
Output Voltage
0
VCC
V
°C
VOUT
TA
tr , tf
Operating Temperature
Input Rise and Fall Times
-40
+85
VCC at 1.8V ± 0.15V,
2.5V ± 0.2V
0
20
VCC at 3.3V ± 0.3V
0
10
VCC at 5.0V ± 0.5V
0
5
SC70-6
θJA
Thermal Resistance
© 2000 Fairchild Semiconductor Corporation
NC7SZ157 • Rev. 1.0.3
V
ns/V
350
MicroPak-6
500
MicroPak2-6
560
°C/W
www.fairchildsemi.com
3
Symbol
Parameter
VIH
HIGH Level Input
Voltage
VIL
LOW Level Input
Voltage
VCC
TA=+25°C
Conditions
Min.
0.75VCC
2.30 to 5.50
0.70VCC
0.70VCC
0.25VCC
2.30 to 5.50
0.30VCC
0.30VCC
4.50
HIGH Level
Output Voltage
ICC
Quiescent Supply
Current
3.00
2.90
4.40
4.50
4.40
1.29
1.52
1.29
1.90
2.15
1.90
3.00
VIN=VIL
or VIH IOH= -16mA
2.40
2.80
2.40
3.00
IOH= -24mA
2.30
3.68
2.30
4.50
IOH= -32mA
3.90
4.20
VIN=VIL
or VIH IOL= 100µA
V
V
3.80
0
0.10
0.10
0
0.10
0.10
0
0.10
0.10
0
0.10
0.10
V
1.65
IOL= 4mA
0.08
0.24
0.24
2.30
IOL= 8mA
0.30
0.30
3.00
VIN=VIL
or VIH IOL= 16mA
0.10
0.15
0.40
0.40
3.00
IOL= 24mA
0.22
0.55
0.55
4.5
IOL= 32mA
0.22
0.55
0.55
±0.1
±1
µA
1
10
µA
10
µA
0 to 5.50
0
VIN=5.5V, GND
VIN or VOUT=5.5V
1.65 to 5.50 VIN=5.5V, GND
© 2000 Fairchild Semiconductor Corporation
NC7SZ157 • Rev. 1.0.3
2.90
IOH= -4mA
4.50
Power Off
Leakage Current
1.55
2.20
IOH= -8mA
3.00
Input Leakage
Current
1.65
2.30
2.30
2.30
LOW Level
Output Voltage
1.55
2.20
1.65
1.65
IOFF
V
0.25VCC
VIN=VIL
or VIH IOH= -100µA
Units
Max.
1.65 to 1.95
3.00
IIN
Min.
0.75VCC
2.30
VOL
Max.
1.65 to 1.95
1.65
VOH
Typ.
TA=-40 to +85°C
V
NC7SZ157 — TinyLogic® UHS 2-Input Non-Inverting Multiplexer
DC Electrical Characteristics
www.fairchildsemi.com
4
Symbol
Parameter
Propagation Delay
S to Z
tPLH, tPHL
Propagation Delay
In to Z
VCC
TA=+25°C
Conditions
TA=-40 to +85°C
Min.
Typ.
Max.
Min.
Max.
1.80 ± 0.15
2.5
6.0
11.5
2.5
12.0
2.50 ± 0.20 CL=15pF,
3.30 ± 0.30 RL=1MΩ,
1.2
3.5
6.1
1.2
6.5
0.8
2.6
4.1
0.8
4.5
5.00 ± 0.50
0.5
1.9
3.2
0.5
3.5
1.80 ± 0.15
2.5
5.9
10.0
2.5
10.5
5.00 ± 0.50 CL=15pF,
3.30 ± 0.30 RL=1MΩ,
1.2
3.5
5.8
1.2
6.1
0.8
2.6
3.9
0.8
4.2
5.00 ± 0.50
0.5
1.9
3.1
0.5
3.3
Propagation Delay
S to Z
3.30 ± 0.30 CL=50pF,
5.00 ± 0.50 RL=500Ω,
1.2
3.2
4.8
1.2
5.2
0.8
2.4
3.8
0.8
4.1
Propagation Delay
In to Z
3.30 ± 0.30 CL=50pF,
5.00 ± 0.50 RL=500Ω,
1.2
3.2
4.6
1.2
5.0
0.8
2.4
3.7
0.8
4.0
CIN
Input Capacitance
0.00
CPD
Power Dissipation
Capacitance(4)
3.30
14
5.00
17
Units
2
Figure
ns
Figure 5
Figure 6
pF
pF
Figure 7
Note:
4. CPD is defined as the value of the internal equivalent capacitance which is derived from dynamic operating
current consumption (ICCD) at no output loading and operating at 50% duty cycle. CPD is related to ICCD dynamic
operating current by the expression: ICCD=(CPD)(VCC)(fIN)+(ICCstatic).
NC7SZ157 — TinyLogic® UHS 2-Input Non-Inverting Multiplexer
AC Electrical Characteristics
Note:
5. CL includes load and stray capacitance.
Input PRR=1.0MHz, tw=500ns.
Figure 5. AC Test Circuit
Figure 6. AC Waveforms
Note:
6. Input=AC Waveform; PRR=Variable; Duty Cycle=50%.
Figure 7. ICCD Test Circuit
© 2000 Fairchild Semiconductor Corporation
NC7SZ157 • Rev. 1.0.3
www.fairchildsemi.com
5
NC7SZ157 — TinyLogic® UHS 2-Input Non-Inverting Multiplexer
Physical Dimensions
SYMM
C
L
2.00±0.20
0.65
A
0.50 MIN
6
4
B
PIN ONE
1.25±0.10
1
1.90
3
0.30
0.15
0.10
(0.25)
0.65
0.40 MIN
A B
1.30
LAND PATTERN RECOMMENDATION
1.30
1.00
0.80
SEE DETAIL A
1.10
0.80
0.10 C
0.10
0.00
C
2.10±0.30
SEATING
PLANE
NOTES: UNLESS OTHERWISE SPECIFIED
GAGE
PLANE
(R0.10)
0.25
0.10
0.20
A) THIS PACKAGE CONFORMS TO EIAJ
SC-88, 1996.
B) ALL DIMENSIONS ARE IN MILLIMETERS.
C) DIMENSIONS DO NOT INCLUDE BURRS
OR MOLD FLASH.
D) DRAWING FILENAME: MKT-MAA06AREV6
30°
0°
0.46
0.26
DETAIL A
SCALE: 60X
Figure 8. 6-Lead, SC70, EIAJ SC-88, 1.25mm Wide
Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner
without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify
or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically
the warranty therein, which covers Fairchild products.
Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:
http://www.fairchildsemi.com/packaging/.
Tape and Reel Specifications
Please visit Fairchild Semiconductor’s online packaging area for the most recent tape and reel specifications:
http://www.fairchildsemi.com/products/analog/pdf/sc70-6_tr.pdf.
Package Designator
P6X
© 2000 Fairchild Semiconductor Corporation
NC7SZ157 • Rev. 1.0.3
Tape Section
Cavity Number
Cavity Status
Cover Type Status
Leader (Start End)
125 (Typical)
Empty
Sealed
Carrier
3000
Filled
Sealed
Trailer (Hub End)
75 (Typical)
Empty
Sealed
www.fairchildsemi.com
6
NC7SZ157 — TinyLogic® UHS 2-Input Non-Inverting Multiplexer
Physical Dimensions
2X
0.05 C
1.45
B
2X
(1)
0.05 C
(0.49)
5X
1.00
(0.75)
(0.52)
1X
A
TOP VIEW
0.55MAX
(0.30)
6X
PIN 1
0.05 C
0.05
0.00
RECOMMENED
LAND PATTERN
0.05 C
C
1.0
DETAIL A
0.10
0.05
0.45
0.35
0.10
0.00 6X
0.25
0.15 6X
C B A
C
0.40
0.30
0.35 5X
0.25
0.40 5X
0.30
0.5
(0.05)
6X
BOTTOM VIEW
DETAIL A
PIN 1 TERMINAL
0.075 X 45
CHAMFER
(0.13)
4X
Notes:
1. CONFORMS TO JEDEC STANDARD M0-252 VARIATION UAAD
2. DIMENSIONS ARE IN MILLIMETERS
3. DRAWING CONFORMS TO ASME Y14.5M-1994
MAC06AREVC
Figure 9. 6-Lead, MicroPak™, 1.0mm Wide
Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner
without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify
or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically
the warranty therein, which covers Fairchild products.
Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:
http://www.fairchildsemi.com/packaging/.
Tape and Reel Specifications
Please visit Fairchild Semiconductor’s online packaging area for the most recent tape and reel specifications:
http://www.fairchildsemi.com/products/logic/pdf/micropak_tr.pdf.
Package Designator
L6X
© 2000 Fairchild Semiconductor Corporation
NC7SZ157 • Rev. 1.0.3
Tape Section
Cavity Number
Cavity Status
Cover Type Status
Leader (Start End)
125 (Typical)
Empty
Sealed
Carrier
5000
Filled
Sealed
Trailer (Hub End)
75 (Typical)
Empty
Sealed
www.fairchildsemi.com
7
NC7SZ157 — TinyLogic® UHS 2-Input Non-Inverting Multiplexer
Physical Dimensions
DETAIL A
5X
Figure 10. 6-Lead, MicroPak2, 1x1mm Body, .35mm Pitch
Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner
without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify
or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically
the warranty therein, which covers Fairchild products.
Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:
http://www.fairchildsemi.com/packaging/.
Tape and Reel Specifications
Please visit Fairchild Semiconductor’s online packaging area for the most recent tape and reel specifications:
http://www.fairchildsemi.com/packaging/MicroPAK2_6L_tr.pdf.
Package Designator
FHX
© 2000 Fairchild Semiconductor Corporation
NC7SZ157 • Rev. 1.0.3
Tape Section
Cavity Number
Cavity Status
Cover Type Status
Leader (Start End)
125 (Typical)
Empty
Sealed
Carrier
5000
Filled
Sealed
Trailer (Hub End)
75 (Typical)
Empty
Sealed
www.fairchildsemi.com
8
NC7SZ157 — TinyLogic® UHS 2-Input Non-Inverting Multiplexer
© 2000 Fairchild Semiconductor Corporation
NC7SZ157 • Rev. 1.0.3
www.fairchildsemi.com
9
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent
coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein.
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards,
regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer
application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not
designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification
in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized
application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This
literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
© Semiconductor Components Industries, LLC
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
www.onsemi.com
1
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
www.onsemi.com
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
ON Semiconductor:
NC7SZ157L6X NC7SZ157P6X NC7SZ157FHX
工商网监
湘ICP备2023018690号
