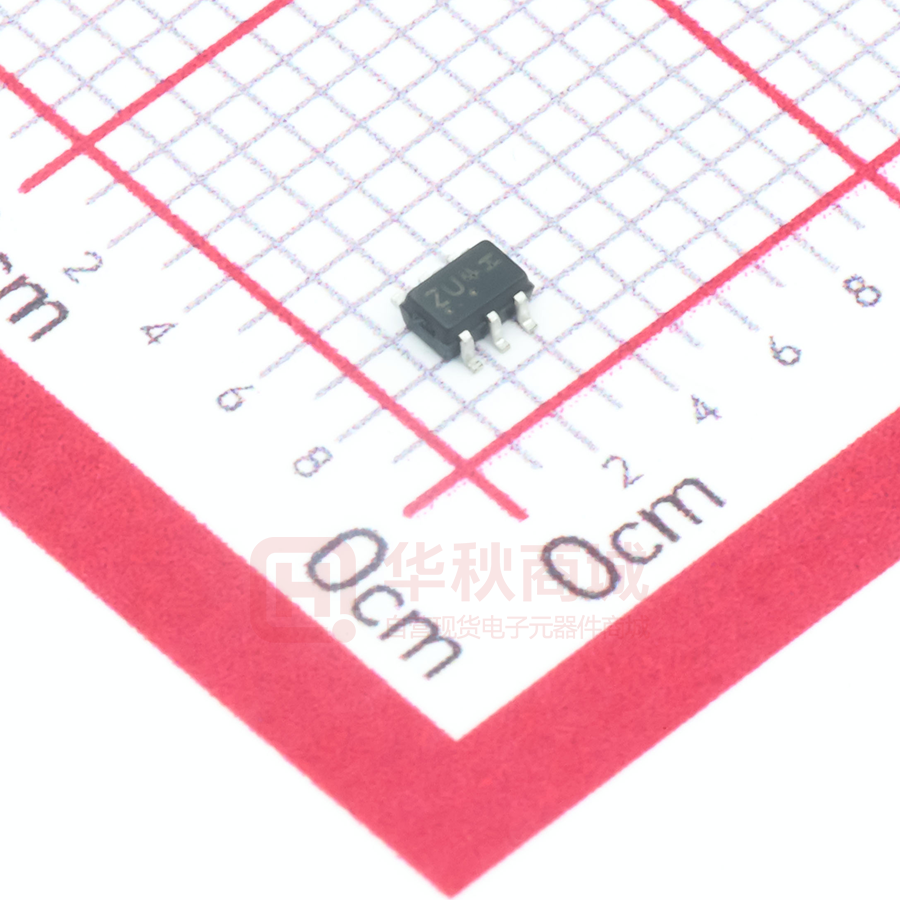

NC7WZU04P6X

NC7WZU04 TinyLogic UHS Dual Unbuffered Inverter Description T h e N C 7 W Z U 0 4 i s a d u a l u n b u ff e r e d i n v e r t e r f r o m ON Semiconductor’s Ultra High Speed Series of TinyLogic in the space saving SC−88 6−lead package. The special purpose unbuffered circuit design is intended for crystal oscillator or analog applications. The internal circuit consists of only one−stage, the output, to allow for this part to be used in these oscillator or analog applications. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC range. The inputs are high impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V independent of VCC operating voltage. www.onsemi.com MARKING DIAGRAMS SIP6 1.45x1.0 CASE 127EB Pin 1 SC−88 CASE 419AD−01 Features • • • • • • • Space−Saving SC−88 6−Lead Package Ultra−Small MicroPak™ Leadless Packages Unbuffered for Crystal Oscillator and Analog Applications Balanced Output Drive: ±8 mA at 4.5 V VCC Broad VCC Operating Range: 1.65 V to 5.5 V Low Quiescent Power: ICC < 1 mA at 5 V VCC, TA = 25°C These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant B5KK XYZ B5, ZU4 KK XY Z T ZU4T = Specific Device Code = 2−Digit Lot Run Traceability Code = 2−Digit Date Code Format = Assembly Plant Code = Die Run Code = Year Coding Scheme = Plant Code Identifier = Eight−Week Datacoding Scheme IEEE / IEC A1 1 A2 ORDERING INFORMATION Y1 See detailed ordering, marking and shipping information in the package dimensions section on page 6 of this data sheet. Y2 Figure 1. Logic Symbol © Semiconductor Components Industries, LLC, 2006 July, 2019 − Rev. 2 1 Publication Order Number: NC7WZU04/D NC7WZU04 Pin Configurations A1 1 6 Y1 GND 2 5 VCC A2 3 4 Y2 A1 1 GND 2 A2 3 Figure 2. SC−88 (Top View) (Top View) 6 Y1 5 VCC 4 Y2 Figure 3. MicroPak (Top Through View) AAA Pin One AAA represents Product Code Top Mark − see ordering code NOTE: Orientation of Top Mark determines Pin One location. Reading the top product code mark left to right, Pin One is the lower left pin (see diagram). Figure 4. SC−88 Pin 1 Orientation PIN DEFINITIONS FUNCTION TABLE (Y = A) Pin Name Description Input Output A1, A2 Data Inputs A Y Y1, Y2 Outputs L H H L H = HIGH Logic Level L = LOW Logic Level www.onsemi.com 2 NC7WZU04 ABSOLUTE MAXIMUM RATINGS Symbol Min Max Unit VCC Supply Voltage −0.5 6.5 V VIN DC Input Voltage −0.5 6.5 V DC Output Voltage −0.5 6.5 V VOUT Parameter IIK DC Input Diode Current VIN < −0.5 V − −50 mA IOK DC Output Diode Current VOUT < −0.5 V − −50 mA VOUT > 0.5 V, VCC = GND − +50 mA IOUT DC Output Current − ±50 mA DC VCC / GND Current − ±100 mA −65 +150 °C ICC or IGND TSTG Storage Temperature TJ Junction Temperature Under Bias − 150 °C TL Junction Lead Temperature (Soldering, 10 Seconds) − 260 °C PD Power Dissipation in Still Air SC−88−6 − 190 mW MicroPak−6 − 327 Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. RECOMMENDED OPERATING CONDITIONS Symbol VCC VIN VOUT Min Max Unit Supply Voltage Operating Parameter 1.8 5.5 V Supply Voltage Data Retention 1.5 5.5 Input Voltage 0 5.5 V Output Voltage 0 VCC V −40 +85 °C °C/W TA Operating Temperature qJA Thermal Resistance Conditions SC−88−6 − 659 MicroPak−6 − 382 Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond the Recommended Operating Ranges limits may affect device reliability. 1. Unused inputs must be held HIGH or LOW. They may not float. www.onsemi.com 3 NC7WZU04 DC ELECTICAL CHARACTERISTICS TA = +25°C Symbol VIH VIL VOH Parameter VCC (V) Typ Max Min Max Unit V HIGH Level Input Voltage 1.8 to 2.7 0.85 VCC − − 0.85 VCC − 3.0 to 5.5 0.8 VCC − − 0.8 VCC − LOW Level Input Voltage 1.8 to 2.7 − − 0.15 VCC − 0.15 VCC 3.0 to 5.5 − − 0.2 VCC − 0.2 VCC HIGH Level Output Voltage 1.65 LOW Level Output Voltage VIN = VIL 1.55 1.65 − 1.55 − 1.8 1.6 1.79 − 1.6 − 2.3 2.1 2.29 − 2.1 − 3.0 2.7 2.99 − 2.7 − 4.5 4.0 4.48 − 4.0 − IOH = −2 mA 1.29 1.52 − 1.29 − 2.3 IOH = −2 mA 1.9 2.19 − 1.9 − 3.0 IOH = −4 mA 2.4 2.82 − 2.4 − 3.0 IOH = −6 mA 2.3 2.73 − 2.3 − 4.5 IOH = −8 mA 3.8 4.24 − 3.8 − IOL = 100 mA − 0.01 0.2 − 0.2 1.8 − 0.01 0.2 − 0.2 2.3 − 0.01 0.2 − 0.2 3.0 − 0.01 0.3 − 0.3 4.5 − 0.01 0.5 − 0.5 IOL = 2 mA − 0.10 0.24 − 0.24 2.3 IOL = 2 mA − 0.12 0.3 − 0.3 3.0 IOL = 4 mA − 0.19 0.4 − 0.4 3.0 IOL = 6 mA − 0.29 0.55 − 0.55 IOL = 8 mA 1.65 VOL Conditions TA = −40 to +85°C Min 1.65 1.65 4.5 VIN = GND VIN = VIH VIN = VCC IOH = −100 mA V V V V V − 0.29 0.55 − 0.55 IIN Input Leakage Current 1.65 to 5.5 VIN = 5.5 V, GND − − ±0.1 − ±1.0 mA ICC Quiescent Supply Current 1.65 to 5.5 VIN = 5.5 V, GND − − 1.0 − 10 mA ICCPEAK Peak Supply Current in Analog Operation 1.8 VOUT = Open VIN = Adjust for Peak ICC Current − 0.2 − − − mA − 2 − − − 2.5 3.3 − 5 − − − 5.0 − 15 − − − www.onsemi.com 4 NC7WZU04 AC ELECTRICAL CHARACTERISTICS TA = +25°C Symbol tPLH, tPHL Parameter VCC (V) Typ Max Min Max Unit − 5.5 9.8 − 11.0 ns − 4.6 8.1 − 8.9 2.5 ±0.2 − 3.3 5.7 − 6.3 3.3 ±0.3 − 2.7 4.1 − 4.5 5.0 ±0.5 − 2.2 3.3 − 3.6 − 4.0 6.4 − 7.0 − 3.4 5.6 − 6.2 − 3 − − − pF − 3.5 − − − pF − 5.5 − − − CL = 15 pF, RL = 1 MW 1.65 1.8 CL = 50 pF, RL = 500 W 3.3 ±0.3 5.0 ±0.5 CIN Input Capacitance CPD Power Dissipation Capacitance (Figure 7) TA = −40 to +85°C Min Propagation Delay (Figure 5, 6) Conditions 0 (Note 2) 3.3 5.0 2. CPD is defined as the value of the internal equivalent capacitance which is derived from dynamic operating current consumption (ICCD) at no output loading and operating at 50% duty cycle. CPD is related to ICCD dynamic operating current by the expression: ICCD = (CPD) (VCC) (fIN) + (ICCstatic). AC Loading and Waveforms tr = 3 ns VCC 90% Input VCC 10% OUTPUT CL * 90% 50% GND INPUT tf = 3 ns 50% 10% tW tPHL RL tPLH VOH Output *CL includes load and stray capacitance. Input PRR = 1.0 MHz, tW = 500 ns. 50% 50% VOL Figure 5. AC Test Circuit Figure 6. AC Waveforms VCC A INPUT Application Note: When operating the NC7WZU04’s unbuffered output stage in its linear range, as in oscillator applications, care must be taken to observe maximum power rating for the device and package. The high drive nature of the design of the output stage will result in substantial simultaneous conduction currents when the stage is in the linear region. See the ICCPEAK specification on page 4. Input = AC Waveform; tr = tf = 1.8 ns. PRR = 10 MHz; Duty Cycle = 50%. Figure 7. ICCD Test Circuit www.onsemi.com 5 NC7WZU04 DEVICE ORDERING INFORMATION Top Mark Packages Shipping† NC7WZU04P6X ZU4 SC−88 3000 / Tape & Reel NC7WZU04L6X B5 MicroPak 5000 / Tape & Reel Device †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. MicroPak is trademark of Semiconductor Components Industries, LLC (SCILLC) or its subsidiaries in the United States and/or other countries. www.onsemi.com 6 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SIP6 1.45X1.0 CASE 127EB ISSUE O DOCUMENT NUMBER: DESCRIPTION: 98AON13590G SIP6 1.45X1.0 DATE 31 AUG 2016 Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SC−88 (SC−70 6 Lead), 1.25x2 CASE 419AD−01 ISSUE A SYMBOL D e e E1 E DATE 07 JUL 2010 MIN MAX A 0.80 1.10 A1 0.00 0.10 A2 0.80 1.00 b 0.15 0.30 c 0.10 0.18 D 1.80 2.00 2.20 E 1.80 2.10 2.40 E1 1.15 1.25 1.35 0.65 BSC e L TOP VIEW NOM 0.26 0.36 L1 0.42 REF L2 0.15 BSC 0.46 θ 0º 8º θ1 4º 10º q1 A2 A q b q1 L L1 A1 SIDE VIEW c L2 END VIEW Notes: (1) All dimensions are in millimeters. Angles in degrees. (2) Complies with JEDEC MO-203. DOCUMENT NUMBER: DESCRIPTION: 98AON34266E Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. SC−88 (SC−70 6 LEAD), 1.25X2 PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com ON Semiconductor Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 www.onsemi.com 1 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: ON Semiconductor: NC7WZU04P6 NC7WZU04P6X NC7WZU04L6X
