NCV7684
12 Channels 60 mA LED
Linear Current Driver I2C
Controllable for Automotive
Applications
www.onsemi.com
The NCV7684 consists of twelve linear programmable constant
current sources. The part is designed for use in the regulation and
control of LED for automotive applications. The NCV7684 allows
128 different current levels adjustable with pulse width modulation
(PWM) programmable via I2C serial interface. The device can be used
with micro−controller applications using the I2C bus or in stand−alone
applications where a choice could be done in between 2 different
configuration settings. The IC also provides 3.3 V voltage reference to
the application for loads up to 1 mA.
LED brightness level is easily programmed using an external
resistor. Each channel has an internal circuitry to detect open−load
conditions with an optional auto−recovery mode. If one driver is in
open−load condition, all other channels could be turned off according
to the programmable bit setting.
The device is available in small body size SSOP24−EP package.
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
12 programmable Current Sources Up to 60 mA
Common PWM Gain Control via I2C
On−chip 125, 250, or 500 Hz PWM
Open LED String Diagnostic
Low Dropout Operation for Pre−Regulator Applications
Single Resistor for Current Set Point
Voltage Reference 3.3 V / 1 mA
8 bits I2C Interface with CRC8 Error Detection
OTP Bank for Stand−Alone Operation (2 Configurations)
Detection and Protection Against Open Load and Under−Voltage
Over Temperature Detection and Protection
Low Emission with Spread Spectrum Oscillator
AEC Q100 Qualified
SSOP24−EP Packaging
This is a Pb−Free Device

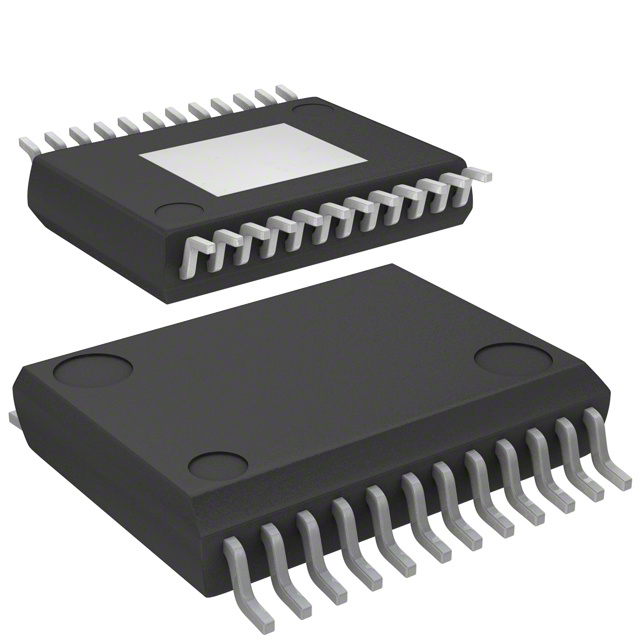

SSOP24 NB EP
CASE 940AP
MARKING DIAGRAM
XXXXXXXXXG
AWLYYWW
XXXX
A
WL
YY
WW
G
= Specific Device Code
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
Package
Shipping†
NCV7684DQR2G
SSOP24−EP
(Pb−Free)
2500 / Tape &
Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
Applications
•
•
•
•
•
•
Dashboard Applications
Rear Combination Lamps (RCL)
Daytime Running Lights (DRL)
Fog Lights
Center High Mounted Stop Lamps (CHMSL) Arrays
Turn Signal and other Externally Modulated Applications
© Semiconductor Components Industries, LLC, 2017
September, 2017 − Rev. 0
1
Publication Order Number:
NCV7684/D
NCV7684
VCC
CSN
ctrl
ISET
I2C
Registers
ISET
60 mA
VDD
ctrl
ISET
60 mA
Voltage
Reference
OUT12
OUT1
VS
Diagnostic control
DIAG
SCL
SDA
ISET
DIAGEN
PWM Registers
CONF
OTP
NCV7684
GND
Figure 1. Block Diagram
OUT1
VDD
OUT2
SCL
OUT3
SDA
OUT4
CSN
OUT6
OUT7
XXXXXXXXXG
AWLYYWW
OUT5
DIAG
GND
DIAGEN
OUT8
VS
OUT9
VCC
OUT10
CONF
OUT11
ISET
OUT12
GND
Figure 2. Pinout Diagram
www.onsemi.com
2
NCV7684
VSUPPLY
MRA4003T3G
LDO
or
DC/DC
C1
100 nF
VSTRING
COUT1
(optional)
1 nF
COUT12
(optional)
1 nF
e.g. sensor
C2
1 nF
VS
CVDD
R5
R6
100 nF
4.7 k
3.3 V / 5 V
LDO
4.7 k
VCC
OUT1
OUT12
R1
2.2 k
ISET
VSUPPLY
R4
10 k
VDD
CSN
SCL
SDA
CONF
I2C {
Microcontroller
DIAG
DIAGEN
CDIAG
(optional)
NCV7684
GND
R3
2.2 k
1 nF
Figure 3. Application Diagram with Micro−controller (I2C Mode)
VSUPPLY
MRA4003T3G
LDO
or
DC/DC
C1
100 nF
e.g. sensor
C2
1 nF
VSTRING
COUT1
(optional)
1 nF
VCC
VS
R2
10 k
OUT1
COUT12
(optional)
1 nF
OUT12
R1
2.2 k
ISET
VSUPPLY
VDD
R4
10 k
CSN
SCL
SDA
CONF
R2
10 k
DIAG
DIAGEN
NCV7684
GND
CDIAG
(optional)
1 nF
Figure 4. Application Diagram without Micro−controller (Stand Alone Mode)
www.onsemi.com
3
R3
2.2 k
NCV7684
Pin Function Description
Table 1. PIN FUNCTION DESCRIPTION
Pin #
Label
1
OUT1
Channel 1 Current Output to LED
2
OUT2
Channel 2 Current Output to LED
3
OUT3
Channel 3 Current Output to LED
4
OUT4
Channel 4 Current Output to LED
5
OUT5
Channel 5 Current Output to LED
6
OUT6
Channel 6 Current Output to LED
7
OUT7
Channel 7 Current Output to LED
8
OUT8
Channel 8 Current Output to LED
Description
9
OUT9
Channel 9 Current Output to LED
10
OUT10
Channel 10 Current Output to LED
11
OUT11
Channel 11 Current Output to LED
12
OUT12
Channel 12 Current Output to LED
13
GND
Ground
14
ISET
Current Setting
15
CONF
16
VCC
3.3 V Voltage Reference Output (Needs External Decoupling Capacitor)
17
VS
Supply Voltage Input
18
DIAGEN
19
GND
Ground
20
DIAG
Open−drain diagnostic input/output.
Reporting Open Circuit and thermal shutdown.
Normal Operation = HIGH
21
CSN
End of Line Chip Select
22
SDA
I2C Serial Data
23
SCL
I2C Serial Clock
24
VDD
Digital Supply Voltage Input
epad
epad
True Ground
Do NOT Connect to PCB Traces other than GND
Stand Alone Mode Selection Bank
Diagnostic Voltage Sensing Node for VSTRING Via Resistor Divider
Maximum Ratings
Table 2. ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol
Min
Max
Unit
VMAX_VS
Power supply voltage:
Continuous supply voltage
Transient Voltage (t < 500 ms, “load dump”)
−0.3
−0.3
28
40
V
V
VMAX_INx
Input pin voltage (DIAGEN, DIAG, CONF, CSN)
−0.3
40
V
Continuous Output Pin voltage
Transient Voltage (t < 500 ms, “load dump”)
−0.3
−0.3
28
40
V
V
VMAX_VCC
Stabilized output voltage (VCC)
−0.3
3.6
V
VMAX_VDD
Digital input supply voltage (VDD)
−0.3
5.5
V
DC voltage at pins (VDD, SCL, SDA)
−0.3
5.5
V
VMAX_ISET
DC voltage at pin ISET
−0.3
3.6
V
IMAX_GND
Maximum Ground Current
−
750
mA
TJMAX
Junction Temperature, TJ
−40
150
°C
VMAX_OUTx
VMAX_IO
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
1. Integrated protection functions are designed to prevent IC destruction under fault conditions described in the datasheet. Fault conditions are
considered as outside normal operating range. Protection functions are not designed for continuous repetitive operation.
www.onsemi.com
4
NCV7684
ESD Protection and Packaging
Table 3. EDS PROTECTION (Note 1)
Parameter
Value
Unit
±2
±4
kV
ESD Voltage, HBM (Human Body Model); (100 μF, 1500 Ω)
All Pins
Output Pins OUTx to GND
ESD According to CDM (Charge Device Model)
All Pins
Corner Pins
±500
±750
V
ESD According to MM (Machine Model)
All Pins
±150
V
Moisture Sensitivity (SSOP24−EP)
MSL3
Package Thermal Resistance Junction to Ambient (SSOP24−EP)
37
°C/W
1. This device series incorporates ESD protection and is tested by the following methods:
ESD HBM tested per AEC−Q100−002 (EIA/JESD22−A114)
ESD CDM tested per EIA/JES D22/C101, Field Induced Charge Model
MM according to AEC−Q100
Table 4. ELECTRICAL CHARACTERISTICS
(5 V < VS < 18 V, 3.15 V < VDD < 5.5 V, R1 = 1.82 kΩ, −40°C ≤ TJ ≤ 150°C, unless otherwise specified)
Characteristic
Symbol
Conditions
Min
Typ
Max
Unit
VS_EXT
Functional extended range
(limited temperature)
5
−
28
V
VS_OP
Parametric operation
5
−
18
V
GENERAL
Supply Voltage
Supply Under−Voltage
Supply Under−Voltage Hysteresis
Supply Current (Vs)
VSUV
VS rising
3.8
4.1
4.4
V
VSUVHYS
−
−
200
−
mV
IS
(error mode)
All OUTx OFF except channel in
open load, VS = 12 V
VDD = 0 V
−
−
1.2
2.2
1.5
2.5
mA
mA
−
7
10
mA
1.5
2.0
mA
2.9
V
IOUT_VCC = 0 mA
IOUT_VCC = 1 mA
Digital Supply Current
VDD Under Voltage Detection
IS
(active)
Active Mode,
VCC unloaded,
VS = 16 V, R1 = 2 kΩ
IDD
I2C mode, VDD = 5 V, VS = 16 V
VDDUV_R
VDD rising
VDDUV_F
VDD falling
www.onsemi.com
5
2
V
NCV7684
Table 4. ELECTRICAL CHARACTERISTICS (continued)
(5 V < VS < 18 V, 3.15 V < VDD < 5.5 V, R1 = 1.82 kΩ, −40°C ≤ TJ ≤ 150°C, unless otherwise specified)
Characteristic
Symbol
Conditions
Min
Typ
Max
Unit
CURRENT SOURCE OUTPUTS
Output Current
Current Matching from Channel to Channel
IOUTHOT
OUTx = 1 V, TJ = 150°C
50
55
60
mA
IOUTCOLD
OUTx = 0.5 V, TJ = −40°C
50
55
60
mA
IMATCHCOLD
TJ = −40°C (Note 1)
−7
0
7
%
IMATCH
TJ = 25°C (Note 1)
−6
0
6
%
IMATCHHOT
TJ = 150°C (Note 1)
−5
0
5
%
Current Slew Rate
ISRx
10% to 90%
−
30
−
mA/μs
Open Circuit Detection Threshold
OLDT
IOUTx > 20 mA
30
50
70
% of
output
current
OLR
−
5
10
15
mA
Open Load Recovery in Auto−recovery Mode
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
1. Matching formulas:
ƪ
ƫ
2IOUTx(min)
*1
IOUTx(min) ) IOUTx(max)
100 and
ƪ
ƫ
2IOUTx(max)
*1
IOUTx(min) ) IOUTx(max)
100
(eq. 1)
Table 5. ELECTRICAL CHARACTERISTICS
(5 V < VS < 18 V, 3.15 V < VDD < 5.5 V, R1 = 1.82 kΩ, −40°C ≤ TJ ≤ 150°C, unless otherwise specified)
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
VOLTAGE REFERENCE
V_VCC
Output Voltage Tolerance
I_VCC ≤ 1 mA
3.20
3.30
3.45
V
IOUT_VCC
Output Current
−
−
−
−1
mA
CLOAD_VCC
Load Capacitor
ESR < 200 mΩ
0.9
1.0
2.5
nF
VINL
Input Low Level
−
0.7
1.0
−
V
VINH
Input High Level
−
−
1.25
1.66
V
VIN_HYST
Input Hysteresis
−
100
250
400
mV
Input Pull−down Resistor
0 V < VIN < 0.8 V
120
200
280
kΩ
VINL
Input Low Level
−
−
−
0.3 × VDD
V
VINH
Input High Level
−
0.7 × VDD
−
−
V
VIN_HYST
Input Hysteresis
−
0.05 × VDD
−
−
V
IOUT_SDA
Output Current
V (SDA) = 0.4 V
3
−
−
mA
VDIAGENTH
VS Diagnostic Enable
Threshold
−
1.9
2.0
2.1
V
RDIAGEN_PD
Input Pull−down Resistor
0 V < VDIAG < 0.9 V
120
200
280
kΩ
Output Low Level
Diagnostic Activated,
IDIAG = 1 mA
−
0.2
0.4
V
DiagRes
Diagnostic Reset Voltage
−
1.65
1.80
1.95
V
tp_DIAG
Filter Time to Set the DIAG
Fail Pin in Failure Mode
IDIAG = 1 mA
−
10
20
μs
DIAG Output Leakage
VDIAG = 5 V
−
−
10
μA
INPUTS: CSN, CONF
RIN_PD
INPUTS: SCL, SDA
DIAGEN PIN
DIAG PIN
VOUTL
DIAG_leak
www.onsemi.com
6
NCV7684
Table 5. ELECTRICAL CHARACTERISTICS (continued)
(5 V < VS < 18 V, 3.15 V < VDD < 5.5 V, R1 = 1.82 kΩ, −40°C ≤ TJ ≤ 150°C, unless otherwise specified)
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
Global Current Setting
−
0.94
1.00
1.06
V
IOUT ISET Factor
−
−
100
−
−
Setup−up Time to 90% of the
ISET Regulated Value
VS > 5 V
−
−
50
μs
ISET INPUT PIN
VISET
K
tsetupISET
INTERNAL PWM CONTROL UNIT (OUT1− OUT12)
PWM1
PWM1 Frequency, I2C Mode
Configuration Via I2C
220
250
280
Hz
PWM2
PWM2 Frequency, I2C Mode
Configuration Via I2C
110
125
140
Hz
I2C
440
500
560
Hz
PWM3
PWM3 Frequency,
I2C
Mode
Configuration Via
Table 6. THERMAL WARNING AND THERMAL SHUTDOWN PROTECTION
Characteristic
Symbol
Min
Typ
Max
Unit
TJWAR_ON
Thermal Warning Threshold (Junction
Temperature)
−
TSD − 30
−
°C
TSD
Thermal Shutdown Threshold (Junction
Temperature)
TJ Increasing
160
−
180
°C
TJSD_HYS
Thermal Shutdown Hysteresis
10
−
15
°C
www.onsemi.com
7
NCV7684
General
The NCV7684 is a twelve channel LED driver. Each
output can drive currents up to 60 mA/channel and are
programmable via an external resistor. The target
applications for the device are in automotive rear lighting
systems and dashboard applications. The device can be used
with micro−controller applications using the I2C bus or in
stand−alone applications. In both cases it is mandatory to
supply the LED channels by an external ballast transistor, or
by an LDO or a DC/DC. In order to have very low
electromagnetic emission, this device has an embedded
spread spectrum oscillator.
Example:
R1 = 2 kΩ
using eq. 2 → ISET = 500 μA
and using eq. 3 → IOUTx = 50 mA
To avoid potential disturbances when all drivers are
activated at the same time, a typical activation delay of
400 ns between groups of 2 consecutive outputs is
implemented (see Figure 5).
Output Current Programming (ISET/OUTx)
The maximum current can be defined with the Iset input
pin. The equations below can be used to calculate this
maximum output current:
Iset + 1 VńR1
IOUTx + K
PWM period counter
PWM signal
Iset
(eq. 2)
(eq. 3)
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
driver 1
driver 2
driver 3
driver 4
driver 5
driver 6
driver 7
driver 8
driver 9
driver 10
driver 11
driver 12
Figure 5.
Power Supply and Voltage Reference (VS, VCC, VDD)
bus. When CSN will be connected to ground or below 0.7 V,
the device will be in a mode where zapping is not possible.
Zapping is only possible with VS above 13 V.
VS is the analog power supply input of the device. VS
supply is monitored with respect to the crossing of VSUV
level (typ. 4.1 V). When VS rises above VSUV, the device
starts the power−up state. When VS is above the VS_OP
minimum level (typ. 5 V), the device can work properly.
VCC is a voltage reference providing 3.3 V derived from
the VS main supply. It is able to deliver up to 1 mA and is
primarily intended to supply 3.3 V loads.
VDD is the digital power supply input of the device.
Configuration (CONF)
When the CONF input voltage will be below 0.7 V the
configuration 1 will be selected (One Time Programmable
OTP 1 register called SAM_CONF_1) and when the CONF
input voltage will be above 1.66 V the configuration 2 will
be selected (OTP 2 register called SAM_CONF_2). There
is ability to change the configuration in error mode (either
with CONF in SAM or through I2C in I2C mode).
Ground Connections (GND: Pin 13 and Pin 19)
The device ground connection is split to two pins called
GND. Both pins have to be connected on the application
PCB.
I2C Bus (SCL, SDA)
The I2C bus consists of two wires, Serial Data (SDA) and
Serial Clock (SCL), carrying information between the
devices connected on the bus. Each device connected to the
bus is recognized by a unique address and operates as either
a transmitter or receiver, depending on the function of the
device. The NCV7684 can both receive and transmit data
Chip Select (CSN)
The device can programmable using the I2C bus in End Of
Line cases. When the CSN pin has a voltage above 1.66 V,
the device will be set in zapping control mode via the I2C
www.onsemi.com
8
NCV7684
Diagnostic Feedback (DIAG)
with CRC8 error detection algorithm. The NCV7684 is a
slave device.
SDA is a bi−directional line connected to a positive supply
voltage via an external pull−up resistor. When the bus is free
both lines are HIGH. The output stages of the devices
connected to the bus must have an open drain to perform the
wired−AND function. Data on the I2C bus can be transferred
up to 400 kb/s.
The DIAG is an open drain output pin who can alert a
microcontroller as soon as one of the outputs is in error mode
(DIAG Low = open load or thermal shut−down or Iset
shorted). Forcing the DIAG pin below 1.8 V will force a
fault condition if the DIAGEN input pin is above a typical
value of 2 V. If the DIAGEN input pin is below the typical
value of 2 V then forcing the DIAG input pin will not have
any effect.
Diagnostic Enabling (DIAGEN)
Parallel Outputs (OUTx)
The device is capable to detect for each independent
channel an open load condition. Versus the number of LEDs
and the VSTRING voltage supply, a wrong open load
condition can be detected if the fault detection is activated
when there is not enough voltage across the LEDs. This
threshold can be programmable thanks to an external divider
connected to the DIAGEN pin. When the divided voltage is
below a typical value of 2 V, the LED diagnostic is disabled.
When the divided voltage is above the typical value of 2 V,
the LED diagnostic is enabled.
The maximum rating per output is 60 mA. In order to
increase system level LED string current, parallel
combinations of any number of outputs is allowed.
Combining all 12 outputs will allow for a maximum system
level string current design of 720 mA.
www.onsemi.com
9
NCV7684
DIGITAL PART AND I2C REGISTERS
The I2C bus consists of two wires, serial data (SDA) and
serial clock (SCL), carrying information between the
devices connected on the bus. Each device connected to the
bus is recognized by a unique address. The NCV7684 can
both receive and transmit data with CRC8 error detection
algorithm. The NCV7684 is a slave device only. Generation
of the signals on the I2C bus is always the responsibility of
the master device.
They are multiple kinds of message structure possible
versus ID code received.
Table 7. IDENTIFIER ADDRESSING (ID) MESSAGE
ID
Access type
ID_I2C_CONF
00
W
I2C_CONF
ID_PWM
01
W
PWM_GAIN, PWM_GAIN_EN
ID_WRITEALL
02
W
I2C_CONF, PWM_GAIN, PWM_GAIN_EN
ID_PWM_CONF
03
W
PWM_CONF
ID_STATUS
08
R
I2C_STATUS
ID_FAULT
09
R
FAULT_STATUS
ID_READALL
0A
R
I2C_CH_STATUS, I2C_STATUS, FAULT_STATUS
ID_SET_OTP
20
W
SAM_CONF_1, SAM_CONF_2, ADD_SAM_SET
ID_LOCK_OTP
21
W
SAM_CONF_1, SAM_CONF_2, ADD_SAM_SET
ID_READ_OTP
28
R
ID_VERS_1, ID_VERS_2, SAM_CONF_1, SAM_CONF_2, ADD_SAM_SET
Name
Name of Register Addressed
Volatile Registers:
I2C_CONF
I2C_STATUS
I2C_CH_STATUS
FAULT_STATUS
PWM_GAIN
PWM_GAIN_EN
PWM_CONF
There are 3 kinds of registers, Hard Coding, OTP and
volatile registers.
Hard Coding Registers:
ID_VERS_1
ID_VERS_2
OTP Registers:
ADD_SAM_SET
SAM_CONF_1
SAM_CONF_2
S
NCV7684 address
Format of the I2C frames
0
A
NCV7684 address
A
ID
‘0’ = Write
From master to NCV7684
From NCV7684 to master
A
Data
A
CRC
Data
A
A*
P
N bytes +
acknowledge
S = Start condition
P = Stop condition
A = Acknowledge
A* = Not acknowledge
Figure 6. Format of I2C Write Access Frames
S
NCV7684
address
0 A
NCV7684
address
A
ID
A
CRC
A* Sr
‘0’ = Write
From master to NCV7684
NCV7684
address
‘1’ = Read
S = Start condition
Sr = Repeated start condition
P = Stop condition
From NCV7684 to master
1 A
A = Acknowledge
A* = Not acknowledge
Figure 7. Format of I2C Read Access Frames
Remark: CRC byte is not transmitted when CRC
protection is turned off (ERREN = 0)
www.onsemi.com
10
N bytes +
acknowledge
CRC
A* P
ID_PWM
ID_WRITEALL
NCV7684
S NCV7684
Address 0 Address
S NCV7684 0 NCV7684
Address
Address
ID_FAULT
ID_READALL
NCV7684
S NCV7684
Address 0 Address
NCV7684
S NCV7684
Address 0 Address
Figure 8. Format of I2C Frames
www.onsemi.com
11
Sr
Sr
Sr
1
1 FAULT_STATUS[15:8]
1 I2C_CH_STATUS[15:8]
NCV7684
Address
NCV7684
Address
NCV7684
Address
CRC
From NCV7684 to master
From master to NCV7684
0 NCV7684 ID_READ_OTP
S NCV7684
Address
Address
Sr
NCV7684
Address
Acknowledges are ommited
S = Start condition
Sr = Repeated start condition
P = Stop condition
CRC
1
ID_VERS_1
ID_VERS_2
P
P
FAULT_STATUS[15:8]
P
CRC
P
FAULT_STATUS[7:0]
CRC
CRC
Note: Not to scale.
SAM_CONF_1[15:8] SAM_CONF_1[7:0] SAM_CONF_2[15:8] SAM_CONF_2[7:0] ADD_SAM_SET
ADD_SAM_SET
CRC
I2C_STATUS
CRC
0 NCV7684 ID_LOCK_OTP SAM_CONF_1[15:8] SAM_CONF_1[7:0] SAM_CONF_2[15:8] SAM_CONF_2[7:0]
S NCV7684
Address
Address
P
PWM_GAIN_EN[7:0]
P
CRC
I2C_CH_STATUS[7:0]
FAULT_STATUS[7:0]
CRC
PWM_GAIN_EN[15:8]
P
P
I2C_STATUS
PWM_GAIN
PWM_GAIN_EN[7:0]
CRC
CRC
I2C_CONF[7:0]
PWM_GAIN_EN[15:8]
I2C_CONF[7:0]
Acknowledges are ommited
S = Start condition
Sr = Repeated start condition
P = Stop condition
CRC
CRC
CRC
PWM_CONF
I2C_CONF[15:8]
PWM_GAIN
I2C_CONF[15:8]
0 NCV7684 ID_SET_OTP SAM_CONF_1[15:8] SAM_CONF_1[7:0] SAM_CONF_2[15:8] SAM_CONF_2[7:0] ADD_SAM_SET
S NCV7684
Address
Address
From NCV7684 to master
From master to NCV7684
ID_STATUS
S NCV7684 0 NCV7684
Address
Address
NCV7684
S NCV7684
Address 0 Address ID_PWM_CONF
ID_I2C_CONF
S NCV7684 0 NCV7684
Address
Address
P
P
NCV7684
Figure 9. Format of I2C OTP Frames
NCV7684
There is a safety mechanism implemented by repeating
the address. Since the I2C address is 7 bits long, first bit of
the second address byte starts with a “0” in the repeated byte
(see tables below).
Table 8.
1st Byte
7
6
5
4
I2C
3
2
1
0
Device Address
R/W Bit
2nd Byte
7
6
5
4
3
2
1
0
I2C Device Address
0
HARD CODING REGISTERS
Table 9. HARD CODING REGISTERS
Bit
D7
D6
D5
D4
D3
D2
D1
D0
ID_VERS_1
ID1[7:0]
Bit name
Access type
R
R
R
R
R
R
R
R
Reset value
0
1
0
0
0
0
1
1
ID_VERS_2
ID2[7:0]
Bit name
Access type
R
R
R
R
R
R
R
R
Reset value
0
0
0
0
0
0
1
0
1. ID1[7:0] = 43h (ON Semi Device Identifier)
ID2[7:0] = 02h (The Actual Version)
www.onsemi.com
12
NCV7684
OTP REGISTERS
Table 10. ADD_SAM_SET
Bit
D7
D6
D5
D4
D3
D2
D1
D0
Bit name
AUTOR
DETONLY
ERREN
Access type
R/W
R/W
R/W
R/W
R/W
ADD[4:0]
R/W
R/W
R/W
Reset value
0
1
0
0
0
0
0
0
DETONLY: When DETONLY = 1, open load diagnostic
is performed. When a fault is detected, the DIAG pin is set
without taking any action on the current regulation. When
fault is recovered, DIAG is reset. If the DIAG pin is
triggered externally, no action is taken.
When AUTOR = DETONLY = 0, no diagnostic performed
When AUTOR = DETONLY = 1, no change
(same as previously setting).
ERREN: When ERREN = 1, CRC error detection
algorithm is activated for I2C communication.
ADD[4:0] are the programmable BUS address registers
(in I2C mode ADD[6:5] = 11).
AUTOR: When AUTOR = 1 (and DIAGEN is high), open
load diagnosis is performed. When a fault is detected, the
DIAG pin is set and LED driver imposes a low current on the
faulty branch alone, switching off the others. When fault is
recovered, LED driver returns to normal operation after
resetting the DIAG pin. If the DIAG pin is triggered
externally, LED driver outputs are switched off and the low
power mode is entered.
Table 11. SAM_CONF
Bit
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
Bit name
−
−
−
−
Access type
R
R
R
R
R/W
R/W
R/W
R/W
R/W
R/W
Reset value
0
0
0
0
1
1
1
1
1
1
Bit name
−
−
−
−
Access type
R
R
R
R
R/W
R/W
R/W
R/W
R/W
R/W
Reset value
0
0
0
0
1
1
1
1
1
1
D5
D4
D3
D2
D1
D0
R/W
R/W
R/W
R/W
R/W
R/W
1
1
1
1
1
1
R/W
R/W
R/W
R/W
R/W
R/W
1
1
1
1
1
1
SAM_CONF_1
SAM1conf[11:0]
SAM_CONF_2
SAM2conf[11:0]
1. SAM1conf[x] = 0 means channel is OFF and SAM1conf[x] = 1 means channel is ON
SAM2conf[x] = 0 means channel is OFF and SAM2conf[x] = 1 means channel is ON
www.onsemi.com
13
NCV7684
VOLATILE REGISTERS
Table 12. I2C_CONF
Bit
D15
D14
D13
D12
Bit name
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
I2CFLAG
I2CautoR
I2CdOnly
PWMEN
Access type
W
W
W
W
W
W
W
W
W
I2Cconf[11:0]
W
W
W
W
W
W
W
Reset value
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
without taking any action on the current regulation. When
fault is recovered, DIAG is reset. If the DIAG pin is
triggered externally, no action is taken.
When I2CautoR = I2CdOnly = 0, no diagnostic
performed.
When I2CautoR = I2CdOnly = 1, no change (same as
previously setting).
PWMEN: When PWMEN = 1, PWM is activated, when
PWMEN = 0 the content of the complete register
PWM_GAIN_EN is not reset and PWM is disabled.
I2Cconf[x] = 0 means channel is OFF and I2Cconf[x] =
1 means channel is ON.
I2CFLAG: the I2CFLAG should be reset whenever
standalone mode is entered. When I2CFLAG = 1 and when
VDD is high, the I2C mode is activated, in all other
conditions the device is in Stand Alone Mode.
I2CautoR: When I2CautoR = 1 (and DIAGEN is high),
open load diagnosis is performed. When a fault is detected,
the DIAG pin is set and LED driver imposes a low current
on the faulty branch alone, switching off the others. When
fault is recovered, LED driver returns to normal operation
after resetting the DIAG pin. If the DIAG pin is triggered
externally, LED driver outputs are switched off and the low
power mode is entered.
I2CdOnly: When I2CdOnly = 1, open load diagnostic is
performed. When a fault is detected, the DIAG pin is set
Table 13. I2C STATUS
Bit
D7
D6
D5
D4
D3
D2
D1
D0
Bit name
SC_Iset
I2Cerr
UV
diagRange
TW
TSD
DIAGERR
OL
Access type
R
R
R
R
R
R
R
R
Reset value
0
0
0
0
0
0
0
0
TW: when TW=1 the device is in the thermal warning
range (typ. 140°C), this flag is just a warning no action is
foreseen on the output drivers. TW = 0 means the device is
below the thermal warning range.
TSD: when TSD = 1 the device is in the Thermal shutdown
range, TSD = 0 means the device is below the thermal
shutdown range.
DIAGERR: DIAGERR = 1 means an error is detected by
DIAG pin forced externally.
OL: OL = 1 means at least one channel is in Open Load
condition, OL = 0 no Open Load.
SC_Iset: SC_Iset = 1 means there is short−circuit on the
external resistor on Iset pin and drivers are switched OFF
and DIAG pin is set. SC_Iset = 0 no short−circuit.
I2Cerr: I2Cerr = 1 means an error has been detected
during the I2C communication, I2Cerr = 0 means no error
during I2C communication has been detected.
UV: the device is in under voltage condition (VS is below
VSUV threshold, all channels OFF).
diagRange: when diagRange = 1 the divided voltage is
above the typical value of 2 V (LED diagnostic is enabled),
diagRange = 0 means the divided voltage is below the
typical value of 2 V (LED diagnostic is disabled).
Table 14.
SC_ISET
Set when a short−circuit on the external resistor on Iset pin, latched if permanent after 10 μs.
Reset in case of short−circuit disappear permanently for at least 10 μs
I2CERR
Set if an error has been detected during the I2C communication.
Reset on register reading
UV
diagRange
Set when device is in under voltage condition (VS is low, all channels OFF)
Set when divided voltage is above the VDIAGENTH threshold.
Reset when the divided voltage is below the VDIAGENTH threshold
TW
Set when junction temperature is above the TJWAR_ON threshold.
Reset on register reading and if temperature is below the (TJWAR_ON − TJSD_HYS) threshold
TSD
Set when junction temperature is above the TSD threshold.
Reset on register reading and if temperature is below the TSD − TJSD_HYS) threshold
www.onsemi.com
14
NCV7684
Table 14. (continued)
Set by DIAG pin forced low externally, latched if permanent after 10 μs.
Reset in case DIAG pin is not forced permanently for at least 10 μs
DIAGERR
OL
Set in Open Load condition and DIAGEN is high, latched if permanent after 10 μs.
Reset if Open Load disappear permanently for at least 10 μs.
Fault information is maintained on falling DIAGEN threshold exceeded
Table 15. I2C_CH_STATUS
Bit
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
Bit name
I2CFLAG
I2CautoR
I2CdOnly
PWMEN
Access type
R
R
R
R
R
R
R
R
R
R
R
Reset value
0
0
0
0
0
0
0
0
0
0
0
D4
D3
D2
D1
D0
R
R
R
R
R
0
0
0
0
0
I2C_CH_STATUS[11:0]
Remark: When NCV7684 is configured in I2C mode and
output channel OUTx is configured to operate in PWM
mode, I2C_CH_STATUS[x] shall contain value ‘1’.
I2CFLAG: same as I2C_CONF register.
I2CautoR: same as I2C_CONF register.
I2CdOnly: same as I2C_CONF register.
PWMEN: same as I2C_CONF register.
I2C_CH_STATUS[11:0]: same as I2C_CONF[11:0] bits
in I2C mode or same as SAM_CONF_1[11:0],
SAM_CONF_2[11:0] bits in Standalone mode.
Table 16. FAULT_STATUS
Bit
D15
D14
D13
D12
Bit name
−
−
−
−
Access type
R
R
R
R
R
R
R
R
R
R
Reset value
0
0
0
0
0
0
0
0
0
0
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
R
R
R
R
R
R
0
0
0
0
0
0
FAULT[11:0]
FAULT[11:0]: when FAULT[x] = 1 the OUTx channel is
in fault mode (Open Load latched when the duration is
longer than 10 μs), when FAULT[x] = 0 the OUTx channel
is working properly. The register is reset on each read
operation.
Table 17. PWM_GAIN
Bit
D7
D6
D5
D4
D3
D2
D1
D0
Bit Name
PWMF1
Access type
W
W
W
W
PWMGAIN[6:0]
W
W
W
W
Reset Value
0
0
0
0
0
0
0
0
PWMGAIN[6:0]: logarithmic (or linear) dimming via
embedded PWM generator (128 steps). Following formula
applies when logarithmic dimming is selected:
Duty_Cycle_Percent = 100 × α(N − i) where α = 0.9471,
N = 127 and i = PWMGAIN[6:0] rounded with an accuracy
of 400 ns.
PWMF1: when PWMF1 = 1, PWM dimming is done at a
typical frequency of 250 Hz, when PWMF1 = 0 means
PWM dimming is done at a typical frequency of 125 Hz
(when PWMF2 = 0).
www.onsemi.com
15
NCV7684
Table 18. PWM_GAIN_EN
Bit
D15
D14
D13
D12
Bit name
−
−
−
−
Access type
−
−
−
−
W
W
W
W
W
W
Reset value
0
0
0
0
0
0
0
0
0
0
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
W
W
W
W
W
W
0
0
0
0
0
0
PWMGAINen[11:0]
PWMGAINen[11 :0] : when PWMGAINen[x] = 1, PWM
dimming is enabled for OUTx channel, when
PWMGAINen[x] = 0 means PWM dimming is disabled for
OUTx channel.
Table 19. PWM_CONF
Bit
D7
D6
D5
D4
D3
D2
D1
D0
Bit name
−
−
−
−
−
−
PWMLIN
PWMF2
Access type
W
W
W
W
W
W
W
W
Reset value
0
0
0
0
0
0
0
0
PWMLIN bit shall select between logarithmic (PWMLIN
= 0) and linear (PWMLIN = 1) translation of PWMGAIN
bits to duty cycle of internal PWM signal.
PWMF2: when PWMF2 = 1, PWM dimming is done at a
typical frequency of 500 Hz, when PWMF2 = 0, PWMF1
setting applies.
www.onsemi.com
16
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
SSOP24 NB EP
CASE 940AP
ISSUE O
SCALE 1:1
DATE 05 MAR 2015
2X
0.20 C A-B
NOTE 4
NOTE 6
D
D
A
2X
0.20 C
NOTE 5
ÉÉÉ
ÉÉÉ
e
L2
GAUGE
PLANE
E1
PIN 1
REFERENCE
L1
H
13
24
E
L
DETAIL A
A1
C
NOTE 7
1
12
B
24X
NOTE 6
TOP VIEW
SEATING
PLANE
0.20 C
b
0.12
A
2X 12 TIPS
M
C A-B D
DETAIL A
A2
h
h
0.10 C
M
0.10 C
24X
SIDE VIEW
0.15
C A-B D
M
A1
C
SEATING
PLANE
c
END VIEW
NOTE 8
D2
0.15
E2
NOTE 8
RECOMMENDED
SOLDERING FOOTPRINT
24X
1.15
2.19
6.40
1
0.65
PITCH
DIMENSIONS: MILLIMETERS
DOCUMENT NUMBER:
DESCRIPTION:
MILLIMETERS
MIN
MAX
--1.75
0.00
0.10
1.10
1.65
0.19
0.30
0.09
0.20
8.64 BSC
2.37
2.67
6.00 BSC
3.90 BSC
1.79
1.99
0.65 BSC
0.25
0.50
0.40
0.85
1.00 REF
0.25 BSC
0_
8_
XXXXXXXXXG
AWLYYWW
2.72
0.40
C A-B D
DIM
A
A1
A2
b
c
D
D2
E
E1
E2
e
h
L
L1
L2
M
GENERIC
MARKING DIAGRAM*
BOTTOM VIEW
24X
M
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME
Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. DIMENSION b DOES NOT INCLUDE DAMBAR
PROTRUSION. DAMBAR PROTRUSION SHALL
BE 0.10 MAX. AT MMC. DAMBAR CANNOT BE
LOCATED ON THE LOWER RADIUS OF THE
FOOT. DIMENSION b APPLIES TO THE FLAT
SECTION OF THE LEAD BETWEEN 0.10 TO 0.25
FROM THE LEAD TIP.
4. DIMENSION D DOES NOT INCLUDE MOLD
FLASH, PROTRUSIONS OR GATE BURRS. MOLD
FLASH, PROTRUSIONS OR GATE BURRS SHALL
NOT EXCEED 0.15 PER SIDE. DIMENSION D IS
DETERMINED AT DATUM PLANE H.
5. DIMENSION E1 DOES NOT INCLUDE INTERLEAD
FLASH OR PROTRUSION. INTERLEAD FLASH
OR PROTRUSION SHALL NOT EXCEED 0.25 PER
SIDE. DIMENSION E1 IS DETERMINED AT DATUM PLANE H.
6. DATUMS A AND B ARE DETERMINED AT DATUM
PLANE H.
7. A1 IS DEFINED AS THE VERTICAL DISTANCE
FROM THE SEATING PLANE TO THE LOWEST
POINT ON THE PACKAGE BODY.
8. CONTOURS OF THE THERMAL PAD ARE UNCONTROLLED WITHIN THE REGION DEFINED
BY DIMENSIONS D2 AND E2.
98AON96176F
SSOP24 NB EP
XXXX = Specific Device Code
A
= Assembly Location
WL
= Wafer Lot
YY
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “G”, may
or may not be present. Some products may
not follow the Generic Marking.
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 1
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the
rights of others.
© Semiconductor Components Industries, LLC, 2019
www.onsemi.com
onsemi,
, and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates
and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property.
A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any
products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the
information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use
of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products
and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information
provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may
vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license
under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems
or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should
Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Email Requests to: orderlit@onsemi.com
onsemi Website: www.onsemi.com
◊
TECHNICAL SUPPORT
North American Technical Support:
Voice Mail: 1 800−282−9855 Toll Free USA/Canada
Phone: 011 421 33 790 2910
Europe, Middle East and Africa Technical Support:
Phone: 00421 33 790 2910
For additional information, please contact your local Sales Representative
工商网监
湘ICP备2023018690号
