NCV8501 Series
LDO Linear Regulators Micropower, ENABLE,
DELAY, RESET,
Monitor FLAG
http://onsemi.com
150 mA
The NCV8501 is a family of precision micropower voltage
regulators. Their output current capability is 150 mA. The family has
output voltage options for adjustable, 2.5 V, 3.3 V, 5.0 V, 8.0 V, and 10 V.
The output voltage is accurate within ±2.0% with a maximum
dropout voltage of 0.6 V at 150 mA. Low quiescent current is a feature
drawing only 90 mA with a 100 mA load. This part is ideal for any and
all battery operated microprocessor equipment.
Microprocessor control logic includes an active RESET (with
DELAY), and a FLAG monitor which can be used to provide an early
warning signal to the microprocessor of a potential impending RESET
signal. The use of the FLAG monitor allows the microprocessor to
finish any signal processing before the RESET shuts the
microprocessor down.
The active RESET circuit operates correctly at an output voltage as
low as 1.0 V. The RESET function is activated during the power up
sequence or during normal operation if the output voltage drops
outside the regulation limits.
The regulator is protected against reverse battery, short circuit, and
thermal overload conditions. The device can withstand load dump
transients making it suitable for use in automotive environments. The
device has also been optimized for EMC conditions.
Features
•
•
•
•
•
•
•
•
•
•
•
Output Voltage Options: Adjustable, 2.5 V, 3.3 V, 5.0 V, 8.0 V, 10 V
±2.0% Output
Low 90 mA Quiescent Current
Fixed or Adjustable Output Voltage
Active RESET
ENABLE
150 mA Output Current Capability
Fault Protection
♦ +60 V Peak Transient Voltage
♦ −15 V Reverse Voltage
♦ Short Circuit
♦ Thermal Overload
Early Warning through FLAG/MON Leads
NCV Prefix for Automotive and Other Applications Requiring Site
and Change Control
These are Pb−Free Devices
© Semiconductor Components Industries, LLC, 2009
September, 2019 − Rev. 29
1

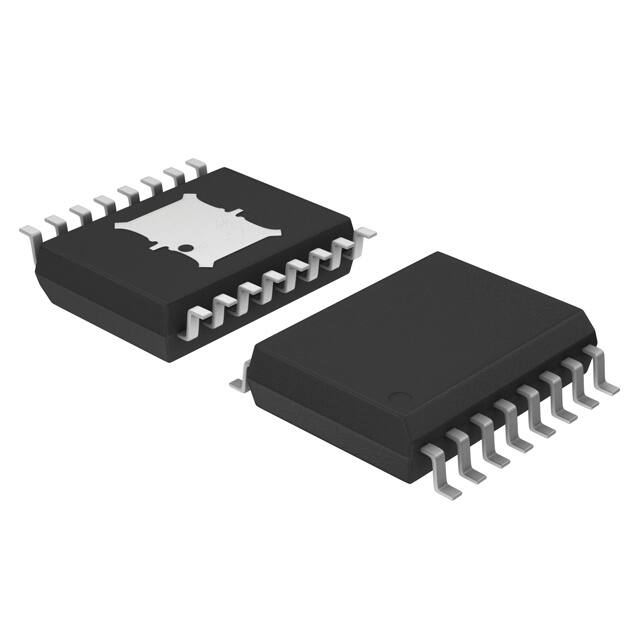

SO−8
D SUFFIX
CASE 751
8
1
16
1
SOIC 16 LEAD
WIDE BODY
EXPOSED PAD
PDW SUFFIX
CASE 751AG
MARKING DIAGRAMS
SOW−16
E PAD
SO−8
16
8
1
8501x
ALYW
G
8501x
AWLYYWWG
1
x
= Voltage Ratings as Indicated Below:
A = Adjustable
2 = 2.5 V
3 = 3.3 V
5 = 5.0 V
8 = 8.0 V
0 = 10 V
A
= Assembly Location
WL, L = Wafer Lot
YY, Y
= Year
WW, W = Work Week
G or G = Pb−Free Package
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 14 of this data sheet.
Publication Order Number:
NCV8501/D
NCV8501 Series
PIN CONNECTIONS, ADJUSTABLE OUTPUT
1
VIN
SO−8
8
MON
ENABLE
VOUT
VADJ
VOUT
NC
NC
NC
NC
VIN
MON
VADJ
FLAG
NC
GND
SOW−16 E PAD
1
16
FLAG
NC
NC
GND
NC
NC
NC
ENABLE
PIN CONNECTIONS, FIXED OUTPUT
1
VIN
SO−8
MON
ENABLE
VOUT
FLAG
VOUT
NC
NC
NC
NC
VIN
MON
FLAG
RESET
DELAY
GND
VIN
SOW−16 E PAD
1
16
RESET
NC
NC
GND
NC
NC
DELAY
ENABLE
VOUT
VDD
10 mF
10 mF
NCV8501
DELAY
RFLG
10 k
Microprocessor
VBAT
8
RRST
10 k
MON
CDELAY
ENABLE
FLAG
VADJ
(Adjustable
Output Only)
RESET
I/O
GND
Figure 1. Application Diagram
http://onsemi.com
2
I/O
NCV8501 Series
MAXIMUM RATINGS*
Rating
Value
Unit
−15 to 45
V
Peak Transient Voltage (46 V Load Dump @ VIN = 14 V)
60
V
Operating Voltage
45
V
VOUT (dc)
−0.3 to 16
V
Voltage Range (RESET, FLAG)
−0.3 to 10
V
Input Voltage Range (MON)
Input Voltage Range (VAOJ)
−0.3 to 10
−0.3 to 16
V
−0.3 to 10**
V
2.0
kV
Junction Temperature, TJ
−40 to +150
°C
Storage Temperature, TS
−55 to 150
°C
45
165
°C/W
°C/W
15
56
35
°C/W
°C/W
°C/W
260 Peak
(Note 3)
°C
VIN (dc)
Input Voltage Range (ENABLE)
ESD Susceptibility (Human Body Model)
Package Thermal Resistance, SO−8:
Junction−to−Case, RqJC
Junction−to−Ambient, RqJA
Package Thermal Resistance, SOW−16 E PAD:
Junction−to−Case, RqJC
Junction−to−Ambient, RqJA
Junction−to−Pin, RqJP (Note 1)
Lead Temperature Soldering:
Reflow: (SMD styles only) (Note 2)
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
*During the voltage range which exceeds the maximum tested voltage of VIN, operation is assured, but not specified. Wider limits may apply.
Thermal dissipation must be observed closely.
**Reference Figure 15 for switched−battery ENABLE application.
1. Measured to pin 16.
2. 150 second maximum above 217°C.
3. −5°C / +0°C allowable conditions.
http://onsemi.com
3
NCV8501 Series
ELECTRICAL CHARACTERISTICS (IOUT = 1.0 mA, ENABLE = 5.0 V, −40°C ≤ TJ ≤ 150°C; VIN dependent on voltage option
(Note 4); unless otherwise specified.)
Characteristic
Test Conditions
Min
Typ
Max
Unit
Output Voltage for 2.5 V Option
6.5 V < VIN < 16 V, 100 mA ≤ IOUT ≤ 150 mA
5.5 V < VIN < 26 V, 100 mA ≤ IOUT ≤ 150 mA
2.450
2.425
2.5
2.5
2.550
2.575
V
V
Output Voltage for 3.3 V Option
7.3 V < VIN < 16 V, 100 mA ≤ IOUT ≤ 150 mA
5.5 V < VIN < 26 V, 100 mA ≤ IOUT ≤ 150 mA
3.234
3.201
3.3
3.3
3.366
3.399
V
V
Output Voltage for 5.0 V Option
9.0 V < VIN < 16 V, 100 mA ≤ IOUT ≤ 150 mA
6.0 V < VIN < 26 V, 100 mA ≤ IOUT ≤ 150 mA
4.90
4.85
5.0
5.0
5.10
5.15
V
V
Output Voltage for 8.0 V Option
9.0 V < VIN < 26 V, 100 mA ≤ IOUT ≤ 150 mA
7.76
8.0
8.24
V
Output Voltage for 10 V Option
11 V < VIN < 26 V, 100 mA ≤ IOUT ≤ 150 mA
9.7
10
10.3
V
Output Voltage for Adjustable Option
VOUT = VADJ (Unity Gain)
6.5 V < VIN < 16 V, 100 mA < IOUT < 150 mA
5.5 V < VIN < 26 V, 100 mA < IOUT < 150 mA
1.254
1.242
1.280
1.280
1.306
1.318
V
V
−
−
400
100
600
150
mV
mV
−30
5.0
30
mV
−
15
60
mV
−
−
−
−
−
−
90
90
90
100
100
50
125
125
125
150
150
75
mA
mA
mA
mA
mA
mA
Output Stage
Dropout Voltage (VIN − VOUT)
(5.0 V, 8.0 V, 10 V, and
Adj. > 5.0 V Options Only)
IOUT = 150 mA
IOUT = 1.0 mA
Load Regulation
VIN = 14 V, 5.0 mA ≤ IOUT ≤ 150 mA
Line Regulation
[VOUT(Typ) + 1.0] < VIN < 26 V, IOUT = 1.0 mA
Quiescent Current, Low Load
2.5 V Option
3.3 V Option
5.0 V Option
8.0 V Option
10 V Option
Adjustable Option
IOUT = 100 mA, VIN = 12 V, MON = VOUT
Quiescent Current, Medium Load
All Options
IOUT = 75 mA, VIN = 14 V, MON = VOUT
−
4.0
6.0
mA
Quiescent Current, High Load
All Options
IOUT = 150 mA, VIN = 14 V, MON = VOUT
−
12
19
mA
Quiescent Current, (IQ)
Sleep Mode
ENABLE = 0 V, VIN = 12 V
−
12
30
mA
Current Limit
151
300
−
mA
Short Circuit Output Current
VOUT = 0 V
−
40
190
−
mA
Thermal Shutdown
(Guaranteed by Design)
150
180
−
°C
RESET Threshold for 2.5 V Option
HIGH (VRH)
LOW (VRL)
5.5 V ≤ VIN ≤ 26 V (Note 5)
VOUT Increasing
VOUT Decreasing
2.28
2.25
2.350
2.300
0.98 × VOUT
0.97 × VOUT
V
V
RESET Threshold for 3.3 V Option
HIGH (VRH)
LOW (VRL)
5.5 V ≤ VIN ≤ 26 V (Note 5)
VOUT Increasing
VOUT Decreasing
3.00
2.97
3.102
3.036
0.98 × VOUT
0.97 × VOUT
V
V
RESET Threshold for 5.0 V Option
HIGH (VRH)
LOW (VRL)
VOUT Increasing
VOUT Decreasing
4.55
4.50
4.70
4.60
0.98 × VOUT
0.97 × VOUT
V
V
RESET Threshold for 8.0 V Option
HIGH (VRH)
LOW (VRL)
VOUT Increasing
VOUT Decreasing
7.05
7.00
7.52
7.36
0.98 × VOUT
0.97 × VOUT
V
V
Reset Function (RESET)
4. Voltage range specified in the Output Stage of the Electrical Characteristics in boldface type.
5. For VIN ≤ 5.5 V, a RESET = Low may occur with the output in regulation.
http://onsemi.com
4
NCV8501 Series
ELECTRICAL CHARACTERISTICS (IOUT = 1.0 mA, ENABLE = 5.0 V, −40°C ≤ TJ ≤ 150°C; VIN dependent on voltage option
(Note 4); unless otherwise specified.)
Characteristic
Test Conditions
Min
Typ
Max
Unit
8.60
8.50
9.40
9.20
0.98 × VOUT
0.97 × VOUT
V
V
−
0.1
0.4
V
1.4
1.8
2.2
V
−
−
0.1
V
Reset Function (RESET)
RESET Threshold for 10 V Option
HIGH (VRH)
LOW (VRL)
VOUT Increasing
VOUT Decreasing
Output Voltage
Low (VRLO)
1.0 V ≤ VOUT ≤ VRL, RRESET = 10 k
DELAY Switching Threshold (VDT)
−
DELAY Low Voltage
VOUT < RESET Threshold Low(min)
DELAY Charge Current
DELAY = 1.0 V, VOUT > VRH
1.5
2.5
3.5
mA
DELAY Discharge Current
DELAY = 1.0 V, VOUT = 1.5 V
5.0
−
−
mA
Increasing and Decreasing
1.10
1.20
1.31
V
20
50
100
mV
−0.5
0.1
0.5
mA
−
0.1
0.4
V
VADJ = 1.28 V
−0.5
−
0.5
mA
Input Threshold
Low
High
−
3.0
−
−
0.5
−
V
V
Input Current
ENABLE = 5.0 V
−
1.0
5.0
mA
FLAG/Monitor
Monitor Threshold
Hysteresis
−
Input Current
MON = 2.0 V
Output Saturation Voltage
MON = 0 V, IFLAG = 1.0 mA
Voltage Adjust (Adjustable Output only)
Input Current
ENABLE
4. Voltage range specified in the Output Stage of the Electrical Characteristics in boldface type.
5. For VIN ≤ 5.5 V, a RESET = Low may occur with the output in regulation.
http://onsemi.com
5
NCV8501 Series
PACKAGE PIN DESCRIPTION, ADJUSTABLE OUTPUT
Package Pin Number
SO−8
SOW−16
E PAD
Pin Symbol
1
7
VIN
2
8
MON
3
9
ENABLE
4
3−6, 10−12,
14, 15
NC
5
13
GND
Ground. All GND leads must be connected to Ground.
6
16
FLAG
Open collector output from early warning comparator.
7
1
VADJ
Voltage Adjust. A resistor divider from VOUT to this lead sets the output voltage.
8
2
VOUT
±2.0%, 150 mA output.
Function
Input Voltage.
Monitor. Input for early warning comparator. If not needed connect to VOUT.
ENABLE control for the IC. A high powers the device up.
No connection.
PACKAGE PIN DESCRIPTION, FIXED OUTPUT
Package Pin Number
SO−8
SOW−16
E PAD
Pin Symbol
1
7
VIN
2
8
MON
3
9
ENABLE
4
10
DELAY
5
13
GND
6
16
RESET
7
1
FLAG
Open collector output from early warning comparator.
8
2
VOUT
±2.0%, 150 mA output.
−
3−6, 11, 12,
14, 15
NC
Function
Input Voltage.
Monitor. Input for early warning comparator. If not needed connect to VOUT.
ENABLE control for the IC. A high powers the device up.
Timing capacitor for RESET function.
Ground. All GND leads must be connected to Ground.
Active reset (accurate to VOUT ≥ 1.0 V)
No connection.
http://onsemi.com
6
NCV8501 Series
TYPICAL PERFORMANCE CHARACTERISTICS
3.35
5.01
VOUT = 5.0 V
VIN = 14 V
IOUT = 5.0 mA
VOUT = 3.3 V
VIN = 14 V
IOUT = 5.0 mA
3.34
3.33
VOUT (V)
VOUT (V)
5.00
4.99
3.32
3.31
3.30
3.29
3.28
4.98
−40 −25 −10
5
20 35 50 65
Temperature (°C)
80
95 110 125
3.27
−40 −25 −10
Figure 2. Output Voltage vs. Temperature
1.2
95 110 125
VIN = 12 V
+125°C
10
+25°C
0.6
IQ (mA)
IQ (mA)
14
−40°C
0.4
+125°C
8
+25°C
6
−40°C
4
0.2
2
0
5
10
15
IOUT (mA)
20
0
25
0
Figure 4. Quiescent Current vs. Output Current
15
30
45
60 75 90
IOUT (mA)
105 120 135 140
Figure 5. Quiescent Current vs. Output Current
120
7
T = 25°C
6
T = 25°C
100
IOUT = 100 mA
5
3
1
20
IOUT = 10 mA
6
8
10
12
14
16 18
VIN (V)
60
49
IOUT = 50 mA
2
IOUT = 100 mA
80
4
IQ (mA)
IQ (mA)
80
12
0.8
0
20 35 50 65
Temperature (°C)
Figure 3. Output Voltage vs. Temperature
VIN = 12 V
1.0
0
5
20
22
24
0
26
6
Figure 6. Quiescent Current vs. Input Voltage
8
10
12
14
16 18
VIN (V)
20
22
24
Figure 7. Quiescent Current vs. Input Voltage
http://onsemi.com
7
26
NCV8501 Series
450
16
400
14
350
300
+125°C
250
+25°C
Quiescent Current (mA)
Dropout Voltage (mV)
TYPICAL PERFORMANCE CHARACTERISTICS
−40°C
200
150
100
0
12
10
8
6
4
VOUT = 5.0 V, 8.0 V, or 10 V
50
0
25
50
75
IOUT (mA)
100
125
VIN = 12 V
2
0
−40 −25 −10
150
Figure 8. Dropout Voltage vs. Output Current
5
20 35 50 65
Temperature (°C)
95 110 125
Figure 9. Sleep Mode IQ vs. Temperature
1000
1000
Unstable Region
Unstable Region
CVout = 10 mF
100
100
CVout = 0.1 mF
10 V
8V
10
2.5 V 3.3 V
10
ESR (W)
ESR (W)
80
5V
1.0
1.0
Stable Region
Stable Region
0.1
0.1
CVOUT = 10 mF
0.01
10
20
30
40
50
60
70
80
90
0.01
100
0
10
OUTPUT CURRENT (mA)
Figure 10. Output Stability with Output
Voltage Change
20
30 40 50 60 70 80
OUTPUT CURRENT (mA)
70
Iout = 10 mA
60
Iout = 80 mA
50
40
Iout = 150 mA
30
20
0.1
90 100 110
Figure 11. Output Stability with Output
Capacitor Change
(dB)
0
1.0
10
(kHz)
Figure 12. Audio Frequency Power Supply
Rejection Ratio
http://onsemi.com
8
100
NCV8501 Series
VOUT
VIN
Current Source
(Circuit Bias)
ENABLE
IBIAS
Current Limit
Sense
+
+
−
IBIAS
+ −
VBG
RESET
+
−
VBG
1.8 V
Fixed Voltage only
Thermal
Protection
3.0 mA
Delay
Error Amplifier
IBIAS
Bandgap
Reference
VBG
VBG
−
Figure 13. Block Diagram
http://onsemi.com
9
VADJ
GND
IBIAS
+
MON
20 k
Adjustable
Version only
FLAG
NCV8501 Series
CIRCUIT DESCRIPTION
REGULATOR CONTROL FUNCTIONS
The NCV8501 contains the microprocessor compatible
control function RESET (Figure 14).
The DELAY lead provides source current (typically 2.5 mA)
to the external DELAY capacitor during the following
proceedings:
1. During Power Up (once the regulation threshold
has been verified).
2. After a reset event has occurred and the device is
back in regulation. The DELAY capacitor is
discharged when the regulation (RESET threshold)
has been violated. This is a latched incident. The
capacitor will fully discharge and wait for the
device to regulate before going through the delay
time event again.
VIN
RESET
Threshold
VOUT
DELAY
Threshold
(VDT)
DELAY
RESET
FLAG/Monitor Function
Td
Td
An on−chip comparator is provided to perform an early
warning to the microprocessor of a possible reset signal. The
reset signal typically turns the microprocessor off
instantaneously. This can cause unpredictable results with
the microprocessor. The signal received from the FLAG pin
will allow the microprocessor time to complete its present
task before shutting down. This function is performed by a
comparator referenced to the bandgap reference. The actual
trip point can be programmed externally using a resistor
divider to the input monitor (MON) (Figure 16). The typical
threshold is 1.20 V on the MON pin.
Figure 14. Reset and Delay Circuit Wave Forms
RESET Function
A RESET signal (low voltage) is generated as the IC
powers up until VOUT is within 6.0% of the regulated output
voltage, or when VOUT drops out of regulation,and is lower
than 8.0% below the regulated output voltage. Hysteresis is
included in the function to minimize oscillations.
The RESET output is an open collector NPN transistor,
controlled by a low voltage detection circuit. The circuit is
functionally independent of the rest of the IC thereby
guaranteeing that the RESET signal is valid for VOUT as low
as 1.0 V.
VBAT
MON
I/O
FLAG
RESET
RESET
DELAY GND
Figure 16. FLAG/Monitor Function
Voltage Adjust
Figure 17 shows the device setup for a user configurable
output voltage. The feedback to the VADJ pin is taken from
a voltage divider referenced to the output voltage. The loop
is balanced around the Unity Gain threshold (1.28 V
typical).
NCV8501
10 k
mP
COUT
RADJ
VOUT
VIN
VCC
NCV8501
The part stays in a low IQ sleep mode when the ENABLE
pin is held low. The part has an internal pull down if the pin
is left floating. This is intended for failure modes only. An
external connection (active pulldown, resistor, or switch) for
normal operation is recommended.
The integrity of the ENABLE pin allows it to be tied
directly to the battery line through an external resistor. It will
withstand load dump potentials in this configuration.
VBAT
VOUT
VIN
ENABLE Function
ENABLE
GND
≈5.0 V
VOUT
NCV8501
Figure 15. ENABLE Function
VADJ
DELAY Function
15 k
COUT
1.28 V
5.1 k
The reset delay circuit provides a programmable (by
external capacitor) delay on the RESET output lead.
Figure 17. Adjustable Output Voltage
http://onsemi.com
10
NCV8501 Series
APPLICATION NOTES
VIN
CIN*
0.1 mF
NCV8501
MJD31C
VOUT
VIN
VBAT
C2
0.1 mF
R1
294 k
NCV8501
RRST
COUT**
10 mF
RESET
5.0 V
>1 Amp
VADJ
VOUT
C1
47 mF
*CIN required if regulator is located far from the power supply filter
**COUT required for stability. Capacitor must operate at minimum
temperature expected
R2
100 k
Figure 20. Test and Application Circuit Showing
Output Compensation
Figure 18. Additional Output Current
SETTING THE DELAY TIME
The delay time is controlled by the Reset Delay Low
Voltage, Delay Switching Threshold, and the Delay Charge
Current. The delay follows the equation:
Adding Capability
Figure 18 shows how the adjustable version of parts can
be used with an external pass transistor for additional current
capability. The setup as shown will provide greater than 1
Amp of output current.
tDELAY +
FLAG MONITOR
Figure 19 shows the FLAG Monitor waveforms as a result
of the circuit depicted in Figure 16. As the output voltage
falls (VOUT), the Monitor threshold is crossed. This causes
the voltage on the FLAG output to go low sending a warning
signal to the microprocessor that a RESET signal may occur
in a short period of time. TWARNING is the time the
microprocessor has to complete the function it is currently
working on and get ready for the RESET shutdown signal.
ƪCDELAY(Vdt * Reset Delay Low Voltage)ƫ
Delay Charge Current
Example:
Using CDELAY = 33 nF.
Assume reset Delay Low Voltage = 0.
Use the typical value for Vdt = 1.8 V.
Use the typical value for Delay Charge Current = 2.5 mA.
tDELAY +
ƪ33 nF(1.8 * 0)ƫ
2.5 mA
+ 23.8 ms
STABILITY CONSIDERATIONS
The output or compensation capacitor helps determine
three main characteristics of a linear regulator: start−up
delay, load transient response and loop stability.
The capacitor value and type should be based on cost,
availability, size and temperature constraints.
The value for the output capacitor COUT shown in Figure 20
should work for most applications, however it is not
necessarily the optimized solution.
VOUT
MON
FLAG Monitor
Ref. Voltage
RESET
FLAG
TWARNING
Figure 19. FLAG Monitor Circuit Waveform
http://onsemi.com
11
NCV8501 Series
UNDERSTANDING THE NCV8501 ENABLE PIN
INPUT CURRENT
CALCULATING POWER DISSIPATION IN A
SINGLE OUTPUT LINEAR REGULATOR
The maximum power dissipation for a single output
regulator (Figure 22) is:
VCC
D1
R2
1.2M
~3.85V
D2
ENABLE
R1
Z1
GND
11V Z2
N1
Z3
(eq. 1)
where:
VIN(max) is the maximum input voltage,
VOUT(min) is the minimum output voltage,
IOUT(max) is the maximum output current for the
application, and
IQ is the quiescent current the regulator consumes at
IOUT(max).
Once the value of PD(max) is known, the maximum
permissible value of RqJA can be calculated:
D4 Internal
power
rail
D5
D6
7V
5μA
(max)
) VIN(max)IQ
D3
P1
20K
PD(max) + [VIN(max) * VOUT(min)] IOUT(max)
Internal
reference
1.25V
T
RQJA + 150° C * A
PD
Figure 21. NCV8501 Enable Function Equivalent
Circuit
(eq. 2)
The value of RqJA can then be compared with those in the
package section of the data sheet. Those packages with
RqJA’s less than the calculated value in Equation 2 will keep
the die temperature below 150°C.
In some cases, none of the packages will be sufficient to
dissipate the heat generated by the IC, and an external
heatsink will be required.
Z1, R1, and Z2 provide ESD and overvoltage protection.
Note that, for ENABLE pin voltages in excess of 10 V, an
external series resistor is required to limit the current into
Z1.
For ENABLE pin voltages less than +7 V, the 5 mA
(maximum value) current source dominates the input
current, as the opposing P1 base current is negligible by
comparison.
For ENABLE pin voltages between +7 V and +11 V, the
input current is given by:
5 mA + ((VENABLE − 7) / 20 kW)
For ENABLE pin voltages in excess of 10 V (Z1
breakover voltage can be as low as 10 V), the input current
is dominated by the external series resistor. For the case
where VENABLE = 12 V; REXT = 10 kW, the input current can
be up to (2 V/10 kW), = 200 mA.
The ENABLE threshold is that voltage required to
achieve ~3.85 V at the base of N1, or approximately (3.85 V
− 2 Vbe). At +20°C, this threshold is ~2.55 V. At −40°C, it
can be as high as 3 V.
If the value of REXT is increased to ~200 kW, to reduce
ENABLE input current, then the worst−case drop across
REXT must be added to 3 V to determine the effective
maximum ENABLE threshold. At VENABLE < 7 V, we only
need to consider the 5 mA current sink.
Max effective threshold = 3 V + (5 mA * 220 kW)
= 3 V + 1.1 V
= 4.1 V
IOUT
IIN
SMART
REGULATOR®
VIN
VOUT
} Control
Features
IQ
Figure 22. Single Output Regulator with Key
Performance Parameters Labeled
Thermal Resistance,
Junction to Ambient, RqJA, (°C/W)
100
90
80
70
60
50
40
0
200
400
600
Copper Area (mm2)
800
Figure 23. 16 Lead SOW (Exposed Pad), qJA as a
Function of the Pad Copper Area (2 oz. Cu
Thickness), Board Material = 0.0625, G−10/R−4
http://onsemi.com
12
NCV8501 Series
HEATSINKS
A heatsink effectively increases the surface area of the
package to improve the flow of heat away from the IC and
into the surrounding air.
Each material in the heat flow path between the IC and the
outside environment will have a thermal resistance. Like
series electrical resistances, these resistances are summed to
determine the value of RqJA:
RqJA + RqJC ) RqCS ) RqSA
where:
RqJC = the junction−to−case thermal resistance,
RqCS = the case−to−heatsink thermal resistance, and
RqSA = the heatsink−to−ambient thermal resistance.
RqJC appears in the package section of the data sheet. Like
RqJA, it too is a function of package type. RqCS and RqSA are
functions of the package type, heatsink and the interface
between them. These values appear in heatsink data sheets
of heatsink manufacturers.
(eq. 3)
http://onsemi.com
13
NCV8501 Series
ORDERING INFORMATION
Device
NCV8501DADJG
NCV8501DADJR2G
NCV8501PDWADJG
NCV8501PDWADJR2G
NCV8501D25G
NCV8501D25R2G
NCV8501PDW25G
NCV8501PDW25R2G
NCV8501D33G
NCV8501D33R2G
NCV8501PDW33G
NCV8501PDW33R2G
NCV8501D50G
NCV8501D50R2G
NCV8501PDW50G
NCV8501PDW50R2G
NCV8501D80G
NCV8501D80R2G
NCV8501PDW80G
NCV8501PDW80R2G
NCV8501D100G
NCV8501D100R2G
NCV8501PDW100G
NCV8501PDW100R2G
Output Voltage
Package
Shipping†
Adjustable
SO−8
(Pb−Free)
98 Units/Rail
Adjustable
SO−8
(Pb−Free)
2500 Tape & Reel
Adjustable
SOW−16 Exposed Pad
(Pb−Free)
47 Units/Rail
Adjustable
SOW−16 Exposed Pad
(Pb−Free)
1000 Tape & Reel
2.5 V
SO−8
(Pb−Free)
98 Units/Rail
2.5 V
SO−8
(Pb−Free)
2500 Tape & Reel
2.5 V
SOW−16 Exposed Pad
(Pb−Free)
47 Units/Rail
2.5 V
SOW−16 Exposed Pad
(Pb−Free)
1000 Tape & Reel
3.3 V
SO−8
(Pb−Free)
98 Units/Rail
3.3 V
SO−8
(Pb−Free)
2500 Tape & Reel
3.3 V
SOW−16 Exposed Pad
(Pb−Free)
47 Units/Rail
3.3 V
SOW−16 Exposed Pad
(Pb−Free)
1000 Tape & Reel
5.0 V
SO−8
(Pb−Free)
98 Units/Rail
5.0 V
SO−8
(Pb−Free)
2500 Tape & Reel
5.0 V
SOW−16 Exposed Pad
(Pb−Free)
47 Units/Rail
5.0 V
SOW−16 Exposed Pad
(Pb−Free)
1000 Tape & Reel
8.0 V
SO−8
(Pb−Free)
98 Units/Rail
8.0 V
SO−8
(Pb−Free)
2500 Tape & Reel
8.0 V
SOW−16 Exposed Pad
(Pb−Free)
47 Units/Rail
8.0 V
SOW−16 Exposed Pad
(Pb−Free)
1000 Tape & Reel
10 V
SO−8
(Pb−free)
98 Units/Rail
10 V
SO−8
(Pb−Free)
2500 Tape & Reel
10 V
SOW−16 Exposed Pad
(Pb−Free)
47 Units/Rail
10 V
SOW−16 Exposed Pad
(Pb−Free)
1000 Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification Brochure, BRD8011/D.
SMART REGULATOR is a registered trademark of Semiconductor Components Industries, LLC.
http://onsemi.com
14
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
SOIC−8 NB
CASE 751−07
ISSUE AK
8
1
SCALE 1:1
−X−
DATE 16 FEB 2011
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSION A AND B DO NOT INCLUDE
MOLD PROTRUSION.
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006)
PER SIDE.
5. DIMENSION D DOES NOT INCLUDE DAMBAR
PROTRUSION. ALLOWABLE DAMBAR
PROTRUSION SHALL BE 0.127 (0.005) TOTAL
IN EXCESS OF THE D DIMENSION AT
MAXIMUM MATERIAL CONDITION.
6. 751−01 THRU 751−06 ARE OBSOLETE. NEW
STANDARD IS 751−07.
A
8
5
S
B
0.25 (0.010)
M
Y
M
1
4
−Y−
K
G
C
N
X 45 _
SEATING
PLANE
−Z−
0.10 (0.004)
H
M
D
0.25 (0.010)
M
Z Y
S
X
J
S
8
8
1
1
IC
4.0
0.155
XXXXX
A
L
Y
W
G
IC
(Pb−Free)
= Specific Device Code
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
XXXXXX
AYWW
1
1
Discrete
XXXXXX
AYWW
G
Discrete
(Pb−Free)
XXXXXX = Specific Device Code
A
= Assembly Location
Y
= Year
WW
= Work Week
G
= Pb−Free Package
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “G”, may
or may not be present. Some products may
not follow the Generic Marking.
1.270
0.050
SCALE 6:1
INCHES
MIN
MAX
0.189
0.197
0.150
0.157
0.053
0.069
0.013
0.020
0.050 BSC
0.004
0.010
0.007
0.010
0.016
0.050
0 _
8 _
0.010
0.020
0.228
0.244
8
8
XXXXX
ALYWX
G
XXXXX
ALYWX
1.52
0.060
0.6
0.024
MILLIMETERS
MIN
MAX
4.80
5.00
3.80
4.00
1.35
1.75
0.33
0.51
1.27 BSC
0.10
0.25
0.19
0.25
0.40
1.27
0_
8_
0.25
0.50
5.80
6.20
GENERIC
MARKING DIAGRAM*
SOLDERING FOOTPRINT*
7.0
0.275
DIM
A
B
C
D
G
H
J
K
M
N
S
mm Ǔ
ǒinches
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
STYLES ON PAGE 2
DOCUMENT NUMBER:
DESCRIPTION:
98ASB42564B
SOIC−8 NB
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 2
onsemi and
are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries. onsemi reserves
the right to make changes without further notice to any products herein. onsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular
purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation
special, consequential or incidental damages. onsemi does not convey any license under its patent rights nor the rights of others.
© Semiconductor Components Industries, LLC, 2019
www.onsemi.com
SOIC−8 NB
CASE 751−07
ISSUE AK
DATE 16 FEB 2011
STYLE 1:
PIN 1. EMITTER
2. COLLECTOR
3. COLLECTOR
4. EMITTER
5. EMITTER
6. BASE
7. BASE
8. EMITTER
STYLE 2:
PIN 1. COLLECTOR, DIE, #1
2. COLLECTOR, #1
3. COLLECTOR, #2
4. COLLECTOR, #2
5. BASE, #2
6. EMITTER, #2
7. BASE, #1
8. EMITTER, #1
STYLE 3:
PIN 1. DRAIN, DIE #1
2. DRAIN, #1
3. DRAIN, #2
4. DRAIN, #2
5. GATE, #2
6. SOURCE, #2
7. GATE, #1
8. SOURCE, #1
STYLE 4:
PIN 1. ANODE
2. ANODE
3. ANODE
4. ANODE
5. ANODE
6. ANODE
7. ANODE
8. COMMON CATHODE
STYLE 5:
PIN 1. DRAIN
2. DRAIN
3. DRAIN
4. DRAIN
5. GATE
6. GATE
7. SOURCE
8. SOURCE
STYLE 6:
PIN 1. SOURCE
2. DRAIN
3. DRAIN
4. SOURCE
5. SOURCE
6. GATE
7. GATE
8. SOURCE
STYLE 7:
PIN 1. INPUT
2. EXTERNAL BYPASS
3. THIRD STAGE SOURCE
4. GROUND
5. DRAIN
6. GATE 3
7. SECOND STAGE Vd
8. FIRST STAGE Vd
STYLE 8:
PIN 1. COLLECTOR, DIE #1
2. BASE, #1
3. BASE, #2
4. COLLECTOR, #2
5. COLLECTOR, #2
6. EMITTER, #2
7. EMITTER, #1
8. COLLECTOR, #1
STYLE 9:
PIN 1. EMITTER, COMMON
2. COLLECTOR, DIE #1
3. COLLECTOR, DIE #2
4. EMITTER, COMMON
5. EMITTER, COMMON
6. BASE, DIE #2
7. BASE, DIE #1
8. EMITTER, COMMON
STYLE 10:
PIN 1. GROUND
2. BIAS 1
3. OUTPUT
4. GROUND
5. GROUND
6. BIAS 2
7. INPUT
8. GROUND
STYLE 11:
PIN 1. SOURCE 1
2. GATE 1
3. SOURCE 2
4. GATE 2
5. DRAIN 2
6. DRAIN 2
7. DRAIN 1
8. DRAIN 1
STYLE 12:
PIN 1. SOURCE
2. SOURCE
3. SOURCE
4. GATE
5. DRAIN
6. DRAIN
7. DRAIN
8. DRAIN
STYLE 13:
PIN 1. N.C.
2. SOURCE
3. SOURCE
4. GATE
5. DRAIN
6. DRAIN
7. DRAIN
8. DRAIN
STYLE 14:
PIN 1. N−SOURCE
2. N−GATE
3. P−SOURCE
4. P−GATE
5. P−DRAIN
6. P−DRAIN
7. N−DRAIN
8. N−DRAIN
STYLE 15:
PIN 1. ANODE 1
2. ANODE 1
3. ANODE 1
4. ANODE 1
5. CATHODE, COMMON
6. CATHODE, COMMON
7. CATHODE, COMMON
8. CATHODE, COMMON
STYLE 16:
PIN 1. EMITTER, DIE #1
2. BASE, DIE #1
3. EMITTER, DIE #2
4. BASE, DIE #2
5. COLLECTOR, DIE #2
6. COLLECTOR, DIE #2
7. COLLECTOR, DIE #1
8. COLLECTOR, DIE #1
STYLE 17:
PIN 1. VCC
2. V2OUT
3. V1OUT
4. TXE
5. RXE
6. VEE
7. GND
8. ACC
STYLE 18:
PIN 1. ANODE
2. ANODE
3. SOURCE
4. GATE
5. DRAIN
6. DRAIN
7. CATHODE
8. CATHODE
STYLE 19:
PIN 1. SOURCE 1
2. GATE 1
3. SOURCE 2
4. GATE 2
5. DRAIN 2
6. MIRROR 2
7. DRAIN 1
8. MIRROR 1
STYLE 20:
PIN 1. SOURCE (N)
2. GATE (N)
3. SOURCE (P)
4. GATE (P)
5. DRAIN
6. DRAIN
7. DRAIN
8. DRAIN
STYLE 21:
PIN 1. CATHODE 1
2. CATHODE 2
3. CATHODE 3
4. CATHODE 4
5. CATHODE 5
6. COMMON ANODE
7. COMMON ANODE
8. CATHODE 6
STYLE 22:
PIN 1. I/O LINE 1
2. COMMON CATHODE/VCC
3. COMMON CATHODE/VCC
4. I/O LINE 3
5. COMMON ANODE/GND
6. I/O LINE 4
7. I/O LINE 5
8. COMMON ANODE/GND
STYLE 23:
PIN 1. LINE 1 IN
2. COMMON ANODE/GND
3. COMMON ANODE/GND
4. LINE 2 IN
5. LINE 2 OUT
6. COMMON ANODE/GND
7. COMMON ANODE/GND
8. LINE 1 OUT
STYLE 24:
PIN 1. BASE
2. EMITTER
3. COLLECTOR/ANODE
4. COLLECTOR/ANODE
5. CATHODE
6. CATHODE
7. COLLECTOR/ANODE
8. COLLECTOR/ANODE
STYLE 25:
PIN 1. VIN
2. N/C
3. REXT
4. GND
5. IOUT
6. IOUT
7. IOUT
8. IOUT
STYLE 26:
PIN 1. GND
2. dv/dt
3. ENABLE
4. ILIMIT
5. SOURCE
6. SOURCE
7. SOURCE
8. VCC
STYLE 29:
PIN 1. BASE, DIE #1
2. EMITTER, #1
3. BASE, #2
4. EMITTER, #2
5. COLLECTOR, #2
6. COLLECTOR, #2
7. COLLECTOR, #1
8. COLLECTOR, #1
STYLE 30:
PIN 1. DRAIN 1
2. DRAIN 1
3. GATE 2
4. SOURCE 2
5. SOURCE 1/DRAIN 2
6. SOURCE 1/DRAIN 2
7. SOURCE 1/DRAIN 2
8. GATE 1
DOCUMENT NUMBER:
DESCRIPTION:
98ASB42564B
SOIC−8 NB
STYLE 27:
PIN 1. ILIMIT
2. OVLO
3. UVLO
4. INPUT+
5. SOURCE
6. SOURCE
7. SOURCE
8. DRAIN
STYLE 28:
PIN 1. SW_TO_GND
2. DASIC_OFF
3. DASIC_SW_DET
4. GND
5. V_MON
6. VBULK
7. VBULK
8. VIN
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 2 OF 2
onsemi and
are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries. onsemi reserves
the right to make changes without further notice to any products herein. onsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular
purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation
special, consequential or incidental damages. onsemi does not convey any license under its patent rights nor the rights of others.
© Semiconductor Components Industries, LLC, 2019
www.onsemi.com
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
SOIC 16 LEAD WIDE BODY, EXPOSED PAD
CASE 751AG
ISSUE B
SCALE 1:1
−U−
A
0.25 (0.010)
M
W
9
B
1
M
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSION A AND B DO NOT INCLUDE MOLD
PROTRUSION.
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006) PER
SIDE.
5. DIMENSION D DOES NOT INCLUDE DAMBAR
PROTRUSION. ALLOWABLE PROTRUSION SHALL
BE 0.13 (0.005) TOTAL IN EXCESS OF THE D
DIMENSION AT MAXIMUM MATERIAL CONDITION.
6. 751R-01 OBSOLETE, NEW STANDARD 751R-02.
M
16
P
R x 45_
8
−W−
G 14
TOP VIEW
PIN 1 I.D.
PL
DETAIL E
C
F
−T−
0.10 (0.004) T
K
D 16 PL
0.25 (0.010)
T U
M
SEATING
PLANE
W
S
S
J
SIDE VIEW
DETAIL E
1
DIM
A
B
C
D
F
G
H
J
K
L
M
P
R
MILLIMETERS
MIN
MAX
10.15
10.45
7.40
7.60
2.35
2.65
0.35
0.49
0.50
0.90
1.27 BSC
3.45
3.66
0.25
0.32
0.00
0.10
4.72
4.93
0_
7_
10.05
10.55
0.25
0.75
INCHES
MIN
MAX
0.400
0.411
0.292
0.299
0.093
0.104
0.014
0.019
0.020
0.035
0.050 BSC
0.136
0.144
0.010
0.012
0.000
0.004
0.186
0.194
0_
7_
0.395
0.415
0.010
0.029
GENERIC
MARKING DIAGRAM*
H
EXPOSED PAD
DATE 31 MAY 2016
8
XXXXXXXXXX
XXXXXXXXXX
XXXXXXXXXX
AWLYYWWG
L
16
9
BOTTOM VIEW
XXXXX
A
WL
YY
WW
G
SOLDERING FOOTPRINT*
0.350
Exposed
Pad
0.175
0.050
CL
0.200
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “ G”,
may or may not be present.
0.188
CL
= Specific Device Code
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
0.376
0.074
0.150
0.024
DIMENSIONS: INCHES
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
DOCUMENT NUMBER:
DESCRIPTION:
98AON21237D
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
SOIC−16, WB EXPOSED PAD
PAGE 1 OF 1
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the
rights of others.
© Semiconductor Components Industries, LLC, 2019
www.onsemi.com
onsemi,
, and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates
and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property.
A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any
products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the
information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use
of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products
and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information
provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may
vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license
under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems
or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should
Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Email Requests to: orderlit@onsemi.com
onsemi Website: www.onsemi.com
◊
TECHNICAL SUPPORT
North American Technical Support:
Voice Mail: 1 800−282−9855 Toll Free USA/Canada
Phone: 011 421 33 790 2910
Europe, Middle East and Africa Technical Support:
Phone: 00421 33 790 2910
For additional information, please contact your local Sales Representative
工商网监
湘ICP备2023018690号
