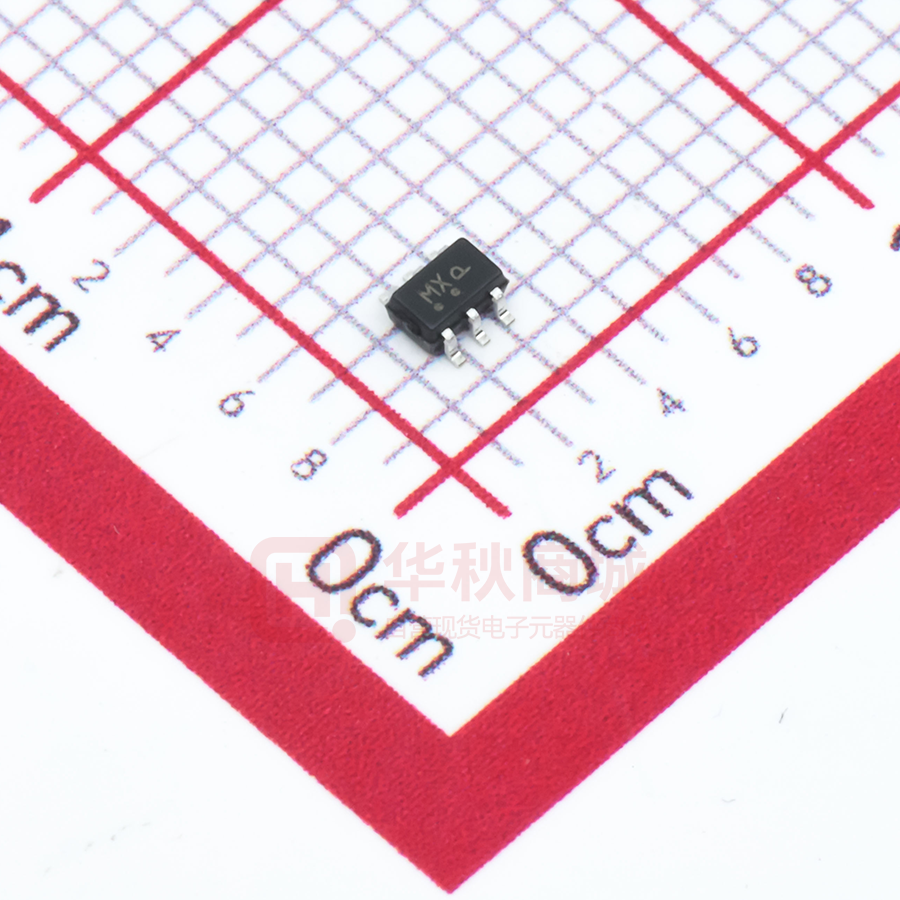

NL27WZ17DFT2G

NL27WZ17DFT2G

  • 厂商:

    ONSEMI(安森美)

  • 封装:

    SC70-6

  • 描述:

    BUFFER, 27WZ SERIES, 2-FUNC, 1-I

  • 数据手册
  • 价格&库存
NL27WZ17DFT2G 数据手册
DATA SHEET www.onsemi.com Schmitt Trigger Buffer, Dual, Non-Inverting MARKING DIAGRAMS 6 NL27WZ17 1 SC−88 DF SUFFIX CASE 419B−02 The NL27WZ17 is a high performance dual buffer with Schmitt−Trigger inputs operating from a 1.65 to 5.5 V supply. Features • • • • • • • • • Designed for 1.65 V to 5.5 V VCC Operation 3.7 ns tPD at VCC = 5 V (Typ) Inputs/Outputs Overvoltage Tolerant up to 5.5 V IOFF Supports Partial Power Down Protection Sink 32 mA at 4.5 V Available in SC−88, SC−74, and UDFN6 Packages Chip Complexity < 100 FETs NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant XXXMG G 1 6 1 1 SC−74 CASE 318F−05 XXX MG G 1 UDFN6 1.45x1.0, 0.5P CASE 517AQ UDFN6 1x1, 0.35P CASE 517BX XM XM 1 X, XXX = Specific Device Code M = Date Code* G = Pb−Free Package (Note: Microdot may be in either location) A1 1 Y1 A2 1 Y2 *Date Code orientation and/or position may vary depending upon manufacturing location. ORDERING INFORMATION Figure 1. Logic Symbol © Semiconductor Components Industries, LLC, 2012 March, 2022 − Rev. 14 See detailed ordering and shipping information in the package dimensions section on page 7 of this data sheet. 1 Publication Order Number: NL27WZ17/D NL27WZ17 A1 A1 1 6 Y1 GND 2 5 VCC A2 3 4 Y2 Y1 1 6 GND 2 5 VCC A2 3 4 Y2 (SC−88/SC−74) UDFN6 Figure 2. Pinout (Top View) PIN ASSIGNMENT FUNCTION TABLE Pin Function 1 A1 L L 2 GND H H 3 A2 4 Y2 5 VCC 6 Y1 A Input www.onsemi.com 2 Y Output NL27WZ17 MAXIMUM RATINGS Symbol Characteristics Value Units VCC DC Supply Voltage SC−88 (NLV) SC−88, SC−74, UDFN6 −0.5 to +7.0 −0.5 to +6.5 V VIN DC Input Voltage SC−88 (NLV) SC−88, SC−74, UDFN6 −0.5 to +7.0 −0.5 to +6.5 V VOUT DC Output Voltage SC−88 (NLV) Active−Mode (High or Low State) Tri−State Mode (Note 1) Power−Down Mode (VCC = 0 V) −0.5 to VCC +0.5 −0.5 to +7.0 −0.5 to +7.0 V DC Output Voltage SC−88, SC−74, UDFN6 Active−Mode (High or Low State) Tri−State Mode (Note 1) Power−Down Mode (VCC = 0 V) −0.5 to VCC +0.5 −0.5 to +6.5 −0.5 to +6.5 V IIK DC Input Diode Current, VIN < GND −50 mA IOK DC Output Diode Current, VOUT < GND −50 mA IOUT DC Output Source/Sink Current ±50 mA DC Supply Current per Supply Pin or Ground Pin ±100 mA −65 to +150 °C ICC or IGND TSTG Storage Temperature Range TL Lead Temperature, 1 mm from Case for 10 secs 260 °C TJ Junction Temperature under Bias +150 °C qJA Thermal Resistance (Note 2) SC−88 SC−74 UDFN6 377 320 154 °C/W PD Power Dissipation in Still Air SC−88 SC−74 UDFN6 332 390 812 mW Level 1 − UL 94−V−0 @ 0.125 in − Human Body Model Charged Device Model (NLV) Charged Device Model 2000 1000 N/A V (NLV) ±100 ±500 mA MSL FR VESD ILATCHUP Moisture Sensitivity Flamebility Rating Oxygen Index: 28 to 34 ESD Withstand Voltage (Note 3) Latchup Performance (Note 4) Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. Applicable to devices with outputs that may be tri−stated. 2. Measured with minimum pad spacing on an FR4 board, using 10 mm−by−1 inch, 2 ounce copper trace no air flow per JESD51−7. 3. HBM tested to ANSI/ESDA/JEDEC JS−001−2017. CDM tested to EIA/JESD22−C101−F. JEDEC recommends that ESD qualification to EIA/JESD22−A115−A (Machine Model) be discontinued per JEDEC/JEP172A. 4. Tested to EIA/JESD78 Class II. RECOMMENDED OPERATING CONDITIONS Symbol Parameter VCC Positive DC Supply Voltage VIN DC Input Voltage VOUT TA tr , tf DC Output Voltage Active−Mode (High or Low State) Tri−State Mode (Note 1) Power−Down Mode (VCC = 0 V) Operating Temperature Range Input Transition Rise or Fall Rate VCC = 1.65 V to 1.95 V VCC = 2.3 V to 2.7 V VCC = 3.0 V to 3.6 V VCC = 4.5 V to 5.5 V Min Max Unit 1.65 5.5 V 0 5.5 V 0 0 0 VCC 5.5 5.5 V −55 +125 °C 0 0 0 0 No Limit No Limit No Limit No Limit ns Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond the Recommended Operating Ranges limits may affect device reliability. www.onsemi.com 3 NL27WZ17 DC ELECTRICAL CHARACTERISTICS TA = 25°C Symbol VT+ Parameter Condition Positive Input Threshold Voltage (NLV) Positive Input Threshold Voltage VT− Negative Input Threshold Voltage (NLV) Negative Input Threshold Voltage VH VOH VOL Input Hysteresis Voltage High−Level Output Voltage VIN = VIH or VIL Low−Level Output Voltage VIN = VIH or VIL −40°C 3 TA 3 85°C −55°C 3 TA 3 125°C VCC (V) Min Typ Max Min Max Min Max Unit 1.65 0.6 1.0 1.4 0.6 1.4 0.6 1.4 V 2.3 1.0 1.5 1.8 1.0 1.8 1.0 1.8 2.7 1.2 1.7 2.0 1.2 2.0 1.2 2.0 3.0 1.3 1.9 2.2 1.3 2.2 1.3 2.2 4.5 1.9 2.7 3.1 1.9 3.1 1.9 3.1 5.5 2.2 3.3 3.6 2.2 3.6 2.2 3.6 1.65 − 1.0 1.4 − 1.4 − 1.4 2.3 − 1.5 1.8 − 1.8 − 1.8 2.7 − 1.7 2.0 − 2.0 − 2.0 3.0 − 1.9 2.2 − 2.2 − 2.2 4.5 − 2.7 3.1 − 3.1 − 3.1 5.5 − 3.3 3.6 − 3.6 − 3.6 1.65 0.2 0.5 0.8 0.2 0.8 0.2 0.8 2.3 0.4 0.75 1.15 0.4 1.15 0.4 1.15 2.7 0.5 0.87 1.4 0.5 1.4 0.5 1.4 3.0 0.6 1.0 1.5 0.6 1.5 0.6 1.5 4.5 1.0 1.5 2.0 1.0 2.0 1.0 2.0 5.5 1.2 1.9 2.3 1.2 2.3 1.2 2.3 1.65 0.2 0.5 − 0.2 − 0.2 − 2.3 0.4 0.75 − 0.4 − 0.4 − 2.7 0.5 0.87 − 0.5 − 0.5 − 3.0 0.6 1.0 − 0.6 − 0.6 − 4.5 1.0 1.5 − 1.0 − 1.0 − 5.5 1.2 1.9 − 1.2 − 1.2 − 1.65 0.1 0.48 0.9 0.1 0.9 0.1 0.9 2.3 0.25 0.75 1.1 0.25 1.1 0.25 1.1 2.7 0.3 0.83 1.15 0.3 1.15 0.3 1.15 3 0.4 0.93 1.2 0.4 1.2 0.4 1.2 4.5 0.6 1.2 1.5 0.6 1.5 0.6 1.5 5.5 0.7 1.4 1.7 0.7 1.7 0.7 1.7 1.65 to 5.5 VCC − 0.1 VCC − VCC − 0.1 − VCC − 0.1 − IOH = −4 mA 1.65 1.29 1.52 − 1.29 − 1.29 − IOH = −8 mA 2.3 1.9 2.1 − 1.9 − 1.9 − IOH = −12 mA 2.7 2.2 2.4 − 2.2 − 2.2 − IOH = −16 mA 3 2.4 2.7 − 2.4 − 2.4 − IOH = −24 mA 3 2.3 2.5 − 2.3 − 2.3 − IOH = −32 mA 4.5 3.8 4 − 3.8 − 3.8 − IOL = 100 mA IOH = −100 mA 1.65 to 5.5 − − 0.1 − 0.1 − 0.1 IOL = 4 mA 1.65 − 0.08 0.24 − 0.24 − 0.24 IOL = 8 mA 2.3 − 0.2 0.3 − 0.3 − 0.3 IOL = 12 mA 2.7 − 0.22 0.4 − 0.4 − 0.4 IOL = 16 mA 3 − 0.28 0.4 − 0.4 − 0.4 IOL = 24 mA 3 − 0.38 0.55 − 0.55 − 0.55 IOL = 32 mA 4.5 − 0.42 0.55 − 0.55 − 0.55 www.onsemi.com 4 V V V V V V NL27WZ17 DC ELECTRICAL CHARACTERISTICS TA = 25°C −40°C 3 TA 3 85°C −55°C 3 TA 3 125°C Symbol Parameter Condition VCC (V) Min Typ Max Min Max Min Max Unit IIN Input Leakage Current VIN = 5.5 V or GND 1.65 to 5.5 − − ±0.1 − ±1.0 − ±1.0 mA IOFF Power Off Leakage Current VIN = 5.5 V or VOUT = 5.5 V 0 − − 1 − 10 − 10 mA ICC Quiescent Supply Current VIN = 5.5 V or GND 5.5 − − 1 − 10 − 10 mA ÎÎÎÎ ÎÎÎÎÎ ÎÎÎÎÎ ÎÎÎÎ ÎÎÎÎÎÎÎ ÎÎÎÎÎÎ ÎÎÎÎÎÎ ÎÎÎ ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ ÎÎÎÎÎÎÎ ÎÎÎÎÎÎ ÎÎÎÎÎÎ ÎÎÎ ÎÎÎ ÎÎÎ ÎÎÎÎ ÎÎÎ ÎÎÎÎ ÎÎÎ ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ AC ELECTRICAL CHARACTERISTICS TA = 25°C Symbol Parameter tPLH, tPHL Propagation Delay, A to Y (Figures 3 and 4) −40°C 3 TA 3 85°C −55°C 3 TA 3 125°C VCC (V) Min Typ Max Min Max Min Max Unit RL = 1 MW, CL = 15 pF 1.65 to 1.95 − 9.1 15 − 15.6 − 15.6 ns RL = 1 MW, CL = 15 pF 2.3 to 2.7 − 5.0 9.0 − 9.5 − 9.5 3.0 to 3.6 − 3.7 6.3 − 6.5 − 6.5 4.5 to 5.5 − 3.1 5.2 − 5.5 − 5.5 3.0 to 3.6 − 4.4 7.2 − 7.5 − 7.5 4.5 to 5.5 − 3.7 5.9 − 6.2 − 6.2 Condition RL = 500 W, CL = 50 pF CAPACITIVE CHARACTERISTICS Symbol CIN Parameter Condition Typical Unit Input Capacitance VCC = 5.5 V, VI = 0 V or VCC 2.5 pF COUT Output Capacitance VCC = 5.5 V, VI = 0 V or VCC 4.0 pF CPD Power Dissipation Capacitance (Note 5) 10 MHz, VCC = 3.3 V, VIN = 0 V or VCC 10 MHz, VCC = 5.0 V, VIN = 0 V or VCC 11 12.5 pF 5. CPD is defined as the value of the internal equivalent capacitance which is calculated from the operating current consumption without load. Average operating current can be obtained by the equation: ICC(OPR) = CPD · VCC · fin ) ICC. CPD is used to determine the no−load dynamic power consumption; PD = CPD · VCC2 · fin ) ICC · VCC. www.onsemi.com 5 NL27WZ17 OPEN 2 x VCC Test Switch Position tPLH / tPHL Open tPLZ / tPZL 2 x VCC tPHZ / tPZH GND GND R1 RL RT RL, W R1 , W See AC Characteristics Table − − − See AC Characteristics Table OUTPUT DUT CL, pF CL * − − − See AC Characteristics Table X = Don’t Care CL includes probe and jig capacitance RT is ZOUT of pulse generator (typically 50 W) f = 1 MHz Figure 3. Test Circuit tr = 3 ns tf = 3 ns 90% 90% Vmi INPUT Vmi INPUT Vmi 10% 10% tPHL Vmi GND GND tPZL tPLH Vmo OUTPUT VCC VCC tPLZ ~VCC VOH Vmo OUTPUT Vmo VOL + VY VOL VOL tPLH OUTPUT tPHL Vmo tPZH VOH Vmo tPHZ VOH VOH − VY Vmo OUTPUT VOL ~0 V Figure 4. Switching Waveforms Vmo, V VCC, V Vmi, V tPLH, tPHL 1.65 to 1.95 VCC/2 VCC / 2 VCC / 2 0.15 2.3 to 2.7 VCC/2 VCC / 2 VCC / 2 0.15 3.0 to 3.6 VCC/2 VCC / 2 VCC / 2 0.3 4.5 to 5.5 VCC/2 VCC / 2 VCC / 2 0.3 www.onsemi.com 6 tPZL, tPLZ, tPZH, tPHZ VY, V NL27WZ17 ORDERING INFORMATION Package Specific Device Code Pin1 Orientation (See below) Shipping† NL27WZ17DFT2G SC−88 MX Q4 3000 / Tape & Reel NL27WZ17DFT2G−L22348** SC−88 MX Q4 3000 / Tape & Reel NLV27WZ17DFT2G* SC−88 MX Q4 3000 / Tape & Reel NL27WZ17DBVT1G SC−74 AC Q4 3000 / Tape & Reel NL27WZ17MU1TCG UDFN6 1.45 x 1.0, 0.5P K (Rotated 90° CW) Q4 3000 / Tape & Reel NL27WZ17MU3TCG UDFN6 1.0 x 1.0, 0.35P D Q4 3000 / Tape & Reel Device †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable. **Please refer to NLV specifications for this device. Pin 1 Orientation in Tape and Reel www.onsemi.com 7 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SC−74 CASE 318F ISSUE P 6 1 SCALE 2:1 DATE 07 OCT 2021 GENERIC MARKING DIAGRAM* XXX MG G XXX M G = Specific Device Code = Date Code = Pb−Free Package (Note: Microdot may be in either location) *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking. STYLE 1: PIN 1. CATHODE 2. ANODE 3. CATHODE 4. CATHODE 5. ANODE 6. CATHODE STYLE 2: PIN 1. NO CONNECTION 2. COLLECTOR 3. EMITTER 4. NO CONNECTION 5. COLLECTOR 6. BASE STYLE 3: PIN 1. EMITTER 1 2. BASE 1 3. COLLECTOR 2 4. EMITTER 2 5. BASE 2 6. COLLECTOR 1 STYLE 4: PIN 1. COLLECTOR 2 2. EMITTER 1/EMITTER 2 3. COLLECTOR 1 4. EMITTER 3 5. BASE 1/BASE 2/COLLECTOR 3 6. BASE 3 STYLE 5: PIN 1. CHANNEL 1 2. ANODE 3. CHANNEL 2 4. CHANNEL 3 5. CATHODE 6. CHANNEL 4 STYLE 7: PIN 1. SOURCE 1 2. GATE 1 3. DRAIN 2 4. SOURCE 2 5. GATE 2 6. DRAIN 1 STYLE 8: PIN 1. EMITTER 1 2. BASE 2 3. COLLECTOR 2 4. EMITTER 2 5. BASE 1 6. COLLECTOR 1 STYLE 9: PIN 1. EMITTER 2 2. BASE 2 3. COLLECTOR 1 4. EMITTER 1 5. BASE 1 6. COLLECTOR 2 STYLE 10: PIN 1. ANODE/CATHODE 2. BASE 3. EMITTER 4. COLLECTOR 5. ANODE 6. CATHODE STYLE 11: PIN 1. EMITTER 2. BASE 3. ANODE/CATHODE 4. ANODE 5. CATHODE 6. COLLECTOR DOCUMENT NUMBER: DESCRIPTION: 98ASB42973B SC−74 STYLE 6: PIN 1. CATHODE 2. ANODE 3. CATHODE 4. CATHODE 5. CATHODE 6. CATHODE Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 onsemi and are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries. onsemi reserves the right to make changes without further notice to any products herein. onsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. onsemi does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SC−88/SC70−6/SOT−363 CASE 419B−02 ISSUE Y 1 SCALE 2:1 DATE 11 DEC 2012 2X aaa H D D H A D 6 5 GAGE PLANE 4 1 2 L L2 E1 E DETAIL A 3 aaa C 2X bbb H D 2X 3 TIPS e B 6X b ddd TOP VIEW C A-B D M A2 DETAIL A A 6X NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. DIMENSIONS D AND E1 DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. MOLD FLASH, PROTRUSIONS, OR GATE BURRS SHALL NOT EXCEED 0.20 PER END. 4. DIMENSIONS D AND E1 AT THE OUTERMOST EXTREMES OF THE PLASTIC BODY AND DATUM H. 5. DATUMS A AND B ARE DETERMINED AT DATUM H. 6. DIMENSIONS b AND c APPLY TO THE FLAT SECTION OF THE LEAD BETWEEN 0.08 AND 0.15 FROM THE TIP. 7. DIMENSION b DOES NOT INCLUDE DAMBAR PROTRUSION. ALLOWABLE DAMBAR PROTRUSION SHALL BE 0.08 TOTAL IN EXCESS OF DIMENSION b AT MAXIMUM MATERIAL CONDITION. THE DAMBAR CANNOT BE LOCATED ON THE LOWER RADIUS OF THE FOOT. ccc C A1 SIDE VIEW C SEATING PLANE END VIEW c RECOMMENDED SOLDERING FOOTPRINT* 6X DIM A A1 A2 b C D E E1 e L L2 aaa bbb ccc ddd MILLIMETERS MIN NOM MAX −−− −−− 1.10 0.00 −−− 0.10 0.70 0.90 1.00 0.15 0.20 0.25 0.08 0.15 0.22 1.80 2.00 2.20 2.00 2.10 2.20 1.15 1.25 1.35 0.65 BSC 0.26 0.36 0.46 0.15 BSC 0.15 0.30 0.10 0.10 GENERIC MARKING DIAGRAM* 6 XXXMG G 6X 0.30 INCHES NOM MAX −−− 0.043 −−− 0.004 0.035 0.039 0.008 0.010 0.006 0.009 0.078 0.086 0.082 0.086 0.049 0.053 0.026 BSC 0.010 0.014 0.018 0.006 BSC 0.006 0.012 0.004 0.004 MIN −−− 0.000 0.027 0.006 0.003 0.070 0.078 0.045 0.66 1 2.50 0.65 PITCH XXX = Specific Device Code M = Date Code* G = Pb−Free Package (Note: Microdot may be in either location) DIMENSIONS: MILLIMETERS *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. *Date Code orientation and/or position may vary depending upon manufacturing location. *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking. STYLES ON PAGE 2 DOCUMENT NUMBER: DESCRIPTION: 98ASB42985B SC−88/SC70−6/SOT−363 Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 2 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com SC−88/SC70−6/SOT−363 CASE 419B−02 ISSUE Y DATE 11 DEC 2012 STYLE 1: PIN 1. EMITTER 2 2. BASE 2 3. COLLECTOR 1 4. EMITTER 1 5. BASE 1 6. COLLECTOR 2 STYLE 2: CANCELLED STYLE 3: CANCELLED STYLE 4: PIN 1. CATHODE 2. CATHODE 3. COLLECTOR 4. EMITTER 5. BASE 6. ANODE STYLE 5: PIN 1. ANODE 2. ANODE 3. COLLECTOR 4. EMITTER 5. BASE 6. CATHODE STYLE 6: PIN 1. ANODE 2 2. N/C 3. CATHODE 1 4. ANODE 1 5. N/C 6. CATHODE 2 STYLE 7: PIN 1. SOURCE 2 2. DRAIN 2 3. GATE 1 4. SOURCE 1 5. DRAIN 1 6. GATE 2 STYLE 8: CANCELLED STYLE 9: PIN 1. EMITTER 2 2. EMITTER 1 3. COLLECTOR 1 4. BASE 1 5. BASE 2 6. COLLECTOR 2 STYLE 10: PIN 1. SOURCE 2 2. SOURCE 1 3. GATE 1 4. DRAIN 1 5. DRAIN 2 6. GATE 2 STYLE 11: PIN 1. CATHODE 2 2. CATHODE 2 3. ANODE 1 4. CATHODE 1 5. CATHODE 1 6. ANODE 2 STYLE 12: PIN 1. ANODE 2 2. ANODE 2 3. CATHODE 1 4. ANODE 1 5. ANODE 1 6. CATHODE 2 STYLE 13: PIN 1. ANODE 2. N/C 3. COLLECTOR 4. EMITTER 5. BASE 6. CATHODE STYLE 14: PIN 1. VREF 2. GND 3. GND 4. IOUT 5. VEN 6. VCC STYLE 15: PIN 1. ANODE 1 2. ANODE 2 3. ANODE 3 4. CATHODE 3 5. CATHODE 2 6. CATHODE 1 STYLE 16: PIN 1. BASE 1 2. EMITTER 2 3. COLLECTOR 2 4. BASE 2 5. EMITTER 1 6. COLLECTOR 1 STYLE 17: PIN 1. BASE 1 2. EMITTER 1 3. COLLECTOR 2 4. BASE 2 5. EMITTER 2 6. COLLECTOR 1 STYLE 18: PIN 1. VIN1 2. VCC 3. VOUT2 4. VIN2 5. GND 6. VOUT1 STYLE 19: PIN 1. I OUT 2. GND 3. GND 4. V CC 5. V EN 6. V REF STYLE 20: PIN 1. COLLECTOR 2. COLLECTOR 3. BASE 4. EMITTER 5. COLLECTOR 6. COLLECTOR STYLE 21: PIN 1. ANODE 1 2. N/C 3. ANODE 2 4. CATHODE 2 5. N/C 6. CATHODE 1 STYLE 22: PIN 1. D1 (i) 2. GND 3. D2 (i) 4. D2 (c) 5. VBUS 6. D1 (c) STYLE 23: PIN 1. Vn 2. CH1 3. Vp 4. N/C 5. CH2 6. N/C STYLE 24: PIN 1. CATHODE 2. ANODE 3. CATHODE 4. CATHODE 5. CATHODE 6. CATHODE STYLE 25: PIN 1. BASE 1 2. CATHODE 3. COLLECTOR 2 4. BASE 2 5. EMITTER 6. COLLECTOR 1 STYLE 26: PIN 1. SOURCE 1 2. GATE 1 3. DRAIN 2 4. SOURCE 2 5. GATE 2 6. DRAIN 1 STYLE 27: PIN 1. BASE 2 2. BASE 1 3. COLLECTOR 1 4. EMITTER 1 5. EMITTER 2 6. COLLECTOR 2 STYLE 28: PIN 1. DRAIN 2. DRAIN 3. GATE 4. SOURCE 5. DRAIN 6. DRAIN STYLE 29: PIN 1. ANODE 2. ANODE 3. COLLECTOR 4. EMITTER 5. BASE/ANODE 6. CATHODE STYLE 30: PIN 1. SOURCE 1 2. DRAIN 2 3. DRAIN 2 4. SOURCE 2 5. GATE 1 6. DRAIN 1 Note: Please refer to datasheet for style callout. If style type is not called out in the datasheet refer to the device datasheet pinout or pin assignment. DOCUMENT NUMBER: DESCRIPTION: 98ASB42985B SC−88/SC70−6/SOT−363 Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 2 OF 2 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS UDFN6, 1.45x1.0, 0.5P CASE 517AQ ISSUE O 1 SCALE 4:1 A B D DATE 15 MAY 2008 L L NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. DIMENSION b APPLIES TO PLATED TERMINAL AND IS MEASURED BETWEEN 0.15 AND 0.30 mm FROM THE TERMINAL TIP. L1 PIN ONE REFERENCE 0.10 C ÉÉÉ ÉÉÉ DETAIL A E OPTIONAL CONSTRUCTIONS ÉÉ ÉÉ EXPOSED Cu TOP VIEW 0.10 C DETAIL B MOLD CMPD DETAIL B 0.05 C 6X DIM A A1 A2 b D E e L L1 OPTIONAL CONSTRUCTIONS A MILLIMETERS MIN MAX 0.45 0.55 0.00 0.05 0.07 REF 0.20 0.30 1.45 BSC 1.00 BSC 0.50 BSC 0.30 0.40 −−− 0.15 MOUNTING FOOTPRINT 0.05 C A1 SIDE VIEW A2 e 6X C SEATING PLANE 6X 0.30 PACKAGE OUTLINE L 1.24 3 1 DETAIL A 6X 0.53 6 4 6X BOTTOM VIEW b 0.10 C A B 0.05 C NOTE 3 1 0.50 PITCH DIMENSIONS: MILLIMETERS *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. GENERIC MARKING DIAGRAM* XM X M = Specific Device Code = Date Code *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “ G”, may or may not be present. DOCUMENT NUMBER: DESCRIPTION: 98AON30313E UDFN6, 1.45x1.0, 0.5P Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 onsemi and are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries. onsemi reserves the right to make changes without further notice to any products herein. onsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. onsemi does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2018 www.onsemi.com MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS UDFN6, 1x1, 0.35P CASE 517BX ISSUE O SCALE 4:1 PIN ONE REFERENCE 2X 0.10 C 2X 0.10 C NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. DIMENSION b APPLIES TO PLATED TERMINAL AND IS MEASURED BETWEEN 0.15 AND 0.20 MM FROM TERMINAL TIP. 4. PACKAGE DIMENSIONS EXCLUSIVE OF BURRS AND MOLD FLASH. A B D ÉÉ ÉÉ ÉÉ DATE 18 MAY 2011 E DIM A A1 A3 b D E e L L1 TOP VIEW A3 0.05 C A MILLIMETERS MIN MAX 0.45 0.55 0.00 0.05 0.13 REF 0.12 0.22 1.00 BSC 1.00 BSC 0.35 BSC 0.25 0.35 0.30 0.40 0.05 C SIDE VIEW A1 C SEATING PLANE RECOMMENDED SOLDERING FOOTPRINT* 5X e 5X 0.48 L 6X 0.22 3 1 L1 1.18 6 4 6X BOTTOM VIEW b 0.10 M C A B 0.05 M C NOTE 3 0.53 1 PKG OUTLINE 0.35 PITCH DIMENSIONS: MILLIMETERS *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. GENERIC MARKING DIAGRAM* XM 1 X = Specific Device Code M = Date Code *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking. DOCUMENT NUMBER: DESCRIPTION: 98AON56787E UDFN6, 1x1, 0.35P Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 onsemi and are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries. onsemi reserves the right to make changes without further notice to any products herein. onsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. onsemi does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2018 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
