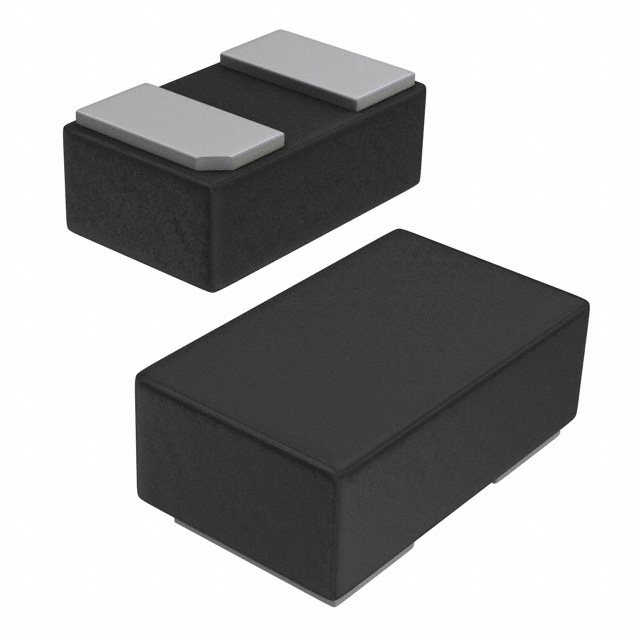

NSR05301MX4T5G

Trench-based Schottky Diode, 500 mA, 30 V NSR05301MX4 These Schottky diodes are optimized for low forward voltage drop and low leakage current that offers the most optimal power dissipation in applications. They are housed in space saving micro−packaging ideal for space constrained applications. www.onsemi.com Features • • • • • • Smallest Package Available (01005); 0.445mm x 0.24mm 500 mA of Continuous Forward Current Low Forward Voltage Drop − 430 mV (Typical) @ IF = 200 mA Low Reverse Current − 25 mA (Typical) @ VR = 30 V Low Reverse Recovery Time − 9 ns Typical Low Capacitance − 19 pF Typical 1 CATHODE MARKING DIAGRAM X4DFN2 CASE 718AA Typical Applications • • • • • Mobile and Wearable Devices LED Boost Converters Buck and Boost dc−dc Converters Reverse Voltage and Current Protection Clamping & Protection ORDERING INFORMATION Symbol Value Unit Forward Current (DC) IF 500 mA Reverse Voltage VR 30 V Repetitive Peak Forward Current (Pulse Wave = 1 sec, Duty Cycle = 66%) IFRM 1.0 A ESD Rating: ESD >8.0 >400 kV V Human Body Model Machine Model DM D = Specific Device Code M = Date Code MAXIMUM RATINGS Rating 2 ANODE Device Package Shipping† NSR05301MX4T5G X4DFN2 (Pb−Free) 10000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. © Semiconductor Components Industries, LLC, 2017 October, 2020 − Rev. 1 1 Publication Order Number: NSR05301/D NSR05301MX4 THERMAL CHARACTERISTICS Characteristic Symbol Max Unit Thermal Resistance Junction−to−Ambient (Note 1) Total Power Dissipation @ TA = 25°C RqJA PD 614.9 203 °C/W mW Thermal Resistance Junction−to−Ambient (Note 2) Total Power Dissipation @ TA = 25°C RqJA PD 239.4 522 °C/W mW Junction Temperature Range TJ −55 to +125 °C Storage Temperature Range TSTG −55 to +150 °C TL 260 °C Lead Solder Temperature − Maximum (10 seconds) 1. Mounted onto a 4 2. Mounted onto a 4 R(t), TRANSIENT THERMAL RESPONSE (°C/W) 1000 100 10 in2 in2 FR−4 board FR−4 board 10 mm2 1 oz. Cu 0.06’ thick single−sided. Operating to steady state. 2 cm2 1 oz. Cu 0.06’ thick single−sided. Operating to steady state. D = 0.5 0.2 0.1 0.05 0.02 0.01 1 0.1 Single Pulse 0.01 0.00000001 0.0000001 0.000001 0.00001 0.0001 0.001 0.01 t, PULSE TIME (s) 0.1 1 10 100 1000 1 10 100 1000 Figure 1. Thermal Response (Note 1) R(t), TRANSIENT THERMAL RESPONSE (°C/W) 1000 100 10 D = 0.5 0.2 0.1 0.05 0.02 0.01 1 0.1 Single Pulse 0.01 0.00000001 0.0000001 0.000001 0.00001 0.0001 0.001 0.01 0.1 t, PULSE TIME (s) Figure 2. Thermal Response (Note 2) www.onsemi.com 2 NSR05301MX4 ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Characteristic Min Typ Max 15 25 50 100 355 430 640 480 540 800 Reverse Leakage (VR = 10 V) (VR = 30 V) IR Forward Voltage (IF = 100 mA) (IF = 200 mA) (IF = 500 mA) VF Total Capacitance (VR = 5.0 V, f = 1 MHz) CT 19 Reverse Recovery Time (IF = IR = 10 mA, IR(REC) = 1.0 mA) trr 9.0 Unit mA mV pF 11 ns Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. TYPICAL CHARACTERISTICS 1E−02 IR, REVERSE CURRENT (A) 85°C 100 25°C 0°C 10 1 0.0 125°C 125°C −55°C 0.1 0.2 0.3 0.4 0.6 0.5 1E−03 25°C 1E−05 0°C 1E−06 1E−07 −55°C 1E−08 1E−09 0.7 85°C 1E−04 0 2 4 8 10 12 14 16 18 20 22 24 26 28 30 6 VF, FORWARD VOLTAGE (V) VR, REVERSE VOLTAGE (V) Figure 3. Forward Voltage Figure 4. Leakage Current 50 CT, TOTAL CAPACITANCE (pF) IF, FORWARD CURRENT (mA) 500 TA = 25°C f = 1 MHz 45 40 35 30 25 20 15 10 5 0 0 5 10 15 20 VR, REVERSE VOLTAGE (V) Figure 5. Total Capacitance www.onsemi.com 3 25 30 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS X4DFN2, 0.445x0.24, 0.27P CASE 718AA ISSUE A DATE 21 MAR 2017 SCALE 10:1 A B D NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. EXPOSED COPPER ALLOWED AS SHOWN. Ç PIN 1 REFERENCE DIM A A1 b D E e L E TOP VIEW A 0.03 C 0.03 C A1 SIDE VIEW C GENERIC MARKING DIAGRAMS* SEATING PLANE X e e/2 2 2X 0.10 C A B L X b PIN 1 2X MILLIMETERS MIN NOM MAX 0.15 0.18 0.21 −−− −−− 0.03 0.170 0.185 0.200 0.415 0.445 0.475 0.210 0.240 0.270 0.270 BSC 0.105 0.120 0.135 0.05 C NOTE 3 BOTTOM VIEW X = Specific Device Code *This information is generic. Please refer to device data sheet for actual part marking. Some products may not follow the Generic Marking. RECOMMENDED MOUNTING FOOTPRINT* 0.27 PITCH 2X 0.21 1 2X 0.13 DIMENSIONS: MILLIMETERS See Application Note AND8398/D for more mounting details *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. DOCUMENT NUMBER: DESCRIPTION: 98AON29067G X4DFN2, 0.445X0.24, 0.27P Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
