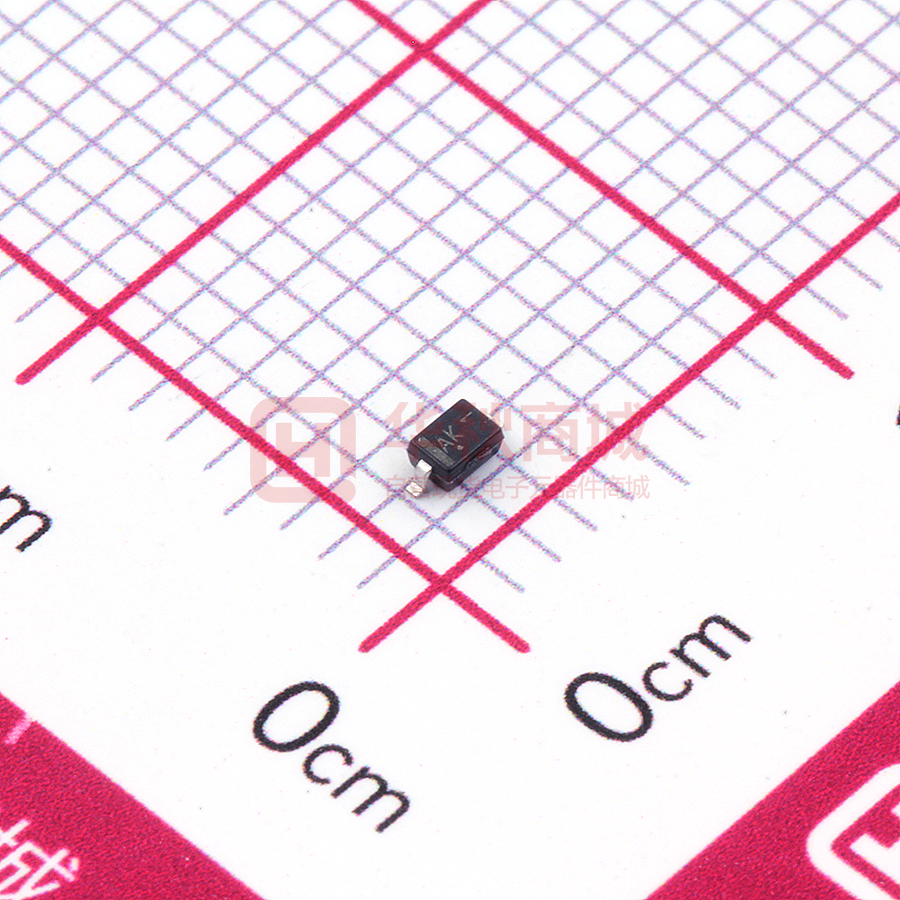

NSR0530HT1G

Schottky Barrier Diode NSR0530H Schottky barrier diodes are optimized for very low forward voltage drop and low leakage current and are used in a wide range of dc−dc converter, clamping and protection applications in portable devices. NSR0530H in a SOD−323 miniature package enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements. www.onsemi.com Features • • • • • • 30 V SCHOTTKY BARRIER DIODE Very Low Forward Voltage Drop − 370 mV @ 100 mA Low Reverse Current − 1.4 mA @ 10 V VR 500 mA of Continuous Forward Current Very High Switching Speed Low Capacitance − CT = 10 pF This is a Pb−Free Device 1 CATHODE 2 ANODE Typical Applications • • • • • 1 AK = Specific Device Code M = Month Code Mobile Handsets MP3 Players Digital Camera and Camcorders Notebook PCs & PDAs GPS ORDERING INFORMATION Device NSR0530HT1G MAXIMUM RATINGS Rating Symbol Value Unit Reverse Voltage VR 30 V Forward Current (DC) IF 500 mA Forward Surge Current (60 Hz @ 1 cycle) IFSM 2.5 A ESD Rating: ESD Human Body Model Machine Model AK M SOD−323 CASE 477 STYLE 1 Markets • • • • • MARKING DIAGRAM 2 LCD and Keypad Backlighting Camera Photo Flash Buck and Boost dc−dc Converters Reverse Voltage and Current Protection Clamping & Protection Package Shipping† SOD−323 (Pb−Free) 3000/Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Class 3B Class C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. © Semiconductor Components Industries, LLC, 2016 November, 2020 − Rev. 0 1 Publication Order Number: NSR0530H/D NSR0530H THERMAL CHARACTERISTICS Characteristic Thermal Resistance Junction−to−Ambient (Note 1) Total Power Dissipation @ TA = 25°C Thermal Resistance Junction−to−Ambient (Note 2) Total Power Dissipation @ TA = 25°C Symbol Junction and Storage Temperature Range Min Typ Max Unit RqJA PD 740 160 °C/W mW RqJA PD 460 270 °C/W mW TJ, Tstg −55 to +150 °C Typ Max Unit 1.4 24 10 200 0.37 0.46 0.62 1. Mounted onto a 4 in square FR−4 board 10 mm sq. 1 oz. Cu 0.06” thick single sided. Operating to steady state. 2. Mounted onto a 4 in square FR−4 board 1 in sq. 1 oz. Cu 0.06” thick single sided. Operating to steady state. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic Symbol Min Reverse Leakage (VR = 10 V) (VR = 30 V) IR Forward Voltage (IF = 10 mA) (IF = 100 mA) (IF = 500 mA) VF 0.28 0.37 0.52 Total Capacitance (VR = 1.0 V, f = 1 MHz) CT 10 10,000 Ir, REVERSE CURRENT (mA) IF, FORWARD CURRENT (mA) 10 125°C 1 0.1 85°C 0.01 25°C 0 0.1 −40°C 0.2 0.3 0.5 0.4 1000 85°C 100 25°C 10 −40°C 1 0.1 0.01 0 5 10 15 20 25 VR, REVERSE VOLTAGE (V) Figure 1. Forward Voltage Figure 2. Leakage Current IFSM, FORWARD SURGE CURRENT (A) TA = 25°C 16 14 12 10 8 6 4 5 125°C VF, FORWARD VOLTAGE (V) 18 0 10,000 0.001 0.6 20 CT, TOTAL CAPACITANCE (pF) pF 100,000 100 2 0 V 1,000,000 1000 0.001 mA 10 15 20 25 30 35 30 4.5 Based on square wave currents TJ = 25°C prior to surge 4 3.5 3 2.5 2 1.5 1 0.5 0 0.001 0.01 0.1 1 10 100 VR, REVERSE VOLTAGE (V) TP, PULSE ON TIME (ms) Figure 3. Total Capacitance Figure 4. Forward Surge Current www.onsemi.com 2 35 1000 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS 2 1 STYLE 1 SOD−323 CASE 477−02 ISSUE H 2 SCALE 4:1 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING. 4. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. 5. DIMENSION L IS MEASURED FROM END OF RADIUS. HE D b 1 2 E A3 A C NOTE 3 DATE 13 MAR 2007 1 STYLE 2 L A1 NOTE 5 MILLIMETERS DIM MIN NOM MAX A 0.80 0.90 1.00 A1 0.00 0.05 0.10 A3 0.15 REF b 0.25 0.32 0.4 C 0.089 0.12 0.177 D 1.60 1.70 1.80 E 1.15 1.25 1.35 L 0.08 HE 2.30 2.50 2.70 INCHES NOM MAX 0.035 0.040 0.002 0.004 0.006 REF 0.010 0.012 0.016 0.003 0.005 0.007 0.062 0.066 0.070 0.045 0.049 0.053 0.003 0.090 0.098 0.105 MIN 0.031 0.000 GENERIC MARKING DIAGRAM* SOLDERING FOOTPRINT* XX M 0.63 0.025 STYLE 1 0.83 0.033 *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “ G”, may or may not be present. 2.85 0.112 *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. DESCRIPTION: 98ASB17533C SOD−323 STYLE 2 XX = Specific Device Code M = Date Code 1.60 0.063 DOCUMENT NUMBER: XX M STYLE 1: PIN 1. CATHODE (POLARITY BAND) 2. ANODE STYLE 2: NO POLARITY Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
