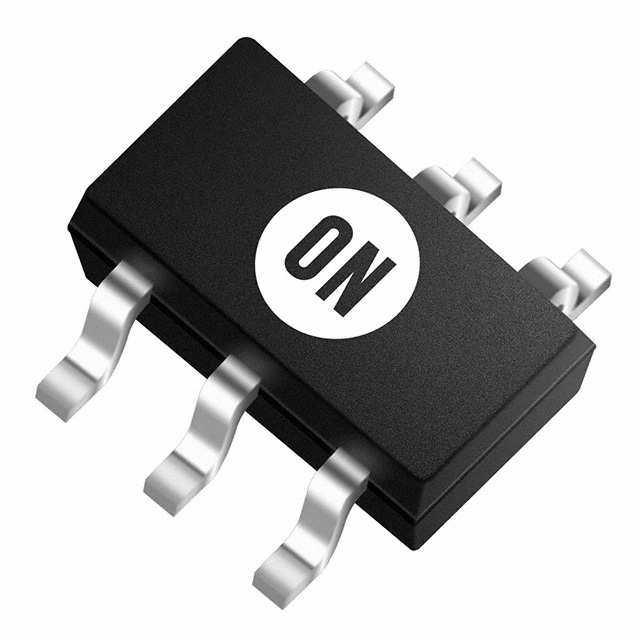

NSVMBD770DW1T1G

MBD770DWT1G, NSVMBD770DW1T1G Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. Features • • • • • Extremely Fast Switching Speed Low Forward Voltage AEC Qualified and PPAP Capable NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant* www.onsemi.com 70 VOLTS SCHOTTKY BARRIER DIODES Anode 1 6 Cathode N/C 2 5 N/C MAXIMUM RATINGS (TJ = 150°C unless otherwise noted) Rating Forward Current Symbol Value Unit IF 100 mA IFSM 1 A Reverse Voltage VR 70 V Forward Power Dissipation @ TA = 25°C Derate above 25°C (Note 1) PF 380 3 mW mW/°C −55 to +150 °C Non−Repetitive Peak Forward Surge Current (60 Hz Half Sine) Operating Junction and Storage Temperature Range TJ, Tstg Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. FR4 @ 100 mm2, 1 oz Cu Cathode 3 4 Anode MARKING DIAGRAM 6 SOT−363 CASE 419B STYLE 6 1 H5 MG G 1 M G = Date Code = Pb−Free Package (Note: Microdot may be in either location) *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ORDERING INFORMATION Package Shipping† MBD770DWT1G SOT−363 (Pb−Free) 3000 / Tape & Reel NSVMBD770DW1T1G SOT−363 (Pb−Free) 3000 / Tape & Reel Device †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2016 July, 2016 − Rev. 2 1 Publication Order Number: MBD770DW/D MBD770DWT1G, NSVMBD770DW1T1G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Characteristic Reverse Breakdown Voltage (IR = 10 mA) Min Max 70 − − 1.0 − 200 − 500 − 1.0 V(BR)R Total Capacitance (VR = 20 V, f = 1.0 MHz) CT Reverse Leakage (VR = 35 V) IR Forward Voltage (IF = 1.0 mA) VF Forward Voltage (IF = 10 mA) VF 100 V pF nA mV V 100000 1 00°C 10 IR, REVERSE CURRENT (nA) −55°C 1 25°C 25°C 75°C 1 0 0.2 0.4 0.6 0.8 1 1.2 1.4 150°C 10000 1000 75°C 100 10 25°C 1 −40°C 0.1 0.01 1.6 1 25°C 1 00°C 0 10 20 30 40 50 60 70 VF, FORWARD VOLTAGE (V) VR, REVERSE VOLTAGE (V) Figure 1. Typical Forward Voltage Figure 2. Reverse Current versus Reverse Voltage 1.4 CT, TOTAL CAPACITANCE (pF) IF, FORWARD CURRENT (mA) 150°C 0.1 Unit TA = 25°C f = 1 MHz 1.2 1 0.8 0.6 0.4 0.2 0 0 10 20 30 40 VR, REVERSE VOLTAGE (V) Figure 3. Typical Capacitance www.onsemi.com 2 50 60 80 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SC−88/SC70−6/SOT−363 CASE 419B−02 ISSUE Y 1 SCALE 2:1 DATE 11 DEC 2012 2X aaa H D D H A D 6 5 GAGE PLANE 4 1 2 L L2 E1 E DETAIL A 3 aaa C 2X bbb H D 2X 3 TIPS e B 6X b ddd TOP VIEW C A-B D M A2 DETAIL A A 6X NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. DIMENSIONS D AND E1 DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. MOLD FLASH, PROTRUSIONS, OR GATE BURRS SHALL NOT EXCEED 0.20 PER END. 4. DIMENSIONS D AND E1 AT THE OUTERMOST EXTREMES OF THE PLASTIC BODY AND DATUM H. 5. DATUMS A AND B ARE DETERMINED AT DATUM H. 6. DIMENSIONS b AND c APPLY TO THE FLAT SECTION OF THE LEAD BETWEEN 0.08 AND 0.15 FROM THE TIP. 7. DIMENSION b DOES NOT INCLUDE DAMBAR PROTRUSION. ALLOWABLE DAMBAR PROTRUSION SHALL BE 0.08 TOTAL IN EXCESS OF DIMENSION b AT MAXIMUM MATERIAL CONDITION. THE DAMBAR CANNOT BE LOCATED ON THE LOWER RADIUS OF THE FOOT. ccc C A1 SIDE VIEW C SEATING PLANE END VIEW c RECOMMENDED SOLDERING FOOTPRINT* 6X DIM A A1 A2 b C D E E1 e L L2 aaa bbb ccc ddd MILLIMETERS MIN NOM MAX −−− −−− 1.10 0.00 −−− 0.10 0.70 0.90 1.00 0.15 0.20 0.25 0.08 0.15 0.22 1.80 2.00 2.20 2.00 2.10 2.20 1.15 1.25 1.35 0.65 BSC 0.26 0.36 0.46 0.15 BSC 0.15 0.30 0.10 0.10 GENERIC MARKING DIAGRAM* 6 XXXMG G 6X 0.30 INCHES NOM MAX −−− 0.043 −−− 0.004 0.035 0.039 0.008 0.010 0.006 0.009 0.078 0.086 0.082 0.086 0.049 0.053 0.026 BSC 0.010 0.014 0.018 0.006 BSC 0.006 0.012 0.004 0.004 MIN −−− 0.000 0.027 0.006 0.003 0.070 0.078 0.045 0.66 1 2.50 0.65 PITCH XXX = Specific Device Code M = Date Code* G = Pb−Free Package (Note: Microdot may be in either location) DIMENSIONS: MILLIMETERS *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. *Date Code orientation and/or position may vary depending upon manufacturing location. *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking. STYLES ON PAGE 2 DOCUMENT NUMBER: DESCRIPTION: 98ASB42985B SC−88/SC70−6/SOT−363 Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 2 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com SC−88/SC70−6/SOT−363 CASE 419B−02 ISSUE Y DATE 11 DEC 2012 STYLE 1: PIN 1. EMITTER 2 2. BASE 2 3. COLLECTOR 1 4. EMITTER 1 5. BASE 1 6. COLLECTOR 2 STYLE 2: CANCELLED STYLE 3: CANCELLED STYLE 4: PIN 1. CATHODE 2. CATHODE 3. COLLECTOR 4. EMITTER 5. BASE 6. ANODE STYLE 5: PIN 1. ANODE 2. ANODE 3. COLLECTOR 4. EMITTER 5. BASE 6. CATHODE STYLE 6: PIN 1. ANODE 2 2. N/C 3. CATHODE 1 4. ANODE 1 5. N/C 6. CATHODE 2 STYLE 7: PIN 1. SOURCE 2 2. DRAIN 2 3. GATE 1 4. SOURCE 1 5. DRAIN 1 6. GATE 2 STYLE 8: CANCELLED STYLE 9: PIN 1. EMITTER 2 2. EMITTER 1 3. COLLECTOR 1 4. BASE 1 5. BASE 2 6. COLLECTOR 2 STYLE 10: PIN 1. SOURCE 2 2. SOURCE 1 3. GATE 1 4. DRAIN 1 5. DRAIN 2 6. GATE 2 STYLE 11: PIN 1. CATHODE 2 2. CATHODE 2 3. ANODE 1 4. CATHODE 1 5. CATHODE 1 6. ANODE 2 STYLE 12: PIN 1. ANODE 2 2. ANODE 2 3. CATHODE 1 4. ANODE 1 5. ANODE 1 6. CATHODE 2 STYLE 13: PIN 1. ANODE 2. N/C 3. COLLECTOR 4. EMITTER 5. BASE 6. CATHODE STYLE 14: PIN 1. VREF 2. GND 3. GND 4. IOUT 5. VEN 6. VCC STYLE 15: PIN 1. ANODE 1 2. ANODE 2 3. ANODE 3 4. CATHODE 3 5. CATHODE 2 6. CATHODE 1 STYLE 16: PIN 1. BASE 1 2. EMITTER 2 3. COLLECTOR 2 4. BASE 2 5. EMITTER 1 6. COLLECTOR 1 STYLE 17: PIN 1. BASE 1 2. EMITTER 1 3. COLLECTOR 2 4. BASE 2 5. EMITTER 2 6. COLLECTOR 1 STYLE 18: PIN 1. VIN1 2. VCC 3. VOUT2 4. VIN2 5. GND 6. VOUT1 STYLE 19: PIN 1. I OUT 2. GND 3. GND 4. V CC 5. V EN 6. V REF STYLE 20: PIN 1. COLLECTOR 2. COLLECTOR 3. BASE 4. EMITTER 5. COLLECTOR 6. COLLECTOR STYLE 21: PIN 1. ANODE 1 2. N/C 3. ANODE 2 4. CATHODE 2 5. N/C 6. CATHODE 1 STYLE 22: PIN 1. D1 (i) 2. GND 3. D2 (i) 4. D2 (c) 5. VBUS 6. D1 (c) STYLE 23: PIN 1. Vn 2. CH1 3. Vp 4. N/C 5. CH2 6. N/C STYLE 24: PIN 1. CATHODE 2. ANODE 3. CATHODE 4. CATHODE 5. CATHODE 6. CATHODE STYLE 25: PIN 1. BASE 1 2. CATHODE 3. COLLECTOR 2 4. BASE 2 5. EMITTER 6. COLLECTOR 1 STYLE 26: PIN 1. SOURCE 1 2. GATE 1 3. DRAIN 2 4. SOURCE 2 5. GATE 2 6. DRAIN 1 STYLE 27: PIN 1. BASE 2 2. BASE 1 3. COLLECTOR 1 4. EMITTER 1 5. EMITTER 2 6. COLLECTOR 2 STYLE 28: PIN 1. DRAIN 2. DRAIN 3. GATE 4. SOURCE 5. DRAIN 6. DRAIN STYLE 29: PIN 1. ANODE 2. ANODE 3. COLLECTOR 4. EMITTER 5. BASE/ANODE 6. CATHODE STYLE 30: PIN 1. SOURCE 1 2. DRAIN 2 3. DRAIN 2 4. SOURCE 2 5. GATE 1 6. DRAIN 1 Note: Please refer to datasheet for style callout. If style type is not called out in the datasheet refer to the device datasheet pinout or pin assignment. DOCUMENT NUMBER: DESCRIPTION: 98ASB42985B SC−88/SC70−6/SOT−363 Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 2 OF 2 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
