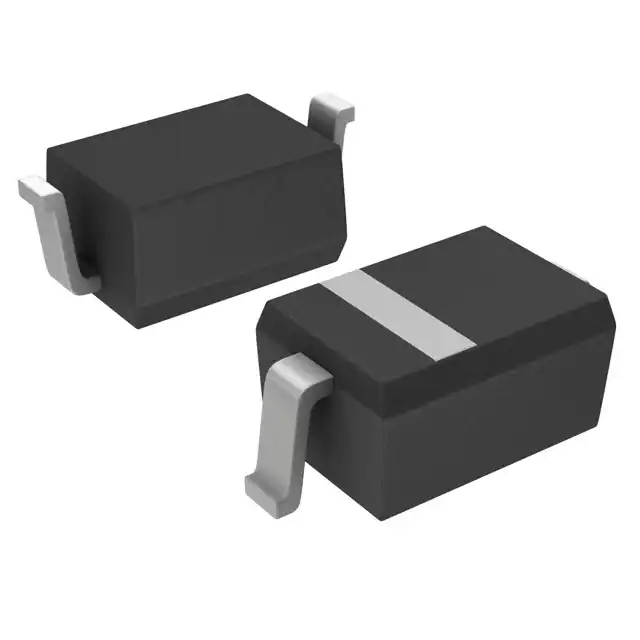

NSVR0320MW2T1G

DATA SHEET www.onsemi.com Schottky Barrier Diodes HIGH CURRENT SCHOTTKY BARRIER DIODE NSR0320MW2T1G, NSVR0320MW2T1G, NSR0320MW2T3G SOD−323 CASE 477 STYLE 1 These Schottky barrier diodes are designed for high current, handling capability, and low forward voltage performance. Features 1 CATHODE • Low Forward Voltage − 0.24 Volts (Typ) @ IF = 10 mAdc • High Current Capability • ESD Rating: Human Body Model: CLASS 3B ♦ Machine Model: C NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant* ♦ • • MAXIMUM RATINGS (TJ = 125°C unless otherwise noted) Rating Reverse Voltage Peak Revese Voltage Value Unit VR 20 Vdc VRM 23 V 200 2.0 mW mW/°C A PF Forward Current (DC) Continuous IF 1 Forward Current t = 8.3 ms Half Sinewave IFSM Thermal Resistance, Junction−to−Ambient 175 mm2, 1 oz. Cu, FR−4 RqJA 500 °C/W Thermal Resistance, Junction−to−Lead 175 mm2, 1 oz. Cu, FR−4 RqJL 322 °C/W Junction Temperature Range TJ −55 to +125 °C Storage Temperature Range Tstg −55 to +150 °C 5 MARKING DIAGRAM RD MG G RD = Specific Device Code M = Date Code G = Pb−Free Package (Note: Microdot may be in either location) Symbol Forward Power Dissipation @ TA = 25°C Derate above 25°C 2 ANODE A ORDERING INFORMATION Device Package Shipping† NSR0320MW2T1G SOD−323 (Pb−Free) 3,000 / Tape & Reel NSR0320MW2T3G SOD−323 (Pb−Free) 10,000 / Tape & Reel NSVR0320MW2T1G SOD−323 (Pb−Free) 3,000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D. Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. *For additional information on our Pb−Free strategy and soldering details, please download the onsemi Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor Components Industries, LLC, 2011 April, 2022 − Rev. 8 Publication Order Number: NSR0320MW2T1/D NSR0320MW2T1G, NSVR0320MW2T1G, NSR0320MW2T3G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic Symbol Min Typ Max Unit Total Capacitance (VR = 5.0 V, f = 1.0 MHz) CT − 25 29 pF Reverse Leakage (VR = 15 V) (VR = 2.0 V @ 85°C) (VR = 15.0 V @ 85°C) IR − − − 10 200 450 50 − − Forward Voltage (IF = 10 mA) (IF = 100 mA) (IF = 900 mA) VF − − − 0.24 0.30 0.45 0.27 0.35 0.50 V 10000 100 IR, REVERSE CURRENT (mA) 150°C 150°C 10 85°C −55°C 1 0.0 25°C 0.1 −45°C 0.2 0.3 0.4 0.5 125°C 1000 85°C 100 10 25°C 1 0.6 0 5 10 15 20 VF, FORWARD VOLTAGE (V) VR, REVERSE VOLTAGE (V) Figure 1. Forward Voltage Figure 2. Leakage Current 140 120 CT, CAPACITANCE (pF) IF, FORWARD CURRENT (mA) 1000 mA 100 80 60 40 20 0 0 5 10 15 VR, REVERSE VOLTAGE (V) Figure 3. Total Capacitance www.onsemi.com 2 20 25 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS 2 1 STYLE 1 SOD−323 CASE 477−02 ISSUE H 2 SCALE 4:1 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING. 4. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. 5. DIMENSION L IS MEASURED FROM END OF RADIUS. HE D b 1 2 E A3 A C NOTE 3 DATE 13 MAR 2007 1 STYLE 2 L A1 NOTE 5 MILLIMETERS DIM MIN NOM MAX A 0.80 0.90 1.00 A1 0.00 0.05 0.10 A3 0.15 REF b 0.25 0.32 0.4 C 0.089 0.12 0.177 D 1.60 1.70 1.80 E 1.15 1.25 1.35 L 0.08 HE 2.30 2.50 2.70 INCHES NOM MAX 0.035 0.040 0.002 0.004 0.006 REF 0.010 0.012 0.016 0.003 0.005 0.007 0.062 0.066 0.070 0.045 0.049 0.053 0.003 0.090 0.098 0.105 MIN 0.031 0.000 GENERIC MARKING DIAGRAM* SOLDERING FOOTPRINT* XX M 0.63 0.025 STYLE 1 0.83 0.033 *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “ G”, may or may not be present. 2.85 0.112 *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. DESCRIPTION: 98ASB17533C SOD−323 STYLE 2 XX = Specific Device Code M = Date Code 1.60 0.063 DOCUMENT NUMBER: XX M STYLE 1: PIN 1. CATHODE (POLARITY BAND) 2. ANODE STYLE 2: NO POLARITY Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
