NTF3055L108,
NVF3055L108
MOSFET – Power,
N-Channel, Logic Level,
SOT-223
www.onsemi.com
3.0 A, 60 V
3.0 A, 60 V
RDS(on) = 120 mW
Designed for low voltage, high speed switching applications in power
supplies, converters and power motor controls and bridge circuits.
Features
• NVF Prefix for Automotive and Other Applications Requiring
•
N−Channel
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
These Devices are Pb−Free and are RoHS Compliant
D
Applications
•
•
•
•
G
Power Supplies
Converters
Power Motor Controls
Bridge Circuits
S
4
MAXIMUM RATINGS (TC = 25°C unless otherwise noted)
Rating
Symbol
Value
Unit
Drain−to−Source Voltage
VDSS
60
Vdc
Drain−to−Gate Voltage (RGS = 1.0 MW)
VDGR
60
Vdc
VGS
± 15
± 20
Vdc
Vpk
ID
ID
3.0
1.4
9.0
Apk
PD
2.1
1.3
0.014
Watts
Watts
W/°C
TJ, Tstg
−55
to 175
°C
EAS
74
mJ
Gate−to−Source Voltage
− Continuous
− Non−repetitive (tp ≤ 10 ms)
Drain Current
− Continuous @ TA = 25°C (Note 1)
− Continuous @ TA = 100°C (Note 2)
− Single Pulse (tp ≤ 10 ms)
Total Power Dissipation @ TA = 25°C (Note 1)
Total Power Dissipation @ TA = 25°C (Note 2)
Derate above 25°C
Operating and Storage Temperature Range
Single Pulse Drain−to−Source Avalanche
Energy − Starting TJ = 25°C
(VDD = 25 Vdc, VGS = 5.0 Vdc,
IL(pk) = 7.0 Apk, L = 3.0 mH, VDS = 60 Vdc)
Thermal Resistance
−Junction−to−Ambient (Note 1)
−Junction−to−Ambient (Note 2)
Maximum Lead Temperature for Soldering
Purposes, 1/8″ from case for 10 seconds
Adc
IDM
RqJA
RqJA
72.3
114
TL
260
°C/W
°C
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
© Semiconductor Components Industries, LLC, 2016
May, 2019 − Rev. 9
1
1
2

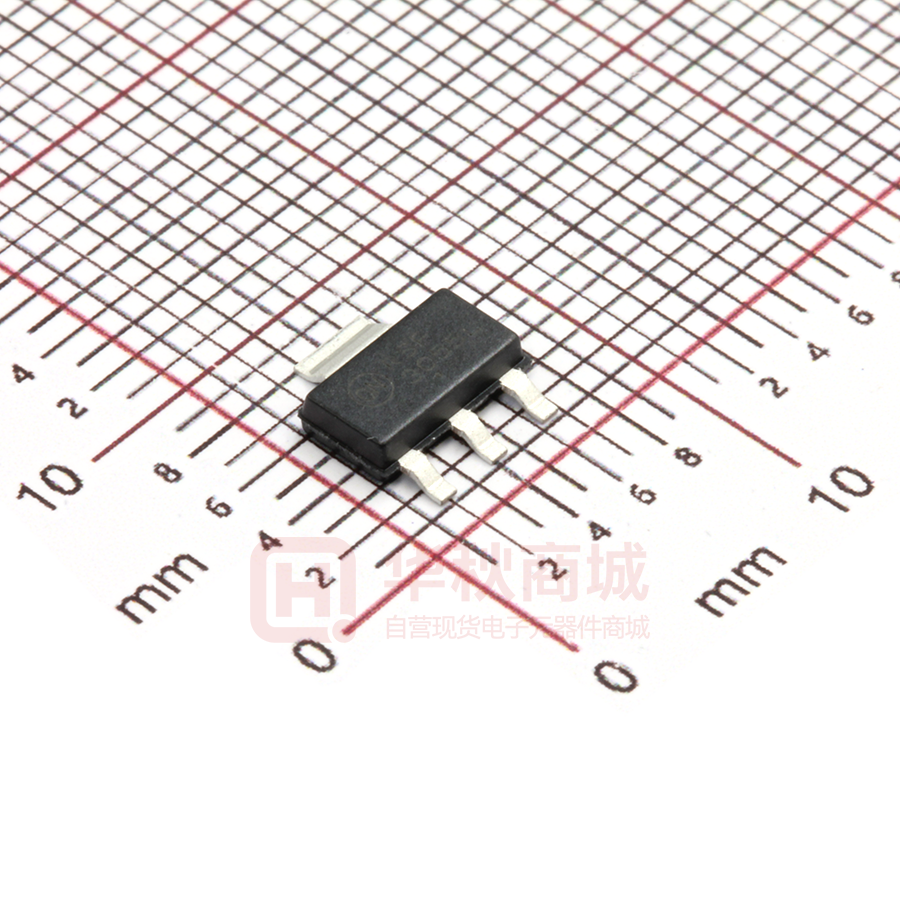

SOT−223
CASE 318E
STYLE 3
3
MARKING DIAGRAM
AYW
3055L = Device Code
3055LG
A
= Assembly Location
G
Y
= Year
W
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
PIN ASSIGNMENT
4 Drain
1
Gate
2
3
Drain
Source
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 6 of this data sheet.
Publication Order Number:
NTF3055L108/D
NTF3055L108, NVF3055L108
1. When surface mounted to an FR4 board using 1″ pad size, 1 oz.
(Cu. Area 1 in2).
2. When surface mounted to an FR4 board using minimum recommended pad
size, 2 oz. (Cu. Area 0.272 in2).
www.onsemi.com
2
NTF3055L108, NVF3055L108
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted)
Symbol
Characteristic
Min
Typ
Max
Unit
60
−
68
68
−
−
−
−
−
−
1.0
10
−
−
± 100
1.0
−
1.68
4.6
2.0
−
−
92
120
−
0.290
0.250
0.43
−
gfs
−
5.7
−
Mhos
Ciss
−
313
440
pF
Coss
−
112
160
Crss
−
40
60
td(on)
−
11
25
tr
−
35
70
td(off)
−
22
45
tf
−
27
60
QT
−
7.6
15
Q1
−
1.4
−
Q2
−
4.0
−
−
−
0.87
0.72
1.0
−
trr
−
35
−
ta
−
21
−
tb
−
14
−
QRR
−
0.044
−
OFF CHARACTERISTICS
V(BR)DSS
Drain−to−Source Breakdown Voltage (Note 3)
(VGS = 0 Vdc, ID = 250 mAdc)
Temperature Coefficient (Positive)
Zero Gate Voltage Drain Current
(VDS = 60 Vdc, VGS = 0 Vdc)
(VDS = 60 Vdc, VGS = 0 Vdc, TJ = 150°C)
IDSS
Gate−Body Leakage Current
IGSS
(VGS = ± 15 Vdc, VDS = 0 Vdc)
Vdc
mV/°C
mAdc
nAdc
ON CHARACTERISTICS (Note 3)
Gate Threshold Voltage (Note 3)
(VDS = VGS, ID = 250 mAdc)
Threshold Temperature Coefficient (Negative)
VGS(th)
Static Drain−to−Source On−Resistance (Note 3)
(VGS = 5.0 Vdc, ID = 1.5 Adc)
RDS(on)
Static Drain−to−Source On−Resistance (Note 3)
(VGS = 5.0 Vdc, ID = 3.0 Adc)
(VGS = 5.0 Vdc, ID = 1.5 Adc, TJ = 150°C)
VDS(on)
Forward Transconductance (Note 3)
(VDS = 7.0 Vdc, ID = 3.0 Adc)
Vdc
mV/°C
mW
Vdc
DYNAMIC CHARACTERISTICS
Input Capacitance
Output Capacitance
(VDS = 25 Vdc, VGS = 0 V,
f = 1.0 MHz)
Transfer Capacitance
SWITCHING CHARACTERISTICS (Note 4)
Turn−On Delay Time
Rise Time
Turn−Off Delay Time
(VDD = 30 Vdc, ID = 3.0 Adc,
VGS = 5.0 Vdc,
RG = 9.1 W) (Note 3)
Fall Time
Gate Charge
(VDS = 48 Vdc, ID = 3.0 Adc,
VGS = 5.0 Vdc) (Note 3)
ns
nC
SOURCE−DRAIN DIODE CHARACTERISTICS
Forward On−Voltage
(IS = 3.0 Adc, VGS = 0 Vdc)
(IS = 3.0 Adc, VGS = 0 Vdc,
TJ = 150°C) (Note 3)
Reverse Recovery Time
(IS = 3.0 Adc, VGS = 0 Vdc,
dIS/dt = 100 A/ms) (Note 3)
Reverse Recovery Stored Charge
VSD
Vdc
ns
mC
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
3. Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2.0%.
4. Switching characteristics are independent of operating junction temperatures.
www.onsemi.com
3
NTF3055L108, NVF3055L108
TYPICAL ELECTRICAL CHARACTERISTICS
5
VDS > = 10 V
VGS = 3.5 V
VGS = 4.5 V
4
3
VGS = 6 V
2
VGS = 10 V
VGS = 3.2 V
VGS = 3 V
VGS = 2.8 V
1
0
6
VGS = 3.4 V
ID, DRAIN CURRENT (AMPS)
ID, DRAIN CURRENT (AMPS)
6
VGS = 2.5 V
0.5
0
1.5
1
2
2.5
5
4
3
TJ = 100°C
2
TJ = 25°C
1
TJ = −55°C
0
3
1
VDS, DRAIN−TO−SOURCE VOLTAGE (VOLTS)
TJ = 100°C
0.14
0.12
TJ = 25°C
0.1
0.08
TJ = −55°C
0.06
0.04
0.02
0
2
1
3
4
5
6
ID, DRAIN CURRENT (AMPS)
0.16
3.5
4
4.5
5
0.14
TJ = 100°C
0.12
0.1
TJ = 25°C
0.08
0.06
TJ = −55°C
0.04
0.02
0
1
2
3
4
5
6
ID, DRAIN CURRENT (AMPS)
Figure 4. On−Resistance vs. Drain Current and
Gate Voltage
10000
VGS = 0 V
ID = 1.5 A
VGS = 5 V
IDSS, LEAKAGE (nA)
RDS(on), DRAIN−TO−SOURCE RESISTANCE
(NORMALIZED)
1.8
3
VGS = 10 V
Figure 3. On−Resistance vs. Gate−to−Source
Voltage
2
2.5
Figure 2. Transfer Characteristics
RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)
RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)
VGS = 5 V
2
VGS, GATE−TO−SOURCE VOLTAGE (VOLTS)
Figure 1. On−Region Characteristics
0.16
1.5
1.6
1.4
1.2
1
TJ = 150°C
1000
100
TJ = 100°C
10
0.8
0.6
−50
−25
0
25
50
75
100
125
150
175
1
0
10
20
30
40
50
TJ, JUNCTION TEMPERATURE (°C)
VDS, DRAIN−TO−SOURCE VOLTAGE (VOLTS)
Figure 5. On−Resistance Variation with
Temperature
Figure 6. Drain−to−Source Leakage Current
vs. Voltage
www.onsemi.com
4
60
NTF3055L108, NVF3055L108
1000
C, CAPACITANCE (pF)
VGS = 0 V
VDS = 0 V
VGS, GATE−TO−SOURCE VOLTAGE (VOLTS)
TYPICAL ELECTRICAL CHARACTERISTICS
TJ = 25°C
Ciss
800
600
Crss
400
Ciss
Coss
200
Crss
0
10
5 VGS 0 VDS 5
10
15
20
25
GATE−TO−SOURCE OR DRAIN−TO−SOURCE VOLTAGE
(VOLTS)
6
QT
5
VGS
4
Q1
2
1
ID = 3 A
TJ = 25°C
0
0
1
IS, SOURCE CURRENT (AMPS)
tf
td(off)
td(on)
1
10
100
8
VGS = 0 V
TJ = 25°C
2.8
2.4
2
1.6
1.2
0.8
0.4
0
0.54
0.58
0.62 0.66
0.7
0.74 0.78 0.82 0.86 0.9
Figure 9. Resistive Switching Time Variation
vs. Gate Resistance
Figure 10. Diode Forward Voltage vs. Current
100 ms
ID, DRAIN CURRENT (AMPS)
7
6
VSD, SOURCE−TO−DRAIN VOLTAGE (VOLTS)
10
1 ms
1
10 ms
0.1
0.001
0.1
5
RG, GATE RESISTANCE (W)
VGS = 20 V
SINGLE PULSE
TC = 25°C
dc
RDS(on) LIMIT
THERMAL LIMIT
PACKAGE LIMIT
1
10
EAS, SINGLE PULSE DRAIN−TO−SOURCE
AVALANCHE ENERGY (mJ)
t, TIME (ns)
tr
0.01
4
3.2
100
1
3
Figure 8. Gate−to−Source and
Drain−to−Source Voltage vs. Total Charge
VDS = 30 V
ID = 3 A
VGS = 5 V
10
2
Qg, TOTAL GATE CHARGE (nC)
Figure 7. Capacitance Variation
1000
Q2
3
1000
100
80
ID = 7 A
70
60
50
40
30
20
10
0
25
50
75
100
125
150
VDS, DRAIN−TO−SOURCE VOLTAGE (VOLTS)
TJ, STARTING JUNCTION TEMPERATURE (°C)
Figure 11. Maximum Rated Forward Biased
Safe Operating Area
Figure 12. Maximum Avalanche Energy vs.
Starting Junction Temperature
www.onsemi.com
5
175
NTF3055L108, NVF3055L108
r(t), EFFECTIVE TRANSIENT THERMAL
RESPONSE RESISTANCE
TYPICAL ELECTRICAL CHARACTERISTICS
100
10
D = 0.5
0.2
0.1
0.05
0.02
1
0.01
0.1
Single Pulse
0.01
0.000001
0.00001
0.0001
0.001
0.01
0.1
1
10
100
1000
t, TIME (s)
Figure 13. Thermal Response
ORDERING INFORMATION
Package
Shipping†
NTF3055L108T1G
SOT−223 (TO−261)
(Pb−Free)
1000 / Tape & Reel
NVF3055L108T1G
SOT−223 (TO−261)
(Pb−Free)
Device
1000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
www.onsemi.com
6
NTF3055L108, NVF3055L108
PACKAGE DIMENSIONS
SOT−223 (TO−261)
CASE 318E−04
ISSUE N
D
b1
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: INCH.
4
HE
1
2
3
b
e1
e
A1
C
q
A
0.08 (0003)
DIM
A
A1
b
b1
c
D
E
e
e1
L
L1
HE
E
MIN
1.50
0.02
0.60
2.90
0.24
6.30
3.30
2.20
0.85
0.20
1.50
6.70
0°
q
L
STYLE 3:
PIN 1.
2.
3.
4.
L1
MILLIMETERS
NOM
MAX
1.63
1.75
0.06
0.10
0.75
0.89
3.06
3.20
0.29
0.35
6.50
6.70
3.50
3.70
2.30
2.40
0.94
1.05
−−−
−−−
1.75
2.00
7.00
7.30
10°
−
MIN
0.060
0.001
0.024
0.115
0.009
0.249
0.130
0.087
0.033
0.008
0.060
0.264
0°
INCHES
NOM
0.064
0.002
0.030
0.121
0.012
0.256
0.138
0.091
0.037
−−−
0.069
0.276
−
MAX
0.068
0.004
0.035
0.126
0.014
0.263
0.145
0.094
0.041
−−−
0.078
0.287
10°
GATE
DRAIN
SOURCE
DRAIN
SOLDERING FOOTPRINT*
3.8
0.15
2.0
0.079
2.3
0.091
2.3
0.091
6.3
0.248
2.0
0.079
1.5
0.059
SCALE 6:1
mm Ǔ
ǒinches
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent
coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein.
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards,
regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer
application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not
designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification
in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized
application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This
literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
www.onsemi.com
7
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
NTF3055L108/D
