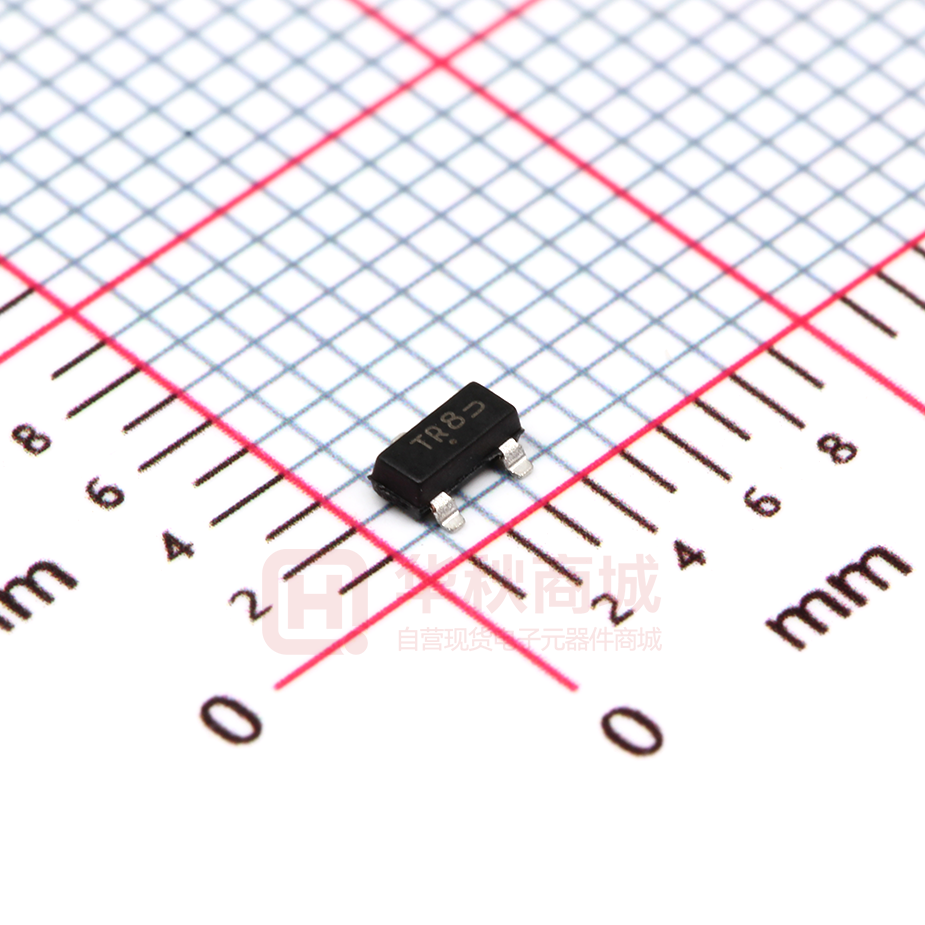

NTR4003NT1G

NTR4003N Small Signal MOSFET 30 V, 0.56 A, Single N−Channel, SOT−23 Features • Low Gate Voltage Threshold (VGS(TH)) to Facilitate Drive Circuit • • • • • Design Low Gate Charge for Fast Switching ESD Protected Gate SOT−23 Package Provides Excellent Thermal Performance Minimum Breakdown Voltage Rating of 30 V These are Pb−Free Devices http://onsemi.com V(BR)DSS 30 V RDS(on) TYP 1.0 W @ 4.0 V 1.5 W @ 2.5 V ID MAX 0.56 A Applications ♦ • Notebooks: Level Shifters ♦ Logic Switches ♦ Low Side Load Switches Portable Applications 1 Value 30 ±20 0.5 0.37 PD ID 0.69 0.56 0.40 PD IDM TJ, Tstg IS TL 0.83 1.7 −55 to 150 1.0 260 W A °C A °C W A 1 2 SOT−23 CASE 318 STYLE 21 3 Unit V V A Parameter Drain−to−Source Voltage Gate−to−Source Voltage Continuous Drain Current (Note 1) Power Dissipation (Note 1) Continuous Drain Current (Note 1) Power Dissipation (Note 1) Pulsed Drain Current Steady State TA = 25°C TA = 85°C Symbol VDSS VGS ID N−Channel 3 • MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) 2 MARKING DIAGRAM/ PIN ASSIGNMENT 3 Drain TR8 M G G 1 Gate 2 Source Steady State t < 10 s TA = 25°C TA = 85°C t
