NVMFD5C446N
Power MOSFET
40 V, 2.9 mW, 127 A, Dual N−Channel
Features
•
•
•
•
•
•
Small Footprint (5x6 mm) for Compact Design
Low RDS(on) to Minimize Conduction Losses
Low QG and Capacitance to Minimize Driver Losses
NVMFD5C446NWF − Wettable Flank Option for Enhanced Optical
Inspection
AEC−Q101 Qualified and PPAP Capable
These Devices are Pb−Free and are RoHS Compliant
www.onsemi.com
V(BR)DSS
RDS(ON) MAX
ID MAX
40 V
2.9 m @ 10 V
127 A
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Symbol
Value
Unit
Drain−to−Source Voltage
VDSS
40
V
Gate−to−Source Voltage
VGS
±20
V
ID
127
A
Parameter
Continuous Drain
Current RJC
(Notes 1, 2, 3)
TC = 25°C
Power Dissipation
RJC (Notes 1, 2)
Continuous Drain
Current RJA
(Notes 1, 2, 3)
Steady
State
TC = 100°C
TC = 25°C
Pulsed Drain Current
PD
TC = 100°C
TA = 25°C
Power Dissipation
RJA (Notes 1 & 2)
90
Steady
State
ID
Operating Junction and Storage Temperature
Source Current (Body Diode)
S2
S1
A
24
PD
MARKING
DIAGRAM
W
3.2
1.6
IDM
TJ, Tstg
D1 D1
637
A
−55 to
+ 175
°C
IS
74
A
Single Pulse Drain−to−Source Avalanche
Energy (TJ = 25°C, IL(pk) = 11 A)
EAS
223
mJ
Lead Temperature for Soldering Purposes
(1/8″ from case for 10 s)
TL
260
°C
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
THERMAL RESISTANCE MAXIMUM RATINGS
Parameter
G2
G1
W
89
17
TA = 100°C
TA = 25°C, tp = 10 s
D2
D1
44
TA = 100°C
TA = 25°C
Dual N−Channel
Symbol
Value
Unit
Junction−to−Case − Steady State
RJC
1.7
°C/W
Junction−to−Ambient − Steady State (Note 2)
RJA
47
1
DFN8 5x6
(SO8FL)
CASE 506BT
S1
G1
S2
G2
XXXXXX
AYWZZ
D1
D1
D2
D2
D2 D2
XXXXXX = 5C446N (NVMFD5C446N)
= or 446NWF (NVMFD5C446NWF)
A
= Assembly Location
Y
= Year
W
= Work Week
ZZ
= Lot Traceability
ORDERING INFORMATION
See detailed ordering, marking and shipping information on
page 5 of this data sheet.
1. The entire application environment impacts the thermal resistance values shown,
they are not constants and are only valid for the particular conditions noted.
2. Surface−mounted on FR4 board using a 650 mm2, 2 oz. Cu pad.
3. Maximum current for pulses as long as 1 second is higher but is dependent
on pulse duration and duty cycle.
© Semiconductor Components Industries, LLC, 2017
October, 2017 − Rev. 1
1
Publication Order Number:
NVMFD5C446NL/D
NVMFD5C446N
ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise specified)
Parameter
Symbol
Test Condition
Min
Drain−to−Source Breakdown Voltage
V(BR)DSS
VGS = 0 V, ID = 250 A
40
Drain−to−Source Breakdown Voltage
Temperature Coefficient
V(BR)DSS/
TJ
Typ
Max
Unit
OFF CHARACTERISTICS
Zero Gate Voltage Drain Current
IDSS
Gate−to−Source Leakage Current
V
30
VGS = 0 V,
VDS = 40 V
mV/°C
TJ = 25 °C
10
TJ = 125°C
100
IGSS
VDS = 0 V, VGS = 20 V
VGS(TH)
VGS = VDS, ID = 250 A
100
A
nA
ON CHARACTERISTICS (Note 4)
Gate Threshold Voltage
Threshold Temperature Coefficient
VGS(TH)/TJ
Drain−to−Source On Resistance
RDS(on)
2.5
3.5
−6.4
VGS = 10 V
ID = 30 A
2.4
V
mV/°C
2.9
m
CHARGES, CAPACITANCES & GATE RESISTANCE
Input Capacitance
CISS
Output Capacitance
COSS
Reverse Transfer Capacitance
2450
VGS = 0 V, f = 1 MHz, VDS = 25 V
1200
CRSS
44
Total Gate Charge
QG(TOT)
38
Threshold Gate Charge
QG(TH)
7.0
Gate−to−Source Charge
QGS
Gate−to−Drain Charge
QGD
7.0
Plateau Voltage
VGP
4.5
td(ON)
18
VGS = 10 V, VDS = 32 V; ID = 30 A
pF
nC
11
V
SWITCHING CHARACTERISTICS (Note 5)
Turn−On Delay Time
Rise Time
Turn−Off Delay Time
Fall Time
tr
td(OFF)
VGS = 10 V, VDS = 32 V,
ID = 30 A, RG = 1.0
tf
39
ns
47
17
DRAIN−SOURCE DIODE CHARACTERISTICS
Forward Diode Voltage
Reverse Recovery Time
VSD
TJ = 25°C
0.8
TJ = 125°C
0.7
tRR
Charge Time
ta
Discharge Time
tb
Reverse Recovery Charge
VGS = 0 V,
IS = 30 A
1.2
V
50
VGS = 0 V, dIS/dt = 100 A/s,
IS = 30 A
QRR
25
ns
25
35
nC
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
4. Pulse Test: pulse width v 300 s, duty cycle v 2%.
5. Switching characteristics are independent of operating junction temperatures.
www.onsemi.com
2
NVMFD5C446N
TYPICAL CHARACTERISTICS
200
10 to 7 V
120
100
80
5V
60
40
VGS = 4 V
0
0.5
1.0
2.0
1.5
2.5
100
TJ = 25°C
50
TJ = 125°C
3.0
3.5
TJ = −55°C
5.0
4.5
4.0
VGS, GATE−TO−SOURCE VOLTAGE (V)
Figure 1. On−Region Characteristics
Figure 2. Transfer Characteristics
ID = 30 A
TJ = 25°C
7
6
5
4
3
2
1
0
4
5
6
7
8
9
10
6.0
5.5
VDS, DRAIN−TO−SOURCE VOLTAGE (V)
8
5
4
3
VGS = 10 V
2
1
0
0
10
20
30
40
50
60
70
80
90 100
VGS, GATE−TO−SOURCE VOLTAGE (V)
ID, DRAIN CURRENT (A)
Figure 3. On−Resistance vs. Gate−to−Source
Voltage
Figure 4. On−Resistance vs. Drain Current and
Gate Voltage
1.8
1.6
150
3.0
9
1.7
200
0
100K
ID = 30 A
VGS = 10 V
TJ = 150°C
IDSS, LEAKAGE (nA)
RDS(on), DRAIN−TO−SOURCE RESISTANCE (m)
ID, DRAIN CURRENT (A)
160
140
RDS(on), DRAIN−TO−SOURCE RESISTANCE (m)
ID, DRAIN CURRENT (A)
VDS = 3 V
20
0
RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED)
250
6V
180
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
−50 −25
10K
TJ = 125°C
1K
TJ = 85°C
100
10
0
25
50
75
100
125
150
175
5
10
15
20
25
30
35
TJ, JUNCTION TEMPERATURE (°C)
VDS, DRAIN−TO−SOURCE VOLTAGE (V)
Figure 5. On−Resistance Variation with
Temperature
Figure 6. Drain−to−Source Leakage Current
vs. Voltage
www.onsemi.com
3
40
NVMFD5C446N
TYPICAL CHARACTERISTICS
VGS, GATE−TO−SOURCE VOLTAGE (V)
10K
C, CAPACITANCE (pF)
Ciss
Coss
1K
100
TJ = 25°C
VGS = 0 V
f = 1 MHz
Crss
10
0
5
10
15
20
25
30
35
40
10
9
8
7
6
Qgs
5
Qgd
4
3
VDS = 32 V
ID = 30 A
TJ = 25°C
2
1
0
5
0
10
15
20
25
30
35
VDS, DRAIN−TO−SOURCE VOLTAGE (V)
Qg, TOTAL GATE CHARGE (nC)
Figure 7. Capacitance Variation
Figure 8. Gate−to−Source vs. Total Charge
100
VGS = 10 V
VDS = 32 V
IS, SOURCE CURRENT (A)
VGS = 0 V
t, TIME (ns)
100
td(off)
tf
tr
td(on)
10
1
TJ = 125°C
TJ = 25°C
0.1
1
0.3
10
0.4
0.5
TJ = −55°C
0.6
0.7
0.8
0.9
1.0
RG, GATE RESISTANCE ()
VSD, SOURCE−TO−DRAIN VOLTAGE (V)
Figure 9. Resistive Switching Time Variation
vs. Gate Resistance
Figure 10. Diode Forward Voltage vs. Current
1000
100
100
10 s
TC = 25°C
VGS ≤ 10 V
Single Pulse
10
1
RDS(on) Limit
Thermal Limit
Package Limit
0.1
0.1
1
10
TJ(initial) = 25°C
IPEAK (A)
ID, DRAIN CURRENT (A)
10
0.5 ms
1 ms
10 ms
10
TJ(initial) = 100°C
1
100
1000
0.00001
0.0001
0.001
0.01
VDS, DRAIN−TO−SOURCE VOLTAGE (V)
TIME IN AVALANCHE (s)
Figure 11. Maximum Rated Forward Biased
Safe Operating Area
Figure 12. Maximum Drain Current vs. Time in
Avalanche
www.onsemi.com
4
NVMFD5C446N
TYPICAL CHARACTERISTICS
100
R(t) (°C/W)
50% Duty Cycle
10 20%
10%
5%
1 2%
1%
0.1
Single Pulse
0.01
0.000001
0.00001
0.0001
0.001
0.01
0.1
1
10
100
1000
PULSE TIME (sec)
Figure 13. Thermal Response
DEVICE ORDERING INFORMATION
Device
Marking
Package
Shipping†
NVMFD5C446NT1G
5C446N
DFN8
(Pb−Free)
1500 / Tape & Reel
NVMFD5C446NWFT1G
446NWF
DFN8
(Pb−Free, Wettable Flanks)
1500 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
www.onsemi.com
5
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
DFN8 5x6, 1.27P Dual Flag (SO8FL−Dual)
CASE 506BT
ISSUE F
1
2X
SCALE 2:1
0.20 C
D
A
B
D1
8
7
6
ÉÉ
ÉÉ
ÉÉ
PIN ONE
IDENTIFIER
NOTE 7
1
2
2X
0.20 C
5
DATE 23 NOV 2021
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. DIMENSION b APPLIES TO PLATED TERMINAL AND IS MEASURED
BETWEEN 0.15 AND 0.30 MM FROM THE TERMINAL TIP.
4. PROFILE TOLERANCE APPLIES TO THE EXPOSED PAD AS WELL
AS THE TERMINALS.
5. DIMENSIONS D1 AND E1 DO NOT INCLUDE MOLD FLASH,
PROTRUSIONS, OR GATE BURRS.
6. SEATING PLANE IS DEFINED BY THE TERMINALS. A1 IS DEFINED
AS THE DISTANCE FROM THE SEATING PLANE TO THE LOWEST
POINT ON THE PACKAGE BODY.
7. A VISUAL INDICATOR FOR PIN 1 MUST BE LOCATED IN THIS AREA.
E1 E
4X
h
3
4
c
TOP VIEW
A1
0.10 C
A
DETAIL B
0.10 C
NOTE 4
C
SIDE VIEW
DETAIL A
D2
D3
4X
e
1
SEATING
PLANE
NOTE 6
ALTERNATE
CONSTRUCTION
DETAIL A
L
K
4
DIM
A
A1
b
b1
c
D
D1
D2
D3
E
E1
E2
e
G
h
K
K1
L
M
N
MILLIMETERS
NOM
MIN
MAX
−−−
0.90
1.10
−−−
−−−
0.05
0.33
0.42
0.51
0.33
0.42
0.51
0.20
−−−
0.33
5.15 BSC
4.70
4.90
5.10
3.90
4.10
4.30
1.50
1.70
1.90
6.15 BSC
5.70
5.90
6.10
3.90
4.15
4.40
1.27 BSC
0.45
0.55
0.65
−−−
−−−
12 _
0.51
−−−
−−−
0.56
−−−
−−−
0.48
0.61
0.71
3.25
3.50
3.75
1.80
2.00
2.20
SOLDERING FOOTPRINT*
DETAIL B
4.56
M
4X
b1
N
4X
8
G
5
8X
2X
2X
2.08
8X
E2
0.75
0.56
b
K1
BOTTOM VIEW
0.10
C A B
0.05
C
GENERIC
MARKING DIAGRAM*
1
XXXXXX
AYWZZ
NOTE 3
4.84
4X
6.59
3.70
0.70
4X
XXXXXX = Specific Device Code
A
= Assembly Location
Y
= Year
W
= Work Week
ZZ
= Lot Traceability
1.40
2.30
1.00
1.27
PITCH
5.55
DIMENSION: MILLIMETERS
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “G”, may
or may not be present. Some products may
not follow the Generic Marking.
DOCUMENT NUMBER:
DESCRIPTION:
98AON50417E
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

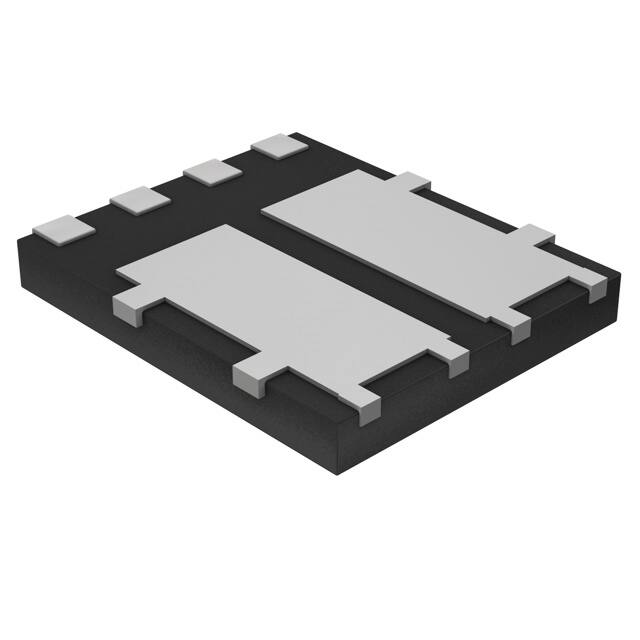

DFN8 5X6, 1.27P DUAL FLAG (SO8FL−DUAL)
PAGE 1 OF 1
onsemi and
are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries. onsemi reserves
the right to make changes without further notice to any products herein. onsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular
purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation
special, consequential or incidental damages. onsemi does not convey any license under its patent rights nor the rights of others.
© Semiconductor Components Industries, LLC, 2019
www.onsemi.com
onsemi,
, and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates
and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property.
A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any
products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the
information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use
of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products
and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information
provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may
vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license
under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems
or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should
Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Email Requests to: orderlit@onsemi.com
onsemi Website: www.onsemi.com
◊
TECHNICAL SUPPORT
North American Technical Support:
Voice Mail: 1 800−282−9855 Toll Free USA/Canada
Phone: 011 421 33 790 2910
Europe, Middle East and Africa Technical Support:
Phone: 00421 33 790 2910
For additional information, please contact your local Sales Representative
