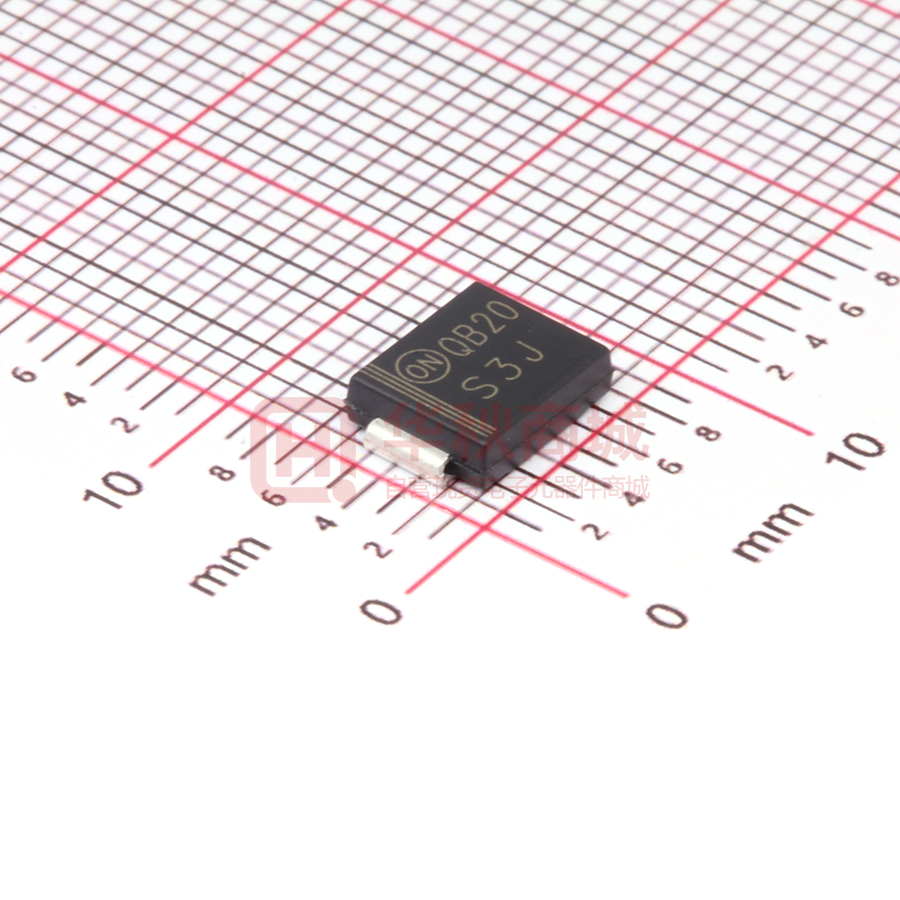

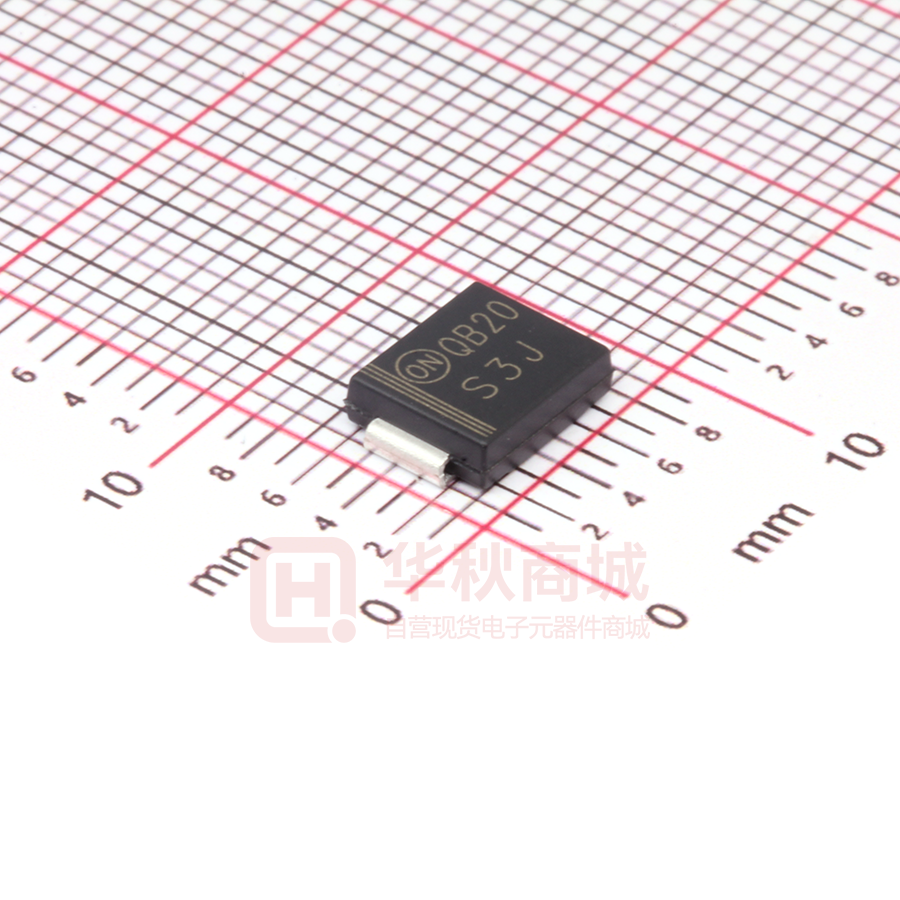

S3J

S3A-S3N General-Purpose Rectifiers Features • • • • • Low−Profile Package Glass−Passivated Junction UL Flammability Classification: 94V−0 UL Certified, UL #E258596 These are Pb−Free Devices www.onsemi.com Cathode (2) ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Value Symbol Parameter S3A S3B S3D S3G S3J S3K S3M S3N 50 100 200 400 600 800 1000 1200 Anode (1) Unit VRRM Maximum Repetitive Reverse Voltage V IF(AV) Average Rectified Forward Current TL = 105°C 3.0 A IFSM Non-Repetitive Peak Forward Surge Current 8.3 ms Single Half-Sine-Wave 100 A Anode (1) Cathode (2) MARKING DIAGRAM TSTG Storage Temperature Range −55 to +150 °C TJ Operating Junction Temperature Range −55 to +150 °C $Y&Z&3 S3X Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. $Y &Z &3 S3X THERMAL CHARACTERISTICS (Note 1) Symbol Value Unit Power Dissipation 2.6 W RqJA Thermal Resistance, Junction-to-Ambient 100 °C/W RqJL Thermal Resistance, Junction-to-Lead 13 °C/W PD SMC CASE 403AG Parameter = ON Semiconductor Logo = Assembly Plant Code = Numeric Date Code = Specific Device Code X = A−N ORDERING INFORMATION See detailed ordering and shipping information on page 3 of this data sheet. 1. Device is mounted on FR−4 PCB 0.013 mm. Land pattern size: refer to the package drawing. Trace size: force line = 50 mil & sense line = 4 mil. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted (per leg)) Value Symbol Parameter S3A Conditions VF Maximum Forward Voltage trr Typical Reverse Recovery Time IF = 0.5 A, IR = 1.0 A, Irr = 0.25 A IR Maximum Reverse Current at Rated VR Typical Total Capacitance CT IF = 3.0 A S3B S3D S3G S3J S3K S3M S3N Unit 1.2 V 2.5 ms TA = 25_C 5 mA TA = 125_C 250 VR = 4.0 V, f = 1.0 MHz 60 pF Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. © Semiconductor Components Industries, LLC, 2001 January, 2019 − Rev. 5 1 Publication Order Number: S3N/D S3A−S3N 4.0 100 3.5 Forward Current, IF [A] Average Rectified Forward Current, IF [A] TYPICAL PERFORMANCE CHARACTERISTICS 3.0 2.5 2.0 1.5 1.0 0.5 0.0 50 60 70 80 90 10 1 0.1 0.01 100 110 120 130 140 150 TJ = 25°C Pulse Width = 300 ms 2% Duty Cycle 0.6 0.7 Lead Temperature [5C] Figure 1. Forward Current Derating Curve 100 Reverse Current, IR [mA] Peak Forward Surge Current, IFSM [A] 1.0 1.1 1.2 1.3 100 8.3 ms Single Half Sine-Wave JEDEC Method 80 60 40 20 0 1 2 5 10 20 50 TA = 125°C 10 1 TA = 25°C 0.1 100 Number of Cycles at 60 Hz 50 10 5 10 20 40 60 80 100 120 140 Figure 4. Reverse Current vs. Reverse Voltage 100 1 0 % of Reverse Voltage, VR [V] Figure 3. Non-Repetitive Surge Current Total Capacitance, CT [pF] 0.9 Figure 2. Forward Voltage Characteristics 120 5 0.8 Forward Voltage, VF [V] 50 100 Reverse Voltage, VR [V] Figure 5. Total Capacitance www.onsemi.com 2 S3A−S3N ORDERING INFORMATION Part Number Top Marking Package Shipping† S3A S3A 3000 / Tape & Reel S3B S3B DO−214AB (SMC) (Pb−Free) S3D S3D S3G S3G S3J S3J S3K S3K S3M S3M S3N S3N †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. www.onsemi.com 3 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SMC CASE 403AG ISSUE O DATE 31 AUG 2016 8.15 7.75 B 1.96 6.25 5.55 3.27 2.75 3.39 B 6.81 0.13 M 7.15 6.60 A C B A LAND PATTERN RECOMMENDATION TOP VIEW 2.45 1.90 A 8° 0° R0.15 4X 2.65 MAX GAGE PLANE C 0.41 0.15 SEATING PLANE 0.30 0.05 4.70 4.40 0.203 0.050 0.13 M C B B A SIDE VIEW A. EXCEPT WHERE NOTED, CONFORMS TO JEDEC DO−214, VARIATION AB B C. D. DOES NOT COMPLY TO JEDEC STD. VALUE ALL DIMENSIONS ARE IN MILLIMETERS DIMENSIONS ARE EXCLUSIVE OF BURRS, MOLD FLASH, AND TIE BAR PROTRUSIONS. DIMENSIONS AND TOLERANCING AS PER ASME Y14.5−2009 LAND PATTERN STANDARD: DIOM7957X241M F. 8° 0° 1.60 0.75 DETAIL A SCALE 2:1 NOTES: E. 0.45 DOCUMENT NUMBER: STATUS: 98AON13442G ON SEMICONDUCTOR STANDARD NEW STANDARD: © Semiconductor Components Industries, LLC, 2002 October, DESCRIPTION: 2002 − Rev. 0 SMC http://onsemi.com 1 Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. Case Outline Number: PAGE 1 OFXXX 2 DOCUMENT NUMBER: 98AON13442G PAGE 2 OF 2 ISSUE O REVISION RELEASED FOR PRODUCTION FROM FAIRCHILD DO214AB TO ON SEMICONDUCTOR. REQ. BY B. NG. DATE 31 AUG 2016 ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. © Semiconductor Components Industries, LLC, 2016 August, 2016 − Rev. O Case Outline Number: 403AG ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ◊ N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative
