BAT54SL
Dual Series Schottky
Barrier Diodes
These Schottky barrier diodes are designed for high speed switching
applications, circuit protection, and voltage clamping. Extremely low
forward voltage reduces conduction loss. Miniature surface mount
package is excellent for hand held and portable applications where
space is limited.
Features
• Extremely Fast Switching Speed
• Low Forward Voltage − 0.35 V (Typ) @ IF = 10 mAdc
• S Prefix for Automotive and Other Applications Requiring Unique
•
www.onsemi.com
30 VOLT
DUAL HOT−CARRIER
DETECTOR AND SWITCHING
DIODES
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
SOT−23
CASE 318
STYLE 11
MAXIMUM RATINGS (TA = 25°C unless otherwise noted)
Symbol
Value
Unit
Reverse Voltage
VR
30
V
Forward Power Dissipation
@ TA = 25°C
Derate above 25°C
PF
225
1.8
mW
mW/°C
200 Max
mA
600
1.0
mA
A
Rating
Forward Current (DC)
IF
Non−Repetitive Peak Forward Current
tp < 10 msec
Square pulse = 1 sec
IFSM
Repetitive Peak Forward Current
Pulse Wave = 1 sec,
Duty Cycle = 66%
IFRM
1
ANODE
2
CATHODE
3
CATHODE/ANODE
MARKING DIAGRAM
LD3M G
G
mA
300
1
Junction Temperature
TJ
−55 to 150
°C
Storage Temperature Range
Tstg
−55 to +150
°C
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
LD3
M
G
= Device Code
= Date Code*
= Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation and/or overbar may
vary depending upon manufacturing location.
ORDERING INFORMATION
Package
Shipping†

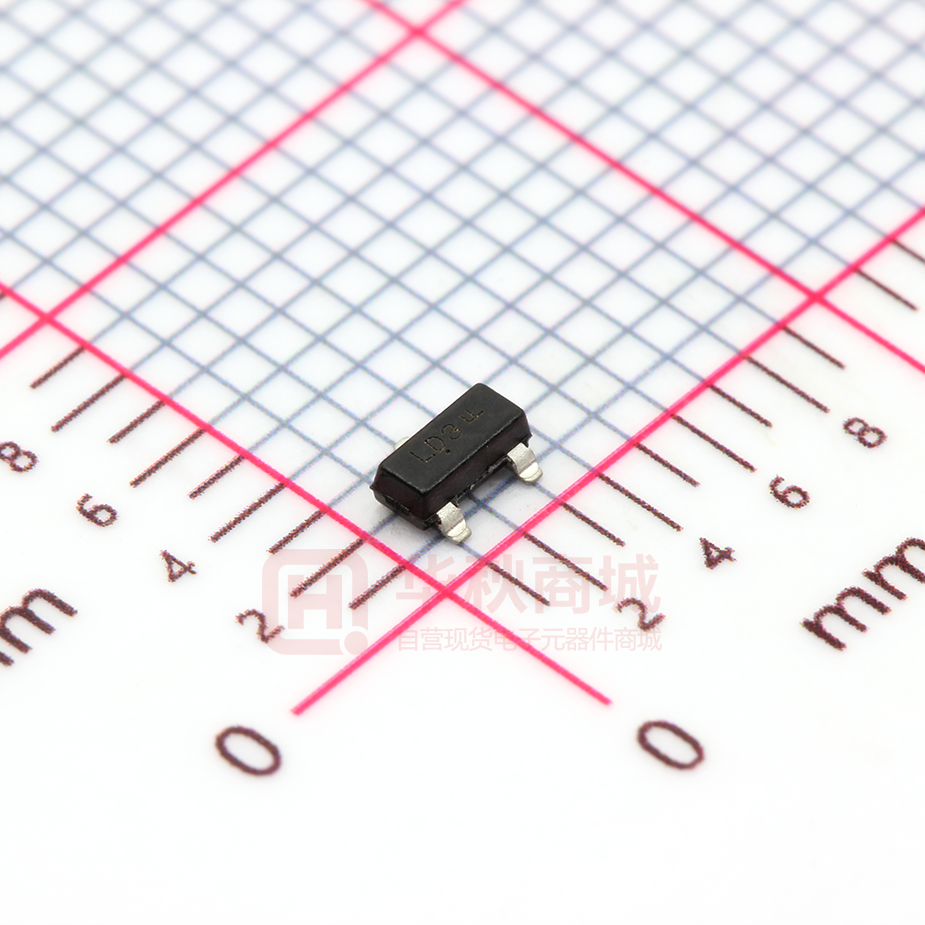

BAT54SLT1G
SOT−23
(Pb−Free)
3,000 / Tape & Reel
SBAT54SLT1G
SOT−23
(Pb−Free)
3,000 / Tape & Reel
Device
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
© Semiconductor Components Industries, LLC, 1997
October, 2016 − Rev. 17
1
Publication Order Number:
BAT54SLT1/D
BAT54SL
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) (EACH DIODE)
Symbol
Characteristic
Reverse Breakdown Voltage
(IR = 10 A)
Min
Typ
Max
30
−
−
−
7.6
10
−
0.5
2.0
−
−
−
−
−
0.22
0.29
0.35
0.41
0.52
0.24
0.32
0.40
0.50
0.80
−
−
5.0
Unit
V(BR)R
Total Capacitance
(VR = 1.0 V, f = 1.0 MHz)
CT
Reverse Leakage
(VR = 25 V)
IR
Forward Voltage
(IF = 0.1 mA)
(IF = 1.0 mA)
(IF = 10 mA)
(IF = 30 mA)
(IF = 100 mA)
VF
Reverse Recovery Time
(IF = IR = 10 mAdc, IR(REC) = 1.0 mAdc, Figure 1)
trr
V
pF
Adc
V
ns
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
820
+10 V
2k
100 H
0.1 F
IF
tr
0.1 F
tp
T
IF
trr
10%
T
DUT
50 OUTPUT
PULSE
GENERATOR
50 INPUT
SAMPLING
OSCILLOSCOPE
90%
iR(REC) = 1 mA
IR
VR
INPUT SIGNAL
OUTPUT PULSE
(IF = IR = 10 mA; measured
at iR(REC) = 1 mA)
Notes: 1. A 2.0 k variable resistor adjusted for a Forward Current (IF) of 10 mA.
Notes: 2. Input pulse is adjusted so IR(peak) is equal to 10 mA.
Notes: 3. tp » trr
Figure 1. Recovery Time Equivalent Test Circuit
www.onsemi.com
2
BAT54SL
100
IF, FORWARD CURRENT (mA)
1 25°C
85°C
10
1 50°C
1.0
25°C
0.1
0.0
−40°C
−55°C
0.2
0.3
0.4
0.1
0.5
VF, FORWARD VOLTAGE (VOLTS)
0.6
Figure 2. Forward Voltage
1000
IR, REVERSE CURRENT (A)
TA = 150°C
100
TA = 125°C
10
1.0
TA = 85°C
0.1
0.01
TA = 25°C
0.001
0
5
15
25
10
20
VR, REVERSE VOLTAGE (VOLTS)
30
Figure 3. Leakage Current
CT, TOTAL CAPACITANCE (pF)
14
12
10
8
6
4
2
0
0
5
10
15
20
VR, REVERSE VOLTAGE (VOLTS)
Figure 4. Total Capacitance
www.onsemi.com
3
25
30
BAT54SL
PACKAGE DIMENSIONS
SOT−23 (TO−236)
CASE 318−08
ISSUE AR
D
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH.
MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF
THE BASE MATERIAL.
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH,
PROTRUSIONS, OR GATE BURRS.
0.25
3
E
1
2
T
HE
DIM
A
A1
b
c
D
E
e
L
L1
HE
T
L
3X b
L1
VIEW C
e
TOP VIEW
A
A1
SIDE VIEW
c
SEE VIEW C
MIN
0.89
0.01
0.37
0.08
2.80
1.20
1.78
0.30
0.35
2.10
0°
MILLIMETERS
NOM
MAX
1.00
1.11
0.06
0.10
0.44
0.50
0.14
0.20
2.90
3.04
1.30
1.40
1.90
2.04
0.43
0.55
0.54
0.69
2.40
2.64
−−−
10 °
MIN
0.035
0.000
0.015
0.003
0.110
0.047
0.070
0.012
0.014
0.083
0°
INCHES
NOM
0.039
0.002
0.017
0.006
0.114
0.051
0.075
0.017
0.021
0.094
−−−
MAX
0.044
0.004
0.020
0.008
0.120
0.055
0.080
0.022
0.027
0.104
10°
STYLE 11:
PIN 1. ANODE
2. CATHODE
3. CATHODE−ANODE
END VIEW
RECOMMENDED
SOLDERING FOOTPRINT
3X
2.90
3X
0.90
0.95
PITCH
0.80
DIMENSIONS: MILLIMETERS
