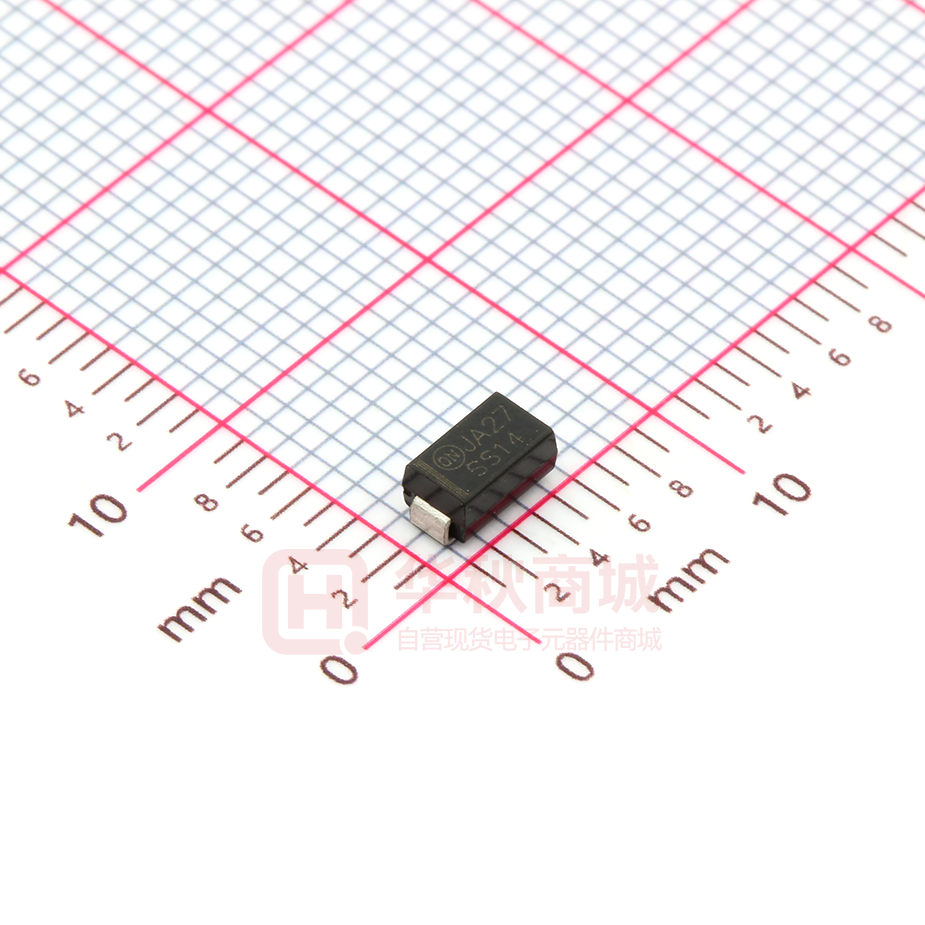

SS14

SS12 - S100 Schottky Rectifier Description The SS12−S100 series includes high−efficiency, low power loss, general−propose schottky rectifiers. The clip −bonded leg structure provides high thermal performance and low electrical resistance. These rectifiers are suited for free wheeling, secondary rectification, and reverse polarity protection applications. www.onsemi.com Cathode (2) Features • Glass−Passivated Junctions • High−Current Capability, Low VF • These Devices are Pb−Free, Halogen Free and are RoHS Compliant Anode (1) SMA CASE 403AE Applications • • • • Low Voltage High−Frequency Inverters Free Wheeling Polarity Protection Anode (1) Cathode (2) MARKING DIAGRAM $Y&Z&3 Sxxx $Y &Z &3 Sxxx = ON Semiconductor Logo = Assembly Plant Code = Date Code (Year & Week) = Specific Device Code ORDERING INFORMATION Part Number Top Mark Package Shipping† SS12 SS12 SMA (Pb−Free/Halogen Free) 7500 / Tape & Reel SS13 SS13 SMA (Pb−Free/Halogen Free) 7500 / Tape & Reel SS14 SS14 SMA (Pb−Free/Halogen Free) 7500 / Tape & Reel SS15 SS15 SMA (Pb−Free/Halogen Free) 7500 / Tape & Reel SS16 SS16 SMA (Pb−Free/Halogen Free) 7500 / Tape & Reel SS18 SS18 SMA (Pb−Free/Halogen Free) 7500 / Tape & Reel SS19 SS19 SMA (Pb−Free/Halogen Free) 7500 / Tape & Reel S100 S100 SMA (Pb−Free/Halogen Free) 7500 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2018 January, 2019 − Rev. 3 1 Publication Order Number: SS19/D SS12 − S100 Specifications ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Value Symbol Parameter SS12 SS13 SS14 SS15 SS16 SS18 SS19 S100 Unit 20 30 40 50 60 80 90 100 V VRRM Peak Repetitive Reverse Voltage IF(AV) Maximum Average Forward Current: 0.375−inch Lead Length at TA = 75°C 1.0 A IFSM Non−Repetitive Peak Forward Surge Current: 8.3 ms Single Half−Sine Wave 40 A Operating Junction Temperature −65 to +125 °C Storage Temperature Range −65 to +150 °C TJ TSTG Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. THERMAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol PD RqJA Characteristic Value Unit Power Dissipation 1.1 W Thermal Resistance, Junction−to−Ambient (Note 1) 88 °C/W 1. Device mounted on FE−4 PCB 0.013 mm. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Value Symbol Parameter Conditions SS12 SS13 SS14 500 SS15 SS16 VF Maximum Forward Voltage IF = 1.0 A 700 IR Maximum Reverse Current at Rated VR TA = 25°C 0.2 TA = 100°C 10 SS18 SS19 850 S100 Unit mV mA Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. www.onsemi.com 2 SS12 − S100 20 1 SS12 − SS14 10 0.75 SINGLE PHASE HALF WAVE 60 Hz RESISTIVE OR INDUCTIVE LOAD P.C.B. MOUNTED ON 0.2x0.2”(5.0x5.0mm) COPPER PAD AREAS 0.5 0.25 0 Forward Current, IF [A] Average Rectified Forward Current, IF [A] TYPICAL PERFORMANCE CHARACTERISTICS 0 20 40 60 80 100 120 5 SS18 − S100 1 TJ = 255C Pulse Width = 300 ms 1% Duty Cycle 0.1 140 SS15 − SS16 0 Lead Temperature [°C] 30 1.2 1.4 1.6 1.8 2 400 25 Total Capacitance, CT [pF] Peak Forward Surge Current, IFSM [A] 1 Figure 2. Forward Voltage Characteristics 8.3 ms Single Half-Sine-Wave JEDEC Method 20 15 10 5 1 2 5 10 20 50 S100 o TA= 125 C o o TA= 25 C 0.1 o TA= −20 C 0.01 o TA= −65 C 1E−3 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 50 40 30 20 0.5 1 5 10 Figure 4. Total Capacitance 10 TA= 75 C TJ = 255C 100 Reverse Voltage, VR [V] Figure 3. Non−Repetitive Surge Current 1 200 10 0.1 100 Number of Cycles at 60 Hz Forward Current, IF [A] 0.6 0.8 Forward Voltage, VF [V] Figure 1. Forward Current Derating Curve 0 0.2 0.4 1.6 1.8 Forward Voltage, VF [V] Figure 5. Low−Current Forward Voltage Characteristics www.onsemi.com 3 50 100 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SMA CASE 403AE ISSUE O B B 5.60 4.80 0.13 M C B DATE 31 AUG 2016 A 2.65 2.95 2.50 1.65 1.20 B 1.75 4.30 B A 4.75 4.00 LAND PATTERN RECOMMENDATION TOP VIEW 2.50 MAX A 2.20 1.90 B C 0.203 0.050 2.05 1.95 NOTES: 0.30 0.05 0.13 M C SIDE VIEW 8° 0° B A A. EXCEPT WHERE NOTED, CONFORMS TO JEDEC DO214 VARIATION AC. B DOES NOT COMPLY JEDEC STANDARD VALUE. C. ALL DIMENSIONS ARE IN MILLIMETERS. D. DIMENSIONS ARE EXCLUSIVE OF BURRS, MOLD FLASH AND TIE BAR PROTRUSIONS. E. DIMENSIONS AND TOLERANCE AS PER ASME Y14.5−2009. E. LAND PATTERN STD. DIOM5025X231M R0.15 4X GAGE PLANE 0.45 8° 0° 0.41 0.15 1.52 0.75 DETAIL A SCALE 20 : 1 DOCUMENT NUMBER: DESCRIPTION: 98AON13440G SMA Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com ON Semiconductor Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 www.onsemi.com 1 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
