SS15FA

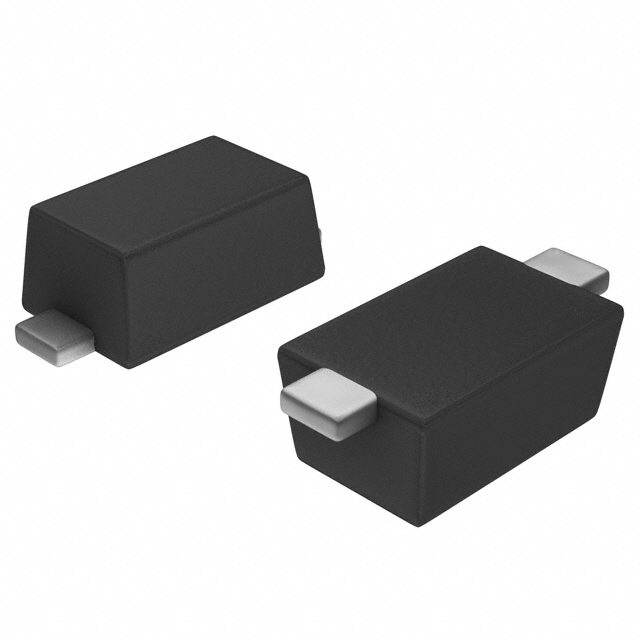

DATA SHEET www.onsemi.com Schottky Barrier Rectifiers, Surface Mount, 1 A, 50 V - 150 V 1 Cathode 2 Anode Rectifier SS15FA - S115FA 2 Features • • • • • • • Low Power Loss, High Efficiency Guard Ring for Overvoltage Protection High Surge Current Capability UL Flammability 94V−0 Classification MSL 1 per J−STD−020 Green Molding Compound These Devices are Pb−Free and are RoHS Compliant 1 SOD−123FL CASE 425AB MARKING DIAGRAM YYYY ZXXXW YYYY Z XXX W Band Indicates Cathode = Binary Calendar Year Code Scheme = Assembly Plant Code = Specific Device Code = Single Digit Week Code ORDERING INFORMATION Part Number Device Code Marking Package Shipping† SS15FA 15L SOD−123FL (Pb−Free) 3000 / Tape & Reel SS16FA 16L SOD−123FL (Pb−Free) 3000 / Tape & Reel SS19FA 19L SOD−123FL (Pb−Free) 3000 / Tape & Reel S110FA 10L SOD−123FL (Pb−Free) 3000 / Tape & Reel S115FA 1AL SOD−123FL (Pb−Free) 3000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2016 March, 2022 − Rev. 3 1 Publication Order Number: S110FA/D SS15FA − S115FA SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Value Symbol Parameter SS15FA SS16FA SS19FA S110FA S115FA Unit VRRM Repetitive Peak Reverse Voltage 50 60 90 100 150 V VRMS RMS Reverse Voltage 35 42 63 70 105 V DC Blocking Voltage 50 60 90 100 150 V VR IF(AV) Average Forward Rectified Current 1 A IFSM Peak Forward Surge Current: 8.3 ms Single Half Sine− Wave Superimposed on Rated Load 30 A Operating Junction Temperature Range −55 to +150 °C Storage Temperature Range −55 to +150 °C TJ TSTG Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. THERMAL CHARACTERISTICS (TA = 25°C unless otherwise noted) (Note 1) Symbol Characteristic Value Unit ΨJL Junction−to−Lead Thermal Characteristics 16 °C/W RqJA Junction−to−Ambient Thermal Resistance 152 °C/W 1. Per JESD51−3 Recommended Thermal Test Board. Device mounted on FR−4 PCB, board size = 76.2 mm x 114.3 mm. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Value Symbol Parameter Conditions SS15FA SS16FA SS19FA S110FA VF Maximum Instantaneous Forward Voltage (Note 2) IF = 0.5 A 0.58 0.70 IF = 1.0 A 0.70 0.80 IR Maximum Reverse Current at Rated VR TJ = 25°C 0.4 0.05 TJ = 100°C 6.0 − TJ = 125°C − 0.5 S115FA Unit 0.75 V 0.90 mA CJ Typical Junction Capacitance VR = 4 V, f = 1 MHz 54 35 pF Trr Typical Reverse Recovery Time IF = 0.5 A, IR = 1 A, IRR = 0.25 A 5.6 8.3 ns Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 2. Pulse test with PW = 300 ms, 1% duty cycle. www.onsemi.com 2 SS15FA − S115FA PEAK FORWARD SURGE CURRENT (A) AVERAGE FORWARD CURRENT (A) TYPICAL PERFORMANCE CHARACTERISTICS 1.2 SS15FA − S115FA 1 0.8 0.6 0.4 0.2 0 0 25 75 50 100 125 150 LEAD TEMPERATURE (°C) 40 20 10 0 1 IF − FORWARD CURRENT (A) IF − FORWARD CURRENT (A) 0.1 Figure 2. Maximum Non−Repetitive Forward Surge Current SS15FA − SS16FA TA = 150°C TA = −55°C TA = 125°C TA = −40°C SS19FA − S110FA TA = 150°C 0.1 0.2 0.3 0.4 0.5 0.6 0.7 TA = −40°C TA = 25°C 0.01 0.8 0.0 0.1 VF − FORWARD VOLTAGE (V) 0.4 0.5 0.6 0.7 0.8 10000 IR − REVERSE CURRENT (mA) S115FA IF − FORWARD CURRENT (A) 0.3 Figure 4. Typical Forward Characteristics 1 TA = 150°C 0.1 TA = −55°C TA = 125°C TA = −40°C TA = 25°C 0.1 0.2 VF − FORWARD VOLTAGE (V) Figure 3. Typical Forward Characteristics 0.01 0.0 TA = −55°C TA = 125°C 0.1 TA = 25°C 0.01 0.0 100 10 1 NUMBER OF CYCLES AT 60 Hz Figure 1. Forward Current Derating Curve 1 8.3ms Single Half Sine−Wave 30 0.2 0.3 0.4 0.5 0.6 0.7 1000 100 10 TA = 75°C TA = 150°C 1 0.1 TA = 25°C 0.01 TA = −55°C TA = −40°C 0.001 1E−4 SS15FA − SS16FA 1E−5 10 0.8 TA = 125°C 20 30 40 50 60 70 80 90 100 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) VF − FORWARD VOLTAGE (V) Figure 6. Typical Reverse Characteristics Figure 5. Typical Forward Characteristics www.onsemi.com 3 SS15FA − S115FA TYPICAL PERFORMANCE CHARACTERISTICS (continued) 1000 1000 CJ − JUNCTION CAPACITANCE (pF) IR − REVERSE CURRENT (mA) 10000 TA = 150°C 100 TA = 125°C 10 1 TA = 75°C 0.1 TA = 25°C 0.01 TA = −40°C 0.001 TA = −55°C 1E−4 1E−5 20 SS19FA − S115FA 30 40 50 60 70 80 90 100 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) SS15FA−SS16FA 100 SS19FA−S115FA 10 1 0.1 1 10 100 VR − REVERSE VOLTAGE (V) Figure 7. Typical Reverse Characteristics Figure 8. Typical Junction Capacitance www.onsemi.com 4 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SOD−123FA CASE 425AB ISSUE A DOCUMENT NUMBER: DESCRIPTION: 98AON13722G SOD−123FA DATE 11 AUG 2022 Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 onsemi and are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries. onsemi reserves the right to make changes without further notice to any products herein. onsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. onsemi does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
