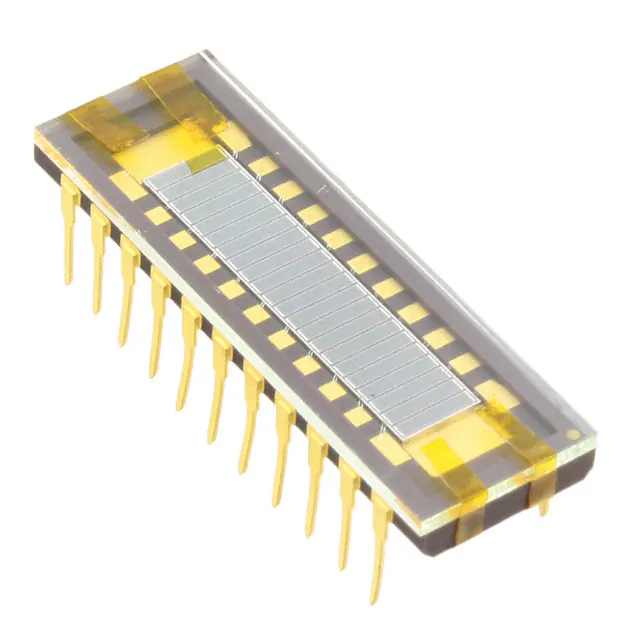

AXUV20ELG

AXUV20ELG

  • 厂商:

    OPTODIODE

  • 封装:

    DIP22 Modular

  • 描述:

    Photodiode 200ns

  • 数据手册
  • 价格&库存
AXUV20ELG 数据手册
From Deep UV to Mid-IR AXUV20ELG Photodiode 20 Element An ITW Company FEATURES • 22 Pin Dual-In-Line Package • Ideal for Electron Detection • Protective Cover Plate3 Electro-Optical Characteristics at 25 °C Parameters Test Conditions Active Area 0.75 mm x 4.1 mm Responsivity (see graphs on next page) Min Typ Max Units mm2 3 A/W Reverse Breakdown Voltage, VR IR = 1 µA Capacitance, C VR = 0 V 1 nF Rise Time VR = 0 V 200 nsec Shunt Resistance (per element) Vf = ± 10 mV 20 25 Volts 100 MOhms Thermal Parameters Units Storage and Operating Temperature Range 1 Ambient -10°C to 40°C Nitrogen or Vacuum -20°C to 80°C 2 Lead Soldering Temperature 1 Temperatures exceeding these parameters may create oxide growth on the active area. Over time responsivity to low energy radiation and wavelengths below 150 nm will be compromised. 2 0.080" from case for 10 seconds. 3 Shipped with temporary cover to protect the photodiode array and wire bonds. Review the Application Note, “Handling Precautions for AXUV, SXUV, and UVG Detectors”, prior to removing cover. Revision November 26, 2019 260°C Page 1 of 3 From Deep UV to Mid-IR AXUV20ELG Photodiode 20 Element An ITW Company Typical Electron Response RESPONSIVITY (A/W) 0.30 0.25 0.20 0.15 0.10 0.05 0.00 100 1000 10,000 ENERGY (ev) 100,000 Typical EUV-UV Photon Response RESPONSIVITY (A/W) 0.30 0.25 0.20 0.15 0.10 0.05 0.00 0 50 100 150 200 WAVELENGTH (nm) 250 Typical UV-VIS-NIR Photon Responsivity RESPONSIVITY (A/W) 0.5 0.4 0.3 0.2 0.1 0.0 200 Revision November 26, 2019 300 400 500 600 700 WAVELENGTH (nm) 800 900 1000 1100 Page 2 of 3 From Deep UV to Mid-IR An ITW Company AXUV20ELG Photodiode 20 Element Package Information Dimensions are in inch [metric] units. Pin Description Pins Connection Pins Connection 1, 12 Common Anode 13 Cathode Element 20 n/a Cathode Element 1 14 Cathode Element 18 2 Cathode Element 3 15 Cathode Element 16 3 Cathode Element 5 16 Cathode Element 14 4 Cathode Element 7 17 Cathode Element 12 5 Cathode Element 9 18 Cathode Element 10 6 Cathode Element 11 19 Cathode Element 8 7 Cathode Element 13 20 Cathode Element 6 8 Cathode Element 15 21 Cathode Element 4 9 Cathode Element 17 22 Cathode Element 2 10 Cathode Element 19 n/a Cathode Element 22 11 Cathode Element 21 Specifications are subject to change without prior notice. 1260 Calle Suerte, Camarillo, California 93012 Phone: +1 805.499.0335 | Fax: +1 805.499.8108 | sales@optodiode.com | www.optodiode.com Revision November 26, 2019 Page 3 of 3
