AXUVPS7

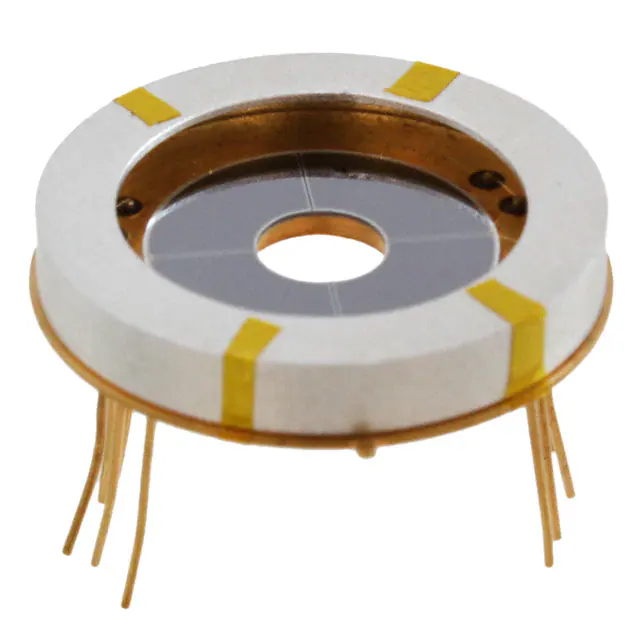

From Deep UV to Mid-IR AXUVPS7 Quad Electron Detector 146 mm2 An ITW Company FEATURES • Ideal for Electron Detection • Circular Active Area Electro-Optical Characteristics at 25°C (Per Element) Parameters Test Conditions Min Active Area (per element) Typ Max Units mm2 36.5 Responsivity (see graphs on next page) 0.07 VR = ± 10 mV 10 MOhm Reverse Breakdown Voltage, VR IR = 1 µA 5 Volts Capacitance, C VR = 0 V Shunt Resistance, RsH Rise Time 0.08 2 VR = 2 V, RL = 50 Ω 0.09 A/W 6 nF 2 usec Thermal Parameters Storage and Operating Temperature Range 1 Ambient Units -10°C to 40°C Nitrogen or Vacuum -20°C to 80°C 2 Lead Soldering Temperature 1 Temperatures exceeding these parameters may create oxide growth on the active area. Over time responsivity to low energy radiation and wavelengths below 150 nm will be compromised. 2 0.080" from case for 10 seconds. 260°C Shipped with temporary cover to protect photodiode and wire bond. Review Opto Diode, “Handling Precautions for IRD Detectors”, prior to removing cover. Revision August 24, 2020 Page 1 of 4 From Deep UV to Mid-IR AXUVPS7 Quad Electron Detector 146 mm2 An ITW Company Typical Electron Response RESPONSIVITY (A/W) 0.30 0.25 0.20 0.15 0.10 0.05 0.00 100 1000 10,000 ENERGY (ev) 100,000 Typical EUV-UV Photon Response RESPONSIVITY (A/W) 0.30 0.25 0.20 0.15 0.10 0.05 0.00 0 50 100 150 200 WAVELENGTH (nm) 250 Typical UV-VIS-NIR Photon Responsivity RESPONSIVITY (A/W) 0.5 0.4 0.3 0.2 0.1 0.0 200 Revision August 24, 2020 300 400 500 600 700 WAVELENGTH (nm) 800 900 1000 1100 Page 2 of 4 From Deep UV to Mid-IR AXUVPS7 Quad Electron Detector 146 mm2 An ITW Company Capacitance vs. Voltage 1800 CAPACITANCE (pF) 1600 1400 1200 1000 800 600 400 200 0 0 5 10 VOLTAGE (V) 15 20 25 Dark Current vs. Voltage DARK CURRENT (nA) 0.6 0.5 0.4 0.3 0.2 0.1 0.0 Revision August 24, 2020 0 2 4 6 8 VOLTAGE (V) 10 12 14 16 Page 3 of 4 From Deep UV to Mid-IR An ITW Company Quad Electron Detector 146 mm2 AXUVPS7 Package Information Dimensions are in inch [metric] units. Specifications are subject to change without prior notice. 1260 Calle Suerte, Camarillo, California 93012 Phone: +1 805.499.0335 | Fax: +1 805.499.8108 | sales@optodiode.com | www.optodiode.com Revision August 24, 2020 Page 4 of 4
