OD-469L

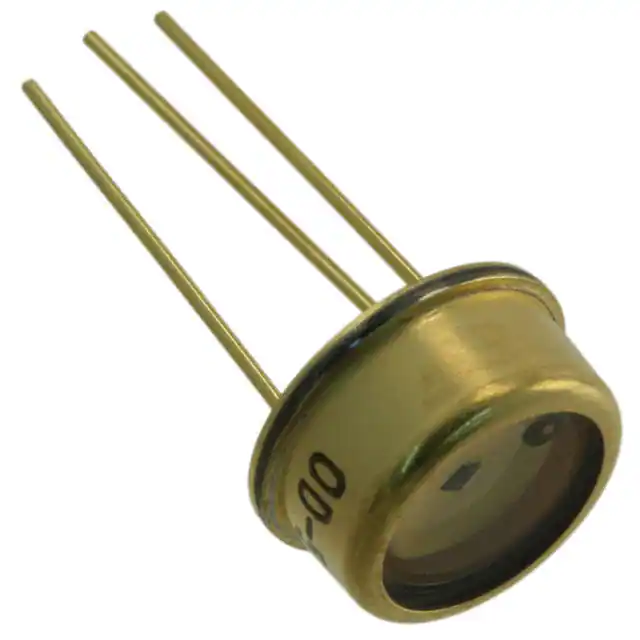

HIGH OUTPUT BLUE LED FEATURES OD-469L • Narrow beam angle • Hermetic package • Convenient TO-5 package with leads Dimensions are nominal values in inches unless otherwise specified. RoHS ELECTRO-OPTICAL CHARACTERISTICS AT 25°C PARAMETERS Total Power Output, Po TEST CONDITIONS IF = 350mA IF = 350mA IF = 350mA IR = 2μA MIN 80 465 TYP 170 470 22 7 MAX 475 UNITS mW nm nm Dominant Emission Wavelength, λd Spectral Bandwidth at 50%, Δλ Half Intensity Beam Angle, θ Forward Voltage, VF Reverse Breakdown Voltage, VR 5 3.2 3.8 Volts Volts Deg ABSOLUTE MAXIMUM RATINGS AT 25°C Power Dissipation (Infinite Heatsink) Continuous Forward Current Reverse Voltage 1000mW 350mA 5V 2A Peak Forward Current (1/10 duty cycle @ 1kHz) Lead Soldering Temperature (1/16" from case for 10sec) 260°C THERMAL PARAMETERS Storage and Operating Temperature Range Maximum Junction Temperature Thermal Resistance, RTHJA1 -55°C TO 100°C 150°C/W Typical 60°C/W Typical 125°C Thermal Resistance, RTHJA2 1 Heat transfer minimized by measuring in still air with minimum heat conducting through leads. 2 Air circulating at a rapid rate to keep case temperature at 25°C. 750 Mitchell Road, Newbury Park, California 91320 Phone: (805) 499-0335, Fax: (805) 499-8108 Email: sales@optodiode.com, Website: www.optodiode.com HIGH OUTPUT BLUE LED OD-469L 1,300 1,200 1,100 POWER DISSIPATION (mW) 1,000 900 800 700 600 500 400 300 200 100 0 THERMAL DERATING CURVE INFINITE HEAT SINK NO HEAT SINK 25 50 75 AMBIENT TEMPERATURE (°C) 100 100 RADIATION PATTERN RELATIVE POWER OUTPUT (%) 80 60 40 20 0 –25 –20 –15 –10 –5 0 5 10 BEAM ANGLE, θ(deg) 15 20 25 750 Mitchell Road, Newbury Park, California 91320 Phone: (805) 499-0335, Fax: (805) 499-8108 Email: sales@optodiode.com, Website: www.optodiode.com
