SPS-3151G_08

SPS-3151G_08

  • 厂商:

    OPTOWAY

  • 封装:

  • 描述:

    SPS-3151G_08 - 3.3V / 1310 nm / 125/155 Mbps LC SFP SINGLE-MODE TRANSCEIVER - Optoway Technology Inc

  • 详情介绍
  • 数据手册
  • 价格&库存
SPS-3151G_08 数据手册
Optoway FEATURES DESCRIPTION SPS-3151G 1 *********************************************************************************************************************************************************************** SPS-3151G (RoHS Compliant) 3.3V / 1310 nm / 125/155 Mbps LC SFP SINGLE-MODE TRANSCEIVER ********************************************************************************************************************************************************************** l Hot-Pluggable SFP Footprint LC Optical Transceiver l Small Form-Factor Pluggable (SFP) MSA compatible l Compliant with SONET OC-3 LR-1/ SDH STM-1 (L-1.1) l AC/AC Coupling according to MSA l D istance up to 50 km l Single +3.3 V Power Supply l RoHS Compliant l 0 to 70oC Operating Case Temeprature l Class 1 Laser International Safety Standard IEC-60825 Compliant The SPS-3151G series single mode transceiver is small form factor pluggable module for bi-directional serial optical data communications such as SONET OC-3 / SDH STM-1 and Fast Ethernet. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1310 nm. The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. APPLICATIONS l ATM Switches and Routers l SONET / SDH Switch Infrastructure l Fast Ethernet Applications LASER SAFETY This single mode transceiver is a Class 1 laser product. It complies with IEC-60825 and FDA 21 CFR 1040.10 and 1040.11. The transceiver must be operated within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug. Distance (km) 50 Wavelength Package (nm) 1310 LC SFP Temp. (oC) 0 to 70 TX Power RX Sens. RoHS (dBm) (dBm) Compliant 0 to -5 -34 Yes ORDER INFORMATION P /No. SPS-3151G Bit Rate (Mb/s) 125 / 155 SONET /SDH LR-1/L-1.1 Absolute Maximum Ratings Parameter Storage Temperature Operating Case Temperature Power Supply Voltage Symbol Tstg Topr Vcc Min -40 0 -0.5 Max 85 70 3.6 Units o C o C V Notes Recommended Operating Conditions Parameter Power Supply Voltage Operating Case Temperature Power Supply Current Data Rate Symbol Vcc Topr ICC (TX+RX) Min 3.1 0 Typ 3.3 200 125/155 Max 3.5 70 300 200 Units / Notes V o C mA Mb/s *********************************************************************************************************************************************************************** OPTOWAY TECHNOLOGY INC. No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303 Tel: 886-3-5979798 Fax: 886-3-5979737 E-mail: sales@optoway.com.tw http: // www.optoway.com.tw 1/1/2008 V2.0 Optoway Transmitter Specifications (0 oC < Topr < 70 oC, 3.1V < Vcc < 3.5V) Parameter Symbol Min Typ Max Units Optical Optical Transmit Power Po -5 --0 dBm Output Center Wavelength 1280 1310 1350 nm λ Output Spectrum Width ----4 nm ∆λ Extinction Ratio ER 10 ----dB Output Eye Compliant with Bellcore TR-NWT-000253 and ITU recommendation G.957 Optical Rise Time tr 2 ns Optical Fall Time tf 2 ns Relative Intensity Noise RIN -120 dB/Hz Electrical Data Input Current – Low IIL -350 µA Data Input Current – High IIH 350 µA Differential Input Voltage VIH - V IL 0.5 2.4 V TX Disable Input Voltage – Low TDIS, L 0 0 .5 V TX Disable Input Voltage – High TDIS, H 2.0 Vcc V TX Disable Assert Time T ASSERT 10 µs TX Disable Deassert Time TDEASSERT 1 ms TX Fault Output Voltage -- Low TFaultL 0 0 .8 V TX Fault Output Voltage -- High TFaultH 2.0 Vcc+0.3 V 1. Output power is power coupled into a 9/125 µm single mode fiber. 2. There is an internal 4.7K to 10K ohm pull-up resistor to VccTX. 3. Open collector compatible, 4.7K to 10K ohm pull-up to Vcc (Host Supply Voltage). SPS-3151G Notes 1 RMS (σ) 2 *********************************************************************************************************************************************************************** 10 % to 90% Values 10 % to 90% Values Peak-to-Peak 2 2 3 3 Receiver Specifications (0oC < Topr < 70oC, 3.1V < Vcc < 3.5V) Parameter Symbol Min Typ Max Optical Sensitivity Sens -34 Maximum Input Power Pin -8 Signal Detect -- Asserted Pa ---34 Signal Detect -- Deasserted Pd -47 ----Signal detect -- Hysteresis 1.0 --Wavelength of Operation 1200 --1600 Electrical Differential Output Voltage VOH – VOL 0.6 2.0 Output LOS Voltage -- Low VOL 0 0.8 Output LOS Voltage -- High VOH 2.0 Vcc+0.3 4. Measured at 2 23-1 PRBS at BER 1E-10. 5. Open collector compatible, 4.7K to 10K ohm pull-up to Vcc (Host Supply Voltage). Units dBm dBm dBm dBm dB nm V V V Notes 4 4 Transition: low to high Transition: high to low 5 5 *********************************************************************************************************************************************************************** OPTOWAY TECHNOLOGY INC. No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303 Tel: 886-3-5979798 Fax: 886-3-5979737 E-mail: sales@optoway.com.tw http: // www.optoway.com.tw 1/1/2008 V2.0 Optoway CONNECTION DIAGRAM SPS-3151G 3 *********************************************************************************************************************************************************************** PIN 1 2 3 4 5 6 7 8 9 10 Signal Name TX GND TX Fault TX Disable MOD-DFE2 MOD-DEF1 MOD-DEF0 N/C LOS RX GND RX GND Description Transmitter Ground Transmitter Fault Indication T ransmitter Disable (Module disables on high or open) Modulation Definition 2 – Two wires serial ID Interface Modulation Definition 1 – Two wires serial ID Interface Modulation Definition 0 – Ground in Module Not Connected Loss of Signal Receiver Ground Receiver Ground PIN 11 12 13 14 15 16 17 18 19 20 Signal Name Description RX GND Receiver Ground RX DATA OUT- Inverse Receiver Data Out RX DATA OUT+ Receiver Data Out RX GND Vcc RX Vcc TX TX GND TX DATA IN+ TX DATA INTX GND Receiver Ground Receiver Power – 3 .3V±5% Transmitter Power – 3 .3V±5% Transmitter Ground Transmitter Data In Inverse Transmitter Data In Transmitter Ground Module Definition Module Definition 4 MOD-DEF2 PIN 4 SDA MOD-DEF1 PIN 5 SCL MOD-DEF0 PIN 6 LV-TTL Low Interpretation by Host Serial module definition protocol Module Definition 4 specifies a serial definition protocol. For this definition, upon power up, MOD-DEF(1:2) appear as no connector (NC) and MOD-DEF(0) is TTL LOW. When the host system detects this condition, it activates the serial protocol. The protocol uses the 2-wire serial CMOS E 2PROM protocol of the ATMEL AT24C01A/02/04 family of components. *********************************************************************************************************************************************************************** OPTOWAY TECHNOLOGY INC. No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303 Tel: 886-3-5979798 Fax: 886-3-5979737 E-mail: sales@optoway.com.tw http: // www.optoway.com.tw 1/1/2008 V2.0 Optoway RECOMMENDED CIRCUIT SCHEMATIC VeeT Tx_DISABLE Tx_FAULT (1,17,20) 3 2 4.7K to 10KΩ TD + 18 Z=50Ω TD 19 Z=50Ω VccT 16 10nF 1μH Vcc 3.3V 10μF 10nF 1μH VccR 15 10nF 10μF 10μF TD TD + SPS-3151G 4 *********************************************************************************************************************************************************************** Tx_DISABLE Tx_FAULT LD Driver 100Ω SerDes IC Protocol IC RD - 12 Z=50Ω 100Ω RD - POST Amp RD + 13 Z=50Ω 4.7K to 10KΩ RD + depending on SERDES LOSS OF SINGAL LOS VeeR MOD_DEF(0) 8 (9,10,11,14) 6 5 4 4.7K to 10KΩ Vcc 3.3V 4.7K to 10KΩ MODULE DETECT SCL SDA 4.7K to 10KΩ EEPROM MOD_DEF(1) MOD_DEF(2) SFP module PACKAGE DIAGRAM Units in mm Note: Specifications subject to change without notice. *********************************************************************************************************************************************************************** OPTOWAY TECHNOLOGY INC. No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303 Tel: 886-3-5979798 Fax: 886-3-5979737 E-mail: sales@optoway.com.tw http: // www.optoway.com.tw 1/1/2008 V2.0 Optoway Revision History V ersion 1 .0 2 .0 SPS-3151G 5 *********************************************************************************************************************************************************************** Subject Initial datasheet Revise package diagram for high port density use Release Date 2005/12/1 2008/1/1 *********************************************************************************************************************************************************************** OPTOWAY TECHNOLOGY INC. No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303 Tel: 886-3-5979798 Fax: 886-3-5979737 E-mail: sales@optoway.com.tw http: // www.optoway.com.tw 1/1/2008 V2.0
SPS-3151G_08
1. 物料型号: - 型号:SPS-3151G - 位速率:125/155 Mb/s - SONET/SDH:LR-1/L-1.1 - 距离:50 km - 波长:1310 nm - 封装:LC SFP - 温度:0to70 - TX功率:0 to-5 dBm - RX灵敏度:-34 dBm - RoHS合规性:是

2. 器件简介: - SPS-3151G系列单模收发器是一种小型可插拔模块,用于双向串行光数据通信,如SONET OC-3/SDH STM-1和Fast Ethernet。它具有SFP 20针连接器,允许热插拔功能。该模块设计用于单模光纤,在1310 nm的标称波长下工作。发射部分使用多量子阱激光器,符合国际安全标准IEC-60825的1类激光器。接收部分使用集成的InGaAs探测器前置放大器(IDP)安装在光头内和一个限制后放大器IC。

3. 引脚分配: - 1: TX GND(发射机地) - 2: TX Fault(发射机故障指示) - 3: TX Disable(发射机禁用,模块在高电平或开路时禁用) - 4: MOD-DFE2(调制定义2 - 两线串行ID接口) - 5: MOD-DEF1(调制定义1 - 两线串行ID接口) - 6: MOD-DEF0(调制定义0 - 模块内的地) - 7: N/C(未连接) - 8: LOS(信号丢失) - 9: RX GND(接收机地) - 10: RX GND(接收机地) - 11: RX GND(接收机地) - 12: RX DATA OUT-(逆接收数据输出) - 13: RX DATA OUT+(接收数据输出) - 14: RX GND(接收机地) - 15: Vcc RX(接收机电源 - 3.3V±5%) - 16: Vcc TX(发射机电源 - 3.3V±5%) - 17: TX GND(发射机地) - 18: TX DATA IN+(发射机数据输入) - 19: TX DATA IN-(逆发射机数据输入) - 20: TX GND(发射机地)

4. 参数特性: - 绝对最大额定值包括存储温度(-40至85℃)、工作外壳温度(0至70℃)和电源电压(-0.5至3.6V)。 - 推荐工作条件包括电源电压(3.1至3.5V)、工作外壳温度(0至70℃)和电源电流(200至300mA)。

5. 功能详解: - 发射器规格包括光输出功率、中心波长、输出谱宽度、消光比、输出眼图、光上升时间、光下降时间和相对强度噪声。 - 接收器规格包括灵敏度、最大输入功率、信号检测、工作波长和电差分输出电压等。

6. 应用信息: - 应用于ATM交换机和路由器、SONET/SDH交换基础设施和Fast Ethernet应用。

7. 封装信息: - 封装类型为LC SFP,工作温度范围为0至70℃。
SPS-3151G_08 价格&库存

很抱歉,暂时无法提供与“SPS-3151G_08”相匹配的价格&库存,您可以联系我们找货

免费人工找货

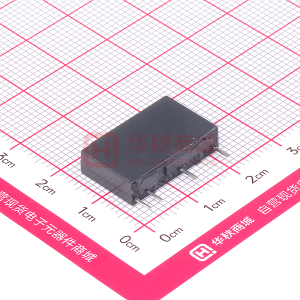

G6DN-1A-SL DC24
