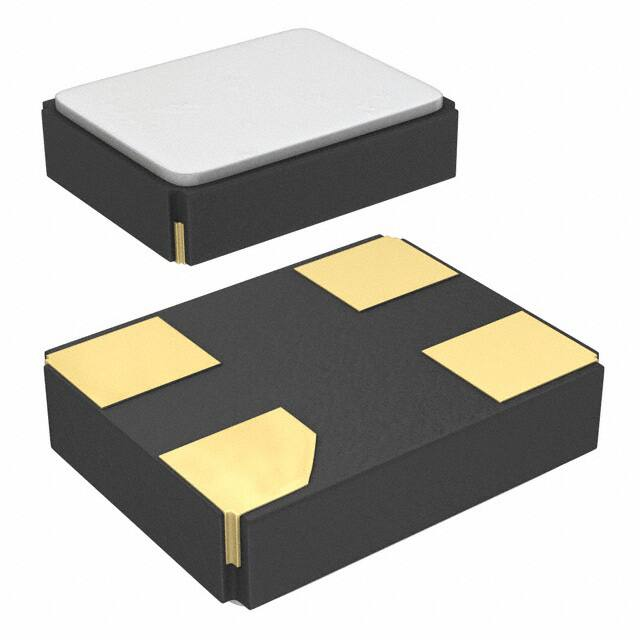

CX2016DB48000C0FPLC1

Preliminary Specifications Drawing No. USY1M-H1-18659-00 Issued Date. Nov,14,2018 Messrs:Digikey Note: Part Number will be revised in case of specification change. Product Type Quartz Crystal Series CX2016DB Frequency 48000kHz Customer Part Number - Customer Specification Number - KYOCERA Part Number CX2016DB48000C0FPLC1 Remarks Pb-Free, RoHS Compliant, MSL 1 Customer Approval Approval Signature Approved Date Department Person in charge Seller KYOCERA Corporation Corporate Electronic Components Group Electronic Components Sales Division 6 Takeda Tobadono-cho, Fushimi-ku, Kyoto 612-8501 Japan TEL. No. 075-604-3500 FAX. No. 075-604-3501 Manufacturer Corporate Electronic Components Group Crystal Components Division Shiga Yohkaichi Plant 1166-6 Hebimizo-cho, Higashiomi, Shiga 527-8555 Japan TEL: 0748-22-1550 FAX: 0748-22-1590 Design Department Quality Assurance Approved by Checked by Issued by KYOCERA Corporation Crystal Units Design Engineering Section K.Shimizu T.Fujii A.Muraoka R.Yoshida Y.Nozaki Crystal Product Division KYOCERA Corporation KBS-5079J(1 / 10) Drawing No. USY1M-H1-18659-00 Revision History Rev.No. 00 Description of revision First Edition Date Nov,14,2018 KYOCERA Corporation KBS-5079J(2 / 10) Approved by T.Fujii Checked by A.Muraoka Issued by R.Yoshida Y.Nozaki Drawing No. USY1M-H1-18659-00 1. APPLICATION The purpose of this document is applied to CX2016DB quartz crystal. 2. KYOCERA PART NUMBER CX2016DB48000C0FPLC1 3. RATINGS Items SYMB. Rating Unit Operating Temperature range Topr -40 to +85 deg. C Storage Temperature range Tstg -40 to +85 deg. C Remarks 4. CHARACTERISTICS 4-1 ELECTRICAL CHARACTERISTICS Items Electrical Specification SYMB. Min Typ. Max Mode of Vibration Fundamental Test Condition Unit Nominal Frequency F0 48 MHz Nominal Temperature TNOM +25 °C Load Capacitance CL 7.0 pF Frequency Tolerance df/F -10.0 +10.0 df/F -20.0 +20.0 -1.0 -3.0 +1.0 +3.0 10 100 μW 30 Ω 100 μW Frequency Temperature Characteristics Frequency Aging Rate Drive Level Equivalent Series Resistance Drive Level Insulation Resistance Pd ESR Pd 10 IR 500 +25±3°C -40 to +85°C ppm 1year 5years MΩ 5. Measurement Condition 5.1 Frequency measurement Measuring instrument : IEC PI-Network Test Fixture IEC 60444-8 STD (Pi circuit 41901A) 5.2 Equivalent series resistance (ESR) measurement Measuring instrument : IEC PI-Network Test Fixture Load Capacitance : Series KYOCERA Corporation KBS-5079J(3 / 10) 100V(DC) Remarks Drawing No. USY1M-H1-18659-00 6. APPEARANCES, PHYSICAL DIMENSION OUTLINE DIMENSION (not to scale) 1 (Top View) (TOP VIEW) (Connection) 2.00±0.10 #4 #4 GND #3 GND (NC) 48000 1.60±0.10 #3 HOT K801 Z GND #2 4-R0.10 3 0.40±0.05 2 4 (Side View) #1 HOT PIN NO. #1 #2 #3 #4 0.15±0.025 #1 #2 GND PIN Layout HOT GND HOT GND(NC) 4-0.10 4-0.57±0.10 #1 #2 4-0.49±0.10 4-0.08 (Bottom View) C 0.20 UNIT: mm #4 #3 MARKING 1 Nominal Frequency First 5digit of the frequency is indicated. 2 Identification [K] is to indicate 1Pin direction. 3 Date Code Last 1 Digit of YEAR and WEEK (Ex) 2018,Jan,01  801 4 Manufacturing Location Y Japan(Yamagata Higashine) Z Japan(Shiga Yohkaichi) TThailand *The font of marking is for reference only. KYOCERA Corporation KBS-5079J(4 / 10) Drawing No. USY1M-H1-18659-00 7. RECOMMENDED LAND PATTERN (not to scale) 0.5 0.9 0.8 1.1 0.3 0.8 0.9 1.4 UNIT: mm KYOCERA Corporation KBS-5079J(5 / 10) Drawing No. USY1M-H1-18659-00 8. TAPING & REEL 8-1.Dimensions 4.0±0.1 1.5 +0.1 -0 Unreeling direction 1.75±0.1 2.0±0.05 2.30±0.1 3.5±0.05 8.0±0.2 1.05±0.05 4.0±0.1 0.7±0.05 0.2±0.05 1.90±0.1 8-2.Leader and Carrier tape Empty compartment Empty compartment Component END Leader START 100~200mm 160mm or more 400~560mm 8-3.Direction (Orientation shall be checked from the top cover tape side) 12345 K123 Z 12345 K123 Z 12345 K123 Z 12345 K123 Z Unreeling direction 8-4.Specification 1. Material of the carrier tape is either polystyrene or A-PET (ESD). 2. Material of the cover tape is polyester (ESD). 3. The seal tape shall not cover the sprocket holes and not protrude from the carrier tape. 4. Tensile strength of carrier tape: 10N or more. 5. The R of the corner of each cavity is 0.2RMAX. 6. The alignment between centers of the cavity and sprocket hole shall be 0.05mm or less. 7. The orientation shall be checked from the top cover tape side as shown in 7-3. 8. Peeling force of cover tape: 0.1 to 1.0N. 9. The component will fall out naturally when cover tape is removed and set upside down. Over 1kg 160~180 30cm/1min Cover tape Carrier tape KYOCERA Corporation KBS-5079J(6 / 10) Drawing No. USY1M-H1-18659-00 8-5.Reel Specification W R S U Q P 180 Reel (3,000 pcs Max. ) Symbol Dimension P Q R 180 +0/-3 60 +1/-0 13±0.2 S U W 21±0.8 2.0±0.5 9±1 Symbol Dimension (Unit: mm) 330 Reel (15,000 pcs Max.) Symbol Dimension Symbol Dimension P Q R 330±2.0 100±1.0 13±0.2 S U W 21±0.8 2.0±0.5 9.4±1.0 (Unit: mm) KYOCERA Corporation KBS-5079J(7 / 10) Drawing No. USY1M-H1-18659-00 9. Environmental requirements After conducting the following tests, component needs to meet below conditions. Frequency: Fluctuation within +/-10 x 10-6 CI: Fluctuation within +/-20% or 5 whichever is larger 9.1 Resistance to Shock Test condition 3 times natural drop from 100cm onto hard wooden board. 9.2 Resistance to Vibration 9.3 Resistance to Heat Test condition frequency : 10 - 55 - 10 Hz Amplitude : 1.5mm Cycle time : 15 minutes Direction : X,Y,Z (3direction),2h each. Test condition The quartz crystal unit shall be stored at a temperature of +852°C for 500h and subjected to room temperature for 1h before measurement. 9.4 Resistance to Cold Test condition The quartz crystal unit shall be stored at a temperature of -402°C for 500h and subjected to room temperature for 1h before measurement. 9.5 Thermal Shock Test condition The quartz crystal unit shall be subjected to 500 temperature cycles shown in table below,Then it shall be subjected to room temperature for 1h before mesurement. Cycle :-402°C (30min.)+252°C(5min.)  +852°C(30min.) +252°C(5min.) KYOCERA Corporation KBS-5079J(8 / 10) Drawing No. 9.6 Resistance to Moisture 9.7 Soldering condition USY1M-H1-18659-00 Test condition The quartz crystal unit shall be stored at a temperature of +602°C with relative humidity of 90% to 95% for 240 h. Then it shall be subjected to room temperature for 1h before measurement. 1.) Type of solder Material  lead free solder paste Melting point  +2205°C 2.) Reflow temp.profile Temp [°C] Time[sec] Preheating +150 to +180 150 (typ.) Peak 10 (max.) +2605 Total 300 (max.) Frequency shift : 2ppm 3.) Hand Soldering +350°C 3 sec max 4.) Reflow Times 2 times in below Reflow temp. profile Reflow temp.profile 9.8 Bending Strength Solder this product in center of the circuit board (40mm X 100mm), and add deflection of 3mm. Test board : t=1.6mm 20 PUSH 1.6 Board 10 R5 Product 45 45 R230 press jig KYOCERA Corporation KBS-5079J(9 / 10) UNIT: mm Drawing No. USY1M-H1-18659-00 10. Cautions for use (1) Soldering upon mounting There is a possibility to influence product characteristics when Solder paste or conductive glue comes in contact with product lid or surface. (2) When using mounting machine Please minimize the shock when using mounting machine to avoid any excess stress to the product. (3) Conformity of a circuit We strongly recommend to make sure that Negative resistance (Gain) of IC is designed to be 3 times the ESR (Equivalent Series Resistance) of crystal unit. 11. Storage conditions Please store product in below conditions, and use within 6 months. Temperature +18 to +30°C, and Humidity of 20 to 70 % in the packaging condition. 12. Manufacturing location KYOCERA Corporation Shiga Yohkaichi Plant KYOCERA Corporation Yamagata Higashine Plant KYOCERA Crystal Device Corporation (THAILAND) 13. Quality Assurance Location KYOCERA Corporation Yamagata Higashine Plant: Quality Assurance Division KYOCERA Corporation Shiga Yohkaichi Plant: Quality Assurance Division 14. Quality guarantee In the case when KYOCERA Corporation rooted failure occurred within 1year after its delivery, substitute product will be arranged based on discussion. Quality guarantee of product after 1year of its delivery is waivered. 15. Others In case of any questions or opinions regarding the Specification, please have it in written manner within 45 days after issued date. KYOCERA Corporation KBS-5079J(10 / 10)
