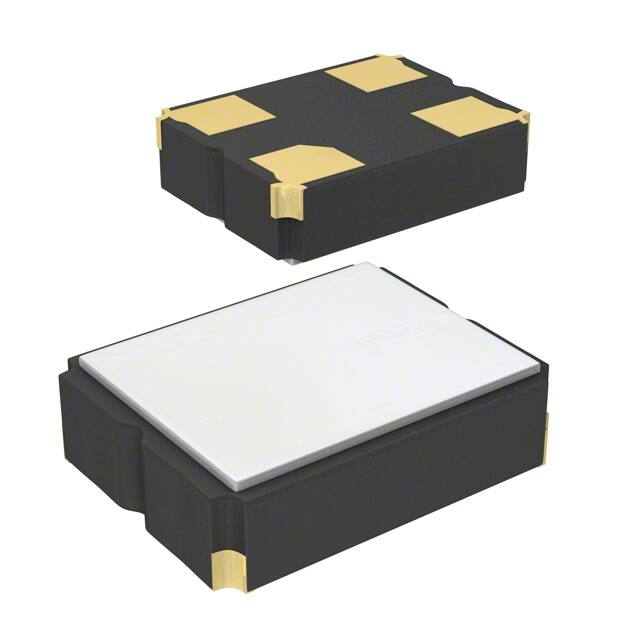

KC2016K80.0000C1GE00

Clock Oscillators Surface Mount Type Clock “K” Series CMOS/ 1.8V, 2.5V, 3.3V Compatible/ 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0mm Features How to Order KC2520K 25.0000 C 1 0 E 00 • Frequency Range 1.5 to 80MHz • CMOS output • Wide Supply Voltage 1.6 to 3.63V • Low current consumption • Option: Low Phase Noise Version ① Operating Freq. Tol. Temperature Note Code × 10−6 Range (°C) ± 50 0 Standard specifications ± 30 −10 to +70 S ± 25 U With only certain ± 50 −40 to +85 frequencies G ± 50 −40 to +105 6 Packaging Tape & Reel KC7050K/ KC5032K : 1000 pcs/ reel KC3225K/ KC2520K/ KC2016K : 2000 pcs/ reel Dimensions (Unit: mm) KC2016K KC2520K 2.5×2.0mm: KC2520K 3.2×2.5mm: KC3225K 5.0×3.2mm: KC5032K 7.0×5.0mm: KC7050K ② Output Frequency (25.0000: 25MHz) ③ Output Type (C: CMOS) ④ Supply Voltage   1 : 1.8V/ 2.5V/ 3.3V Multi Voltage   (Version E : Standard)   2 : 2.5V (Version N : Low Phase Noise)   3 : 3.3V (Version N : Low Phase Noise) ⑤ Frequency Tolerance (See Table 1) ⑥ Symmetry/ INH Function   E : 45/ 55%, Stand-by   N : 45/ 55%, Stand-by, Low Phase Noise ⑦ Customer Special Model Suffix (STD Specification is “00”) Recommended Land Pattern KC2016K 1.85 2.5 #2 0.7 0.8 max. Tolerance : ±0.2mm #1 0.9 0.7 Tolerance : ±0.1mm 0.95 #1 0.3 0.4 2.0 0.5 0.8 max. 0.24 1.2 0.24 #2 0.3 0.8 0.6 0.6 0.6 #4 Marking Area 1.6 Marking Area 0.4 #3 1.45 #4 0.5 #3 0.6 1.2 1.05 0.6 #4 #2 #1 0.9 1.2 KC3225K 0.65 1.0 0.65 #3 2.2 1.75 0.9 Tolerance : ±0.1mm 0.95 0.8 max. 0.24 Marking Area 2.5±0.15 3.2±0.15 KC3225K KC5032K 1.2 1.2 #4 #2 #1 KC5032K 2.5 1.2 #3 2.2 2.54 Tolerance : ±0.2mm 1.4 1.2 max. 0.5 3.2 0.9 5.0 Marking Area KC7050K 1.6 7.0 1.4 KC7050K 1.1 5.08 #4 #2 #1 2.0 4.2 2.6 #3 5.0 Marking Area 1.2 max. 5.08 0.5 (Unit: mm) KC2520K 0.8 2.0 ③④⑤⑥ ⑦ ① Type 2.0×1.6mm: KC2016K Table 1 RoHS Compliant ② Tolerance : ±0.2mm 1.8 Clock Oscillators Surface Mount Type Clock “K” Series CMOS/ 1.8V, 2.5V, 3.3V Compatible/ 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0mm Specifications Item Symbol Output Frequency RangeNote1 fo Conditions Op. Temp.: −10 to +70°C/ −40 to +85°C/ −40 to +105°C Frequency Tolerance f_tol Frequency Aging Storage Temperature Range f_age T_stg Operating Temperature Range T_use Max. Supply Voltage Supply Voltage Initial tolerance, Operating temperature range, Rated power supply voltage change, Op. Temp.: −10 to +70°C Load change, Aging (1 year @25°C), Shock and vibration Op. Temp.: −10 to +70°C @25°C First year — VCC Current Consumption (Maximum Loaded/ 1.5≤F0
