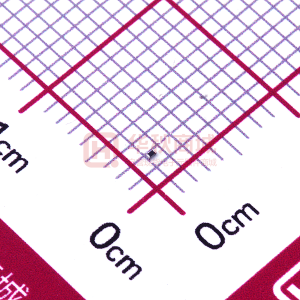

ERJ1G

Thick Film Chip Resistors Thick Film Chip Resistors 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 Type: ERJ XG, 1G, 2G, 3G, 6G, 8G, 14, 12, 12Z, 1T ● Small size and lightweight ● High reliability Metal glaze thick film resistive element and three layers of electrodes ● Compatible with placement machines Taping packaging available ● Suitable for both reflow and flow soldering ● Reference Standards IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B ■ Features ■ Explanation of Part Numbers ● ERJXGN, 1GE, 2GE, 3GE, 6GE, 8GE, 14, 12, 12Z, 1T Series, ±5 % type 1 2 3 4 5 6 7 8 9 10 11 12 E R J 3 G E Y J 1 0 2 V Product Code Thick Film Chip Resistors Size, Power Rating Type : inches Power R. XGN : 01005 0.031 W 0.05 W 1GE : 0201 0.1 W 2GE : 0402 0.1 W 3GE : 0603 0.125 W 6GE : 0805 0.25 W 8GE : 1206 0.5 W 14 : 1210 0.75 W 12 : 1812 0.75 W 12Z : 2010 1W 1T : 2512 Code Y ✽Nil Marking Marking Value Marking on black side No marking Resistance Tolerance Code J 0 Tolerance ±5 % Jumper Code Y C X Packaging Methods Packaging Pressed Carrier Taping 2 mm pitch, 20000 pcs. Pressed Carrier Taping 2 mm pitch, 15000 pcs. Punched Carrier Taping 2 mm pitch, 10000 pcs. Punched Carrier Taping 4 mm pitch Type ERJXGN ERJ1GE ERJ2GE Resistance Value The first two digits are significant figures of resistance and the third one denotes number of zeros following. Decimal Point is expressed by R as 4.7 = 4R7. Jumper is expressed by R00. V U ✽ When omitted, the rest of the P/N factors shall be moved up respectively. (Only XGN, 1GN, 2GE type) ERJ3GE ERJ6GE ERJ8GE ERJ14 Embossed CarrierTaping ERJ12 4 mm pitch ERJ12Z ERJ1T Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. Jul. 2008 Thick Film Chip Resistors ■ Construction Protective coating Electrode (Inner) t b Type (inches) ERJXG (01005) ERJ1G (0201) ERJ2G (0402) ERJ3G (0603) ERJ6G (0805) ERJ8G (1206) ERJ14 (1210) ERJ12 (1812) ERJ12Z (2010) ERJ1T (2512) Dimensions (mm) L W a b t Mass (Weight) (g/1000 pcs.) 0.04 0.15 0.8 2 4 10 16 27 27 45 ■ Dimensions in mm (not to scale) L a W Alumina substrate 0.40 ±0.02 0.20 ±0.02 0.10 ±0.03 0.10 ±0.03 0.13 ±0.02 0.60 ±0.03 0.30 ±0.03 0.10 ±0.05 0.15 ±0.05 0.23 ±0.03 1.00 ±0.05 0.50 ±0.05 0.20 ±0.10 0.25 ±0.05 0.35 ±0.05 1.60 2.00 3.20 3.20 4.50 5.00 6.40 ±0.15 Electrode (Between) 0.80 1.25 1.60 2.50 3.20 2.50 3.20 +0.15 –0.05 ±0.10 0.30 0.40 0.50 0.50 0.50 0.60 0.65 ±0.20 0.30 0.40 0.50 0.50 0.50 0.60 0.60 ±0.15 0.45 0.60 0.60 0.60 0.60 0.60 0.60 ±0.10 ±0.20 ±0.20 ±0.20 ±0.10 +0.05 –0.20 ±0.20 +0.05 –0.15 ±0.20 ±0.20 ±0.20 ±0.10 Thick film resistive element ±0.20 ±0.20 ±0.10 Electrode (Outer) ±0.20 ±0.20 ±0.20 ±0.20 ±0.10 ±0.20 ±0.20 ±0.20 ±0.20 ±0.10 ±0.20 ±0.20 ±0.20 ±0.20 ±0.10 ■ Ratings Type (inches) ERJXG (01005) (0201) Limiting Element Maximum Overload Resistance Power Rating (2) Voltage (Maximum Voltage Tolerance at 70 °C (W) (1) RCWV) (V) (%) (V) 0.031 0.05 0.1 0.1 0.125 0.25 0.5 0.75 0.75 1 15 25 50 75 150 200 200 200 200 200 30 50 100 150 200 400 400 500 500 500 ±5 ±5 ±5 ±5 ±5 ±5 ±5 ±5 ±5 ±5 Resistance Range () T.C.R. [ 10 –6 /°C (ppm/°C)] Category Temperature Range (Operating Temperature Range) (°C) –55 to +125 –55 to +125 –55 to +155 –55 to +155 –55 to +155 –55 to +155 –55 to +155 –55 to +155 –55 to +155 –55 to +155
