BT2HTI

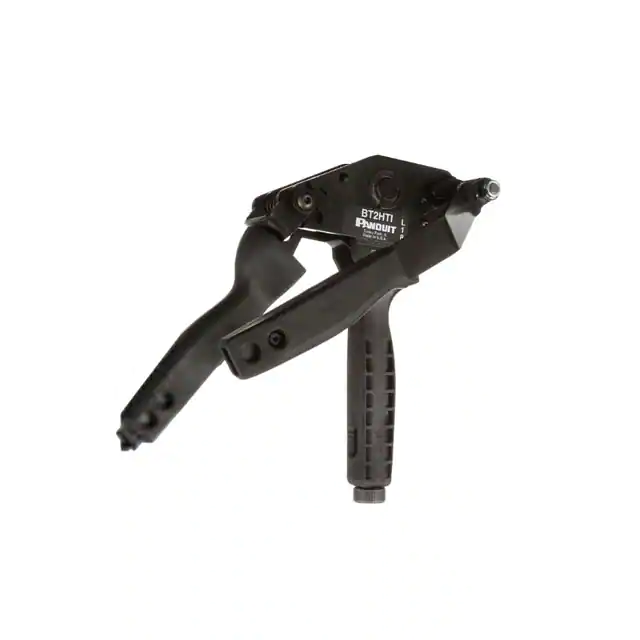

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP. NOTES, UNLESS OTHERWISE SPECIFIED: Panduit Tool Number BT2HTI is used to install coated and uncoated Pan-Steel IMS Series strap and buckles in widths of 3/8” (9.5mm), 1/2” (12mm); and 5/8” (16mm). THIS TOOLS’ FEATURES INCLUDE: • Inverted blade provides longer cut-offs • Single handle trigger for fast installation • Cable strap side entry for immediate positioning of strap and tool • Adjustable controlled or Installer controlled tension • Cut-off capability with the cutter and cutter handle • Easy removal of excess strap. • Multi-position rear handle allows access to tight areas. • Features to release & remove strap from tool before cutting. CABLE TIE CROSS-SECTION CODE: IMS Series straps and buckles. TOOL WEIGHT: 2.6 lbs. (41.6 oz.) Dimensions shown in parentheses are metric File Location: Teamcenter BT2HTI CUSTOMER DRAWING CUSTOMER DRAWING ITEM REVISION NAME: TB28099A01_00 00 REV 8-12-16 DATE BLR BY BJPU CHK JADE APR 10064 RELEASED DESCRIPTION ECN UNLESS OTHERWISE SPECIFIED, DIMENSIONAL TOLERANCES ARE: (.x) ± --(.xxx) ± --(.xx) ± --ANGLES ± --THIRD ANGLE PROJECTION MATERIAL: ---------DRAWING NUMBER: DRAWN BY: DATE: CHK SCALE BLR 8-12-16 BJPU NONE TB28099A01 SHT 1 OF 1 SIZE A
