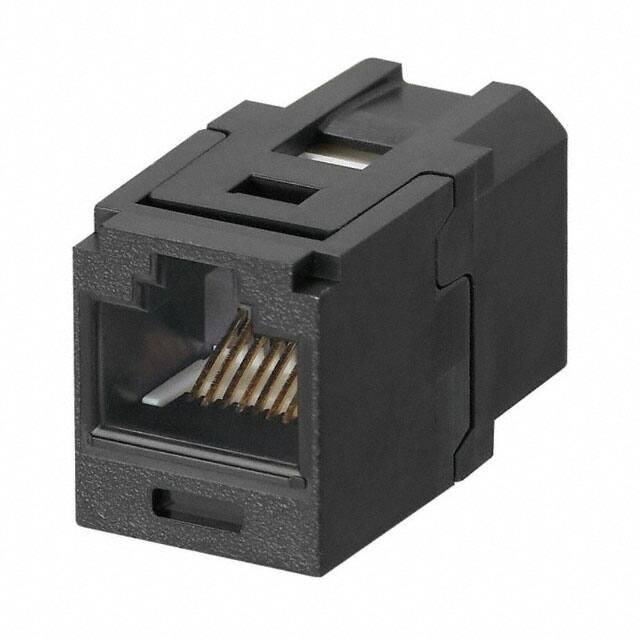

Mini-Com® TX6™ PLUS UTP Coupler Modules and Patch Panel specifications S P E C I F I C AT I O N S H E E T TX6 ™ PLUS UTP Copper Cabling System Category 6/Class E, 8-position, female to female, UTP coupler module shall provide easy plug and play pass through connectivity. Coupler modules shall act as one connecting hardware component in the channel. Coupler modules shall be available individually or installed in a 24-port flat patch panel. Couplers shall be compatible with 6 or 8-position RJ45 UTP patch cords with T568A and T568B wiring schemes. Mini-Com ® TX6 ™ PLUS UTP Coupler Modules Coupler Module: CC688‡ Mini-Com ® TX6 ™ PLUS UTP Coupler Patch Panel CP24688BLY 24-port, 1 RU: technical information Category 6/Class E Exceeds channel requirements of ANSI/TIA-568-C.2 Category 6 and channel performance: ISO 11801 Class E standards at swept frequencies 1 to 250 MHz FCC and ANSI compliance: Meets ANSI/TIA-1096-A; contacts plated with 50 microinches of gold for superior performance IEC compliance: Meets IEC 60603-7 PoE compliance: Meets IEEE 802.3af and IEEE 802.3at for PoE applications RoHs compliance: Compliant UL rated: UL 1863 approved key features and benefits 100% performance tested Confidence that each coupler will deliver the critical electrical performance requirements Modular Couplers snap in and out of all Mini-Com® Faceplates, Modular Patch Panels and industrial bulkheads for easy moves, adds and changes RJ45 interface Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords; backwards compatible Identification Can be clearly identified with optional labels and icons for port identification Populated patch Factory installed 24-port patch panel mounts to standard EIA 19" panel version or 23" racks for greater system flexibility Blockout device (optional) Provides a simple and secure method to control access to data ports while not in use TX6500 ™ UTP Copper Cable Plenum: PUP6504*-UY Riser: PUR6504*-UY TX6000 ™ UTP Copper Cable Plenum: PUP6004* Riser: PUR6004* LSZH (60332-1): PUL6004* LSZH (60332-3): PUZ6004* CM: PUC6004* TX6 ™ PLUS UTP Patch Cords CM (foot lengths): UTPSP^Y CM (meter lengths): UTPSP^^MY LSZH (meter lengths): UTPSPL^^MY Mini-Com ® Angled Modular Patch Panels 24-port, 1 RU: CPPLA24WBLY 48-port, 2 RU: CPPLA48WBLY ® Mini-Com Flat Modular Patch Panels 24-port, 1 RU: CPPL24WBLY 48-port, 2 RU: CPPL48WBLY For additional modular and punchdown patch panels, visit www.panduit.com. Accessories Industrial bulkhead: IAEBH Clear dust cap: MDC-C Blockout device: PSL-DCJB-^^^ Phone icons: CIPIW-C+ Data icons: CIDIW-C+ ‡ applications Mini-Com® TX6™ PLUS UTP Coupler Modules and Patch Panels are a component of the TX6™ PLUS UTP Copper Cabling System. This end-to-end system is interoperable and backwards compatible, providing design flexibility to protect network investments well into the future. Couplers are designed to perform as one connector in the channel, allowing up to 4 couplers in each channel to be used while maintaining channel performance. Couplers are a reliable, modular solution, ideal when setting up networks in a testing environment or during a planned w w w. p a n d u it.c o m system upgrade. With certified performance to the ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards, this system will support the following applications: • Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) • 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM • Token Ring 4/16 • Digital video and broadband/baseband analog video • Voice over Internet Protocol (VoIP) To designate color, add suffix BL (Black, IW (Off White), BU (Blue), GR (Green), OR (Orange), RD (Red), IG (International Gray) or YL (Yellow). * To designate color, add suffix BU (Blue) or WH (White). For additional cable colors, contact customer service. ^ For lengths 1 to 20 feet (one foot increments) and 25, 30, 35, 40 feet, change the length designation in the part number to the desired length. For standard cable colors other than Off White, add suffix BL (Black), BU (Blue), RD (Red), YL (Yellow), GR (Green), OR (Orange) or VL (Violet). For example, the part number for a blue 15-foot patch cord is UTPSP15BUY. ^^ For lengths 1 to 10 meters (one meter increments) and 2.5, 15, 20, 25, 30, 35, 40 meters, change the length designation in the part number to the desired length. For standard cable colors other than Off White, add suffix BL (Black), BU (Blue), RD (Red), YL (Yellow), GR (Green), OR (Orange) or VL (Violet). For example, the part number for a blue15-meter patch cord is UTPSP15MBUY. ^^^To designate color other than Red, add suffix BL (Black), BU (Blue), YL (Yellow), GR (Green), OR (Orange), IW (Off White) or IG (International Gray) at the end of the part number. 10/package. +To designate color other than IW (Off White), replace IW with EI (Electric Ivory), IG (International Gray), BL (Black), BU (Blue), RD (Red), YL (Yellow), GR (Green), OR (Orange) or VL (Violet) in the part number. 100/package. Note: Mini-Com® Coupler Modules are not compatible with Panduit® Surface Mount Boxes. Mini-Com® TX6™ PLUS UTP Coupler Modules and Patch Panel Te s t R e s u l t s Mechanical Test Normal Force Vibration Shock Durability Mating/Unmating Test Method Measurement Typical Test Results — IEC 512-6d Load (grams) Circuit Resistance (mOhms) Contact Disturbance (microseconds) Circuit Resistance (mOhms) Mating Force (N) Un-mating Force (N) >100
