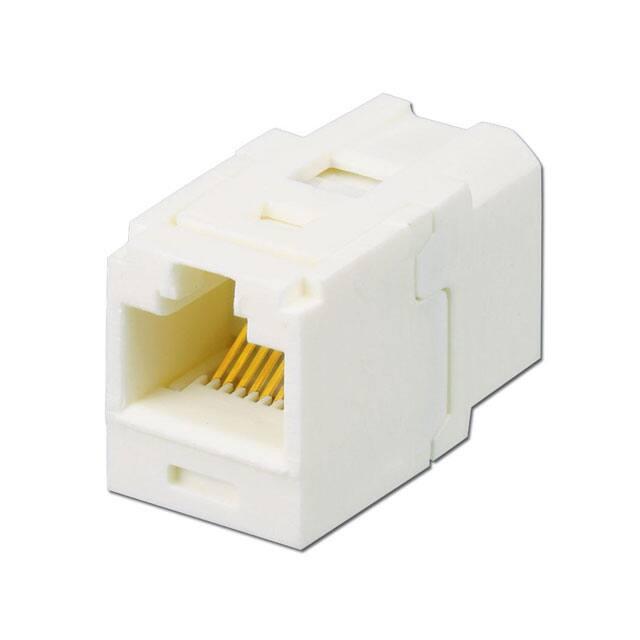

CC688IW

2 1 THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP. A PANDUIT PART# CC688BL CC688IW CC688GR CC688BU CC688OR COLOR WEIGHT DESCRIPTION BLACK INT. WHITE MINI-COM CATEGORY 6 COUPLER MODULE GREEN BLUE ORANGE 1.36 LB/100 PCS (616g/100 PCS) NOTES: 1. CATEGORY 6/CLASS E 8-POSITION FEMALE-TO-FEMALE COUPLER MODULE 2. MATERIAL: MODULE HOUSING - UL94-V0 ABS MODULE CIRCUIT BOARD - GLASS REINFORCED EPOXY RESIN MODULE CONTACT CARRIER - UL94-V0 ABS 3. DIMENSIONS IN PARENTHESES ARE IN METRIC. 4. COMPATIBLE WITH ALL PANDUIT MINI-COM FACEPLATES AND MODULAR PATCH PANELS. NOT COMPATIBLE WITH SURFACE MOUNT BOXES. 5. ACTS AS A SINGLE CONNECTOR IN CATEGORY 6/CLASS E CHANNELS 6. c(UL)US LISTED FILE NUMBER E129886 7. ALSO AVAILABLE AS 24-PORT COUPLER PATCH PANEL, PART NUMBER CP24688BL. B COUPLER MODULE B .71 18.07 1.09 .62 15.86 FRONT REAR ACTUAL SIZE 27.62 PART NUMBER CC688** TITLE MINI-COM CAT6 COUPLER MODULE A A CUSTOMER DRAWING ITEM REVISION NAME M02731CD/01 DATASET FILE NAME M02731CD_DC11/01B MATERIAL: UNLESS OTHERWISE SPECIFIED, DIMENSIONAL TOLERANCES ARE: IN [mm] .X D10100DA/14 A. ADDED PART NUMBERS FOR GREEN, BLUE, AND 02 6-20-14 MDJR REFR EJH ORANGE COLORS.. REMOVED PREVIOUS REVISIONS FOR CLARITY. 02731-11 .XX DATE BY CHK APR DESCRIPTION 2 .010 [.3] ECN SEE NOTE 2 ANGLES DRAWING NUMBER: THIRD ANGLE PROJECTION DRAWN BY REV .XXX .03[.8] NER DATE CHK 7-25-07 02731-11 SIZE SCALE FULL CEF 1 SHT 1 OF 1 A
