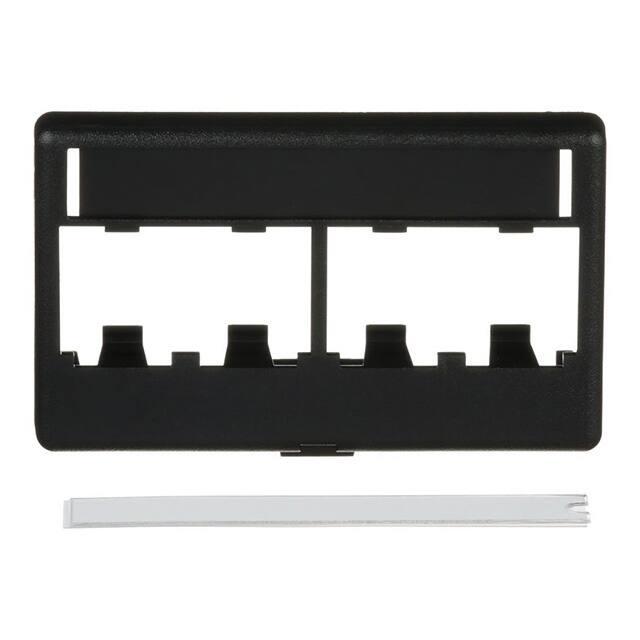

CFFPL4BL

2 1 THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP. PANDUIT P/N CFFPL4** B 2.90 .88 73.7 22.4 WEIGHT .24 LB/10 PCS (110.3 g/10 PCS) NOTES: 1. SEE CURRENT CATALOG FOR ADDITIONAL PART NUMBER SUFFIXES TO INDICATE COLOR AND OR PACKAGE QUANTITY. 2. SEE CATALOG FOR COMPLETE LIST OF PARTS APPLICABLE FOR USE WITH THIS PART. 3. DIMENSIONS IN [] ARE IN METRIC. 4. FACEPLATE ACCEPTS 4 MINI-COM MODULES. 5. FACEPLATE COMES WITH LABEL AND LABEL COVER. 6. FACEPLATE SNAPS INTO STANDARD FURNITURE OPENING. (1.375 X 2.710) MAX PANEL THICKNESS: .09"[2.29MM]. 1.77 B 45.0 .40 10.2 PART NUMBER CFFPL4** TITLE MINI-COM 4 POSITION FURNITURE FACEPLATE WITH LABEL COVER A CUSTOMER DRAWING ITEM REVISION NAME M00719BC/10 DATASET FILE NAME M00719BC_DC/10A MATERIAL: UNLESS OTHERWISE SPECIFIED, DIMENSIONAL TOLERANCES ARE: IN [mm] .X D10100DA/14 .XX 4 3/19/14 JSP REFR MMR REVISED AND REDRAWN, PREVIOUS REVISIONS HAVE BEEN OMMITTED. DATE BY CHK APR DESCRIPTION 2 ABS .010 [.3] ANGLES DRAWING NUMBER: THIRD ANGLE PROJECTION 00719-02 DRAWN BY REV .XXX .03[.8] ECN JSP DATE CHK 8-11-99 00719-02 SIZE SCALE MECA NONE 1 SHT 1 OF 1 A A
