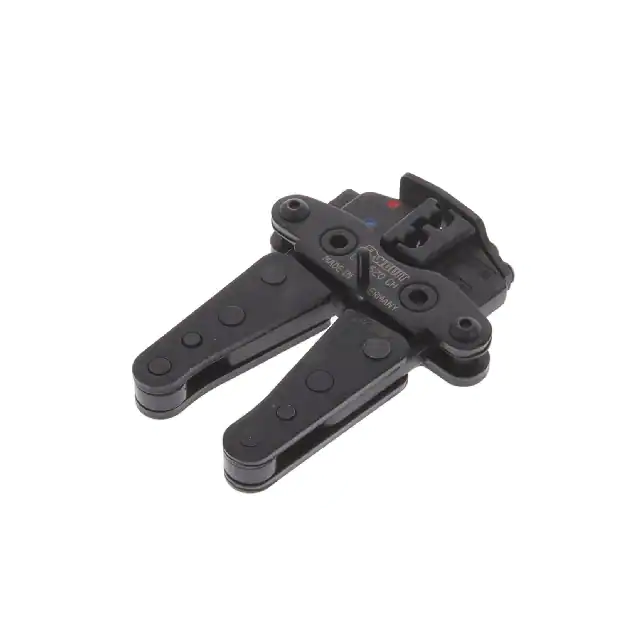

CT-520CH

ELECTRICAL SOLUTIONS A. System Overview Semiautomatic Ferrule Crimping Tool CT-1000 B1. Cable Ties B2. Cable Accessories • Innovative rapid load design utilizes continuously molded ferrules to significantly reduce installation time • Controlled cycle tool cuts, strips, and crimps wire to maximize efficiency Part Number CT-1000 B3. Stainless Steel Ties • Adjustable die setting allows termination of all Panduit #20 – 14 AWG continuously molded ferrules with a single tool Part Description Controlled cycle crimp tool with trapezoid profile for #20 – 14 AWG (0.50 – 2.5mm²) insulated continuously molded ferrules on strips. Also cuts and strips wire. Std. Pkg. Qty. 1 C1. Wiring Duct C2. Surface Raceway C3. Abrasion Protection Controlled Cycle Crimping Tools – In-Line • Military specialty tools help meet military and nuclear test requirements for Class 2 applications • In-line crimp action for greater dielectric strength with uniform insulation compression C4. Cable Management D1. Terminals • Calibration-recalibration is possible for maintaining exact crimp dimensions Part Number CT-400 Part Description Crimps #22 – 14 Panduit insulated terminals, disconnects, and splices. Comes complete with tools for calibration. Has adjustable pre-load and emergency ratchet. Helps meet military and nuclear requirements. CT-460 Crimps #16 – 10 Panduit insulated terminals, disconnects, and splices. Has same features as CT-400 above. Std. Pkg. Qty. 1 1 For proper crimp head selection, see the tooling selection guide for Panduit terminals, splices, and disconnects on pages D1.90 – D1.92, in this catalog. D2. Power Connectors Pneumatic Crimping Tool D3. Grounding Connectors E1. Labeling Systems E2. Labels E3. Pre-Printed & Write-On Markers E4. Permanent Identification E5. Lockout/ Tagout & Safety Solutions F. Index D1.86 • Quickly crimps a variety of loose piece terminals in a variety of wire sizes for medium volume production • Versatile interchangeable crimping heads let you switch terminal types quickly to meet changing production requirements; this tool, when used with only four crimp heads, can crimp a full range of #26 – 10 AWG insulated and non-insulated terminal products • Portable – the small size, ease of bench mounting and quick pneumatic connection allow the tool to be moved from one work station to another or to the work itself Std. Pkg. Qty. 1 Part Number CT-600-A Part Description Pneumatic tool, 6' air hose and carrying case. Does not include crimping heads (ordered separately). CT-500CH Crimping head for most #22 – 14 insulated terminals, splices, and disconnects. 1 CT-520CH Crimping head for most #22 – 14 insulated butted seam disconnects and #26 – 22 insulated terminals. 1 CT-550CH Crimping head for most #22 – 10 insulated terminals and splices. 1 CT-570CH Crimping head for #22 – 10 non-insulated terminals, splices, and disconnects. 1 PD-600-A Positioning device (for bench mounting of CT-600-A). 1 FPC-600-A Foot actuator operating air pressure: 80 – 100 psi .233 SCFM type of air: lubricated. Recommend using Norgren (Brand) #FLR222-012-043008 filter lubricator regulator. 1 K600-A Update kit for foot pedal control and positioning device to work with new CT-600-A pneumatic crimping tool. 1 For proper crimp head selection, see the tooling selection guide for Panduit terminals, splices, and disconnects on pages D1.90 – D1.92, in this catalog. Order number of pieces required, in multiples of Standard Package Quantity. Prime items appear in BOLD.
