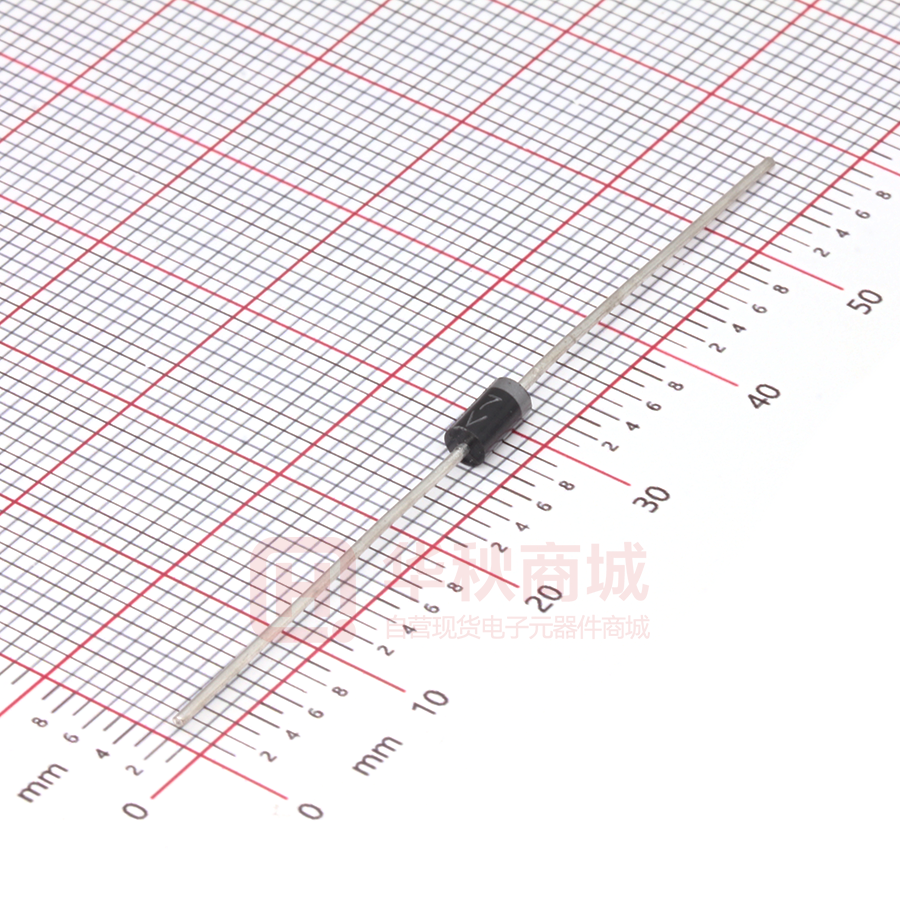

1N4007_AY_10001

1N4001-1N4007 PLASTIC SILICON RECTIFIERS VOLTAGE CURRENT 50 to 1000 Volt 1 Ampere FEATURES 0.034(0.86) 0.028(0.71) • Low forward voltage drop • High current capability 0.205(5.2) • High surge current capability • Lead free in compliance with EU RoHS 2011/65/EU directive 0.107(2.7) 0.080(2.0) 1.0(25.4)MIN. MECHANICAL DATA 0.160(4.1) • High reliability • Case: DO-41 Molded plastic • Epoxy: UL 94V-O rate flame retardant. • Lead: Axial leads, solderable per MIL-STD-750,Method 2026 • Polarity: Color band denotes cathode end • Weight: 0.012 ounces, 0.336 grams 1 Cathode 2 Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load,derate current by 20%. PA RA M E T E R S Y M BO L 1 N4 0 0 1 1 N4 0 0 2 1 N4 0 0 3 1 N4 0 0 4 1 N4 0 0 5 1 N4 0 0 6 1 N4 0 0 7 UNI T S M a ximum Re c ur r e nt P e a k Re ve r s e Vo lt a g e V RRM 50 100 200 400 600 800 1000 V M a ximum RM S Vo l t a g e V RM S 35 70 140 280 420 560 700 V M a ximum DC B l o c k i ng Vo l t a g e V DC 50 100 200 400 600 800 1000 V M a ximum A ve r a g e F o r w a r d C ur r e nt 0 . 3 7 5 " ( 9 . 5 mm) l e a d l e ng t h a t T A = 7 5 O C I F ( AV) 1 A P e a k F o r w a r d S ur g e C ur r e nt : 8 . 3 ms s i ng l e ha l f s i ne w a ve s up e r imp o s e d o n r a t e d l o a d I FSM 30 A M a ximum F o r w a r d Vo lt a g e a t 1 A VF 1 V IR 5 50 μA CJ 15 pF R θJ A R θJ C R θJL 11 0 40 35 T J , T S TG - 55 t o +150 M a ximum DC R e ve r s e C ur r e nt a t R a t e d D C B l o c k i ng Vo l t a g e T J= 2 5 OC T J= 1 0 0 OC Ty p i c a l J unc t i o n C a p a c i t a nc e ( No t e 1 ) Ty p i c a l T he r ma l R e s is t a nc e ( No t e 2 ) O p e r a t ing J unc t i o n a nd S t o r a g e Te mp e r a t ur e R a ng e O C / W O C NOTES : 1. Measured at 1 MHz and applied reverse voltage of 4 VDC. 2. Thermal Resistance from Junction to Ambient and from junction to lead at 0.375”(9.5mm)lead length P.C.B.mounted. December 1,2015-REV.04 PAGE . 1 1N4001-1N4007 AVERAGEFORWARDRECITIFIED CURRENTAMPERES 2.5 2.0 1.5 1.0 0.5 0 0 20 40 60 80 100 120 140 160 INSTANTANEOUS FORWARD CURRENT, AMPERES RATING AND CHARACTERISTIC CURVES 100 40 20 10 4.0 2.0 1.0 0.4 0.2 0.1 0.4 0.6 0.8 1.0 1.2 1.4 1.8 1.6 O AMBIENT TEMPERAURE, C INSTANTANEOUS FORWARD VOLTAGE, VOLTS Fig.2-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 40 PEAK FORWARD SURGE CURRENT, AMPERES INSTANTANEOUS REVERSE CURRENT , m A Fig.1-FORWARD CURRENT DERATING CURVE 1000 o TJ = 125 C 100 10 TJ = 100OC 1.0 35 30 25 20 15 10 5 0 1 2 O TJ = 25 C 5 10 20 50 100 NO. OF CYCLE AT 60HZ Fig.4-MAXIMUMNON-REPETITIVE SURGE CURRENT 0.1 20 40 60 80 100 120 140 PERCENTAGE OF PEAK REVERSE VOLTAGE,% 100 Fig.3-TYPICAL REVERSE CHARACTERISTIC CAPACITANCE, pF 60 40 TJ = 25OC 20 10 6 4 2 1 0.1 0.4 1.0 4 10 40 100 REVERSEVOLTAGE, VOLTS Fig.5-TYPICAL JUNCTION CAPACITANCE December 1,2015-REV.04 PAGE . 2 1N4001-1N4007 Part No_packing code_Version 1N4001_AY_00001 1N4001_AY_10001 1N4001_B0_00001 1N4001_B0_10001 1N4001_R2_00001 1N4001_R2_10001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING December 1,2015-REV.04 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 3 1N4001-1N4007 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. December 1,2015-REV.04 PAGE . 4
