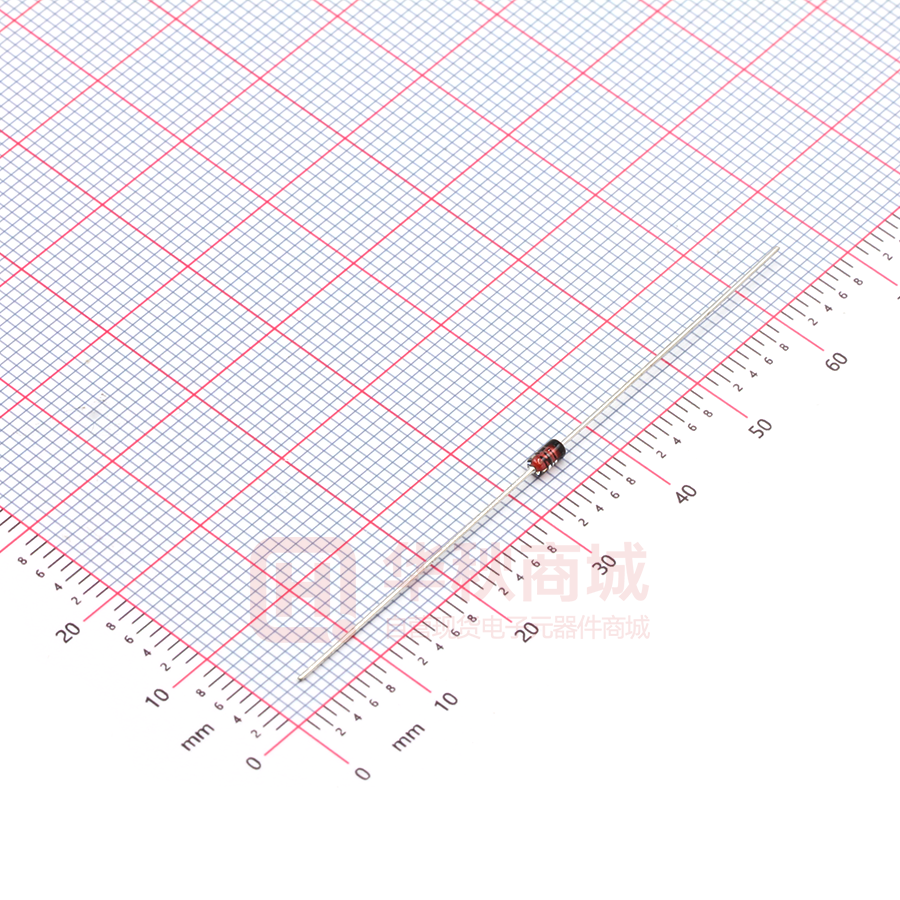

1N4148-35_AY_10001

DATA SHEET 1N4148-34/1N4148-35 SWITCHING DIODES 500 mW POWER 75 Volts DO-34 / DO-35 Unit: mm 1.02(26.0) MIN DO-34 0.017(0.42)TYP FEATURES DO-35 0.020(0.52)TYP Cathode Mark • Fast switching Speed. • Electrically ldentical to Standerd JEDEC • High Conductance • Axial lead Package ldeally Suited for Automatic lnsertion. MECHANICAL DATA 0.165(4.2)MAX DO-35 0.106(2.9)MAX DO-34 VOLTAGE 0.79(2.0)MAX 1.02(26.0) MIN Case: DO-34 / DO-35 glass case. Weight: approximately 0.012g Available in 52mm Tape and Reel Use 1N4148 - 34 to order the DO-34 Package. Use 1N4148 - 35 to order the DO-35 Package. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TJ =25°C unless otherwise noted) SYMBOL 1N4148 UNITS VR 75 V Peak Reverse Voltage VRM 100 V Maximum RMS Voltage VRMS 50 V Maximum DC Blocking Voltage VDC 75 V IAV 150 mA IFSM 500 mA PTOT 500 mW Maximum Forward Voltage at IF =10mA VF 1.0 V Maximum Leakage Current at VR =20V at VR =75V at VR =20V ,TJ= 150 OC IR PARAMETER Reverse Voltage Maximum Average Forward Current at Ta=25 Surge Forward Current at t < 1s and Tj=25 Power Dissipation at Tamb= 25 O C And f >50Hz O C O C nA µA µA 25 5 50 Maximum Capacitance at VF =VR =0 C to t 4 pF Maximum Reverse Recovery Time From IF =-IR =10mA to IRR=-1mA ,VR=6V RL=100 Ω TRR 4 ns Maximum Voltage Rise When Switching On Tested With 50mA Forward Pulses Tp =0.1uA , Rise Time
